IAAF Approved Synthetic Running Track Sport Flooring Rubber Covering For Stadium

Product Overview

Description

IAAF Approved Synthetic Running Track Sport Flooring Rubber Covering For Stadium



JRACE-Carbon Structure water-based IAAF synthetic track material is a health running track material, use water-based resin material as binder.

With excellent ageing resistance and ultraviolet resistance due to the stable carbon structure.

It’s  non-toxic, odourless and green product, with superior physical properties.



Product Advantage

1. Waterborne system, free of heavy metals, very less VOC

2. It’s  non-toxic, odourless, no irritating smell during construction

3. A variety of bright colors for your choice, high color retention and good weather resistance

4. Diffuse reflection design, reduce glare and protect eyes.

5. Soft and elastic surface can prevent sports injury

6. Seldom static electricity, easy to clean

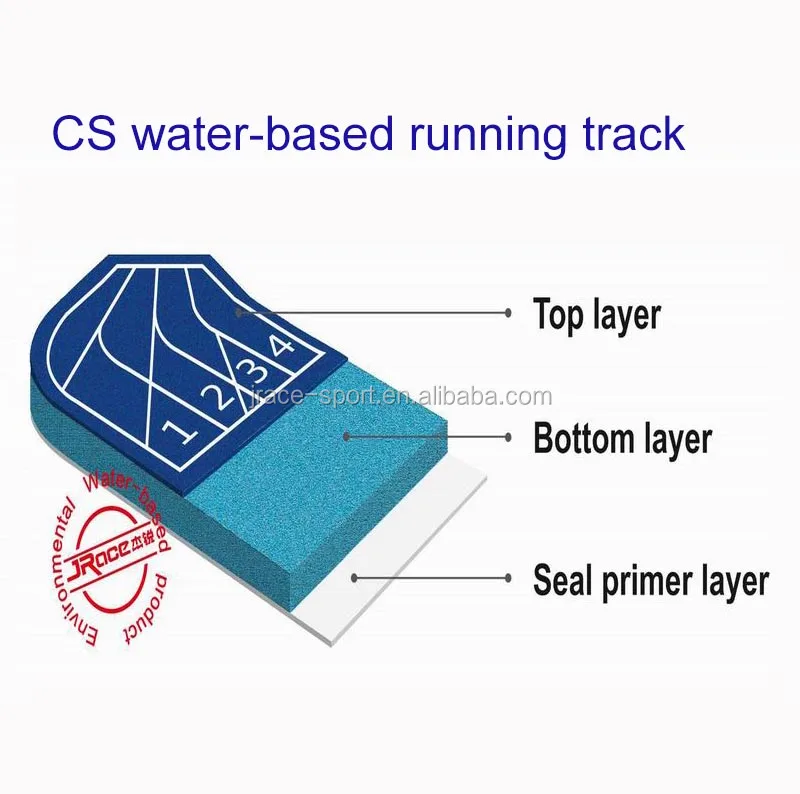

Product Sturture

Structure Specification	Water-based running track (permeable)
Primer layer	105# glue
Elastic layer	105# glue + epdm granule
Top coat	Water-based top coat + epdm granule



























Technical Data



No.	Test Item		National standard	Testing data
1	shock absorption		30-50 %	42 %
2	vertical deformation		0.6-2.5 mm	2.2 mm
3	skip resistance(BPN,20℃)		≥ 47	51
4	Tensile Strength		≥ 0.4 MPa	0.45 Mpa
5	Elongation at Break		≥ 40 %	68 %
6	Flame Retardance		Level I Burning diameter ≤ 50 mm	Level I
7	Benzene		≤ 0.05 g / kg	Not detected
8	Toluene and Xylene		≤ 0.05 g / kg	Not detected
9	TDI		≤ 0.2 g / kg	Not detected
10	heavy metals	Pb	≤ 90 mg / kg	Not detected
		Cd	≤ 10 mg / kg	Not detected
		Cr	≤ 10 mg / kg	Not detected
		Hg	≤ 2 mg / kg	Not detected







About Us

JRace produces the highest-performance synthetic running track materials since 2007.

The main products include:PU running tracks,SPU and Acrylic sports field materials.

JRace has two factories, 8000 square meters in Guangzhou and 40000 square meters in Qingyuan. Equipped with advanced production line, the annual production capacity reach 43800 Tons.
