Professional Manufacturer line array 4 inch speaker cone 20 watt 4 ohm horn tweeter

Product Overview

Description

Professional Manufacturer line array 4 inch speaker cone 20 watt 4 ohm horn tweeter

280 W continuous program power capacity
1.5" horn throat diameter
100 mm (4 in) aluminium voice coil
Titanium diaphragm
500 - 20000 Hz response
109 dB sensitivity

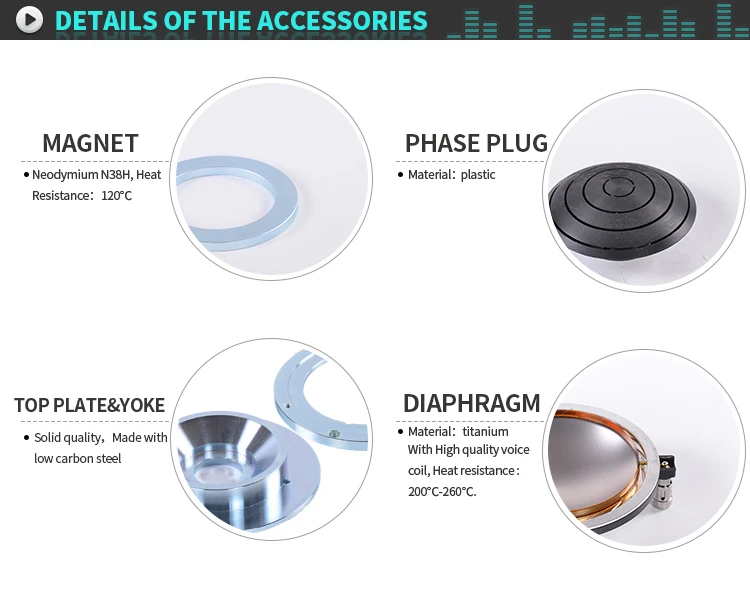

Neodymium magnet assembly with shorting
copper cap





Model	DE1000-4
Product name	HF tweeter driver

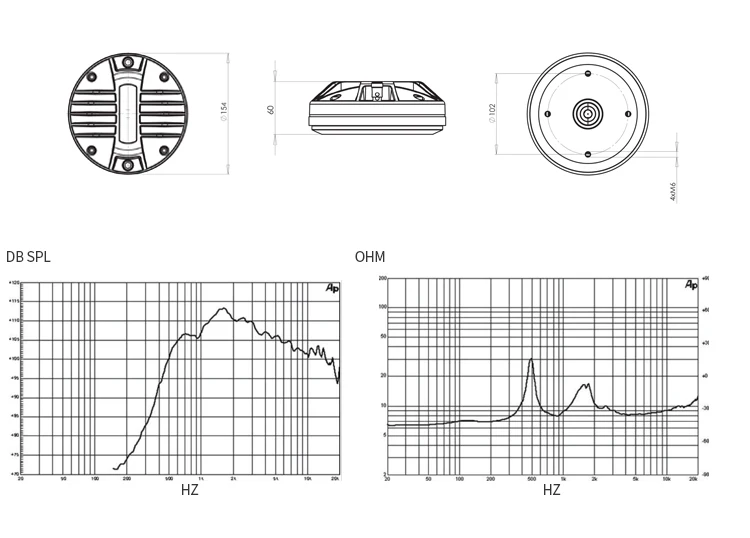

General Specification
Throat Diameter	38 mm(1.5 inch)
Norminal impedance	8 ohm
Minimum impedance	8.1 ohm
Nominal power handing(AES)	140 W
Continuous power handling	280 W
Sensitivity (1W/1m)	109 db
Frequency Range	1-20k Hz
Voice Coil Diameter	100 mm(4 inch)
Winding Material	Aluminum
Diaphragm Material	Titanium
Flux Density	1.95T
Magnet Material	Neodymium Ring

 Q1: What is our warranty for speaker drivers?

A1: For our speaker driver, we have one-year warranty. If there is any quality problem on our side occurred in this period, we will be responsible for shipping cost and then replacement.

Q2: How about the delivery time?
A2: 2-5 days for stock
5-20 days for new order depend on order quantity since receipt of 30% T/T deposit payment.

Q3: What kind of payments does Soundwave support?
A3:T/T,Westen Union,L/C,Cash are accpeted.

Q4: What's the minimum order quantity(MOQ)?
A4: MOQ is one piece each model

Q5: Do you offer free sample or not?
A5: According to our company's rule,sample and freight cost need to be paid by your esteemed company. And we will return the cost to you when you place the first order with us. Thanks.

Q6: Can you produce according to customers' design?
A6: Sure, we are a professional manufacturer,accept OEM & ODM

Q7:Can you tell me about your main customers?
A7: That's our customers privacy, we should protect their information.

At the same time, please rest assured that your information is also safe here.
