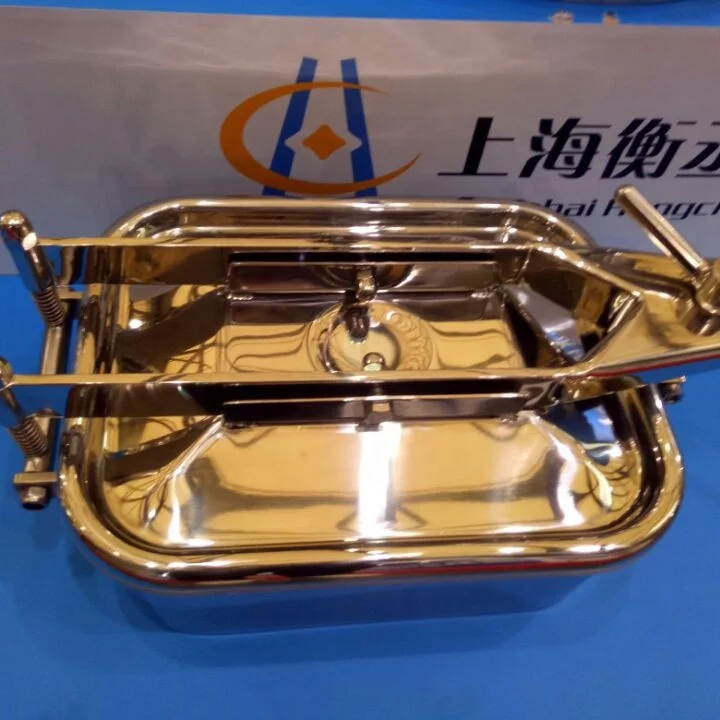

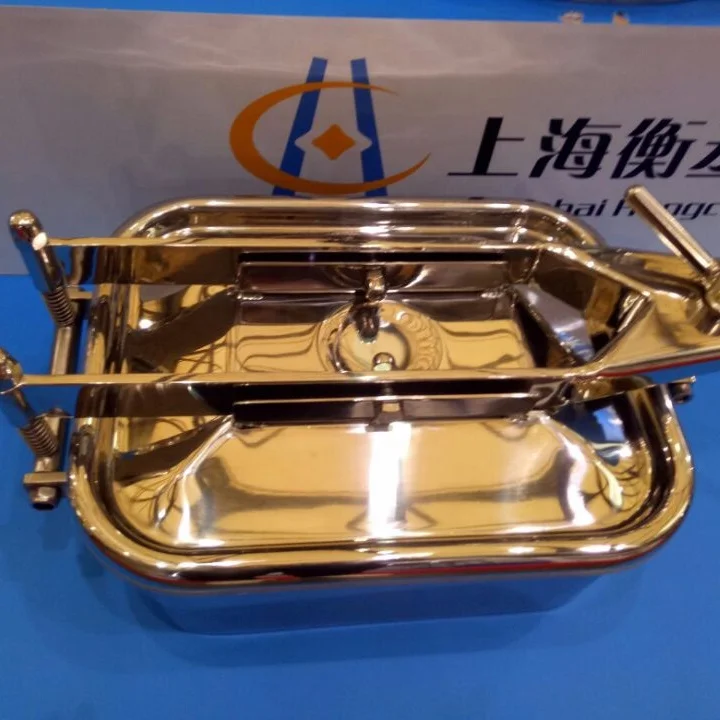

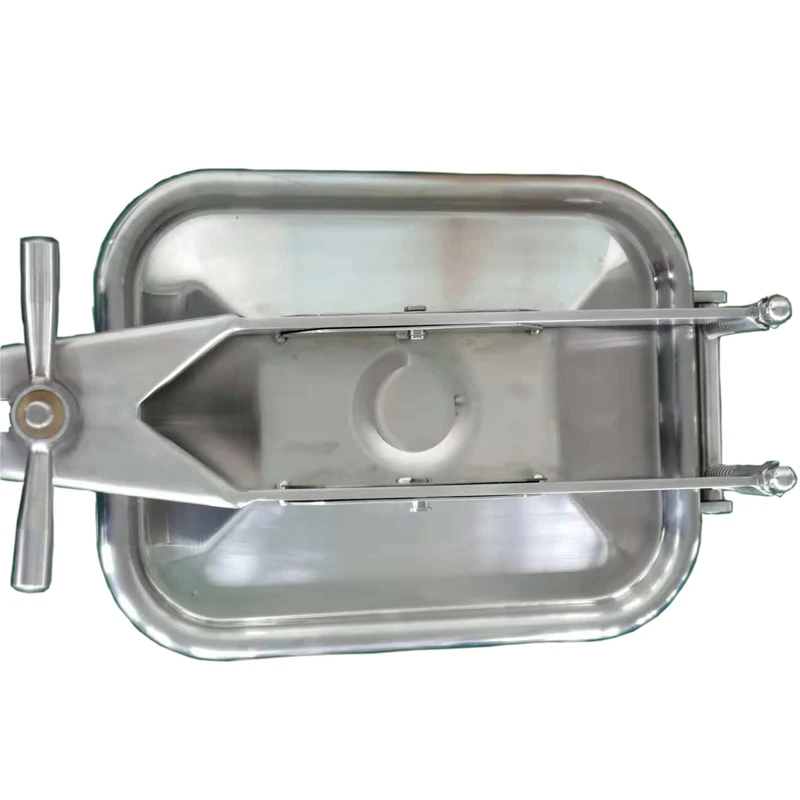

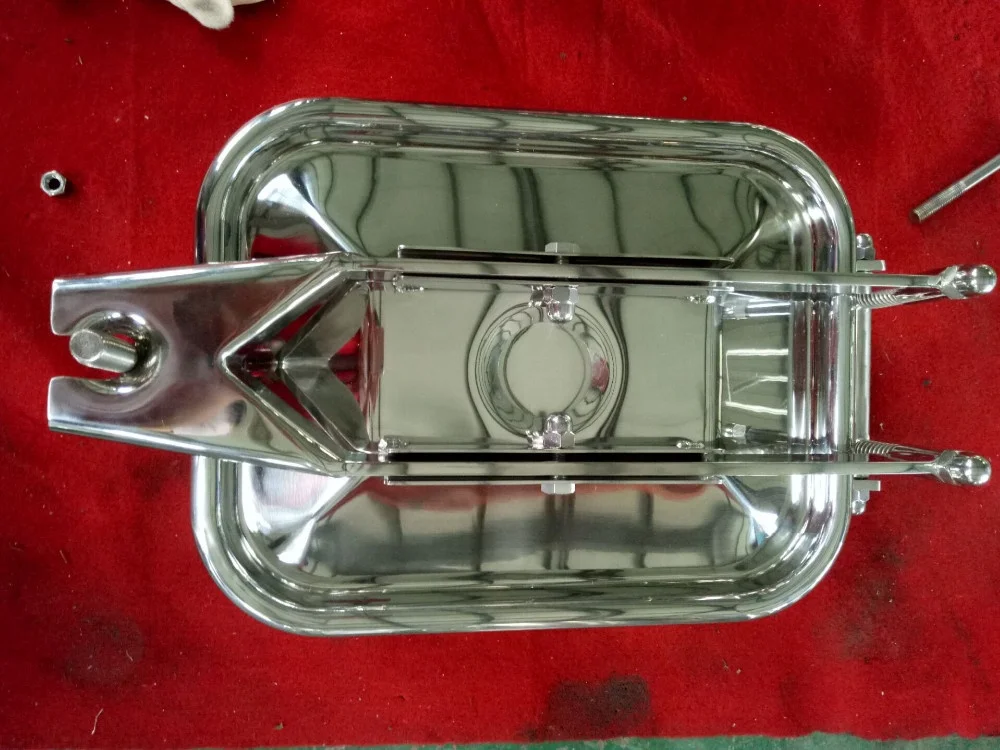

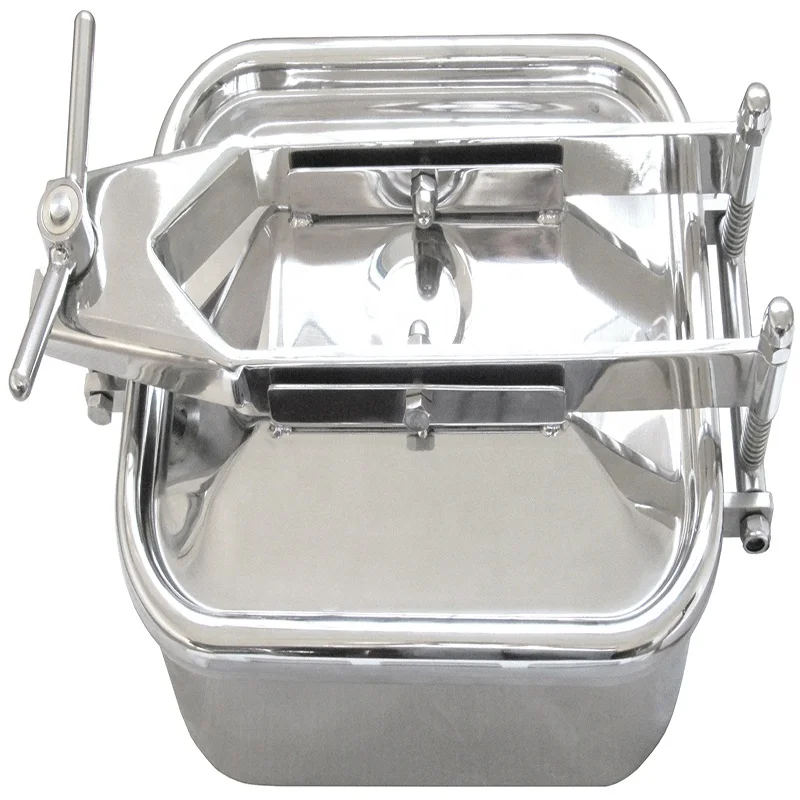

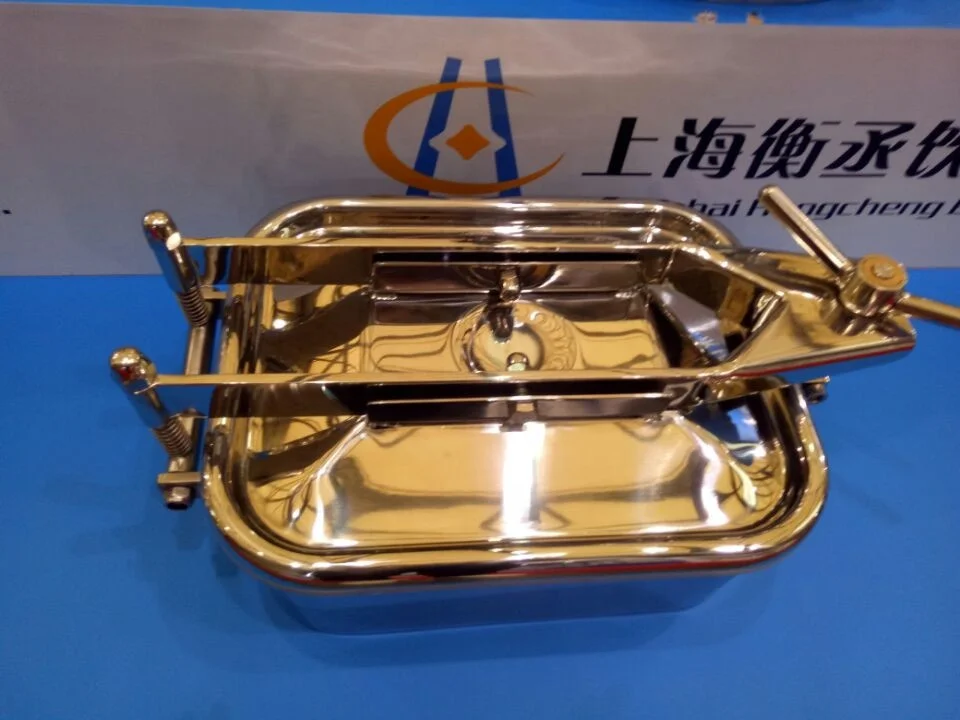

Top quality stainless steel rectangular manways manholes with cover for tank
- Category: Food Processing Machinery Parts >>>
- Supplier: Shanghai Hengcheng beverage equipment Co. Ltd
Share on (60733639938):
Product Overview
Description
Product Description
Product Name: | Top quality stainless steel rectangular manways manholes with cover for tank |
Material: | SS304 or SS316L |
Size: | 235*185, 435*335, 535*435mm or customization |
Gasket material: | EPDM, Silicon, NBR, EPM |
Handle Material : | Stainless steel and plastic |
Surface Polishing: | Mirror or Stain Finishing or others upon requirement |
Surface Finishing: | Ra≤0.8 |
Working Pressure: | 1-3 Bar |
Detailed images

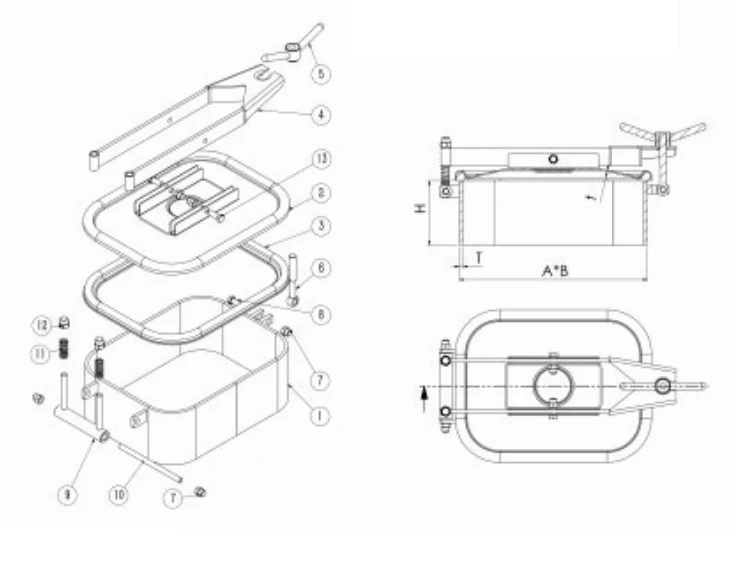

Item | Name | Material | Quantity |
1 | Frame | 1.4301(SUS304)/1.4404(SUS316L) | 1 |
2 | Cover | 1.4301(SUS304)/1.4404(SUS316L) | 1 |
3 | Gasket | Silicone | 1 |
4 | Arm | T304(SUS304) | 1 |
5 | Handle | T304(SUS304)/Copper | 1 |
6 | Swing bolt | T304(SUS304) | 1 |
7 | Hooded nut | T304(SUS304) | 5 |
8 | Hex bolt | T304(SUS304) | 1 |
9 | Bck Hinge Support | T304(SUS304) | 1 |
10 | Screw | T304(SUS304) | 1 |
11 | Spring | T304(SUS304) | 2 |
12 | Hooded nut | T304(SUS304) | 2 |
13 | Hex bolt | T304(SUS304) | 2 |
Gasket: Silicone/EPDM/NBR/EPM in according with FDA177.2600
Inner surface: Ra 0.8µm-0.4µm
Outer surface: Mirror polished, Matte. Sand-blasting finished.
Top quality stainless steel rectangular manways manholes with cover for tank
Related product
Top quality stainless steel rectangular manways manholes with cover for tank
Welcome to contact supplier for more items that you are interested in.
Our Services
Pre-Sales Service
1). Professional advice: Expert brewery master will give you suggestions if you are new in this area.
2).Consumption calculation: to help the buyers figure out every cost
2).Expert guidance: the process of how to use and operate the equipment can be told to you.
3).Design: normal layout and 3D layout all can be provided based on client’s place. So that you can understand the project better.
4).Customization: the modification and change of the tank all be welcomed for special requirements.
After-Sales Service
1). Long-term warranty: 3 years warranty of tank body.
2). Installation: Engineers available to service machinery overseas.The customer will be asked to provide room, board, round-trip transportation, and a nominal daily subsidy.
3).Technical support: Solving every question happened in operating the equipment. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? Is it free or extra ?
A: Yes, we could offer charged samples to you, then will return to you after getting your PO.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 40% T/T in advance, balance before delivery.
