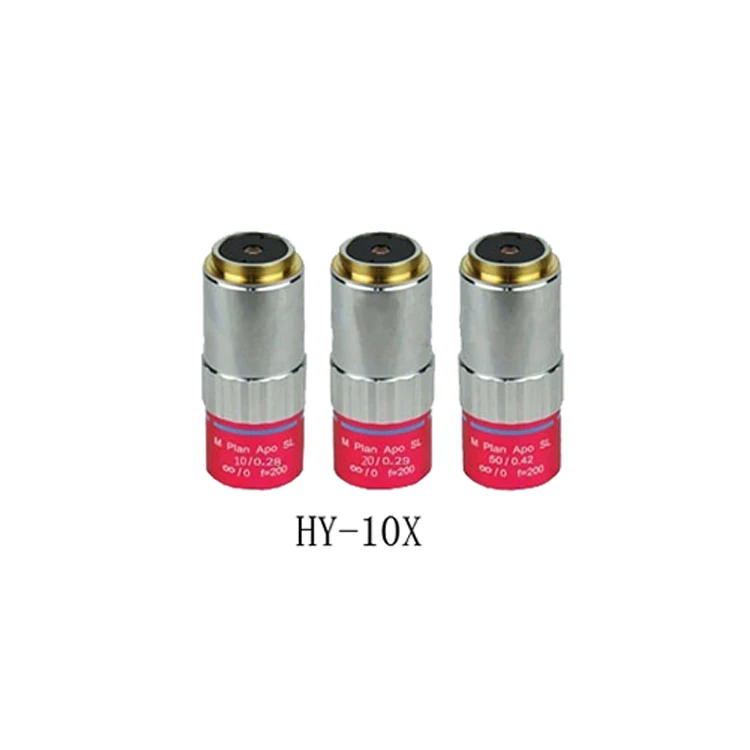

ZY 20X ZY 50X UV Plan Apochromatic Achromatic Objective
- Category: >>>
- Supplier: Beijing Pdv Instrument Co. Ltd.
Share on (60733684139):
Product Overview
Description
China made Biological Plan 60x objective lens
60x objective lense
ZY-20XD | UV Plan Apo 20XD | 20XD UV Plan apochromatic objective,N.A.0.45mm;W.D. 16.7mm, Focal Length10mm,resolution0.61μm;depth of focus 1.36μm,FOV ∅ 1.2mm(∅24eyepiece),visual field 0.24×0.32mm(1/2CCD); transmittance:450nm-700nm>70%, 770nm-790nm>90%(achromatic wavelength 355nm) |

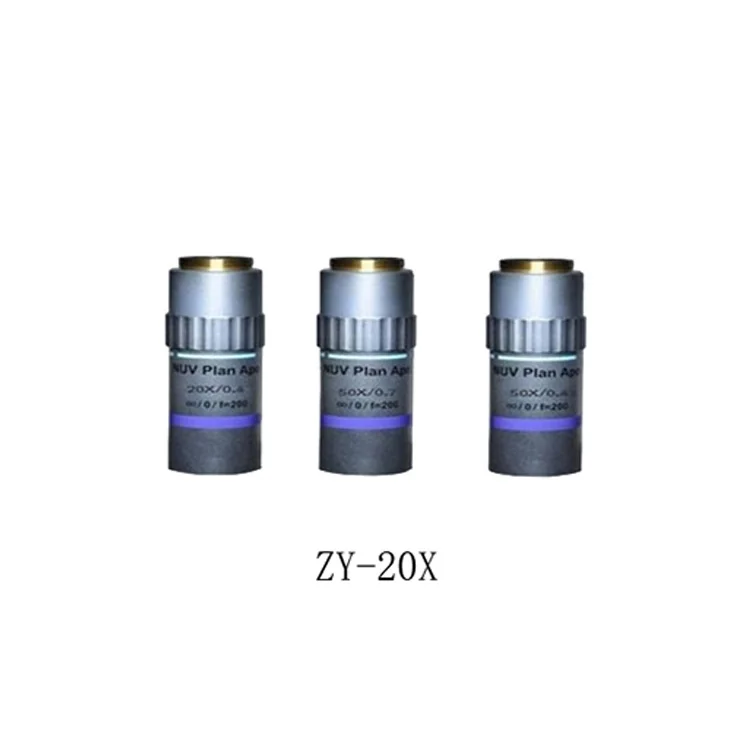

ZY-20X | UV Plan Apo 20X | 20X UV Plan apochromatic objective,N.A.0.4mm;W.D. 17.15mm, Focal Length 10mm,resolution0.69μm; depth of focus 1.72μm, FOV ∅ 1.2mm(∅24eyepiece),visual field 0.24×0.32mm(1/2CCD); transmittance:450nm-700nm>70%, 345nm-365nm>90%(achromatic wavelength 355nm) |
ZY-50XD | UV Plan Apo 50XD | 50XD UV Plan apochromatic objective, N.A.0.7mm;W.D. 3.5mm, Focal Length4mm,resolution0.39μm; depth of focus 0.56μm, FOV ∅ 0.48mm(∅24eyepiece),visual field 0.10×0.13mm(1/2CCD); transmittance:450nm-700nm>70%, 345nm-365nm >90%(achromatic wavelength 355nm) |
ZY-50X | UV Plan Apo 50X | 50X UV Plan apochromatic objective,N.A.0.43mm;W.D. 14.81mm, Focal Length4mm,resolution0.64μm; depth of focus 1.49μm, FOV ∅ 0.48mm(∅24eyepiece),visual field 0.10×0.13mm(1/2CCD); transmittance:450nm-700nm>70%, 345nm-365nm >90%(achromatic wavelength 355nm) |
Beijing PDV Instrument Co., Ltd is a collection of optics, precision machinery, automatic control technology independent high-tech research and development enterprises. Since 2005, we have been serving the scientific research institutes and universities. We have developed the hardware and software system (optical path construction, software development, mechanical circuit design, etc.) according to the needs of customers. Through long-term unremitting efforts, the process of building the system to control the optical path and excellent service to customers, we’ve grown into a well-known manufacturer among scientific research, colleges and universities, machinery automation and many other areas.
