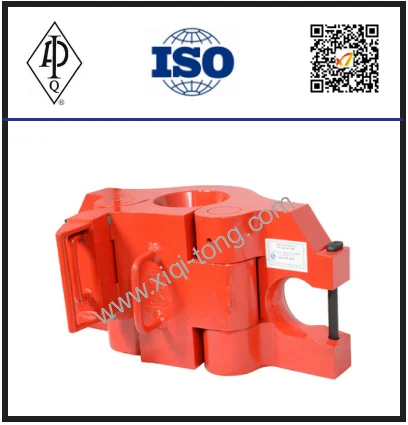

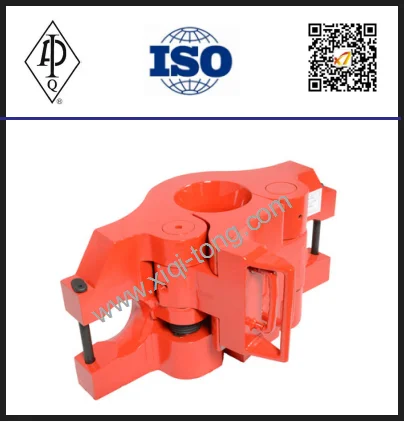

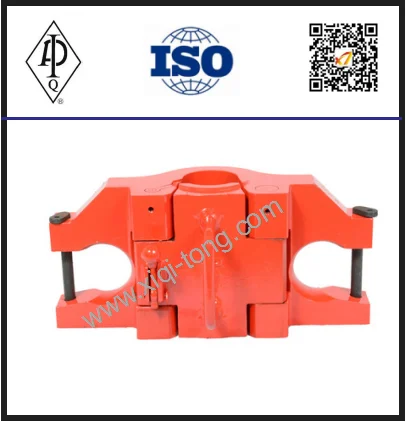

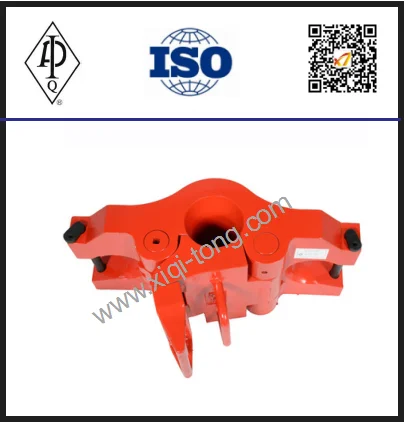

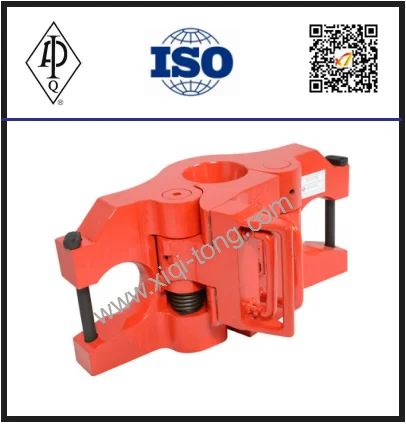

oilfield equipment Well drilling Type CDZ 150T 500T elevator for drilling tools
- Category: Elevator >>>
- Supplier: Shanghai Xiqi Import & Export Co. Ltd. [Shanghai China]Shanghai
Share on (60733712854):
Product Overview
Description
Product Description
The Type CDZ Elevators are kind of side-door-type elevators for handling drill pipes with 18-degree shouldered tool joints. They are convenient and dependable while hoisting equipment.
The max. Working Load | kN | 1350 | 2250 | 3150 | 4500 | |
Tons | 150 | 250 | 350 | 500 | ||
Suitable for Drill Pipe Size | in | 23/8~51/2 | 23/8~51/2 | 27/8~51/2 | 31/2~51/2 | |
Suitable for Link Size | in | 13/4~23/4 | 21/4~31/2 | 21/4~31/2 | 31/2~43/4 | |
mm | 44.45~69.85 | 57.15~88.9 | 57.15~88.9 | 88.9~120.7 | ||
