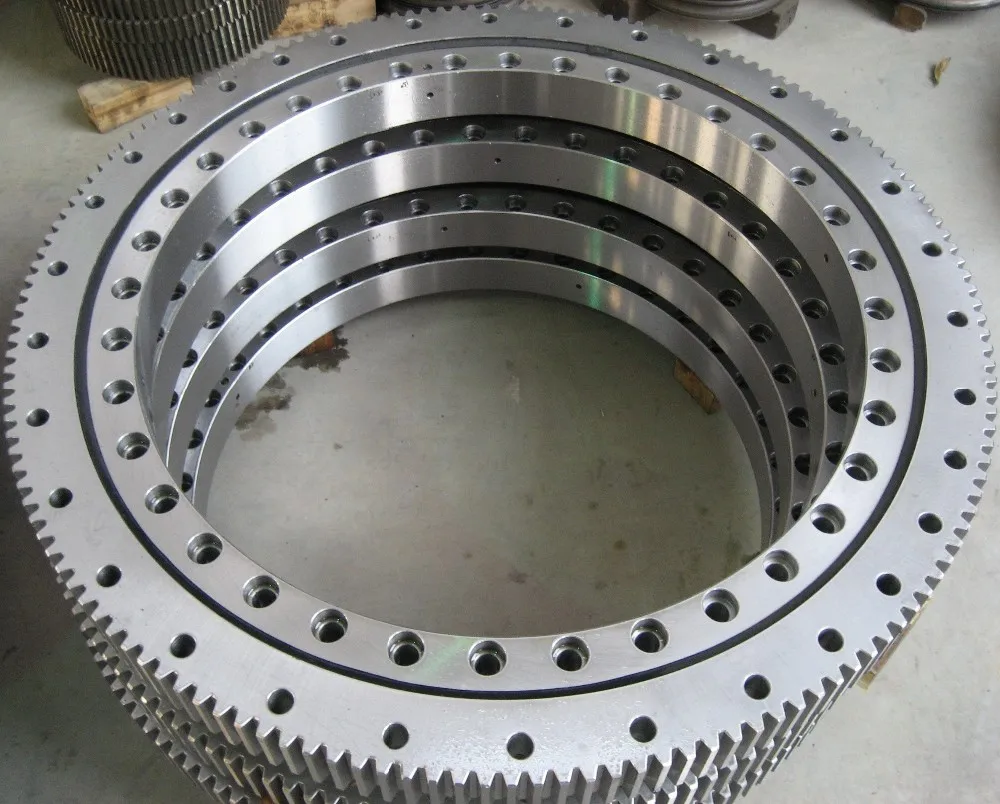

Высокое Качество поворотного подшипника для экскаватора поворотное кольцо подшипника

Share on (60733727462):


Price:

Quantity:


Product Overview

Description



Product Description


_20210629151617


We satisfy every request of slewing bearings, slew bearings for excavators, slewing rings for earth-moving machines and slewing ring bearings for crane trucks, turntable bearings for agriculture, internal toothed, external toothed and toothless slewing bearings.


Our slewing rings can be produced with diameters between 300 and 6000 mm with crossed rollers’ sections, in single or double raw of balls, in one or three rows of rollers; and in mixed execution, rollers plus balls.

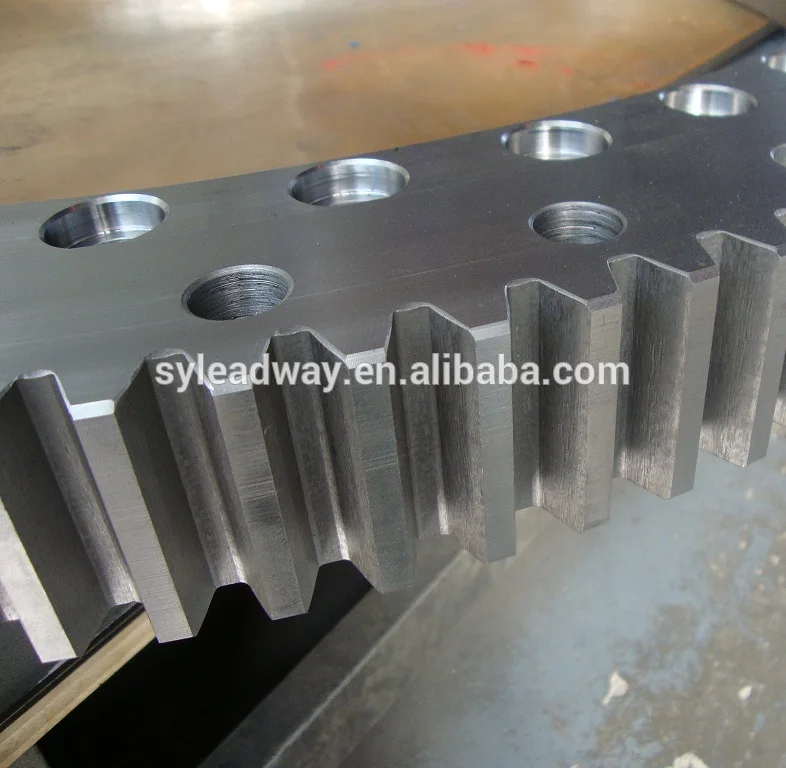

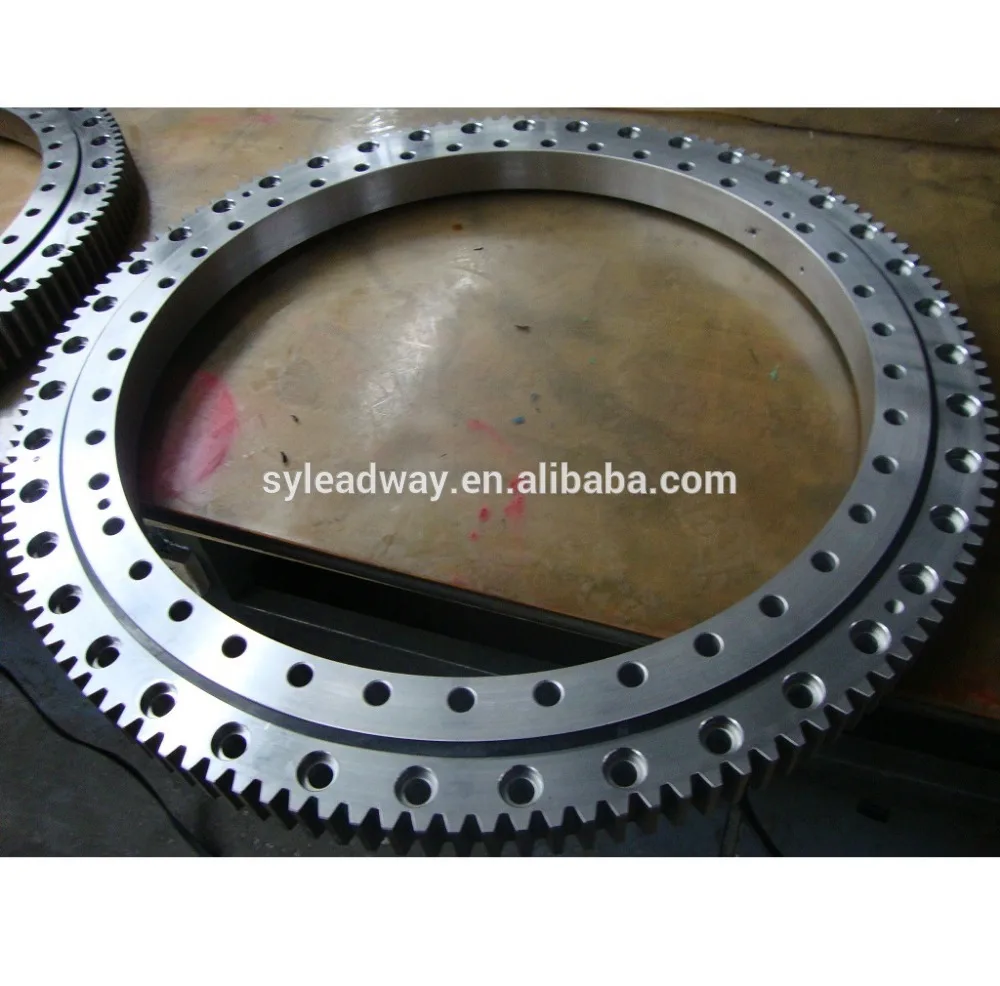

a (1).jpga (2).jpg
































































































Product Name


Top Quality Swing Bearing for Excavator Slewing Ring Bearing


Model Number


EGSBM 1165 893 79


Application


Bottling Equipment


Gear Option


External Gear


Seal Type


Rubber Sealed


Features


Four Point Contact


Brand


Leadway/UIPI


Outer diameter


1165 mm (45.866")


Inner diameter


893 mm (35.157")


Height


79.4 mm (3.126")


Axial play


0.03 mm~0.10 mm


Radial play


0.03 mm~0.10 mm


Core hardness


262-302 HB


Raceway Hardness


55-60HRC


Material


GB42CrMo (DIN42CrMo4/BS708A42/AISI4140)


Operating Temperature


-40℃ to +50℃


Grease


EP2 lithium lubricating grease


Weight


196 kg


Place of Origin


Luoyang, Henan, China


Certificate


API Q1 Certificate (American Petroleum Institute) Quality Assured Firm
Qualified to be used in Petroleum machinery equipment. (The first and the only slewing bearing manufacturer in China)
ISO9001:2008 Certificate


Services


OEM Service, Customized Service, Design Service












Applications


Leadway facility manufactures large diameter ball and roller bearings, and our slewing bearings have proven effectiveness in many applications such as below:


chris-application fields.png


Application





Company Information















Production Process


chris-production process.png

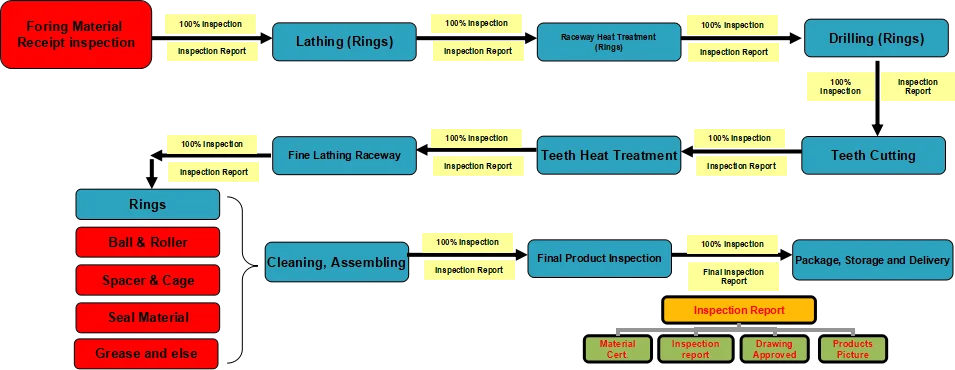

Quality Control


We use controlled engineering and product testing to guarantee our slewing rings for more than 10 years field life. Our slewing bearings meet the standards set by ISO 9001, CE and API Q1 certifications and provide reliable solutions. All components used in creating slewing rings are qualified to ensure the highest quality and durability. Strict inspection of each process.


Chris-quality control3








Packaging & Shipping


When slewing ring bearings are ready for shipment, Leadway usually give a light coating of


preservative oil and packaged in a tire wrap of protective paper and a shipping container.





1st: plastic film
2nd: kraft paper
3rd: blue blet
4th: International Standard Wooden Case for by Sea or by Air





This provides adequate protection during the typical short-term storage in a protected area





Chris-packing & shipping.png





FAQ


CHRIS-FAQ2
