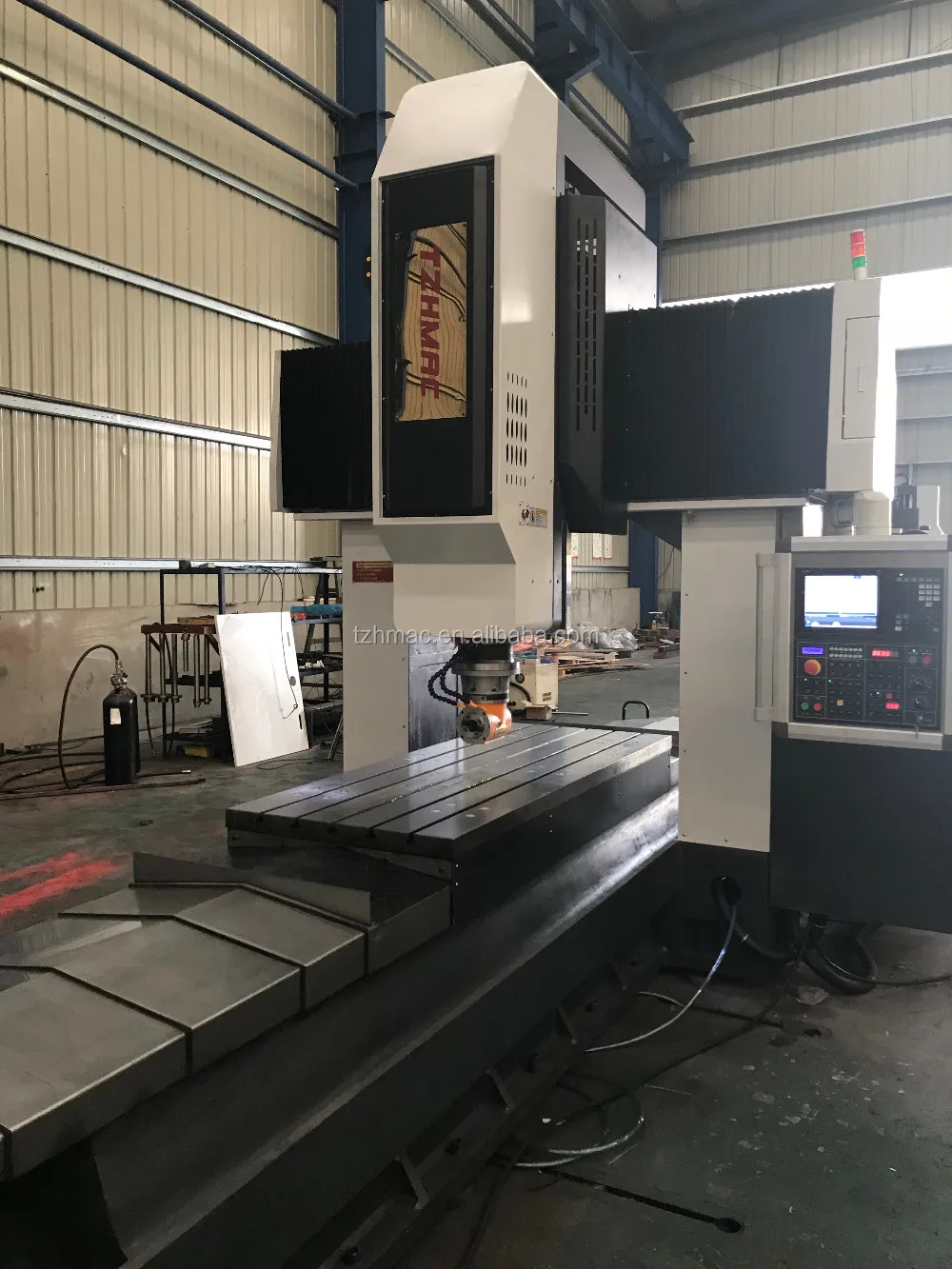

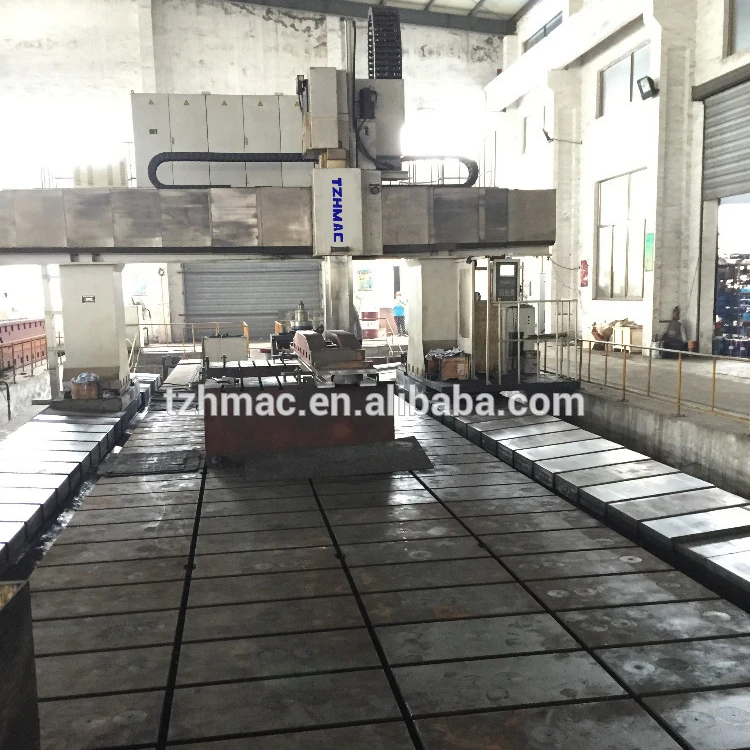

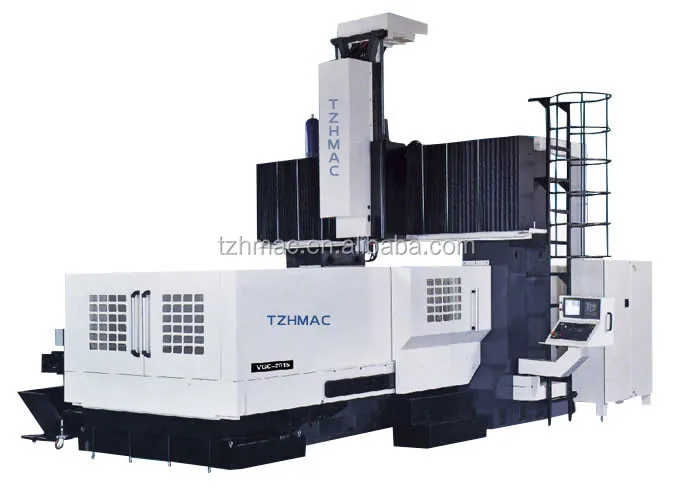

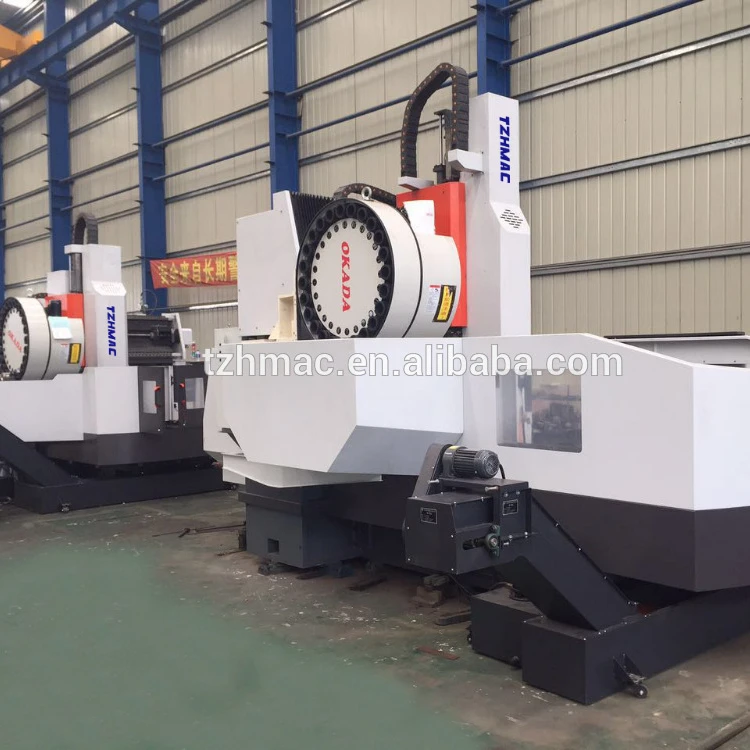

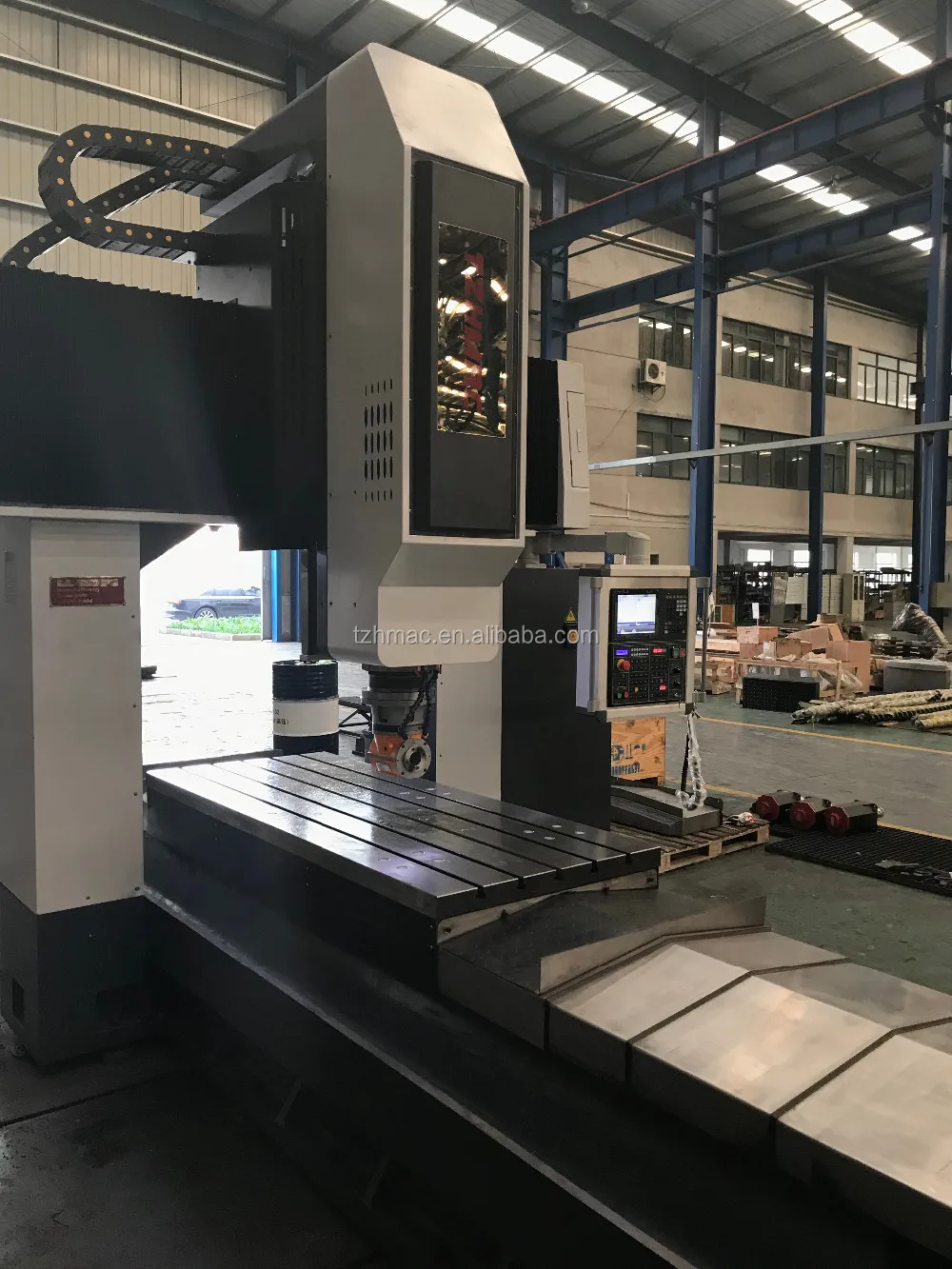

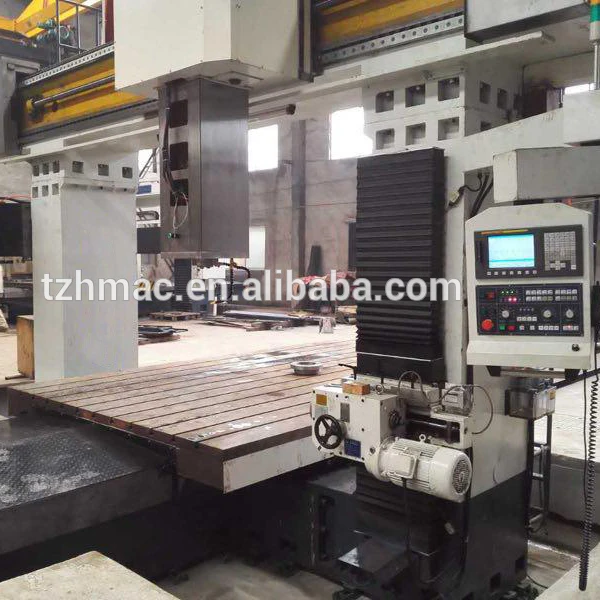

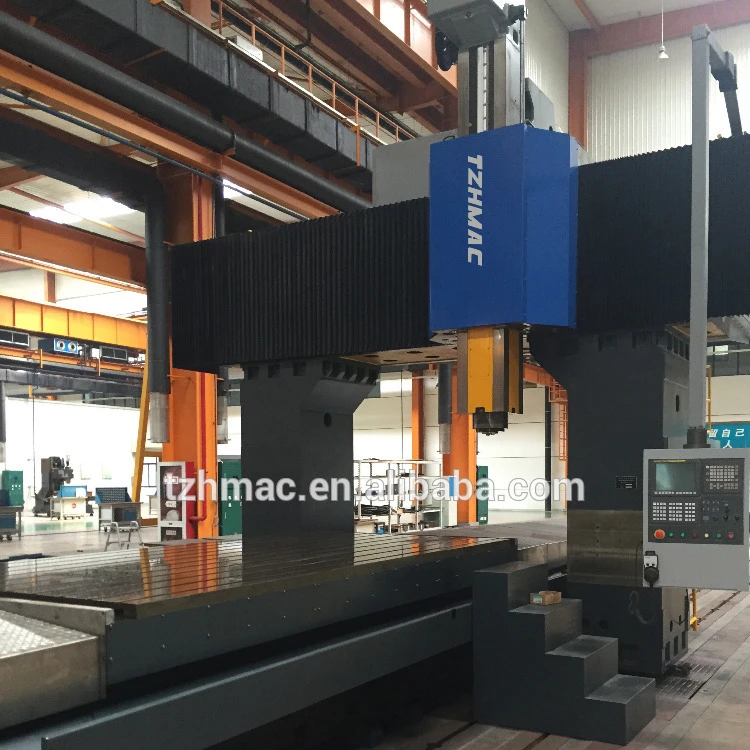

Hot Sale 4 axis Plano Miller Fixed Beam CNC Gantry Milling Machine
Hot Sale 4 axis Plano Miller Fixed Beam CNC Gantry Milling Machine
Hot Sale 4 axis Plano Miller Fixed Beam CNC Gantry Milling Machine
Hot Sale 4 axis Plano Miller Fixed Beam CNC Gantry Milling Machine
Hot Sale 4 axis Plano Miller Fixed Beam CNC Gantry Milling Machine
Hot Sale 4 axis Plano Miller Fixed Beam CNC Gantry Milling Machine
Hot Sale 4 axis Plano Miller Fixed Beam CNC Gantry Milling Machine

Hot Sale 4 axis Plano Miller Fixed Beam CNC Gantry Milling Machine

Share on (60733765584):


Price:

Quantity:


Product Overview

Description


Product Description

Main Features

1.This type of machine adopts advanced technology, typical of good performance , reliable structure, easy operation, convenient maintenance, is widely used in mechanical processing department for medium and heavy black non-ferrous metal plane, inclined plane and the groove surface milling, etc..
2.It can use all kinds of standard cutter, and has large cutting torque and cutting depth.
3.The machine bed, table, bar are manufactured with high-quality cast iron, and have two quenching to eliminate the stress and deformation.

\t
Model
\t
YJ-SK2016
\t
YJ-SK3020
\t
YJ-SK6030
\t
Distance between two columns
\t
1600mm
\t
2100mm
\t
3100mm
\t
Working table size
\t
2000×1200mm
\t
3000×1600mm
\t
6000×2500mm
\t
Working table load
\t
2000kg
\t
6000kg
\t
20000kg
\t
T-Slot
\t
7-28×160mm
\t
7-28×220mm
\t
9-28×220mm
\t
Max cutting length X
\t
2000mm
\t
3000mm
\t
6000mm
\t
Max cutting width Y
\t
1400mm
\t
1800mm
\t
3000mm
\t
Vertical travel Z
\t
800mm
\t
800mm
\t
1000mm
\t
Spindle Taper
\t
BT50
\t
BT50
\t
BT50
\t
Spindle speed
\t
0-6000rpm
\t
10-8000rpm
\t
10-8000rpm
\t
Spindle motor (servo)
\t
7.5kw
\t
15-30kw
\t
30kw
\t
X,Y,Z Fast-moving
\t
10m/min
\t
20m/min
\t
20m/min
\t
Max cutting feedrate
\t
0.1-10m/min
\t
0.1-10m/min
\t
0.1-10m/min
\t
Tool Max Diameter
\t
Φ100mm
\t
Φ160mm
\t
Φ160mm
\t
Tool Max length
\t
300mm
\t
300mm
\t
300mm
\t
Tool Max weight
\t
15kg
\t
15kg
\t
15kg
\t
CNC system
\t
Siemens
\t
Siemens
\t
Siemens
\t
Position accuracy
\t
±0.03/300mm
\t
±0.03/300mm
\t
±0.03/300mm
\t
Repeat accuracy
\t
±0.01/500mm
\t
±0.01/500mm
\t
±0.01/500mm
\t
Machine Weight
\t
18Ton
\t
28Ton
\t
32Ton

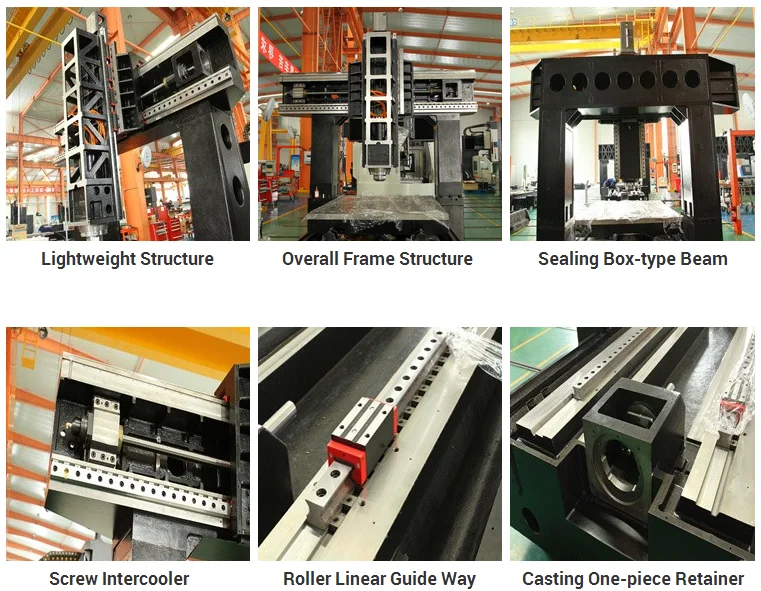

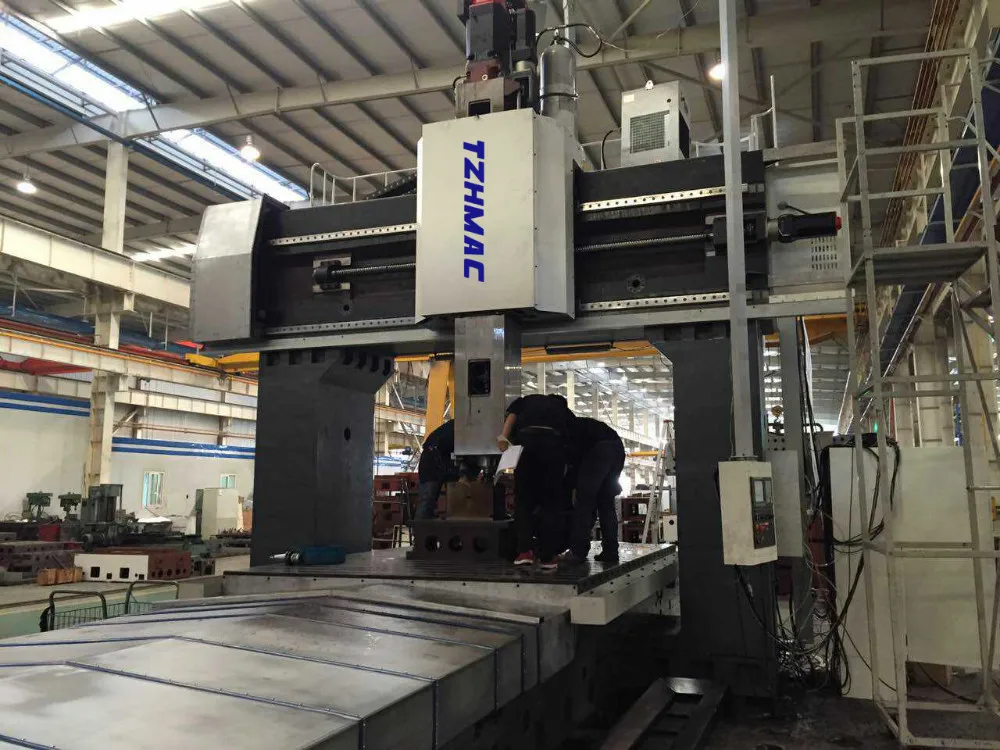

Structure

The structure of machine tool is analyzed with ANSYS at all stages from foundation design to guarantee of high-speed and high-precision continuous machining. A simulation test for deformation produced when the center of machine tool bears load is conducted to guarantee excellent bending rigidity of machine tool.

FAQ

1. How should i pay for my order ? what is the procession of this purchase ?
we accept TT by bank. you can do 30% prepayment at first, then we will start to make production.
when the machine is ready , we will take pictures to you, and then you can do the ballance.
after we got your payment. i will send the machine to you.
2. How about your service after sales ? can your engineer speak fluent english ?
we offer the service from you got the machine, including how to install the machine, how to use machine. how to let machine work. and so on. usually we will teach you how to do by email or by skype our engineer has many years of experience for cnc machine service . he can speak very good english ,so he can slove the problem in short time.
3.Are you a factory or trading company?
We are the manufacturer . as only the machine made by ourself ,quality can be trusted, and most important thing is we can do better service after sales. we know how to fix the problem in each parts easliy. so welcome to visit our factory
4. How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
5. How about the documents after shipment?
Aftershipment,will send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by client.
6.How to master the stability of machine castings?
The casting of numerical control machine all adopt HT250 and HT300,It is treated by Two times temper and one time vibration aging to release internal stress,in order to ensure structural stability and the machine accuracy can be long maintained.

Our Service

 Warranty & After-sale service

1. 24-hours technical support by E-mail or telephone.
2. Provide extra accessories for the machine, Also provide service of make program according to your drawings Customized or special design is OK.
3. All of our products’ warranty period for 12 months.
4. Man-made destroy will be exception
5.We can supply the materials or tech support to our customers to help them fix the problems.
We will pay the delivery charge if the repair, return or replacement cases happen.

Contact
1.Our working time: 8:00am~6:00pm
2. All inquiries will be replied within 24 hours, So please feel free to send us your inquiry.
3. when our trade manager is off line, please feel free to leave a message, and tell us the products with model you are interested in, and your E-mail address, we will reply to you within 24 hours.

Packing & Delivery
Our Company

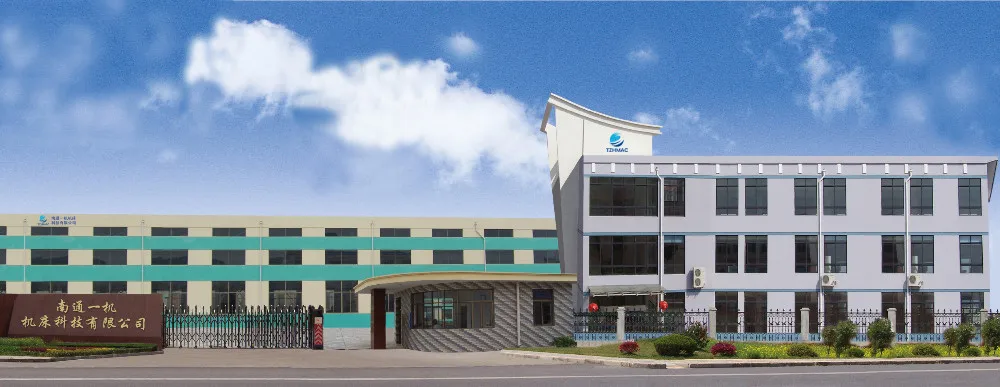

                                               Welcome to Yiji Machiney Tool Co., Ltd

our company as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation,specializes in import & export of brand-new industrial machinery & tools.Our mechanical products with ISO9001 or CE certificate cover more than 80 kinds including lathe ,milling machine,grinding machine,power press,guillotine shearer,hydraulicpressbrake,CNC Machine and so on,which have been exported to 40 or more countries & areas.



Related Products

cnc turning machine

91.8% Response Rate

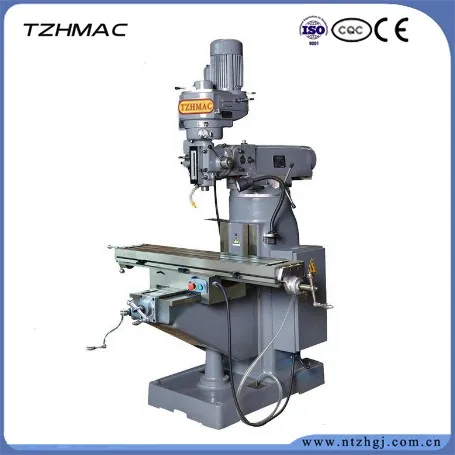

universal milling machine

91.8% Response Rate

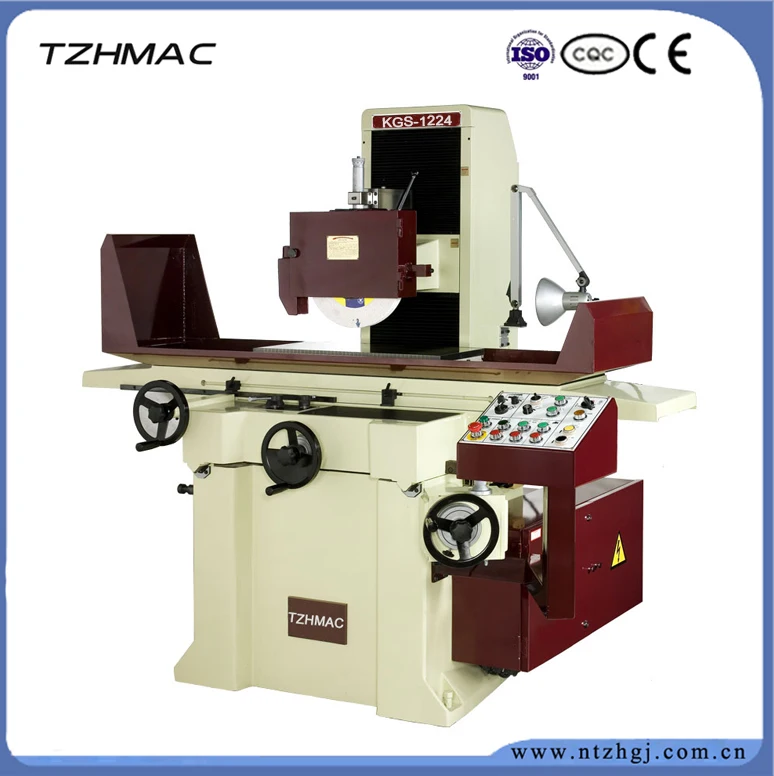

surface grinding machine
