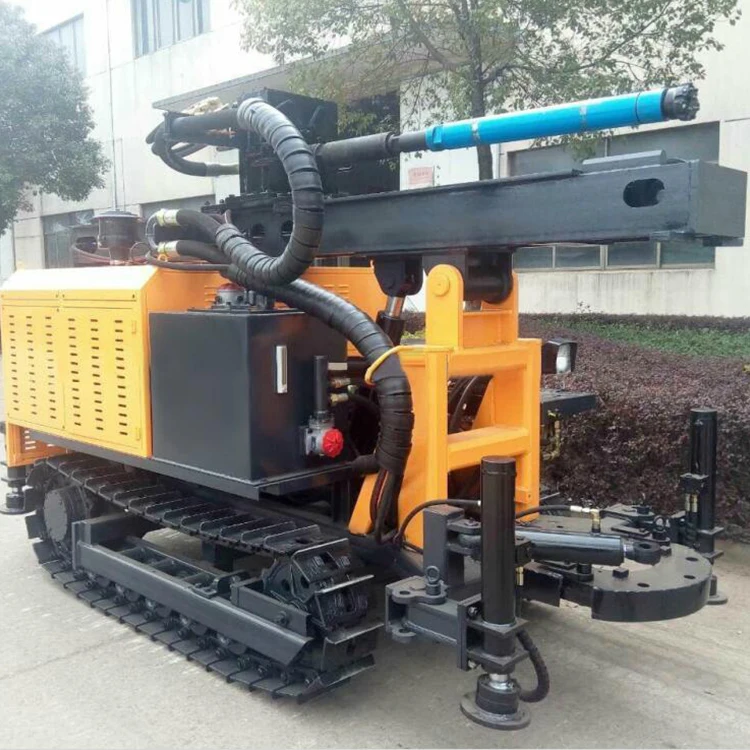

Kaishan model Kw180 Industrial Well Project Drilling Rig 180M Depth Borehole Drilling Machinery For Sale
- Category: >>>
- Supplier: Quzhou Kaipu Machinery Equipment Co. Ltd.
Share on (60733774326):
Product Overview
Description
Our Advantages
Product Information
Feasure:
Drilling rig KW180 type geothermal well drilling car is a lightweight, high efficiency, multifunctional drilling hole equipment,Has the advanced structure, easy to use, high efficiency, reliable, durable and other characteristics, widely used in drilling Wells, agricultural irrigation and air hole and other USES of geothermal well hole Especially in the mountains and rock formation water engineering
| Modle | KW180 | |
| Weight(KG) | 4500 | |
| Dimensions(mm) | 2700*1550*2350 | |
| Travelling speed(km/h) | 0~2.5 | |
| Engine modle | YC4D08 | |
| Power | 58Kw/2400rpm | |
| Climb capacity(°) | 20 | |
| Drilling depth(m) | 180 | |
| Working pressure(Mpa) | 1.05-2.46 | |
| Air consumption(m3/min) | 16-30 | |
| Leng of rod(mm) | 2000 | |
| Drill bit diameter(mm) | 110-202 | |
| Feed cylinder stroke(mm) | 400 | |
| Feed power(N) | 25000 | |
| Lift power(N) | 50000 | |
| Speed of rotator(rpm) | Min.speed | 33 |
| Max.speed | 67 | |
| Lifting speed(m/min) | Min.speed | 8 |
| Max.speed | 26 | |
| Fltting speed(m/min) | Min.speed | 0-15 |
| Max.speed | 51 | |
| Rotation torque(N.m) | 4200 | |
KW180 power for air compressor
