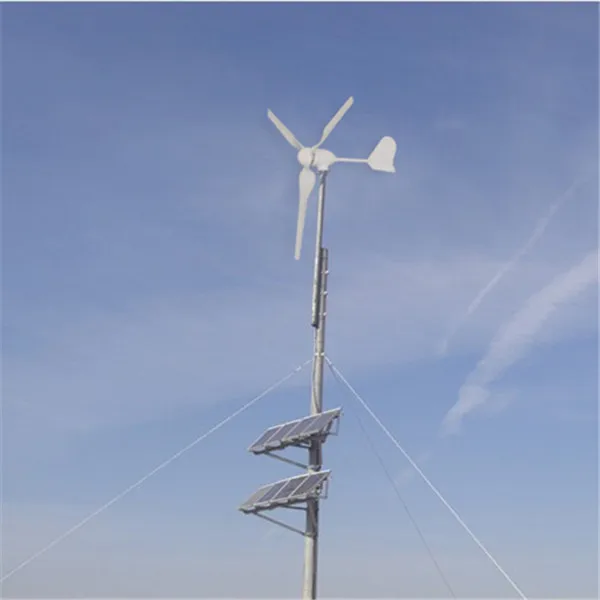

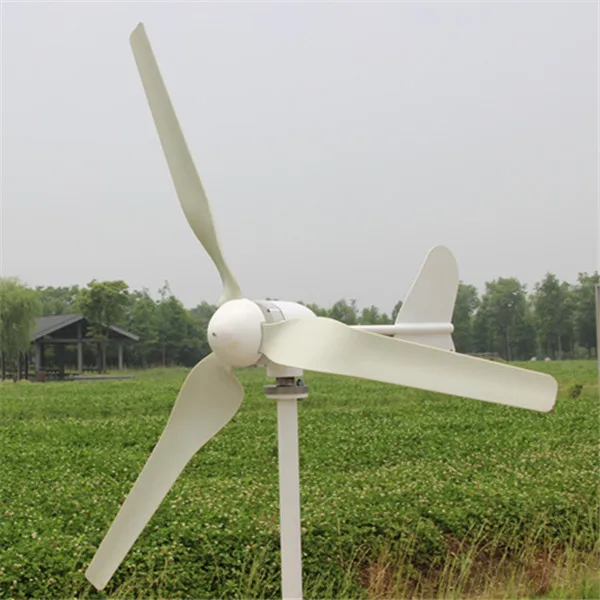

500w Horizontal axis wind turbine 12v/24v/48v
- Category: >>>
- Supplier: Shanghai Laisa New Energy Technology Co. Ltd.
Share on (60733849802):
Product Overview
Description
Product Introduction
Feature
1.Low start up wind speed, compact, light, beautiful and with little vibration.
2.Easy installation, flange connection.
3.Blades using nylon fiber matched with optimized aerodynamic shape and structure.Color optional.
4.Patented permanent magnet ac generator with special stator(maglev generator),effectively reduce torque, make only 1/3 torque of ordinary
generator, well match the wind wheel and generator, and ensure the performance of whole system.
5.Adopting MPPT intelligent micro effectively adjusts current and voltage.
Contact us
Shanghai Laisa New Energy Technology Co., Ltd.
No.3568,Caoying Road, Qingpu District, Shanghai City, China
WhatsApp : +86 139 6171 1675
Skype : appenaier
Wechat : fengten88
Product Parameters
| Model | LS -500M3 |
| Rated power | 500W |
| Maximum power | 510W |
| Rated voltage | 24V |
| Start up wind speed | 2.0m/s |
| Rated wind speed | 11m/s |
| Survival wind speed | 45m/s |
| Top net weight | 11.5kg |
| Wheel diameter | 1.75m |
| Blades number | 3/5 |
| Blades material | Nylon fiber |
| Generator | Three phase permanent magnet ac generator |
| Magnetic steel | NdFeB |
| Generator case | Die-casting aluminum |
| Control system | Electromagnet |
| Speed regulation | Automatically adjust windward |
| Working temperature | -40℃～80℃ |
Product Details Show
