Product Overview

Description

YOXf-type

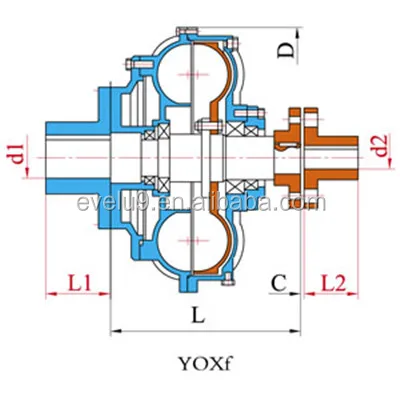

YOXf-type means the two ends of coupling are connected with electric motor and reducer by connecting with flange, rigidly connecting with the shaft of the electric motor, the output end usually use coupling with elastic sleeve, ML plum pad flexible coupling or HL nylon pin coupling. This type is easy to install, adjust and dismantle but has a little longer axial distance.

Select table of YOXf specification and size

specification	D	L(min)	d1(max)	L1(max)	d2(max)	L2(max)	specification of couplings	C	oil volume(L)	weight(kg)
YOXf-250	300	199	35	80	35	80	TL4 HL2	2~3	1.3~2.5	18
YOXf-280	328	221	38	80	40	80	TL4 HL2	2~3	1.5~3.0	22
YOXf-320	380	300	48	110	48	110	TL6 HL3	2~3	2.4~4.8	40
YOXf-340	392	310	48	110	48	110	TL6 HL3	2~3	2.7~5.5	43
YOXf-360	422	300	55	110	48	110	TL6 HL3	2~3	3.8~7.6	66
YOXf-400	465	350	60	140	60	140	TL7 HL4	3~4	4.8~9.5	91
YOXf-450	522	390	75	140	65	140	TL8 HL5	3~4	6.1~12	120
YOXf-500	572	410	80	170	85	170	TL9 HL6	3~6	10~20	155
YOXf-560	642	440	90	170	85	170	TL10 HL6	3~6	16~26	188
YOXf-600	695	470	100	210	110	210	TL10 HL7	3~6	18~36	253
YOXf-650	750	540	130	210	130	210	TL11 HL7	3~6	25~46	308
YOXf-710	815	557	120	210	125	210	TL11 HL8	4~8	37~60	390
YOXf-750	850	580	140	250	140	250	TL12 HL9	4~8	40~80	420
YOXf-800	908	650	150	250	160	300	TL12 HL10	4~8	50~95	530
YOXf-1000	1120	750	180	300	180	300	TL13 HL11	5~10	78~156	740



YOXyf / YOXysf-type

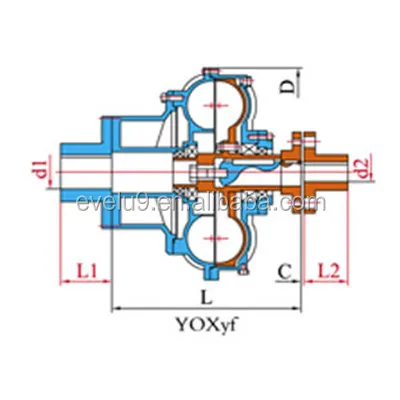

YOXyf-type fluid couple, basing on YOXf-type, lengthens the back auxiliary chamber to achieve longer starting time and smaller impact on equipment compared with YOXf-type.

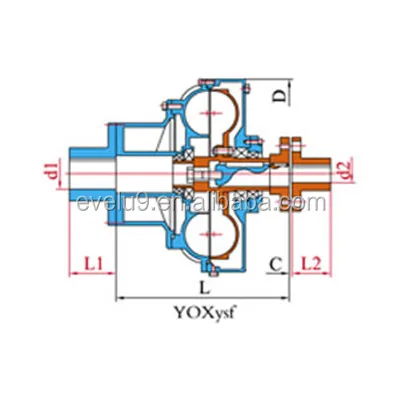

YOXysf-type fluid couple, basing on YOXf-type, lengthens the back and side auxiliary chamber to achieve longer starting time and smaller impact on equipment compared with YOXyf-type.

Select table of YOXyf/YOXysf specification and size

specification		D	L(min)	d1(max)	L1(max)	d2(max)	L2(max)	specification of couplings	C	oil volume(L)		weight(kg)
YOXyf-250	YOXysf-250	300	230	35	80	35	80	TL4 HL2	2~3	1.3~2.5	1.6~3.2	21
YOXyf-280	YOXysf-280	328	260	38	80	40	80	TL4 HL2	2~3	1.5~3.0	2.0~4.0	26
YOXyf-320	YOXysf-320	380	340	48	110	48	110	TL6 HL3	2~3	2.4~4.8	3.0~6.0	44
YOXyf-340	YOXysf-340	392	350	48	110	48	110	TL6 HL3	2~3	2.7~5.5	3.5~7.0	48
YOXyf-360	YOXysf-360	422	350	55	110	48	110	TL6 HL3	2~3	3.8~7.6	4.9~9.8	71
YOXyf-400	YOXysf-400	465	410	60	140	60	140	TL7 HL4	3~4	4.8~9.5	6.2~12	100
YOXyf-450	YOXysf-450	522	460	75	140	65	140	TL8 HL5	3~4	6.1~12	8.0~16	130
YOXyf-500	YOXysf-500	572	490	80	170	85	170	TL9 HL6	3~6	10~20	13~26	170
YOXyf-560	YOXysf-560	642	530	90	170	85	170	TL10 HL6	3~6	16~26	21~34	208
YOXyf-600	YOXysf-600	695	560	100	210	110	210	TL10 HL7	3~6	18~36	24~47	275
YOXyf-650	YOXysf-650	750	634	130	210	130	210	TL11 HL7	3~6	25~46	33~60	338
YOXyf-710	YOXysf-710	815	652	120	210	125	210	TL11 HL8	4~8	37~60	48~78	425
YOXyf-750	YOXysf-750	850	680	140	250	140	250	TL12 HL9	4~8	40~80	52~104	465
YOXyf-800	YOXysf-800	908	760	150	250	160	300	TL12 HL10	4~8	50~95	65~125	590
YOXyf-1000	YOXysf-1000	1120	870	180	300	180	300	TL13 HL11	5~10	78~156	100~200	820
