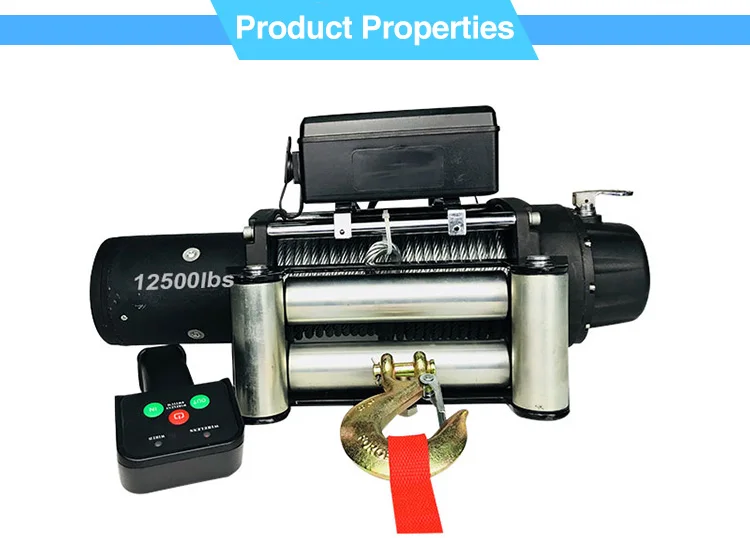

LULU Brand 12500lbs 4x4 car hoist winch
- Category: >>>
- Supplier: Jiangsu Hongjin Electro-Mechanical Equipment Manufacturing Co. Ltd. [Jiangsu China]Jiangsu
Share on (60733885768):
Product Overview
Description
LULU Brand 12500lbs 4x4 car hoist winch
Product Display
| 12500lbs Features and Specifications | ||
| HJEW-F12.5 | HJEW-F12.5S | |
| Rated line pull | 12500lbs.(5669kgs) single-line | 12500lbs.(5669kgs) single-line |
| Motor | Series Wound 6.0 hp (4.5kw) | Series Wound 6.0 hp (4.5kw) |
| Waterproof | IP 67 rating | IP 67 rating |
| Brake | Automatic In-The-Drum | Automatic In-The-Drum |

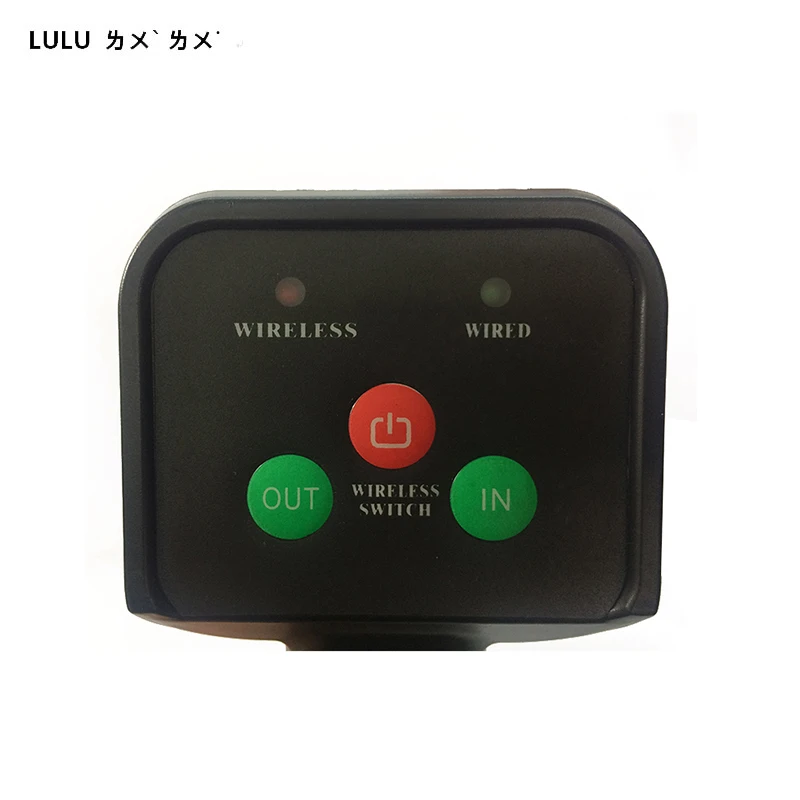

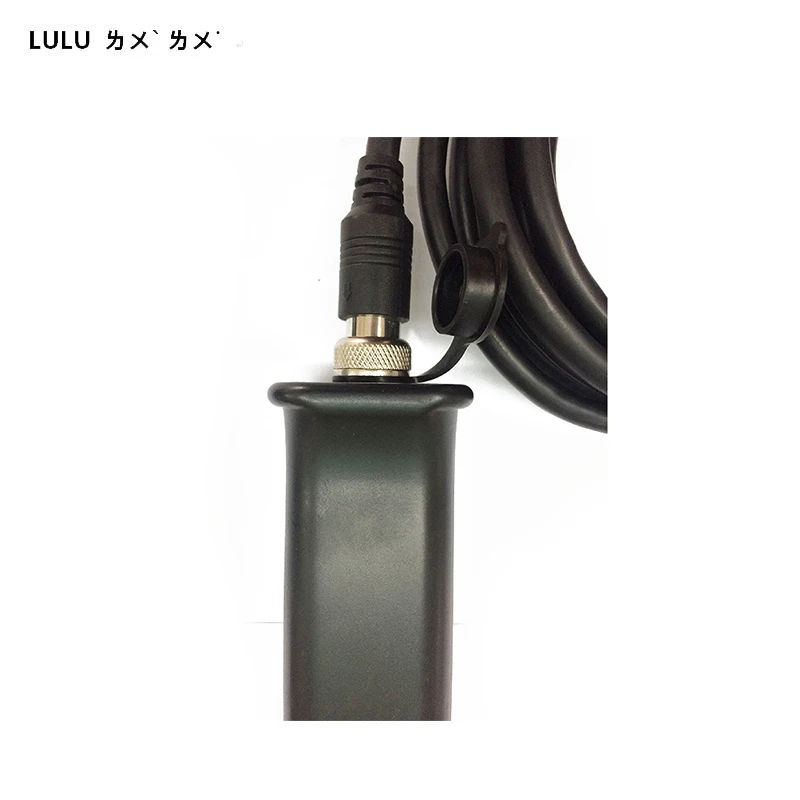

| Remote Control | Control switch,12 in (3.7m) lead | Control switch,12 in (3.7m) lead |

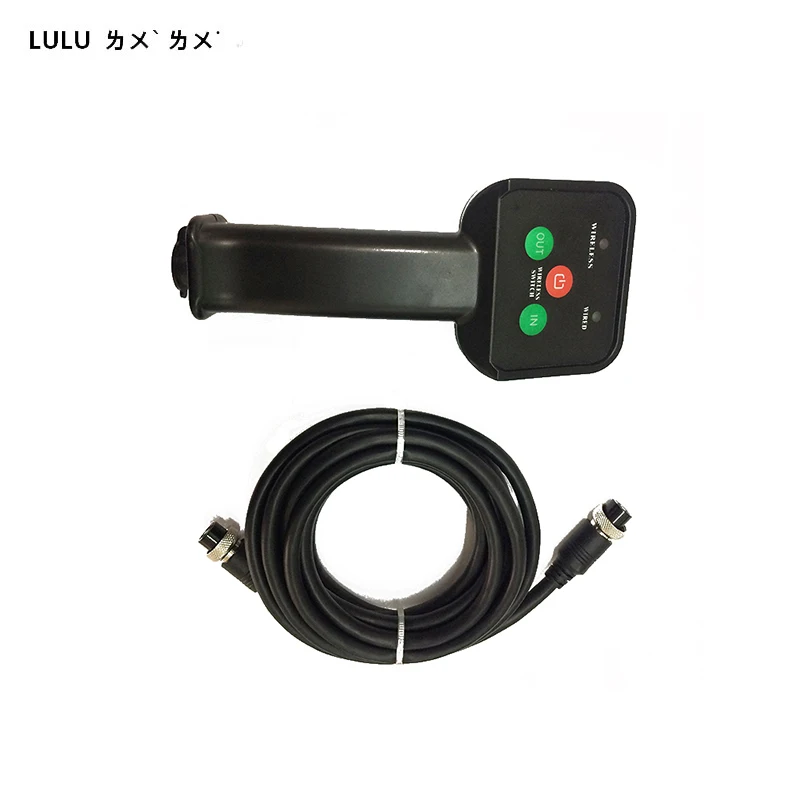

| Extra Wireless Remote | Combined with wired | Combined with wired |
| Geartrain | 3-Stage Planetary | 3-Stage Planetary |
| Gear Ratio | 216:1 | 216:1 |
| Clutch (freespooling) | Sliding Ring Gear | Sliding Ring Gear |
| Drum Diameter / Length | 2.5 in (63.5mm) / 88.19 in (224mm) | 2.5 in (63.5mm) / 88.19 in (224mm) |
| Cable Diameter / Length | 3/8 in (10mm) / 78.7 ft (24m) | 3/8 in (10mm) / 78.7 ft (24m) |
| Cable Type | Wire rope | Synthetic (UHMWPE) |

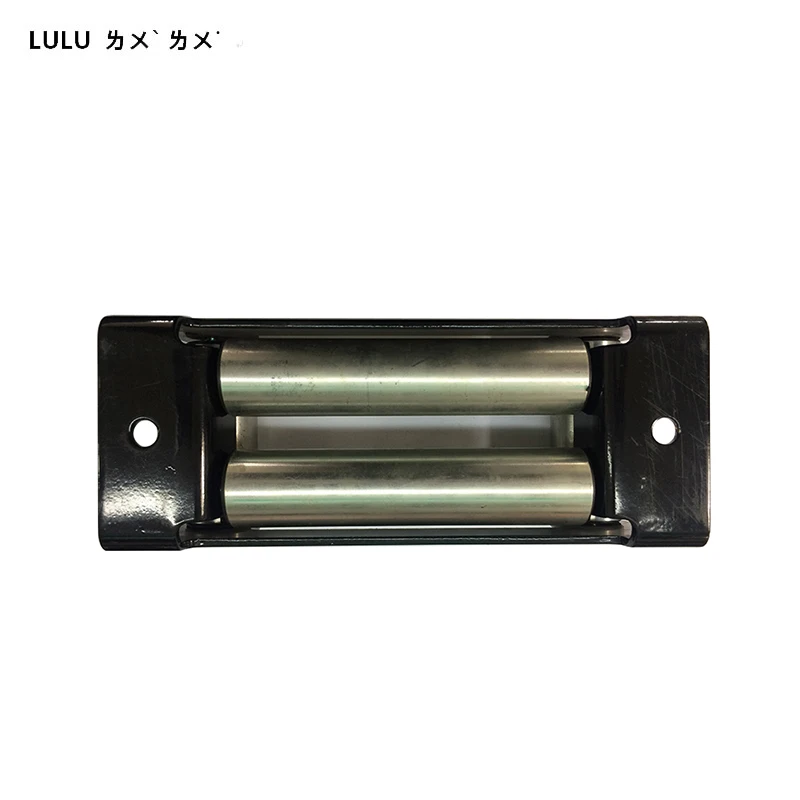

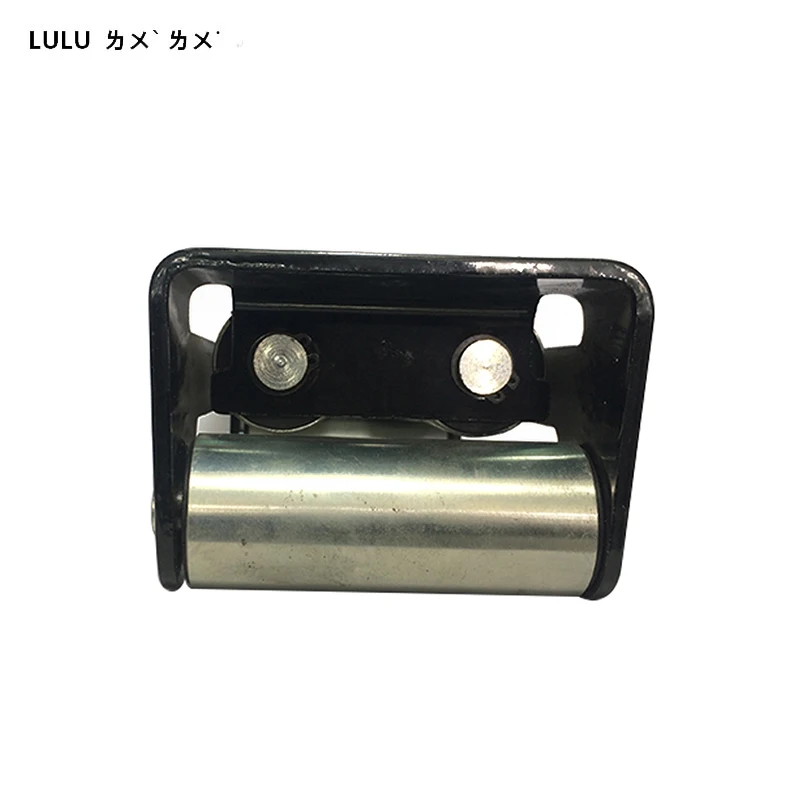

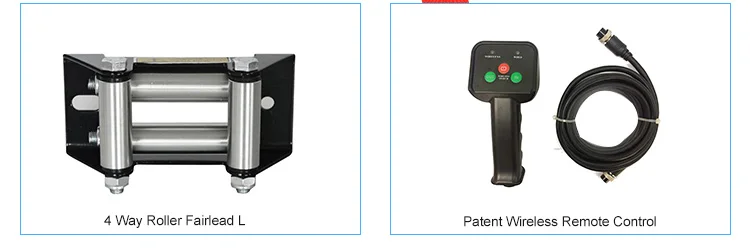

| Fairlead | Roller | Stainless Steel Hawse / Alumimum Hawse |
| Rcommended battery | 650 CCA minimum for winching | 650 CCA minimum for winching |
| Battery Leads | 25 Sq.mm, 72 in (1.83m) 1 | 25 Sq.mm, 72 in (1.83m) 1 |
| Color | Black (Default) or customised | Black (Default) or customised |
| Finish | Black / Textured Black Power Coat | Black / Textured Black Power Coat |
| Weight | 89lbs. (40.5 kgs.) | 57.31 lbs. (26 kgs.) |
| Mounting Bolt Pattern | 10.0 in x 4.50 in (254mm x 114.3mm) | 10.0 in x 4.50 in (254mm x 114.3mm) |
| Overall Dimensions | (L x W x H) 21.5 in x 6.3 in x 8.7 in 546mm x 160mm x 222mm | (L x W x H) 21.5 in x 6.3 in x 8.7 in 546mm x 160mm x 222mm |
| Pull, Speed, Amps | ||
| Line Pull Lbs.(Kgs.) | Line Speed FT./min (M/min.) | Motor Current |
| 0 | 21.3 (6.5) | 80 amps |
| 2000 (907) | 14.6 (4.5) | 120 amps |
| 4000 (1818) | 10.9 (3.32) | 168 amps |
| 6000 (2727) | 9.0 (2.75) | 220 amps |
| 8000 (3636) | 7.5 (2.3) | 270 amps |
| 10000 (4545) | 6.2 (1.9) | 320 amps |
| 12500 (5669) | 4.5 (1.37) | 380 amps |
| Line pull and rope capacity in each layer | ||
| Layer | Rated line pull lbs(kgs) | Total rope on drum ft(M) |
| 1 | 12500(5669) | 16.3(5.0) |
| 2 | 9580(4354) | 37(11.2) |
| 3 | 8380(3813) | 61(18.6) |
| 4 | 7365(3348) | 85.3(26.0) |
