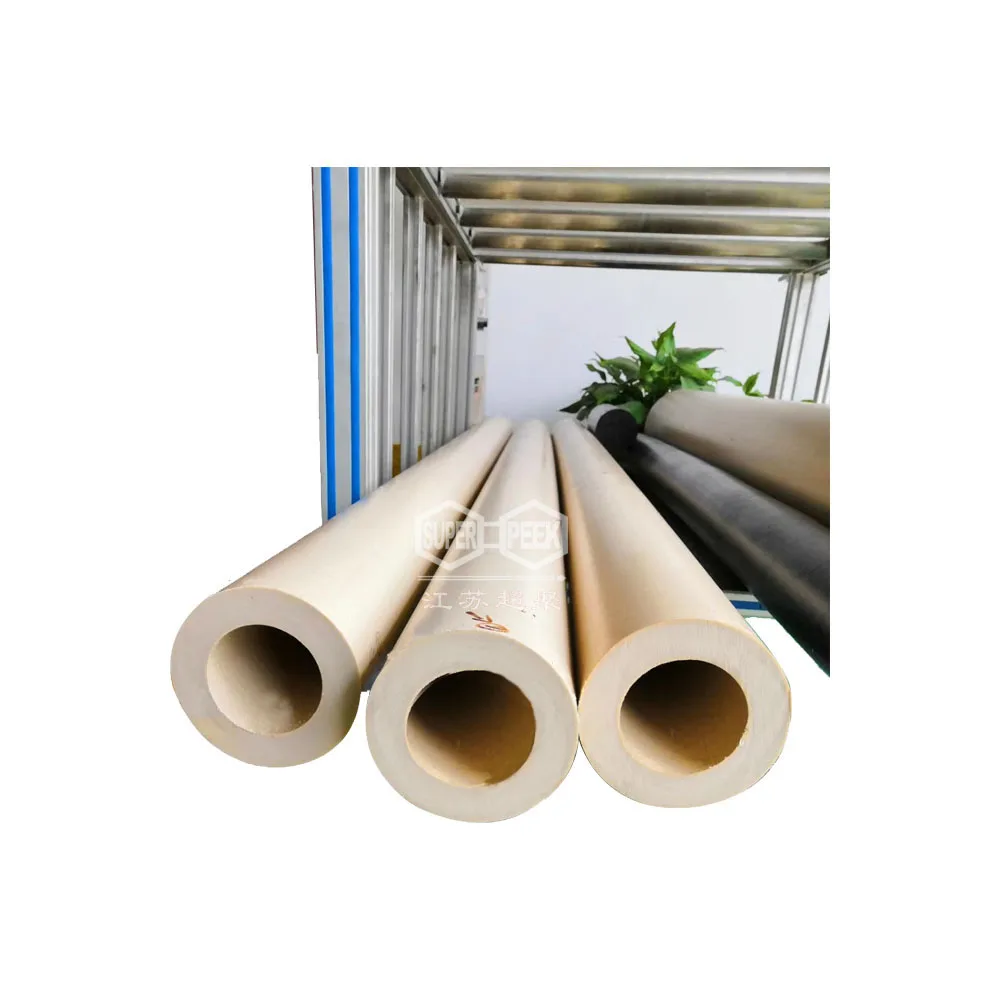

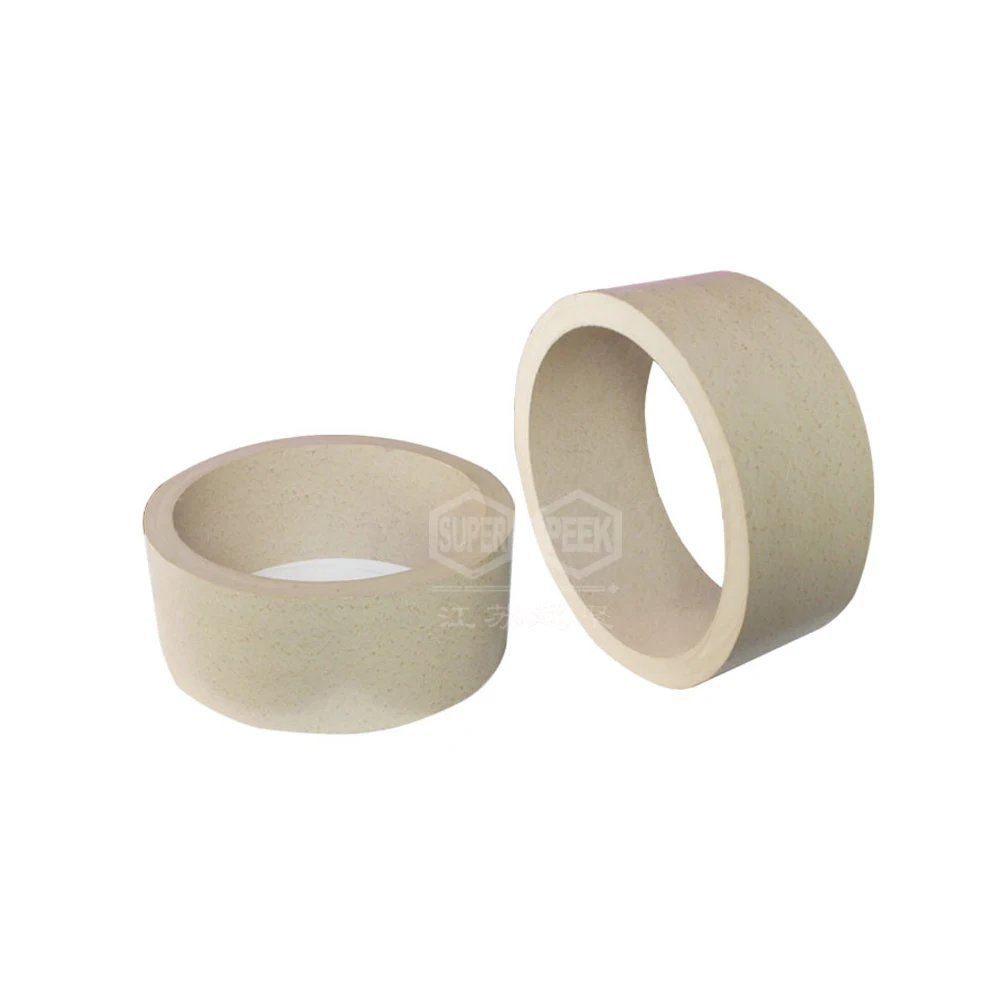

Peek material tube peek tubing
- Category: >>>
- Supplier: Jiangsu Chaoju High Performance Polymers (PEEK) Technology Co. Ltd.
Share on (60733893805):
Product Overview
Description
Product Description
Product Name | PEEK material tube, PEEK tubing |
Material | PEEK5600G : 100%PEEK |
PEEK5600GF30 : PEEK+30%Glass fiber | |
PEEK5600CF30 : PEEK+30%Carbon fiber | |
PEEK5600LF30 : PEEK+(10% Carbon fiber+10% Graphite+10% PTFE) | |
Color | Nautral,black |
Appliacation | —Analytical instruments industry —Food processing and filling machinery industry —Electronics semiconductor industry —Medical device industry —Automotive industry —Petrochemical machinery industry —Textile machinery industry —Aerospace, military industry |
Certification | ISO9001,REACH,ROHS |

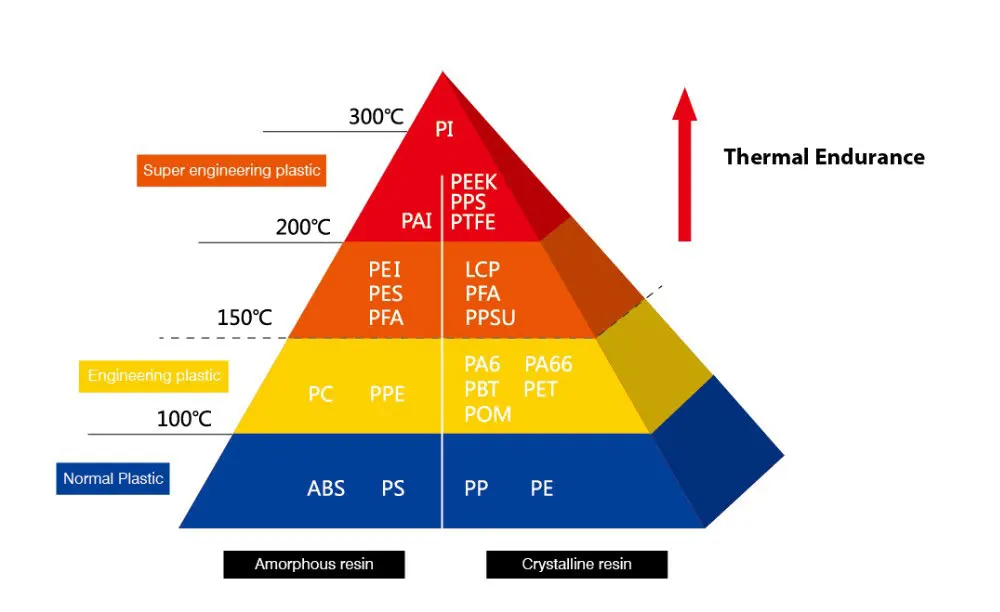

PEEK performance
PEEK is a semicrystalline thermoplastic with excellent mechanical and chemical resistance properties that are retained to high temperatures. PEEK is used to fabricate items used in demanding applications, including bearings, piston parts, pumps, HPLC columns, compressor plate valves, and cable insulation. It is one of the few plastics compatible with ultra-high vacuum applications.
PEEK tubing application
1. Peek back-up rings 2. peek seals 3. peek valve seats 4. PEEK tubings
PEEK back-up rings
Back up rings are normally used in high pressure environments in combination with an O-ring or seal. ChinaPEEK back up rings have
a high compressive strength and thermal stability. In conjunction with temperature, chemical and fatigue resistance, the back up ring material functions as an added insurance when spikes in pressure can cause the O-ring to fail and the stronger, tougher, back up ring is used to help prevent failure.
a high compressive strength and thermal stability. In conjunction with temperature, chemical and fatigue resistance, the back up ring material functions as an added insurance when spikes in pressure can cause the O-ring to fail and the stronger, tougher, back up ring is used to help prevent failure.
PEEK seals
Peek seals are used in areas that require the control of things for example like liquids and natural gasses to prevent leakage.There are several different applications and areas that PEEK seals can be found in such as valves, compressors, packers and blow out preventers. The high-performance thermoplastic polymer PEEK is perfectly suited for this sealing applications due to its excellent properties such as high temperature tolerance, good mechanical and chemical resistance and its hardness and rigidity.
PEEK valve seats
Valve seats are used in environments to control the flow of fluids, allowing them to flow freely and also have the ability to close to prevent the flow. ChinaPEEK is a commonly used material and considered premium in valve seats applications due to its excellent chemical and thermal properties. The high temp polymer remains resistant despite the continuous exposure of hot water and steam and increases the torque requirement of the valve due to its rigidity.

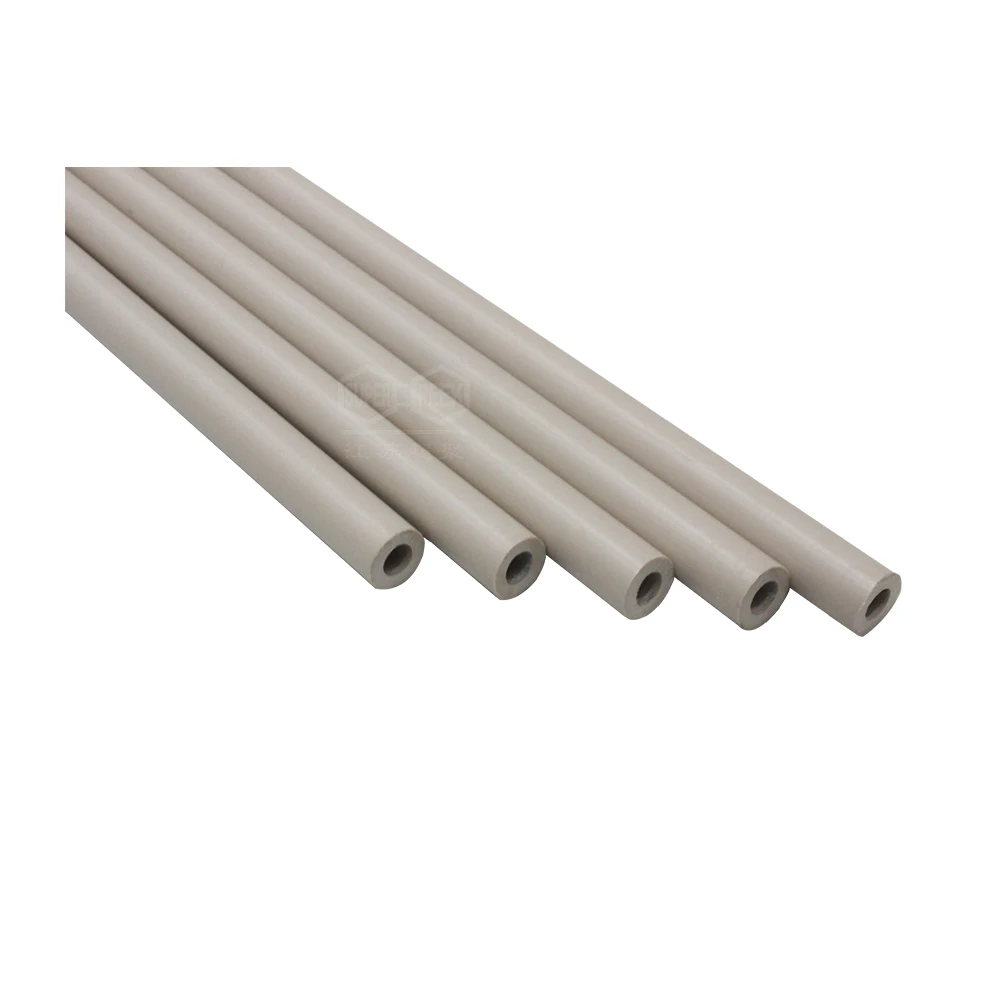

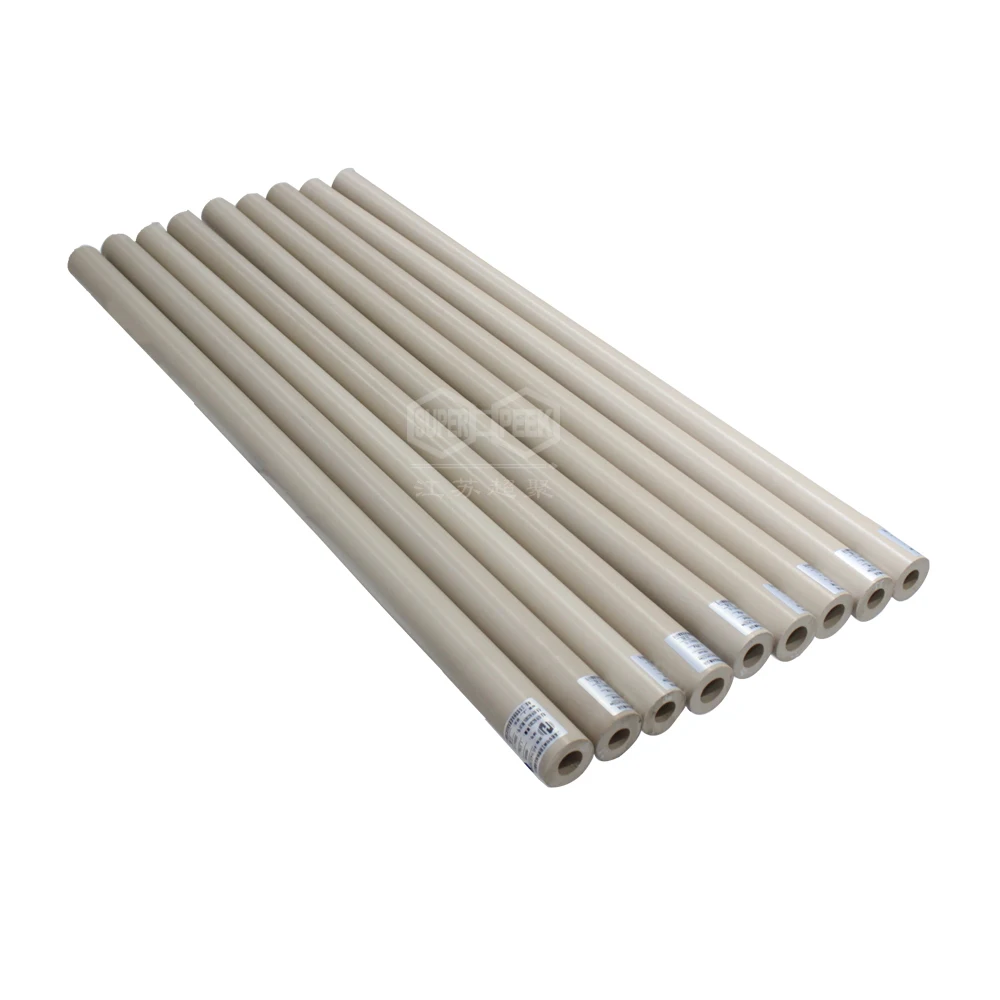

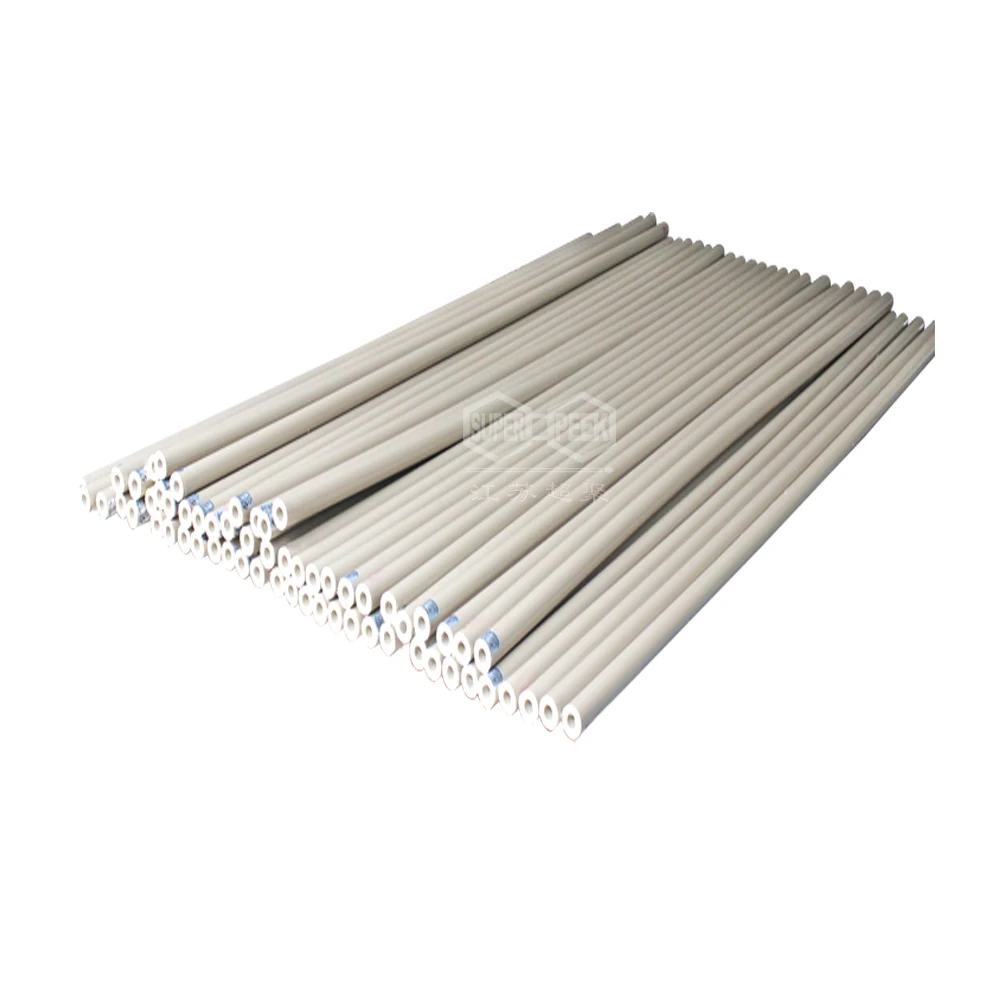

PEEK tubings
PEEK tubing can be used in various industries including the Energy/Oil & Gas industry. Produced in a wide range of sizes and by
several different processes, PEEK tubing can be used in many applications such as spacers, acting as a protective coating or
sheath, as well as pipes for the transfer of high temperature fluids. PEEK tubing has one of the highest strength-to-weight-ratios and moreover the required strength to resist continuous use at HPLC pressure. Therefore, PEEK tubing has become a popular alternative for stainless steel tubing.
several different processes, PEEK tubing can be used in many applications such as spacers, acting as a protective coating or
sheath, as well as pipes for the transfer of high temperature fluids. PEEK tubing has one of the highest strength-to-weight-ratios and moreover the required strength to resist continuous use at HPLC pressure. Therefore, PEEK tubing has become a popular alternative for stainless steel tubing.
Production& Test

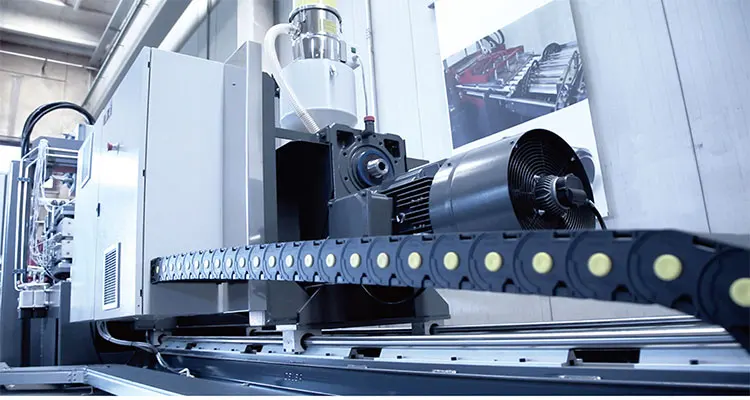

Production Line
This europe imported production line is used for peek sheet extrusion,1250mm width is now the biggest peek sheet around the world.

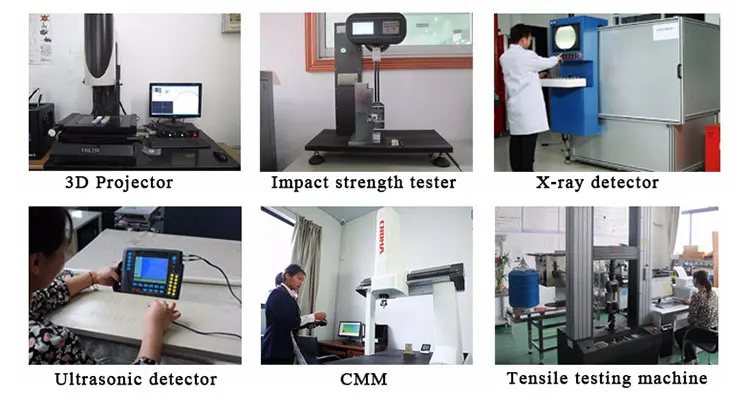

Quality Review
Quality review for peek material performance: ultrasonic detector,impact tester,hardness tester,density detector,universal testing machine, X-ray foreign matter detection equipment,etc.
Quality review for peek product appearance: image measuring instrument,CMM,finish instrument,cold jet dry ice deburring,colorimeter,etc

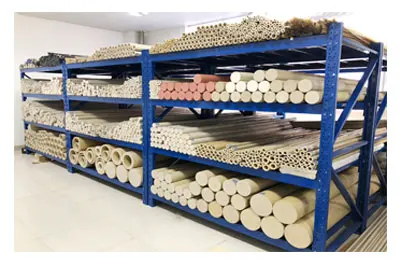

Certificate&warehouse
As a manufacture leader in China peek industry, ChinaPEEK gains dozens of certificates& technical patents in the past 12 years.
NO. | Patent Name | Patent Number | Apply Date | Issue Date |
1 | PEEK capillary tubes continuous extrusion process and technology | ZL201310425335.3 | 2013.09 | 2017.03 |
2 | PEEK rotor production technology | ZL201310423283.6 | 2013.09 | 2017.05 |
3 | PEEK wearing bush for the weaving machine | ZL201310423033.2 | 2013.09 | 2017.01 |
4 | PEEK slim sheet continous extrusion process and technology | ZL201402447189.4 | 2014.08 | 2014.12 |
5 | PEEK needle bar frame for medical | ZL201721255079.8 | 2017.09 | 2018.04 |
6 | PEEK Cassette for liquid-crystal display (LCD) | ZL201721254977.1 | 2017.09 | 2018.05 |
7 | PEEK cable extrusion technology with electromagnetic preheat function | ZL201721255076.4 | 2017.09 | 2018.04 |
8 | PEEK injected and metal imbedded star wheel | ZL201721254833.6 | 2017.09 | 2019.03 |
9 | PEEK glass frame | ZL201721839957.0 | 2017.12 | 2018.08 |
10 | PEEK bottle clamp for food processing and filling machine | ZL201721839847.4 | 2017.12 | 2018.09 |

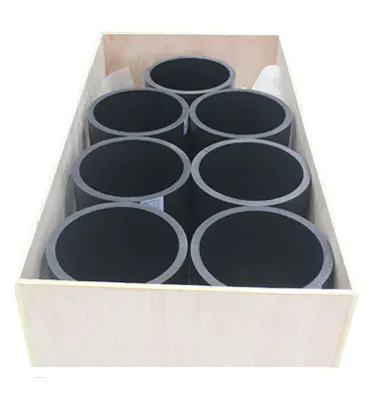

Product Packaging
Collaborative Customers
ChinaPEEK
In the past 12 years, thousands kinds of peek parts produced by ChinaPEEK is widely used by manufactures from below industries,
- Analytical Instruments Industry
- Analytical Instruments Industry
-Food Processing and Filling Machinery Industry
- Electronics Semiconductor Industry
- Medical Device Industry
-Automotive Industry
- Petrochemical Machinery Industry
- Textile Machinery Industry
- Aerospace, Military Industry
- Electronics Semiconductor Industry
- Medical Device Industry
-Automotive Industry
- Petrochemical Machinery Industry
- Textile Machinery Industry
- Aerospace, Military Industry
