Soft drinks/Flavored waters/Fruit Juice HTST Pasteurization Machine Plate type HTST pasteurizer
- Category: Pasteurizer >>>
- Supplier: Shanghai Beyond Machinery Co. Ltd.
Share on (60733922435):
Product Overview
Description
Products Description

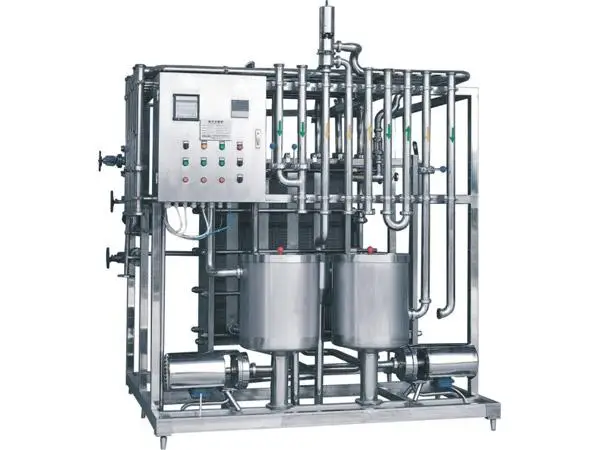

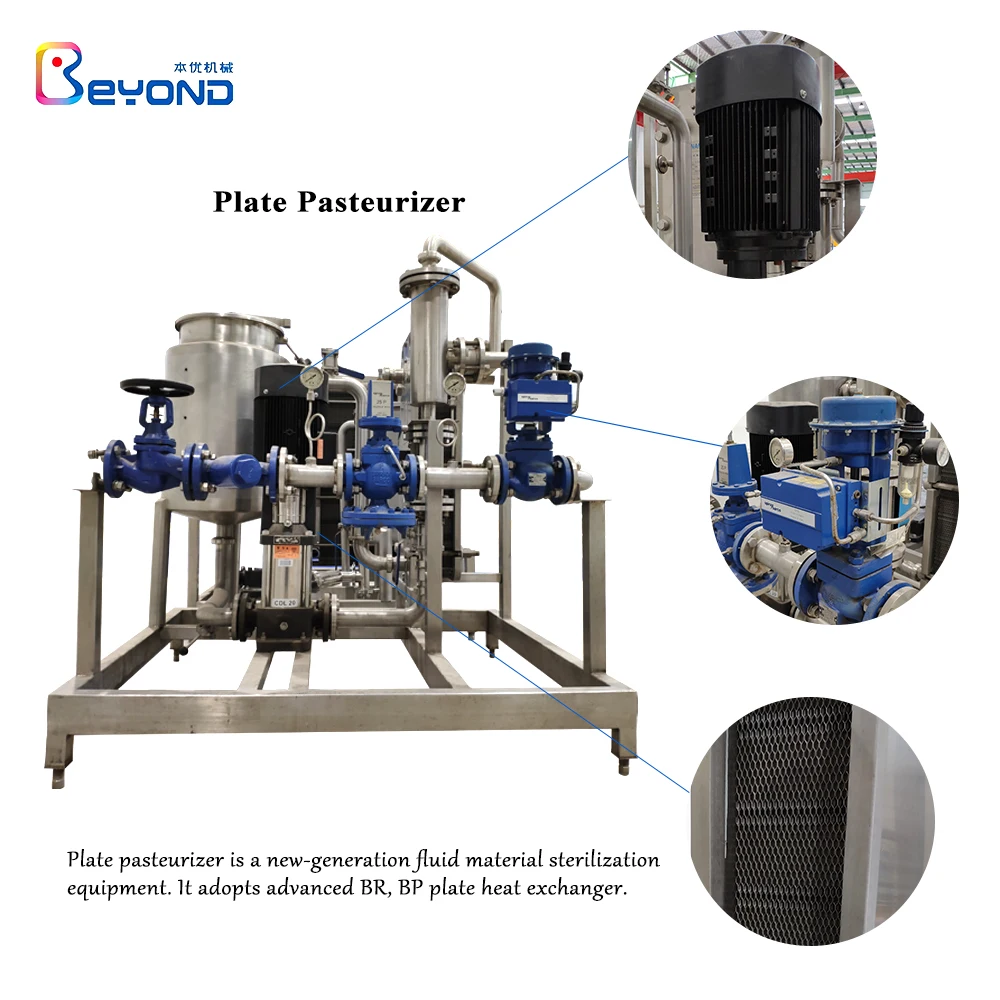

Plate-type HTST Pasteurizer

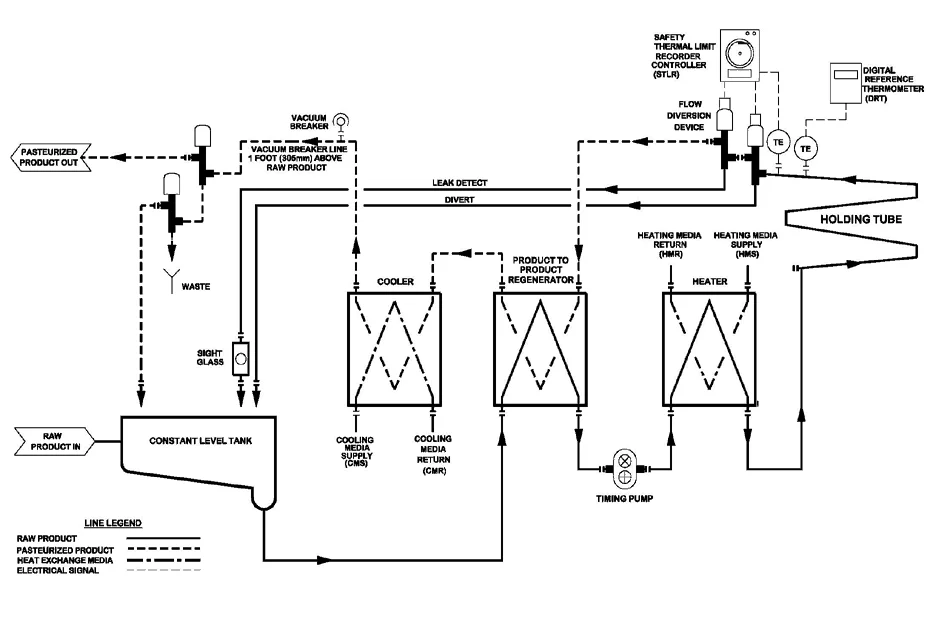

HTST, or high temperature short time pasteurization, has become one of the most common methods of pasteurization today. It is more frequently known as flash pasteurization, or the “continuous method”. Pasteurization destroys pathogenic organisms such as bacteria, viruses, protozoa, molds and yeasts in milk products to reduce bacterial content and deliver a safe product to the public. HTST pasteurization uses stainless steel heat exchange plates where product flows on one side while the heating media flows on the opposite side to raise milk temperatures to at least 161° F (72° C) for at least 15 seconds*, followed by rapid cooling. If the fat content of the milk product is 10% or greater, or a total solids of 18% or greater, or if it contains added sweeteners, the specified temperature shall be increased by 5°F (3°C).
Model | Process Capacity | Heat Exchanging Area(m2) | Power (kw) | Steam Cost (kg/h) | External Dimension (mm) | Total Weight of Machine (kg) |
BR16-3-0.5 | 0.5 t/h | 5 | 5.2 | 52 | 1200×1200×1500 | 790 |
BR16-3-1 | 1 t/h | 8 | 5.2 | 60 | 1500×1500×1800 | 880 |
BR16-3-2 | 2 t/h | 13 | 6 | 104 | 1800×2000×1800 | 980 |
BR26-3-3 | 3 t/h | 20 | 6 | 156 | 2000×2000×2200 | 1080 |
BR26-3-4-5 | 4.5 t/h | 30-45 | 8 | 260 | 2250×2000×2200 | 1250 |
BR26-3-6-8 | 6-8 t/h | 35-50 | 8 | 400 | 2250×2000×2200 | 1250 |
BR26-3-10 | 10 t/h | 60 | 11 | 520 | 2800×2000×2200 | 1650 |
BR35-3-15 | 15 t/h | 75 | 15 | 780 | 3000×2200×2200 | 2150 |
BR35-3-20 | 20 t/h | 80 | 18 | 945 | 3300×2200×2200 | 2350 |

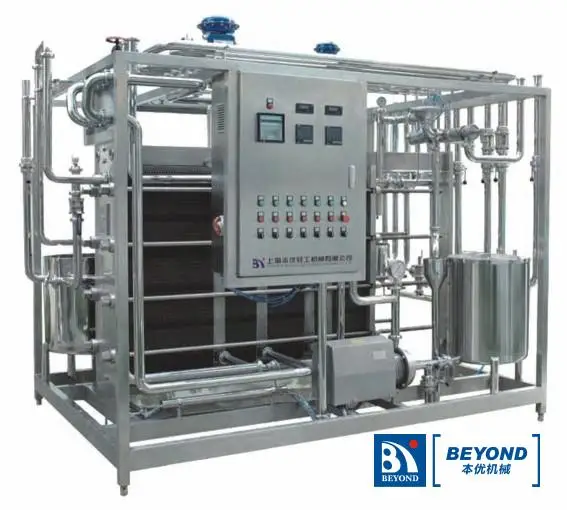

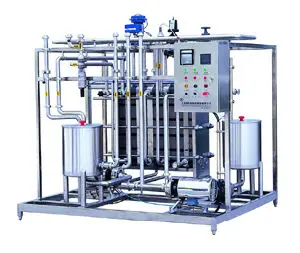

This machine has features of high heat recovery, lower energy cost, strict design on the construction and easy operation, simple maintenance. The Shanghai Beyond Company’s Plate Pasteurizer is a flexible solution that can be delivered, installed and commissioned within a very short time, offering a unique combination of advantages:
* Modular system for complete flexibility
* Pre-assembled and factory-tested with water before delivery for easy and fast installation based on standardized design
* Simply connect and run
* Automatic control* Rapid production increase
* Less product loss
* Integration with existing control system
* Skid-mounted and small footprint for flexibility in limited space
* Capacities ranging from 0.5 to 20 t/h
* Lower investment costs
* Short pay-back time and high ROI over a long service life
* Global availability with global service and support
Company Profile
Shanghai Beyond Machinery Co., Ltd.
Shanghai Beyond Machinery Co., Ltd. is a professional machinery manufacturer based on technical developing. Combining with R&D, manufacturing, installation debugging and training, we are engaged in producing the liquid projects used in Dairy, Fruit & Vegetable Juice, Beverage, Tea, Brewing, Flavoring, Pharmacy and Daily chemical products etc. We have cooperated with the same occupations from domestic and international to introduce and develop many advanced procedures of manufacturing and designing. With so many excellent staffs in technical and marketing, we are distributing in a more flexible and invigorative working surrounding development and helping our customers more success in the corresponding areas by offering better products and service.
For further information or details, you can click the picture above to get access to our company's shop website.
Our Services
Main Service Business
*Total production line of dairy products (pure milk, sour milk, Soy milk, flavored milk, milk drinking and ice cream etc.)
*Total production line of all kinds of beverages(juice, tea drinking, energy drinking etc.)
*Stainless Steel Tanks Series
*Sterilizing Equipment Series
*CIP Cleaning Series
*Concentrating and Degassing Equipment Series
*Stainless Steel Sanitary Pipe and Valves
For any further details, you can click the pictures below to get access to our shop's catalogs.
Dairy Processing Line
In the dairy, raw milk passes through several stages of treatment in various types of processing equipment before reaching the consumer in the form of a finished, refined product. Production usually takes place continuously in a closed process, where the main components are connected by a system of pipes. The type of treatment involved and the design of the process depend on the end product.
We supply milk turnkey projects for various kinds of dairy products such as pasteurized milk, UHT milk, yogurt, flavored milk, cheese, butter, etc.
The capacity we can supply for you is 1000LPH-400TPD. Raw material starting from fresh raw milk or milk powder.
Fruit Processing Line
A large variety of fruits can be used to obtain by the appropriate technological process different kinds of semi – finished product starting from fresh fruits just harvested from field or stored in controlled atmosphere warehouses. The ripeness degree, the freshness and the cleanness of the raw materials are very important to obtain a high quality juice.
A fruit juice can be considered a suspension of water, sugars (manly: glucose – fructose – sucrose), acids, essences, vitamins, proteins, minerals, pigments and pectic-substances.
The most common semi – finished products are: 1. Puree’ single strength or concentrate; 2. Cloudy or pulpy juices single strength or concentrate (which contain insoluble solid particles); 3. Clear juice single strength or concentrate (without the insoluble substances)Beyond provides you different kinds of fruit processing line or machines.
Stainless Steel Tank Series
Mainly used in liquid food business such as milk, dairy, fruit juice, beverage and drinks etc. Various kinds of SUS tanks meet different functions like storage, mixing, preparing, blending, heating, sterilizing, fermentation, cooling, emulsification and dissolving etc. Tank capacity and structures can be customized as actual requirements.
Sterilizing and Pasteurization Equipment
We could provide you plate pasteurizer and turbular pasteurizer in different external shapes with semi-auto and full-auto control type. Our pasteurizer is made to be 500 Liters per hour as the smallest capacity. As for sterilizing temperature, we have 100℃, 120℃, 141℃. These three kinds of sterilizer can meet different applications.
It is used in liquid food sterilizing processing such as fresh milk, beverage, fruit juice, drinks, honery, etc.
