YFMZ1100 Automatic Thermal Film Paper Laminating Machine Heated Roll Laminator

Product Overview

Description



YFMZ1100 Automatic Thermal Film Laminating Machine

Model	YFMZ1100	YFMZ1200
Max.laminating size(width × length)	1050mm×1100mm	1200mm×1300mm
Min.laminating size(width × length)	300mm×350mm	300mm×350mm
Laminating Speed	0~80m/min	0~80m/min
Paper Thickness	100-500g/m2	100-500g/m2
Power	36kw(normal is a half)	36kw(normal is a half)
Voltage	220/380V	220/380V
Diameter of Heating Roller	351mm	351mm
Diameter of Film Paper core	≤76mm(3 inch)	≤76mm(3 inch)
Weight:	4500KG	5200KG
Overall Dimension (L×W×H)	6000mm×1800mm×2000mm	6000mm×1900mm×2000mm





Product Features:

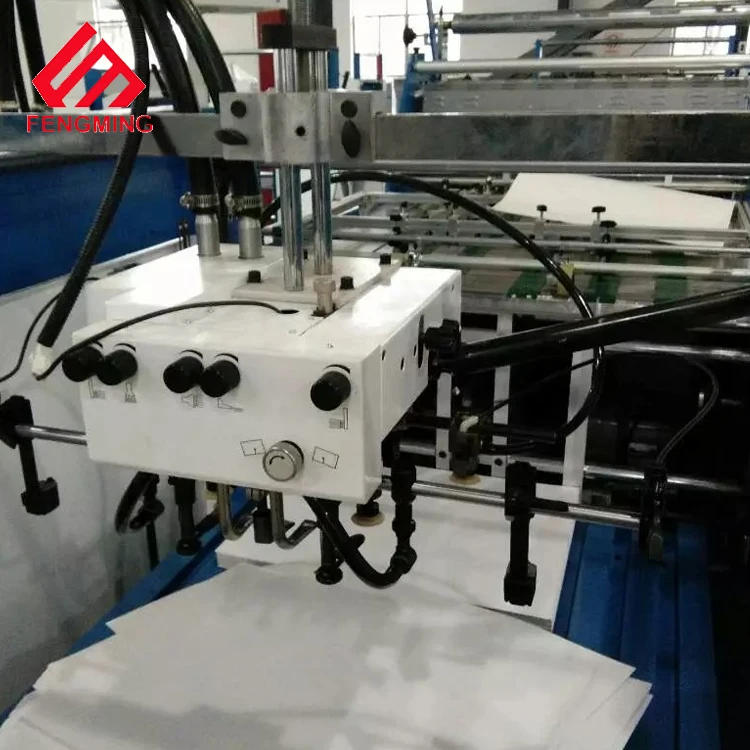

Feeder(vacuum pump system without oil system)

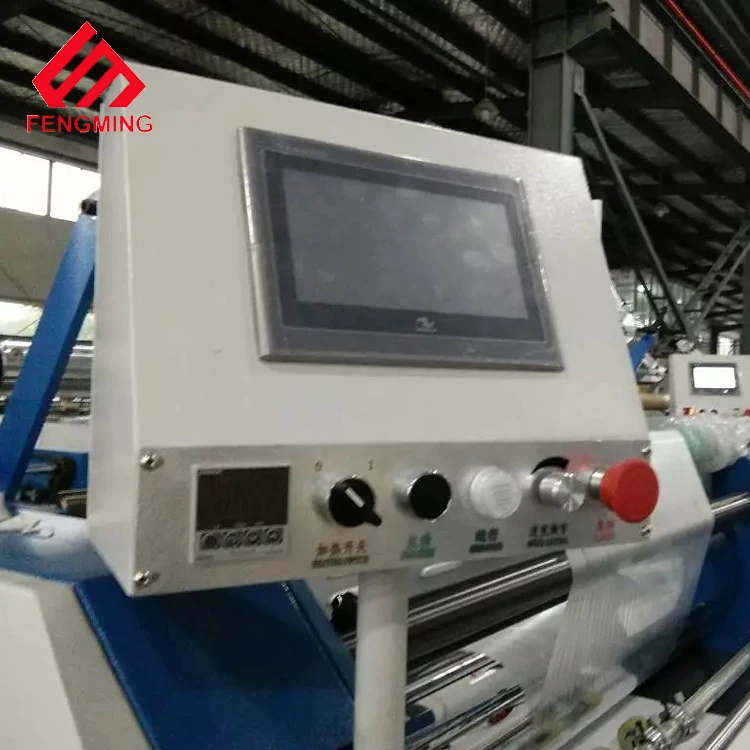

Man-Machine Interface(easy and automatic operation )

Magnetic heating system

Hydraulic pressure (Automatic adjustment pressure )

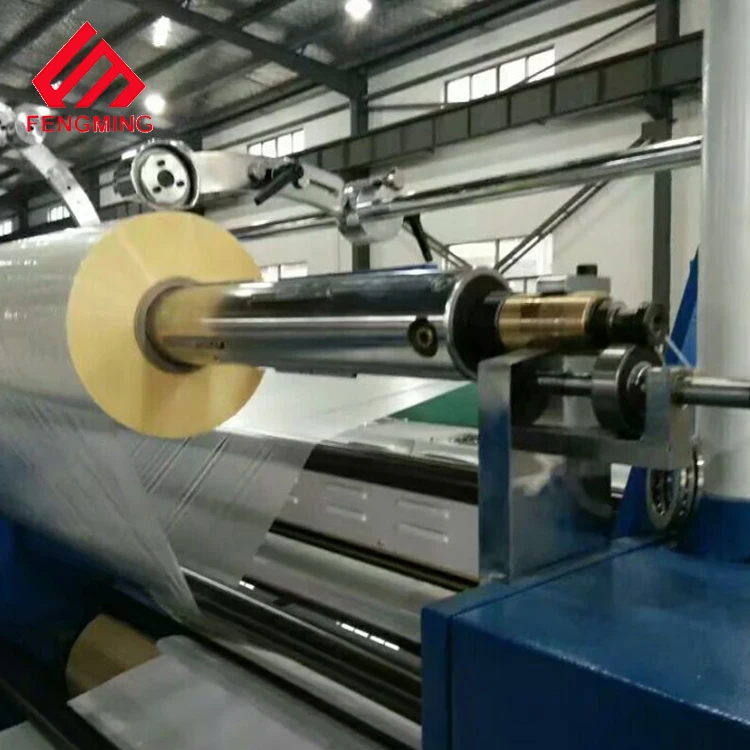

Gas Expanded Shaft(with Tension System)

Film Cutter and Film Puncher

Pull Guide and Side Pull

Anti-Curve Device

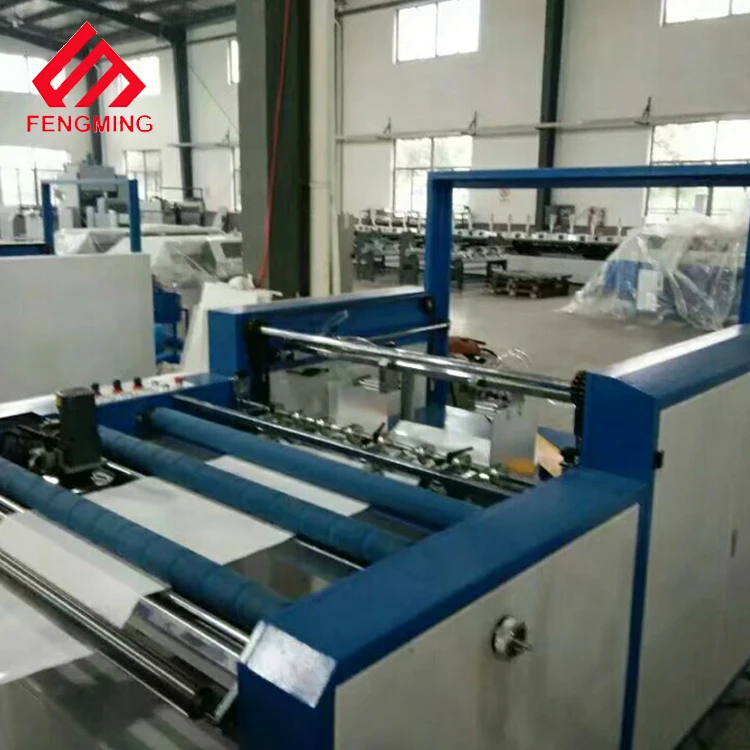

Pneumatic Dividing and Disc Cutter(with Auto Stacker)

With a dividing structure to wash and change rollers easily.

PS: Using glueless and thermal film to laminate paper

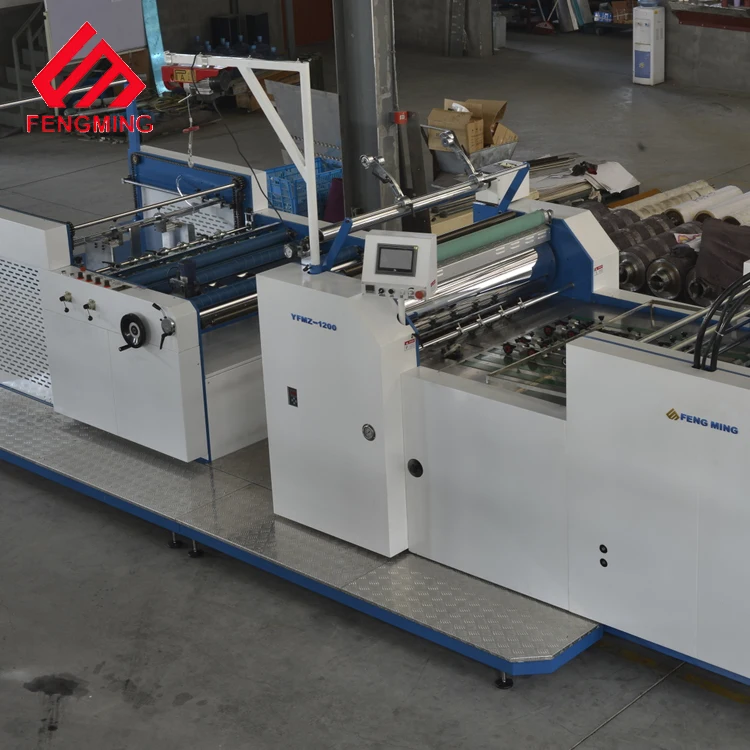

Production Display:
