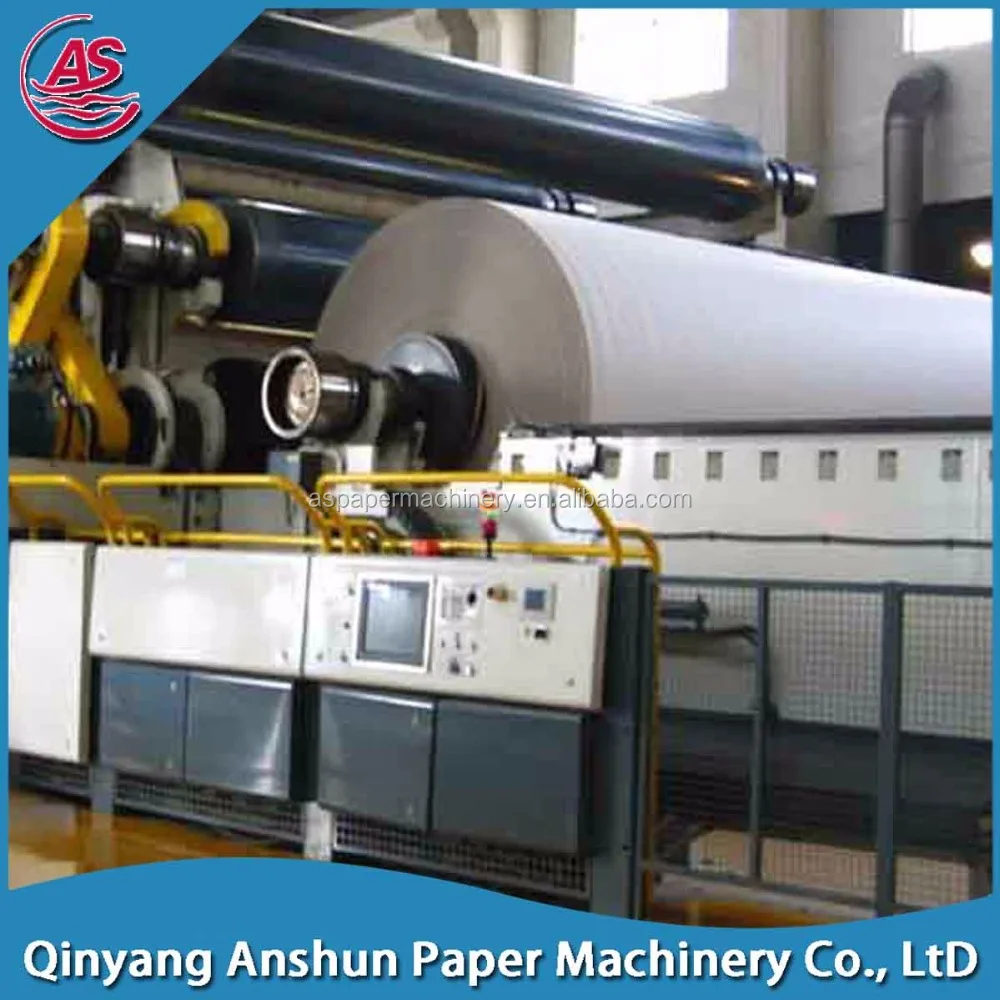

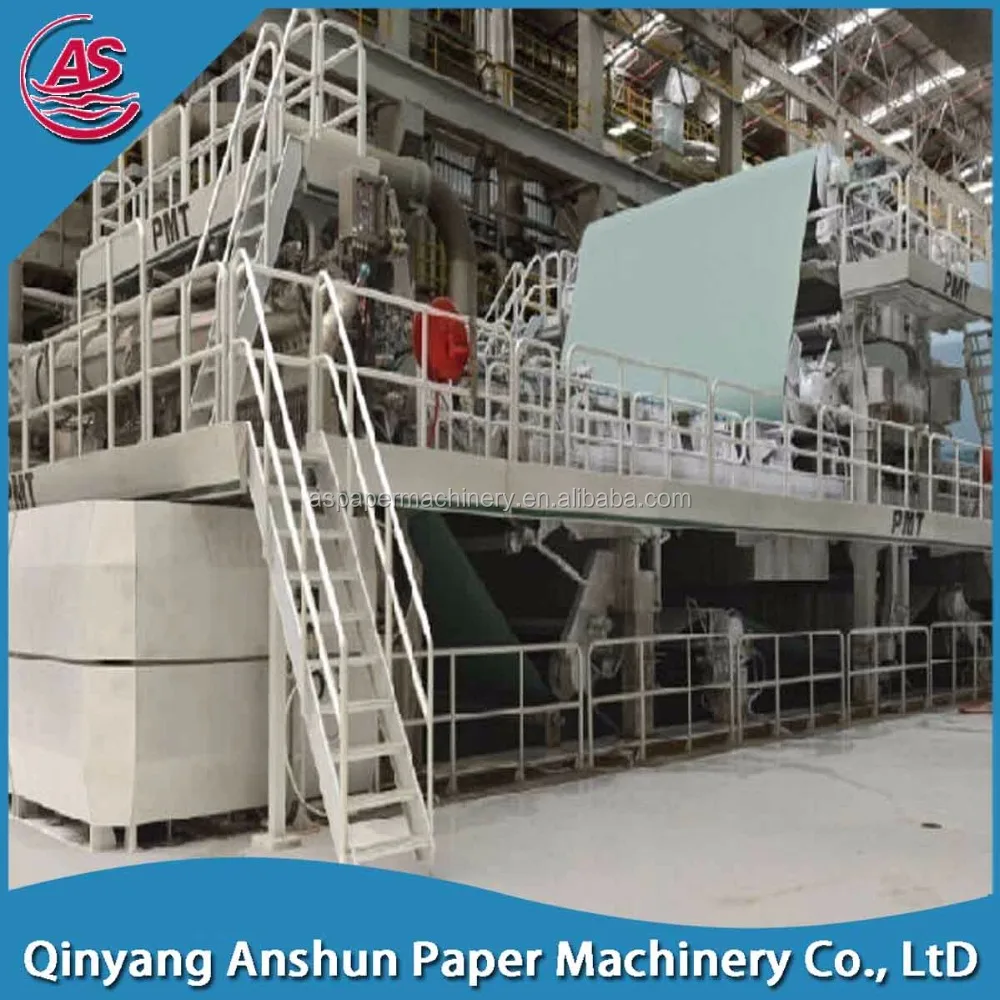

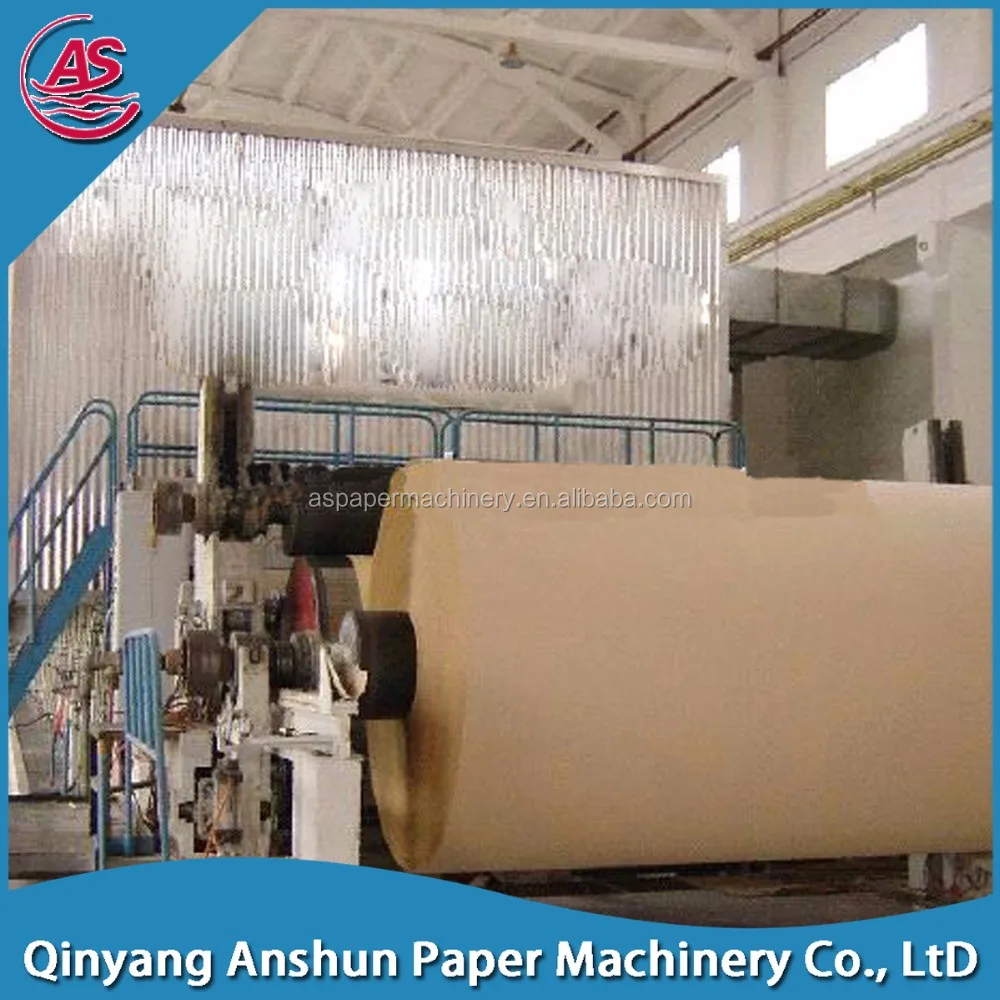

wholesale China corrugated cardboard paper machinery manufacturing from paper mill factory

Technical parameters

Basic infromation you need knows in advance before you are going to purchase the paper making machine production line , as follows:

1.the land of paper mill factory at least 1000 square meters.

2. what is your raw material of producing corrugated paper/fluting paper/kraft paper ?

3. what is your capacity per day do you want produce?

4. how many width of jumbo roll ?

5. what is your paper weight (gsm) ?

  1. Wholesale China corrugated cardboard paper machinery manufacturing can produce kraft paper , corrugated paper, cardboard paper ,fluting paper , karft liner paper and so on.  but these paper can be produced by some different machine , such as cylinder mould type machine , the fourdrinier machine , double fourdrinier machine , tri-stack paper machine.The low cost machine was cylinder mould type with the stable pulp processing on the cylinder mould , quality of finished paper products as well as fourdrinier machine produced.

 2.  If your plans was the high capacity per day , the fourdrinier machine will be good option ,with the high speed of working ,through the headbox evently spray slurry on the fourdrinier wire .the paper vertical tension and horizontal tension will be increased compared with cylinder mould.the cost will be higher than cylinder mould type machine .

  There are many kinds of useful wood pulp containing coniferous pulp, broadleaf pulp. But also useful to do with recycled pulp, bamboo pulp, sugar cane pulp, as well as broken clothes scraping pulp, and made with wool beating, usually with pulp and recycled pulp and the use of these two kinds of mixed to do more, several other stations The proportion is relatively small.

 The whole production line chart as follow:

Waste paper---Pulping---Screening---Pulp washing---Defibrination---Rescreen---Size mixing---Mixed pulp---Desander---upper wire---water absorption---Drying---Reeling---Slitting---Packing---Storagethe raw material was waste paper )

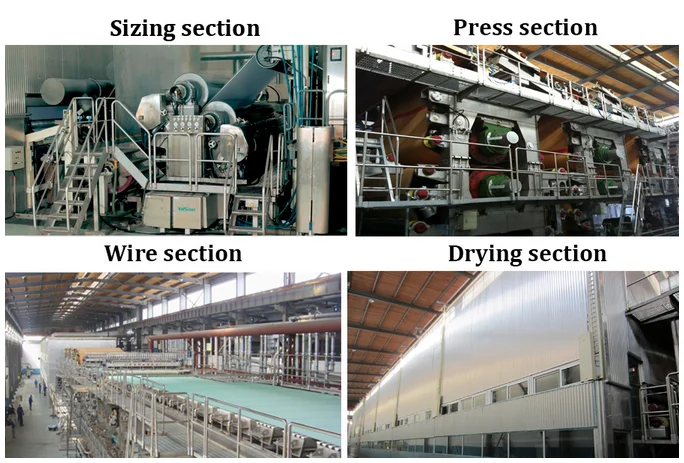

STRUCTURE DESCRIPTION
I. Vatman's section

  Wove mould, Cylinder vat, Couch roll, Vacuum turn back roll ,Vacuum suction water tank, Guide roller, Vatman's section Machine frame

II. Press part
Press part have two part device . vacuum K type Press device and large-diameter roll press device. machine frame use chest structure soldering , lifting top roller and pressurization use pneumatic control , every press device equipped with vacuum suction water tank , tensioner , corrector unit , spray water pipe , spreader roller , guide roller , scraper etc .

1. Vacuum K type Press device
Vacuum Press top roll , Vacuum Press bottom roll ,Vacuum press roll ,Large-diameter roll press device,Vacuum press bottom roll , every press device equipped with walking board , railing , use section bar to welding make . Guide roller, Spreader roller, Electric tensioner ,  Fixed spray water pipe ,  Machine frame of press part

III. Drying part

Drying cylinder, Scraper, Guide roller, Electric tensioner, Spring roll , Hood of steam, Machine frame of drying part

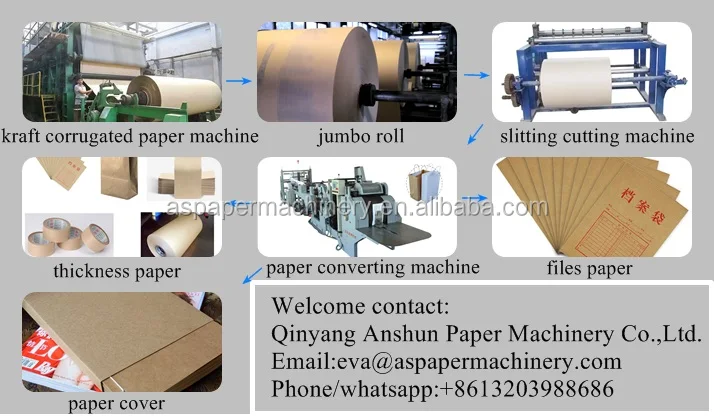

As this picture shows the corrugated paper production line converting part,divided into as follows:

1.jumboo roller→ slitting cutting machine→paper converting machine → files paper,notebook cover

2.jumboo roller→ slitting cutting machine→paper converting machine→ paper tube making machine→ paper tube.

The processing paper pulp related equipment of wholesale China corrugated cardboard paper machinery manufacturing from paper mill factory

1.Chain conveyor

2.Hydra-pulper, D-type hydra-puler, Drum type hydra-pulper

3.High density de-slagging machine

4.Vibrating screen, mid consistency pressure screen, paper machine pressure screen, UV-flow pressure screen, inflow pressure screen,external flow pressure screen, center section energy saving pressure screen,fiber fractionating screen,light rejects screen,double drum pressure screen, coarse screen , fine pulp screen etc.

5.PZ series reject separator, Single-effect separating machine,, single fiber separating High Quality Heavy Impurity Cleaner/waste paper recycling processing machine/paper pulp making machines machine etc.

6.Pulp pump

7.Double disc refiner, high taper fine grinding machine, double disc pulp grinding machine, conical refiner etc.

8.High taper helical propeller, square pulp pool stirrer

9.Other paper recycling machines such as grapple, cutter,drum unpacker., disc thickener

10.sludge dewatering machine etc.

Packaging wholesale China corrugated cardboard paper machinery manufacturing from paper mill factory

1. Fixed all the movable parts with plastic films.
2. Polystyrene foam plate wrapped around.
3. Wrapped with tighted  plastic films several circles.
4. Fixed machine on the fumigated plywood pallet with iron wire.
5. Wrapped with wooden board around and nailed on.
Shipments
1. Sea transportation is from Qingdao ports or other ports.
2.Delivery time is decided by your needed machines or machine parts. But it also follows your needs.

  Our company vision market will widely sales in Africa, Europe, South Africa and Asia.and at presents , we have made deal with Uzbekistan, Russia,Kazakhstan, Nigeria, Pakistan,Iran,Egypt,Bangladesh,Ethiopia, Algeria, Lebanon, Uganda,Ghana etc.

We also has  domestic maket in China , such as Guangzhou , Jiangsu, Hebei, Shanxi,Shandong,and so on. if you can visit our factory , we can bring you out to visiting the running machine, and we knows there was nothing better than to visiting the running machine production line.

• Offering comprehensive technical and business consultation services;
• Proposing the most suitable scheme and equipment for our clients;
• Designing and fabricating targeted products according to the special requirements of clients;
• Training periodically high qualified service technician.

2.After-sales Service

• Highly inspecting equipments in every working procedure, quality comes first;
• Fast & Safe Delivery;
• Assisting our clients for foundation construction of equipments;
• Dispatching engineers to install and debug equipments;
• Training the first-line operators on site;
• Regularly visit clients to solve production problems;
• Providing life-long maintenance service;
• Providing technical exchanging;

Acceptance standard

• Unless stipulated in the technical documents accordingly,  technology acceptance standards of designed main parts are in accordance with relevant state departments issued current relevant standards.
• providing main parts technology acceptance standard of technical design.

Technical service

• During paper machine installation, We cooperate with buyer for technological  improvement to reach desired results.
• We explains paper machine performance, structure and operation to buyer related  people for free.

Quality guaranteed

• We makes sure paper machine achieve promised performance with correct  installation, commissioning
• normal operation and maintenance.
• In warranty period, for quality problem, we repair and replace defective parts for free(except quick-wear part).

Q1: What is guarantee terms ?
A1: According to the international practice, performance and mechanical guarantee shall be for 1 year
from the successful commissioning or 1.5 years from the date of bill of lading.

Q2: What is the production time ?
A2: Normally 3-4 months, it depends on the machine type and scope of supply. But we can arrange the
partial shipment according to customer’s foundation construction schedule.

Q3: What kind of paper machines your factory produce?
A3:We produce different kinds of paper machine. such as:
Toilet Paper Machine which can produce toilet paper, tissue paper, napkin paper, handkerchief paper, towel paper and kitchen using paper etc.
Culture paper machine which can produce A4 paper, notebook paper, copy paper, writing paper, printing paper and news printing paper etc.
Kraft paper machine which can produce Kraft paper, fluting paper, corrugated paper, Kraft liner paper, carton box paper and packing paper etc.
Coating paper machine which can produce coating paper, carbonless copy paper and thermal paper etc.

Q4:What should I have to know if I want to get the quotation?
A4:a.What kind of raw material you will use(main important)
b.The capacity you want produce per day(main important)
c.The paper weight you require.
d.The paper width you require.

Q5:Could your engineer can teach and train our workers and stay in our factory for long time?
A5:Yes, we have very large engineer installation team. They can train and teach your workers to operate paper machine, but you should pay them salary.

Warm Tips:
1.Before installation,you should check that equipment’s model and dimension are all right with the parts complete d and level remaining.
2.Before the test of installation,Checking each part is correct, lubrication supply normal.water, electricity values reaching the standard.
3.During Operation,you should pay attention to keep daily inspection, cleaning and oiling.and then examine and repair regularly.
