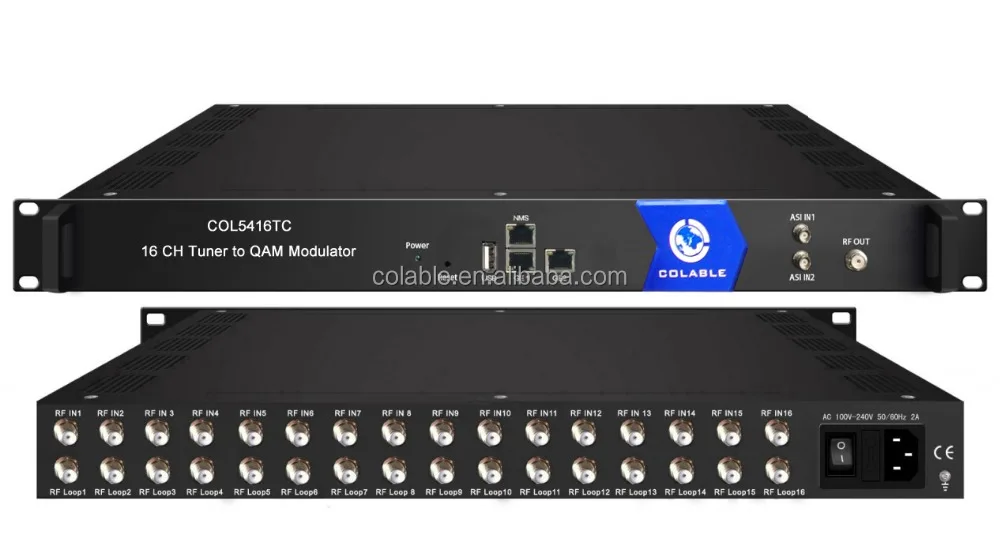

Cable tv solution satellite transmodulator system 16DVB s/s2 to DVB T modulator COL5416TC

Product Overview

Description

          16 dvb-s2 &2ASI &512  IP channel to scrambling dvb-c modulator







                                      Skype:Colable3   M/whatsapp:86-18982050255



Outline



COL5416TC is a high performance and cost-effective QAM modulator. It has 16 DVB-S/S2 FTA tuner input to 16 non-adjacent carrier output with multiplexing, scrambling and QAM modulating included. It also supports maximum 512 IP input port and one IP (MPTS) output through GE1 and TS input for re-mux through 2 ASI ports.

COL5416TC is also characterized with high integrated level, high performance and low cost. It supports dual power supply (optional). This is very adaptable to newly generation CATV broadcasting system.



Features



* 16 DVB-S/S2 FTA Tuner + 2 ASI input+512 IP (GE1 only) input over UDP and RTP protocol

* 16*DVB-C RF output

* Excellent RF output performance index, MER≥40db

* Support 16 groups multiplexing+16 groups scrambling +16 groups QAM modulating

* 1 IP(MPTS) output over UDP and RTP/RTSP, as mirror of one carrier

* Support accurate PCR adjusting

* Support PSI/SI editing and inserting

* Support Web management, Updates via web

* Support dual power supply (optional)



Specifications

Input	16 DVB-S/S2 FTA Tuner
	512 IP (GE1only)input over UDP and RTP protocol
	2 ASI input, BNC interface
Tuner  Section	DVB-S	Input Frequency	950-2150MHz
		Symbol rate	2-45Msps
		Signal Strength	-65~-25dBm
		FEC Demodulation	1/2, 2/3, 3/4, 5/6, 7/8 QPSK
	DVB-S2	Input Frequency	950-2150MHz
		Symbol rate	QPSK 1~45Mbauds 8PSK 2~30Mbauds
		Code rate	1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
		Demodulation Mode	QPSK, 8PSK
Multiplexing	Maximum PID Remapping	128per input channel
	Function	PID remapping (automatically or manually)
		Accurate PCR adjusting
		Generate PSI/SI table automatically
Scrambling Parameters	Max simulscrypt CA	4
	Scramble Standard	ETR289, ETSI 101 197, ETSI 103 197
	Connection	Local/remote connection
Modulation	QAM Channel	16
	Standard	EN300 429/ITU-T J.83A/B
	MER	≥40db
	RF frequency	50~960MHz, 1KHz step
	RF output level	-20~+10dbm(87~107 dbµV),0.1db step
	Symbol Rate	5.0Msps~7.0Msps, 1ksps stepping
	Constellation	16/32/64/128/256QAM
		J.83A	J.83B
	Constellation	16/32/64/128/256QAM	64/256 QAM
	Bandwidth	8M	6M
System	Remote management	Web NMS(10M/100M)
	RF Out	16 DVB-C output
	IP Out	1 IP (MPTS) output over UDP and RTP/RTSP (GE1 only) As mirror of one carrier
	Language	English and Chinese
	Software Upgrading	Web
General	Dimension (W*D*H)	482mm×300mm×44.5mm
	Weight	3.7kg
	Temperature	0~45℃(Operation) ; -20~80℃(Storage)
	Power	AC 100V±1050/60Hz; AC 220V±10%, 50/60HZ
	Consumption	25W

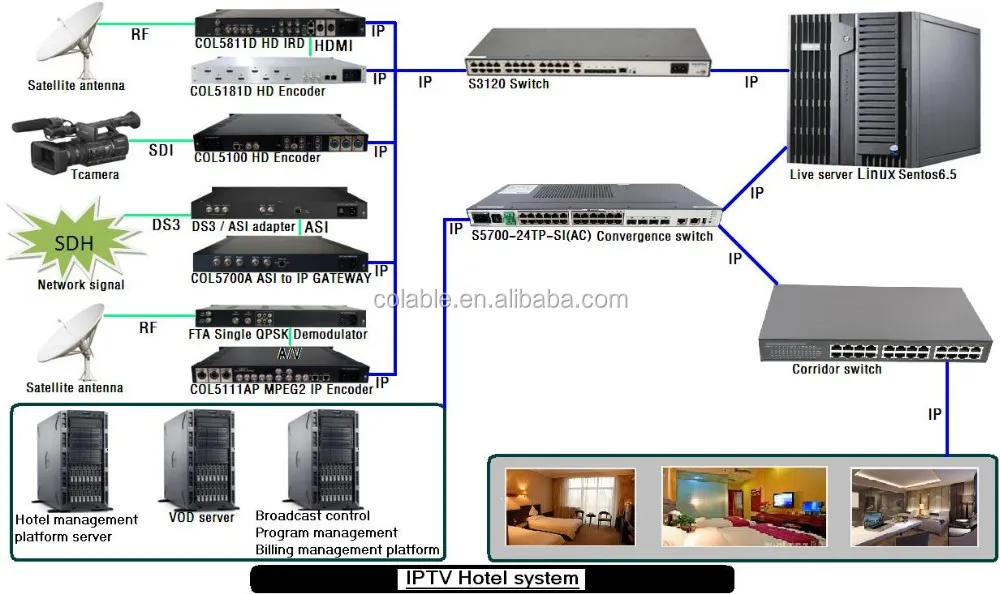

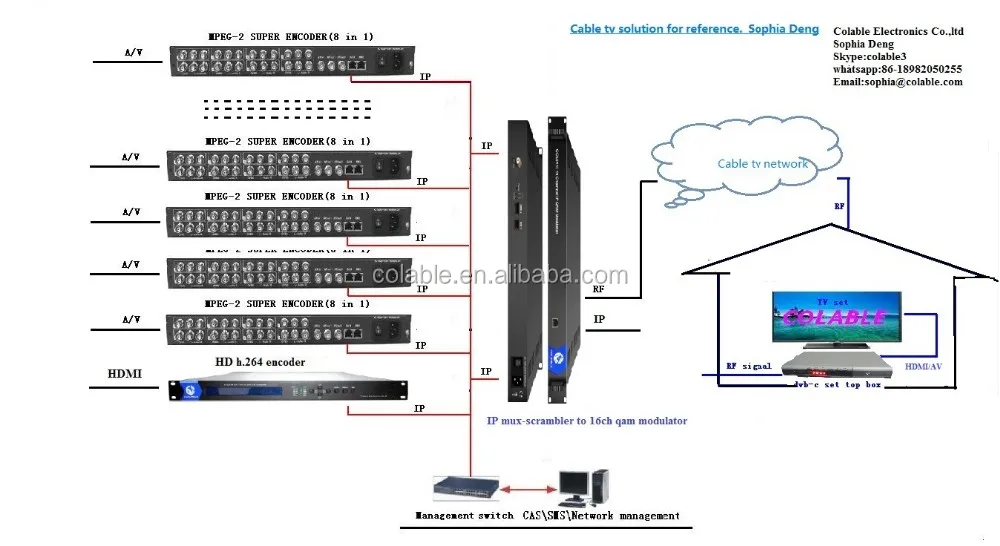

satellite receiver dvb-s2 to qam modulator in a dtv and iptv system











Matchable digital dvb-c cable tv decoder :



          Digital cable tv decoder for analog tv set(click to check)





Similar Product cheaper DVB-S2 to qam modulator











                                                                      8dvb-s2 to qam transmodulator(click to check)
