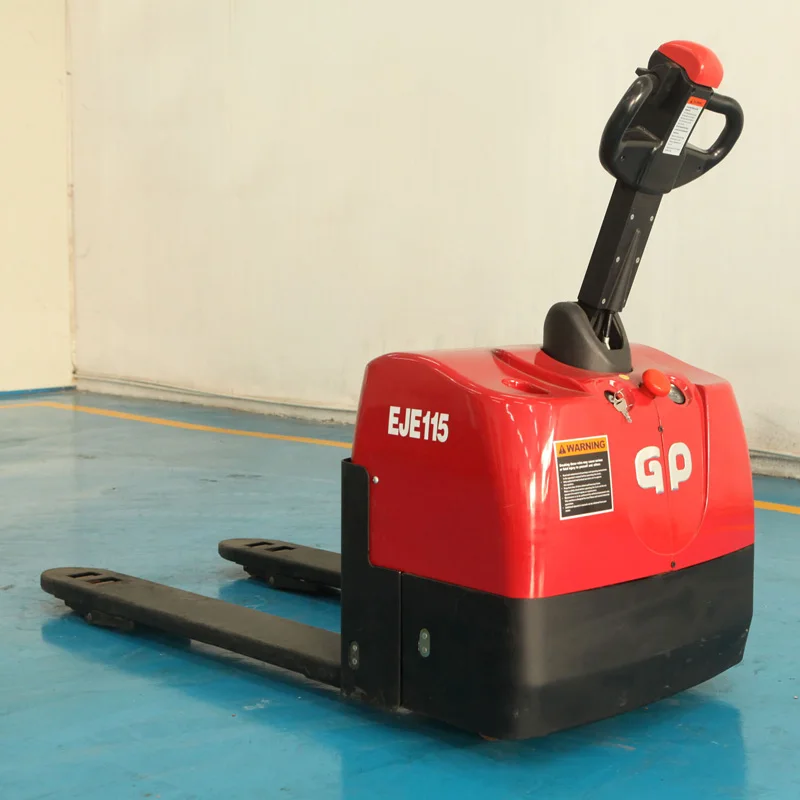

2.2ton automatic electric pallet truck for sale
2.2ton automatic electric pallet truck for sale
2.2ton automatic electric pallet truck for sale
2.2ton automatic electric pallet truck for sale
2.2ton automatic electric pallet truck for sale
2.2ton automatic electric pallet truck for sale
2.2ton automatic electric pallet truck for sale

2.2ton automatic electric pallet truck for sale

Share on (60733988480):


Price:US$ 3’000.00 - US$ 3’757.00

Quantity:


Product Overview

Description


Product Description

TECHNICAL PARAMETERS

\t





Characteristic
\t
Model
\t
Unit
\t
ERE15
\t
ERE20
\t
ERE22
\t
Operate type
\t
\t
walkie
\t
walkie
\t
walkie
\t
Power source
\t
\t
battery
\t
battery
\t
battery
\t
Load capacity
\t
Kg
\t
1500
\t
2000
\t
2200
\t
Load center
\t
mm
\t
600
\t
600
\t
600
\t
Wheel type
\t
\t
PU
\t
PU
\t
PU
\t
Service weight
\t
Kg
\t
205
\t
228
\t
325
\t






Size
\t
Wheel dimension
\t
mm
\t
φ120*70/φ85*70
\t
φ252*85/φ85*70
\t
φ252*85/φ85*70
\t
wheel base
\t
mm
\t
1280
\t
1310
\t
1310
\t
Wheel quantity
\t
pcs
\t
1/4
\t
1/4
\t
1/4
\t
Operate handle
\t
mm
\t
1615/690
\t
1205/934
\t
1205/934
\t
overall length/width
\t
mm
\t
1660/700
\t
1660/700
\t
1660/700
\t
Forklift dimension
\t
mm
\t
47/160/1150
\t
47/160/1150
\t
50/170/1150
\t
Outside width between forks
\t
mm
\t
560/685
\t
555
\t
555
\t
Min.ground clearance
\t
mm
\t
85
\t
85
\t
85
\t
fork lifting height
\t
mm
\t
205
\t
205
\t
205
\t








           Performance
\t
Min.turing radius
\t
mm
\t
1490
\t
1480
\t
1480
\t
Min.aisle width for pallets
\t
mm
\t
2158
\t
2176
\t
2176
\t
Gradeability
\t
%
\t
6/8
\t
6/8
\t
6/8
\t
Travel speed
\t
km/h
\t
3.5/4
\t
5/5.5
\t
5/5.5
\t
Lift speed
\t
mm/s
\t
39/46
\t
34/40
\t
30/40
\t
Lowering speed
\t
mm/s
\t
46/39
\t
40/30
\t
40/30
\t
Brake type
\t
\t
electromagnetic
\t
electromagnetic
\t
electromagnetic
\t
Drive motor
\t
Kw
\t
0.75
\t
1.2
\t
1.2
\t
Lift motor
\t
Kw
\t
0.8
\t
2.2
\t
2.2
\t
Battery voltage
\t
V
\t
24
\t
24
\t
24
\t
Battery capacity
\t
Ah
\t
2*100
\t
2*75
\t
2*100
\t
Controller
\t
\t
CURTIS
\t
CURTIS
\t
CURTIS

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,

    electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Certifications
Detailed Images

Machine Parts

Name: EPG115

Brand: GP

Original: China

Electronic power steering system,light and low noise.

drive unit floating bodies with patent design,AC driving system ,no carbon brush,maintenance free.

Main Features

Name: EPG115
Brand: GP
Original: China
USA CURTIS controller German  REMA handler,imported waterproof electrical components.electromagnetic braking system.

Machine Parts

Name:EPG115
Brand: GP
Original:China
Step less speed control system,controller with automatic protection. emergency reversing device /emergency brake switch.

Main Features

Name: EPG115
Brand: GP
Original:China
Integrated hydraulic and power control system ,Easily operation ,reliable performance.Brake effect when handler at highest and lowest position.More safety with double limit switch when lift.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
\t
Packaging
\t
Size
\t
123 (L) * 456 (W) * 789 (D)
\t
Weight
\t
1.2 T
\t



Packaging Details
\t
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
\t
Packaging
\t
Size
\t
123 (L) * 456 (W) * 789 (D)
\t
Weight
\t
1.2 T
\t



Packaging Details
\t
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
