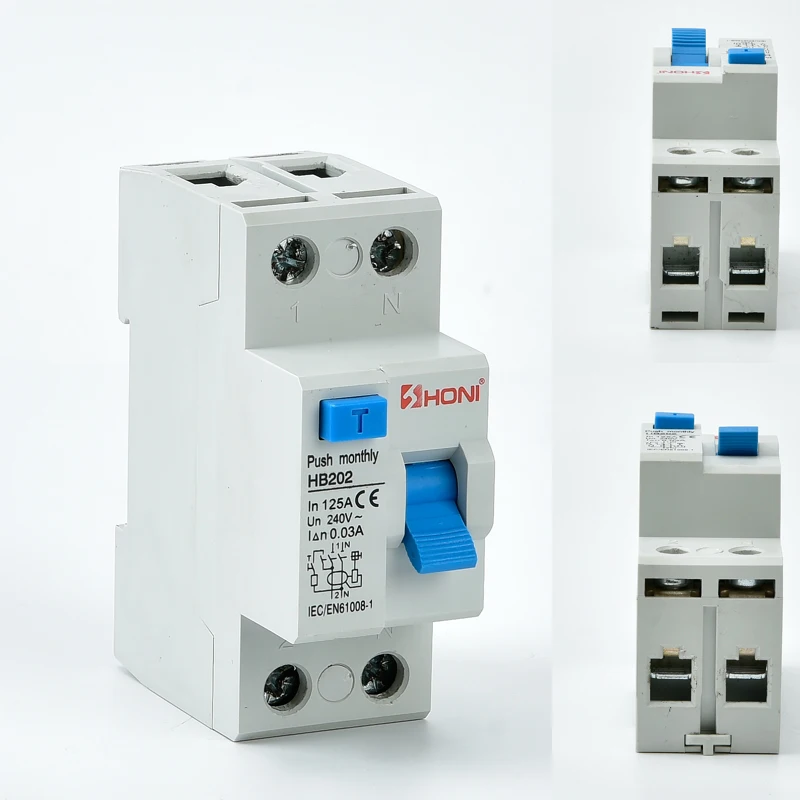

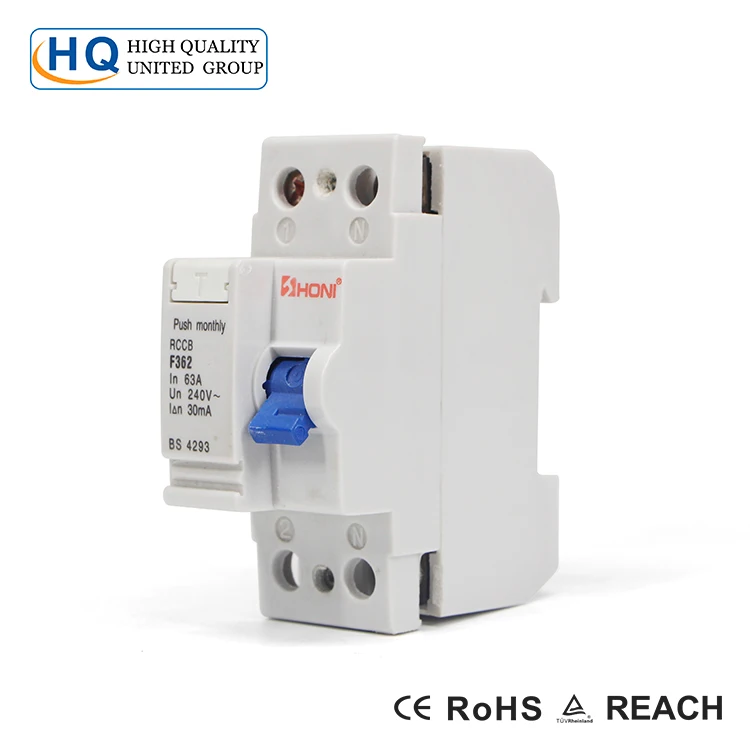

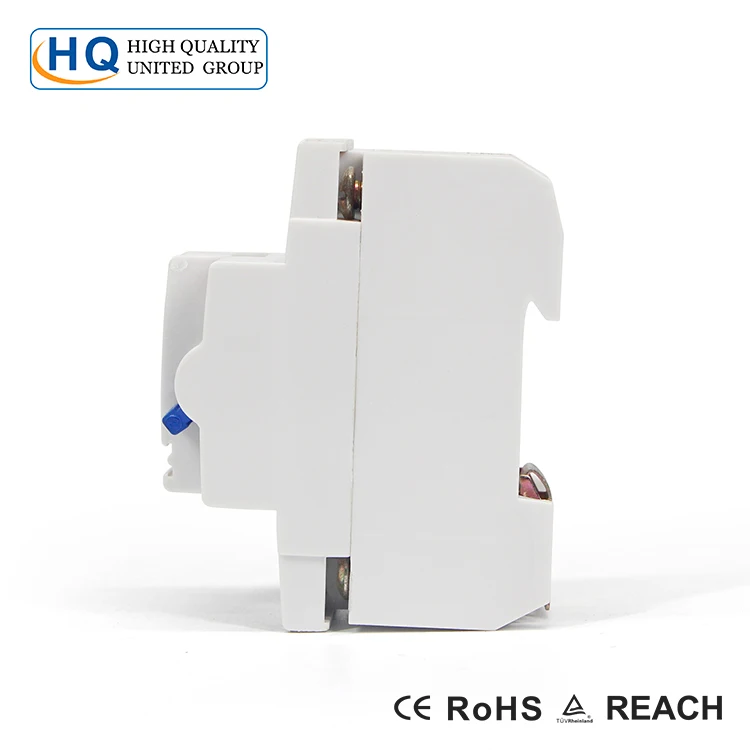

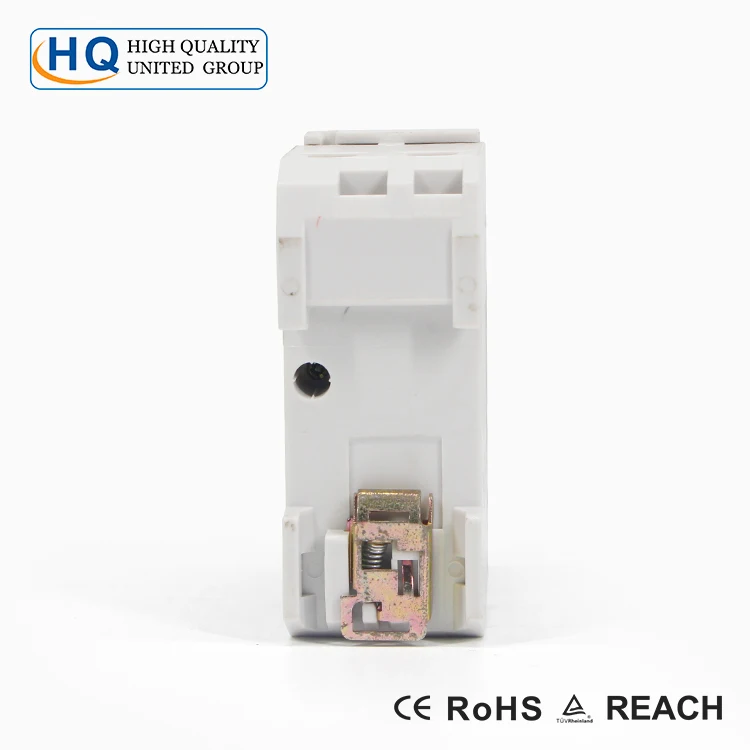

China factory HONI brand 2Pole F360 F362 63A 30mA RCD ELCB RCCB Residual Current circuit breaker
- Category: >>>
- Supplier: Yueqing High Quality Electric Co. Ltd.
Share on (60734018385):
Product Overview
Description
China factory HONI brand 2Pole F360 F362 63A 30mA RCD ELCB RCCB Residual Current circuit breaker
Product Description
Specification:
F360 F362 F364 earth leakage circuit breaker is suitable to the circuit of AC50/60Hz.rated voltage 230V for 2 poles and 400V for 4 poles, and rated current up to 63A.when people come across the electric shock or the leakage current of the electrical network exceeds the fixed value, this product can cut off the fault current in short period so as to protect person and the equipments, It also can be used in the infrequent starting of the circuit and motors.
The circuit breaker is suitable to industry, commerce, high-rise building, household and other kinds of places.
This product meets the standard of IEC/EN61008-1.
It has the following features:
In complicance with IEC/EN61008-1
Bilateral busbar wiring capabilities to adapt to the wider use of premises.
With functions of fault indicator.
Maximum connecting ability of 25mm2,wiring torque 3N *m, applicable to a variety of installing equipments,
wiring stronger.
Protection class:IP20
Technical Data
| Rated Current In | 16A 25A 40A 63A |
| Poles | 2P 4P 1P+N 3P+N |
| Rated Voltage Ue | 2P: 230V 4P: 400V |
| Rated Frequency | 50/60Hz |
| Rated Sensitivity | 30mA 100mA 300mA |
| Rated residual making and breaking capacity | 500(In=25-40A) 630(In=63A) |
| Electrical Life | 4000 |
| Mechanical Life | 4000 |
| Protection Degree | IP20 |
| Certificate | CE CB SEMKO SAA CCC TUV |
| Guarantee | 2YEARS |
