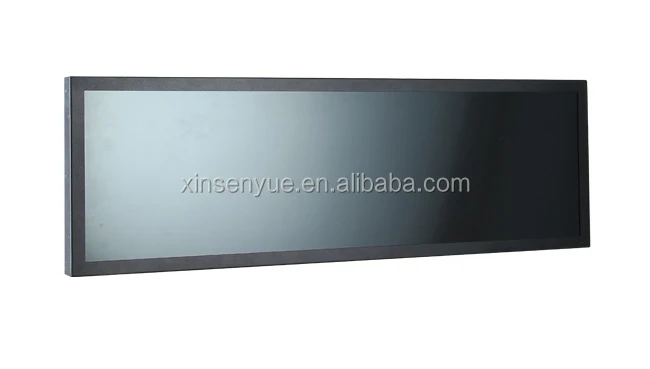

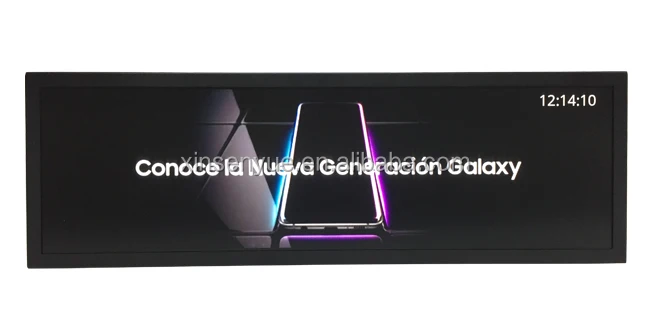

29 Inch ultra wide stretched bar lcd screen LED display for bus passenger
- Category: >>>
- Supplier: Xiamen Xinsenyue Technology Co. Ltd.
Share on (60734064832):
Product Overview
Description
Product Description
What Is Advantage Stretched Display?
The mainstream aspect ratio of the TFT LCD panel in the market is 4:3 or 16:9. But for some applications, bar type shape of display panel would be much better than the current mainstream 4:3 or 16:9 to display the required information. Bar Type TFT-LCD displays are perfect for industrial equipment, automotive application, server system, POS system, dynamic information displays and advertising display.
Space-saving & multimedia interface control
The stretched lcd installed in the bus, train, subway, mounting on the side; under the vehicle roof, It reduce the effects for the drivers and avoid the direction eye catch from passengers. It is the perfect displayer.

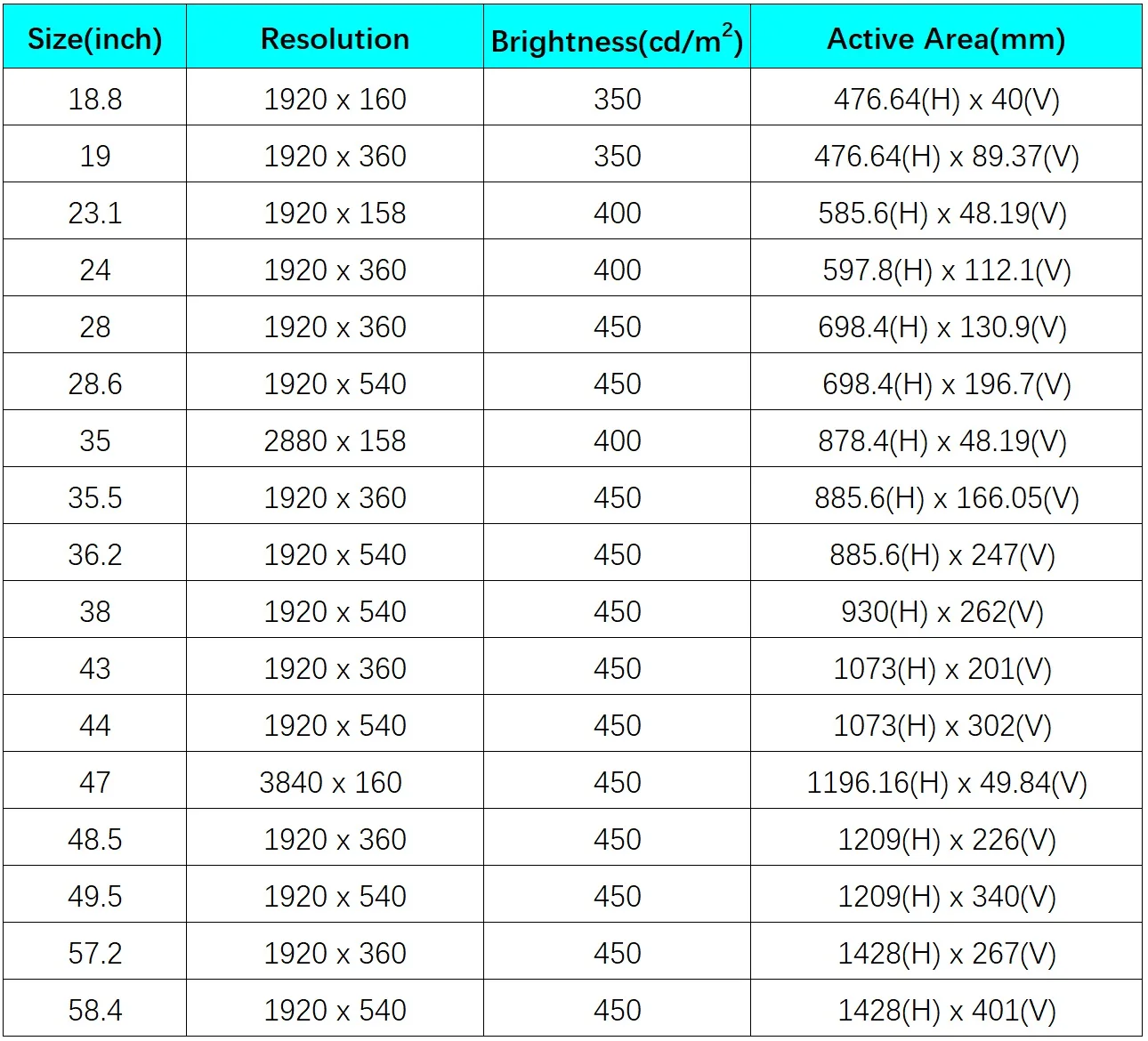

Item | XSY290LV01 |
Screen Size | 29 inch (Size customized) |
Luminance(cd/m2) | 500 - 700 |
Viewing Angle:θT/θB/θL/θRV | 85/85/85/85 |
Resolution | 1920*540 |
Display area dimension | 698.4x196.4mm |
Operation temperature( ℃) | -20~60 |
Operation humidity | 10%~90% |
Voltage(V) | DC 9~30 |
Power(W) | <50 |
Weight(kg) | 5 |

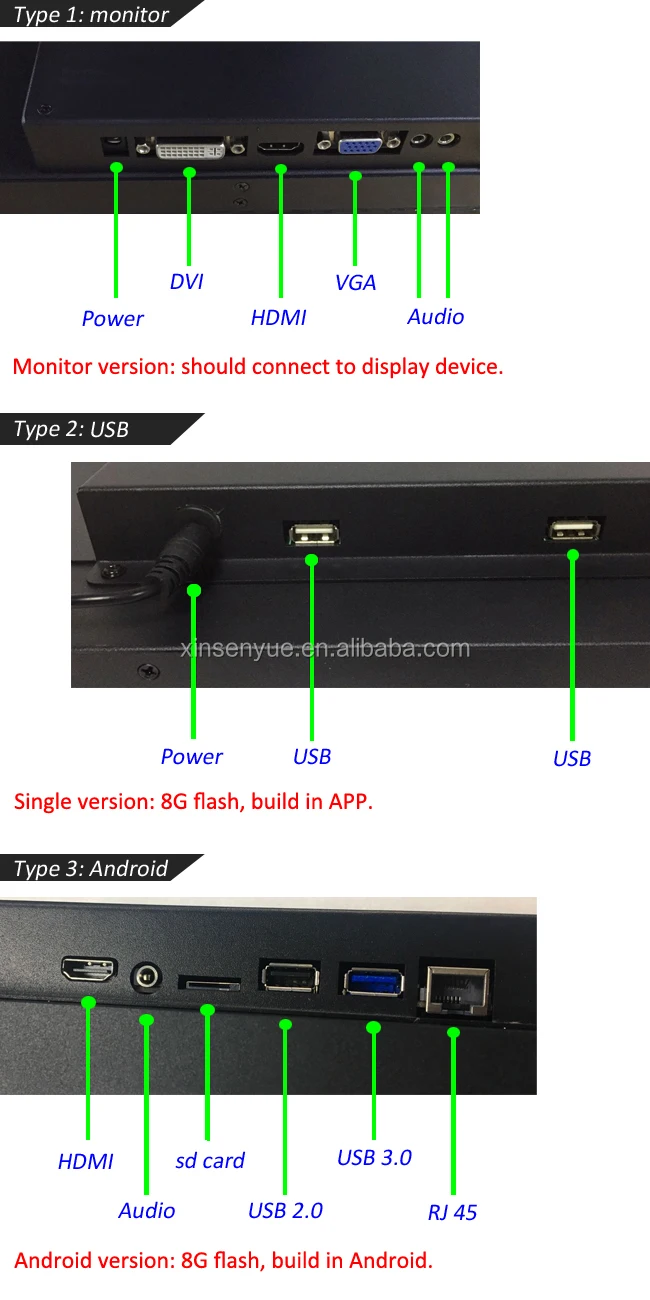

There are 3 types of connector interface:
1>. Monitor: HDM1 / VGA
2>. USB
3>. Android: HDM1 / USB / RJ45 / WIFI
1>. Monitor
the stretched lcd is a monitor, should be connected to PC / terminal.
2>. USB
the stretched lcd build in APK, update display content via usb slot.

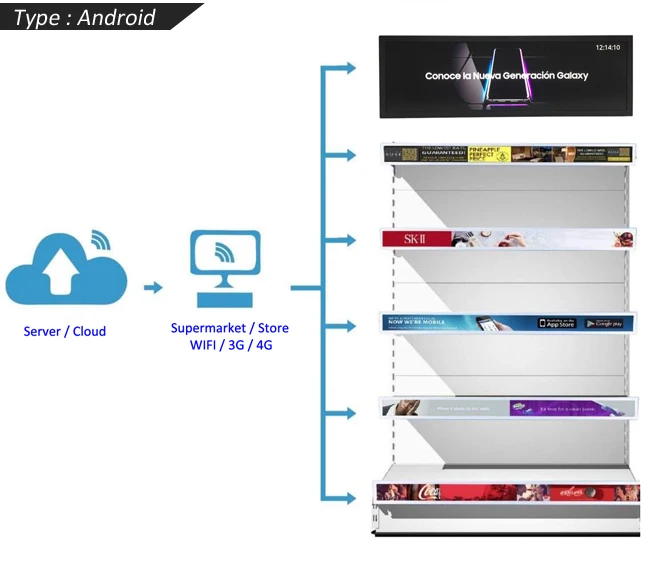

3>. Android version
the stretched lcd build in Android OS, CMS, support update display content in internet.

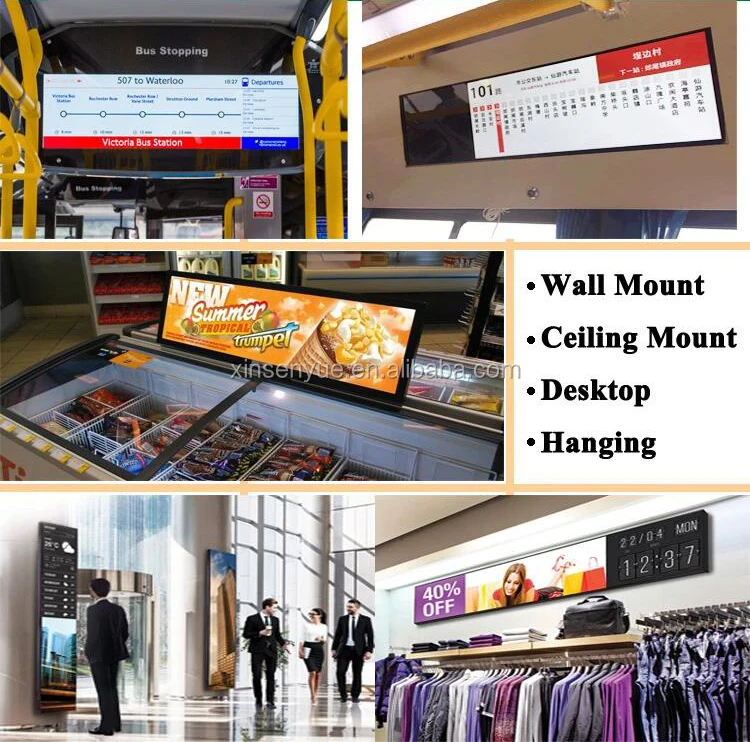

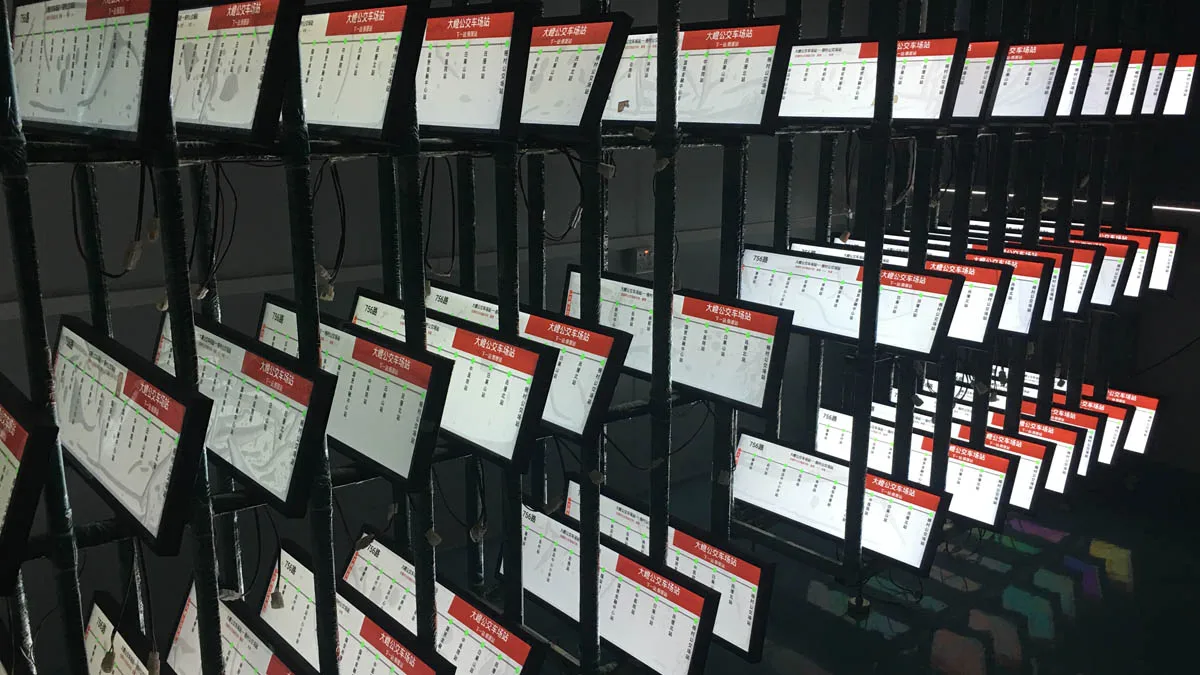

Application
Recommend Products
Supermarket Shelf Edge LCD Display
Shelf-level digital media LCD Display provides a significant opportunity for point of purchase conversion by engaging with the consumer via animated content.
Double Side Stretched Bar LCD Display
1>. Support dual screen showing same / different content.
2>. Support USB and WIFI update the contents.
Stretched LCD with Capacitive Touch Function
1>. Build in Capacitive multi-touch function.
2>. Available size: 19.3 inch.
3>. Size could be customized.
Elevator Advertising LCD Display
1>. Size could be customized.
2>. Support USB / WIFI update contents.
Why Choose Us
1>. We are verified supplier certified by Independent Third Parties.
2>. More than 10 years of LCD industry experience.
3>. We design, produce ourself, support ODM/OEM server
4>. ISO9001, CE, FCC, RoHS certificate permitted.

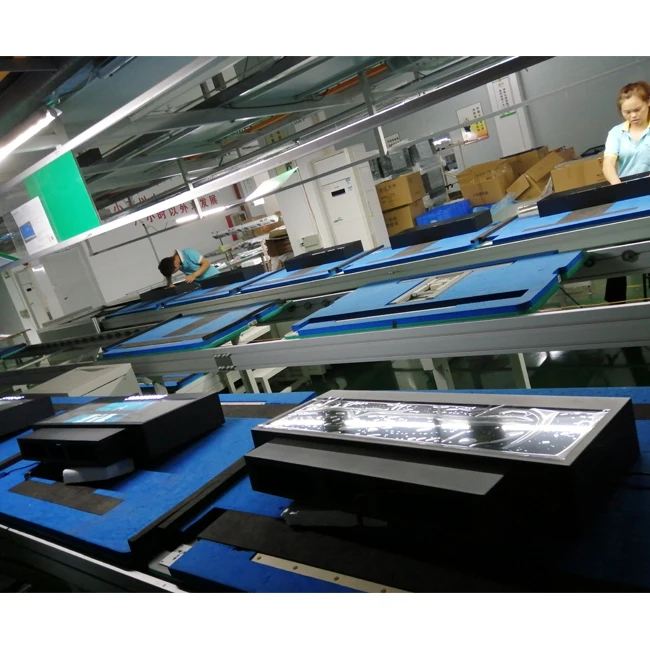

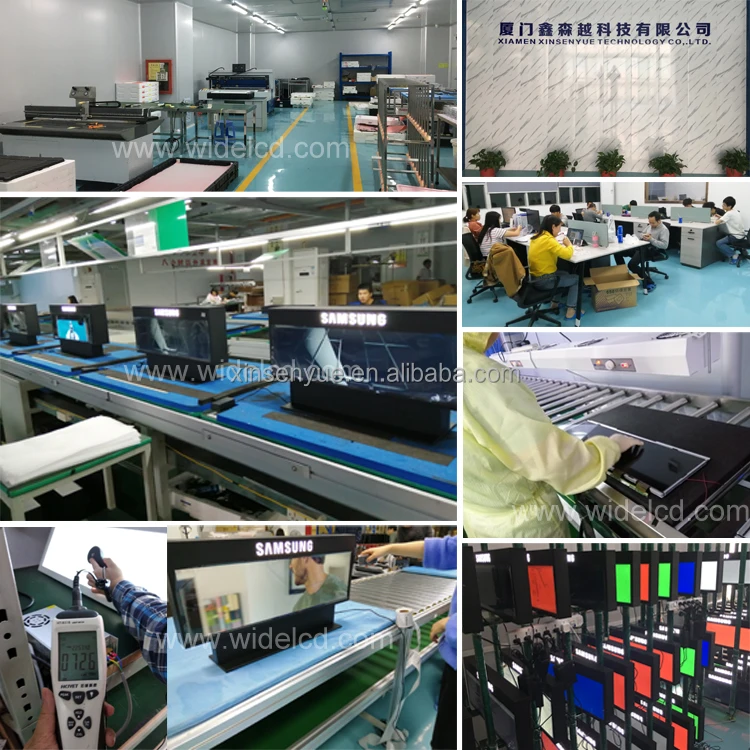

Company Profile
