Product Overview

Description



Product Description


LED Driver Test Equipment - AD1468 LED Power Driver Tester





This electronics tool (AD1468) can detect the LED driver efficiency and brightness (Lux level) of any environment.


It is particularly important for photography taking where brightness is essential. Also, it can test CCT.





Features:



  • Test LED lamp&Driver quality

  • Large Display with Backlight

  • Different base adaptor

  • Detachable Sensor

  • Low power consumption

  • Fuse inside





Specification:


1. Test Lamp: LED driver and LED Chip Board, LED Bulbs (E27/MR16/B22/GU10/G9/G4/E40/G23/G24) and LED tubes, LED flood light, panel light, high bay light.





2. Parameters: Lux, CCT (Color temperature), Voltage, Current, Wattage, Power Factor, Annual power
consumption(calculated based on 10 hrs/day). AC Voltage, AC current, AC Power, AC power factor, DC
voltage, DC current, efficiency(AC power/DC power*100%)

































































































Input voltage



AC85-277V



Consumption


<2W


Frequency


45-65Hz


Test Voltage



0-300VAC

0-30VDC



Voltage resolution


0.1V


Voltage accuracy


0.5%FS


Test Current



0-2.000A--AC

0-3.000A--DC





Current resolution


0.001A


Currrent accuracy


0.5%FS


Test Power



0-300W----AC

0-60W   ---DC



Power resolution


0.1W


Power accuracy


0.5%FS


Power Facotr


0-1.000


PF   resolution


0.001


PF accuracy


0.2%FS


Lux


0-9999lx


Lux resolution


1lx


Lux accuracy


3%FS



Color

temperature



0-9999k


CCT   resolution


1K


CCT accuracy


3%FS



Driver

efficiency



0-100%


Resolution


0.1%


Accuracy


2%FS


Annual Power Consumption
(10hrs*365d)



0-9999kW.h


Annual Power Consumption
resolution



1kW.h


Annual Power Consumption
accuracy


1%FS


Screen


13 windows


Temperature


-15℃~50℃


Relative Humidity



<90%


Size(mm)


490*225*100


N.W.


2.4kg


G.W.


3kg






Advantage:




1. Using high-grade ABS and Acrylic material for the box surface, aluminum alloy for the edge, stainless steel for the Angle , which, the materials is great enough to be compressive and shockproof.

2. Size, color and style completely of main case based entirely on LED products, can be suitable for all kinds of LED display.

3. The configuration of multi-function AC meter, can test the various datas of the lamps (voltage, current, power, power factor, annual power consumption, can perfectly show the advantages of LED lamps, besides, our products are suitable for the global voltage (AC220V, AC110V, DC12V, DC24V).

4. All of the lamp holder is equipped with independent control switch, and reserved a universal output plug that can be connected to any kind of LED lamps and lanterns.

5. Light weight and mini size, tester with holder , easy to carry.

6. All of our products have the RoHS, CE certificate ,our products really are safe and reliable.

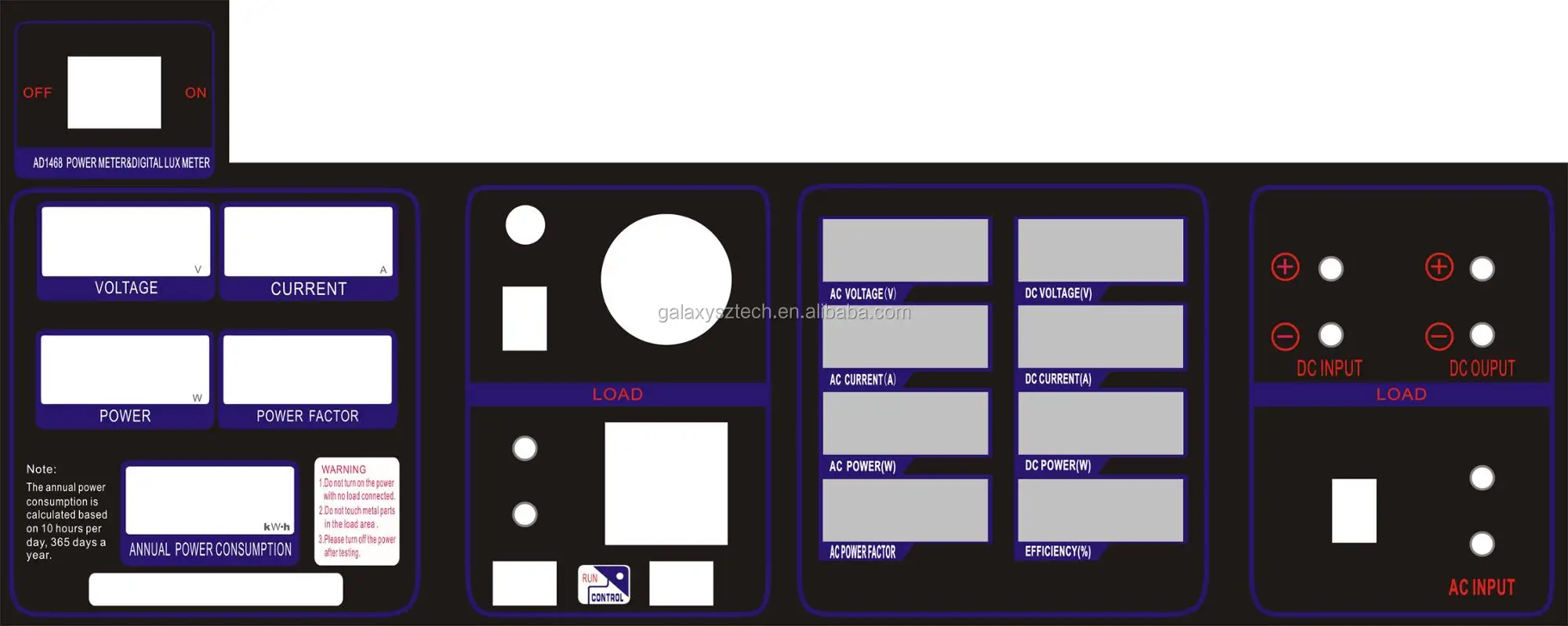

Detailed Images

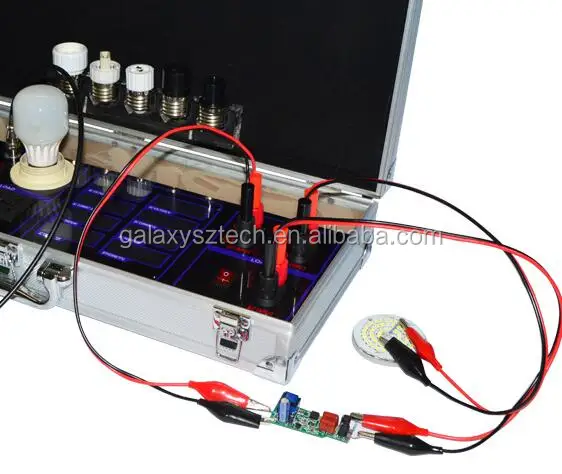

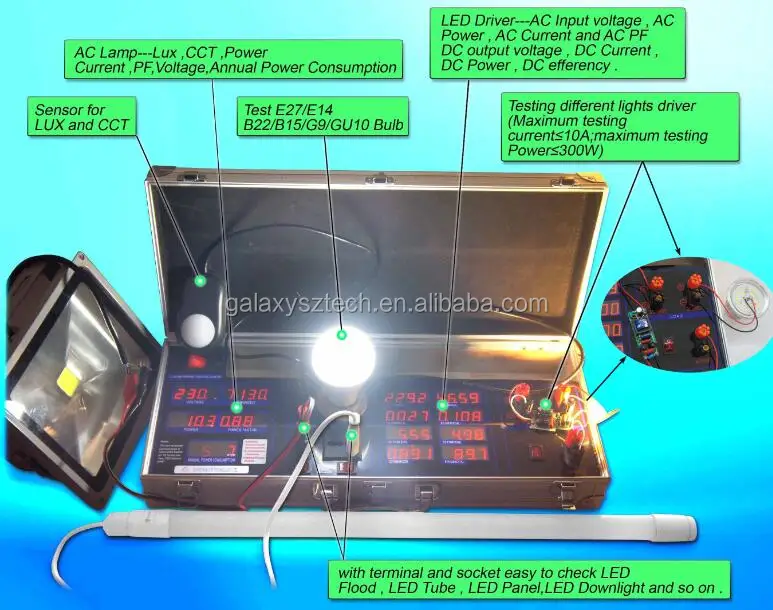

LED driver test.jpg

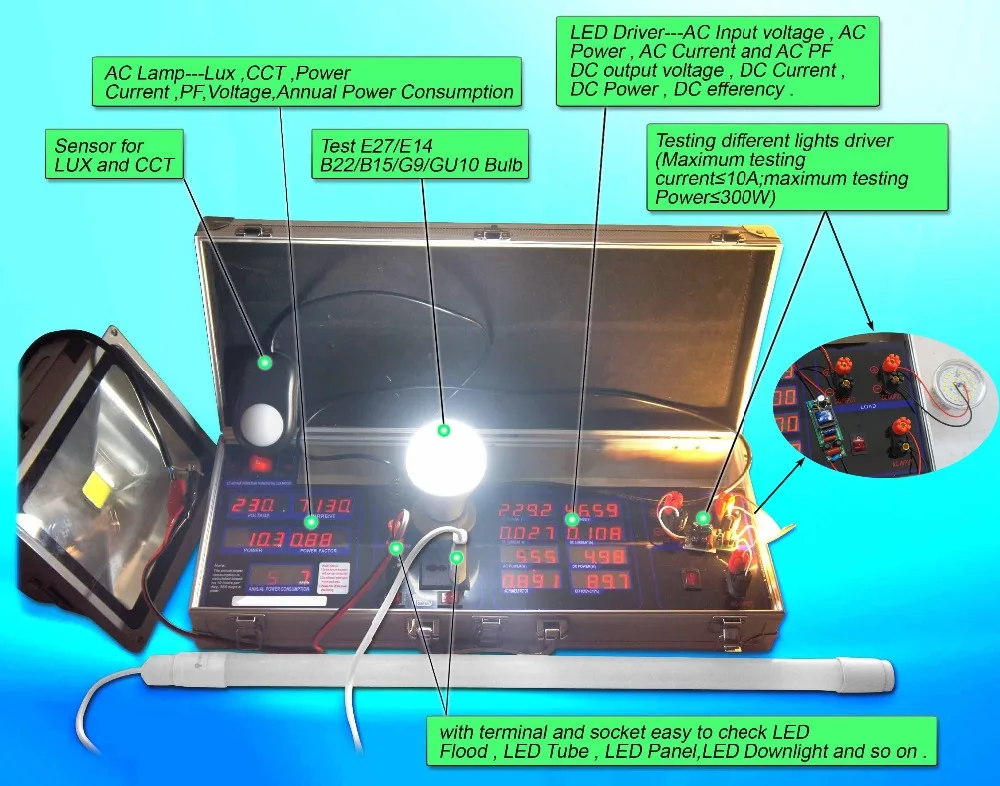

led driver test.jpg

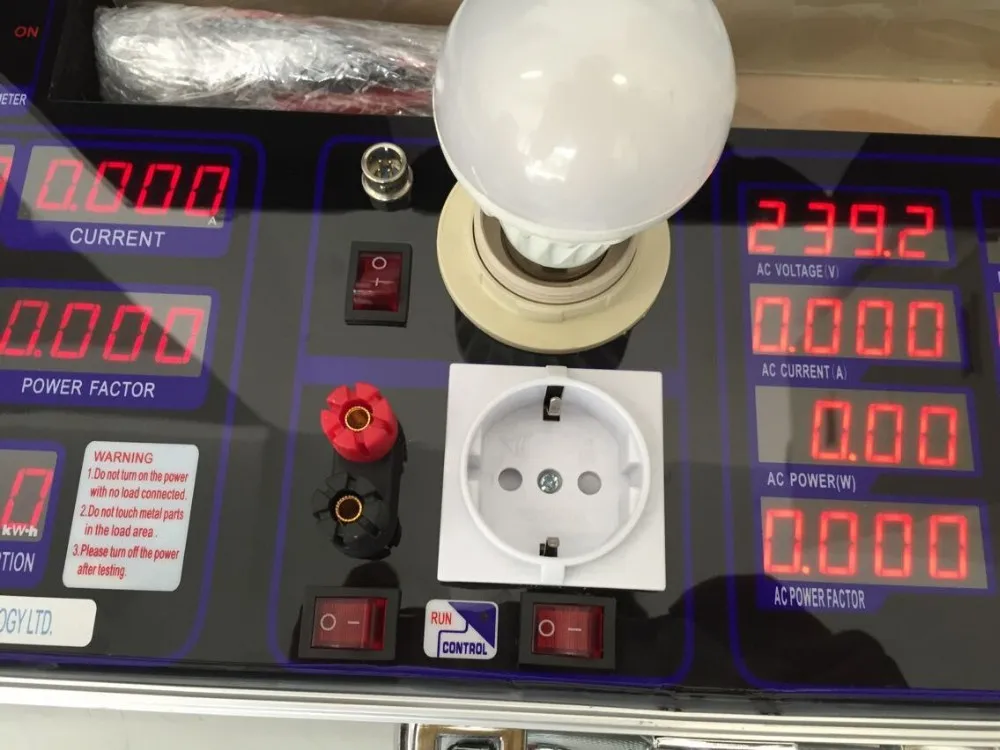

Euro Socket power meter.jpg

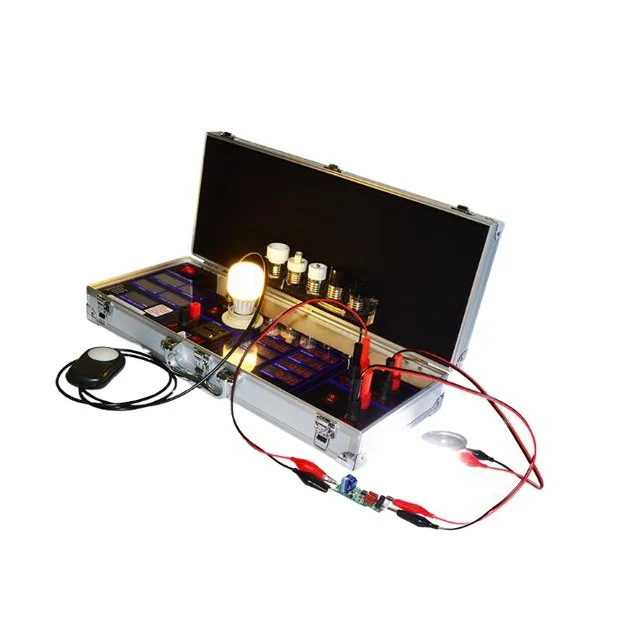

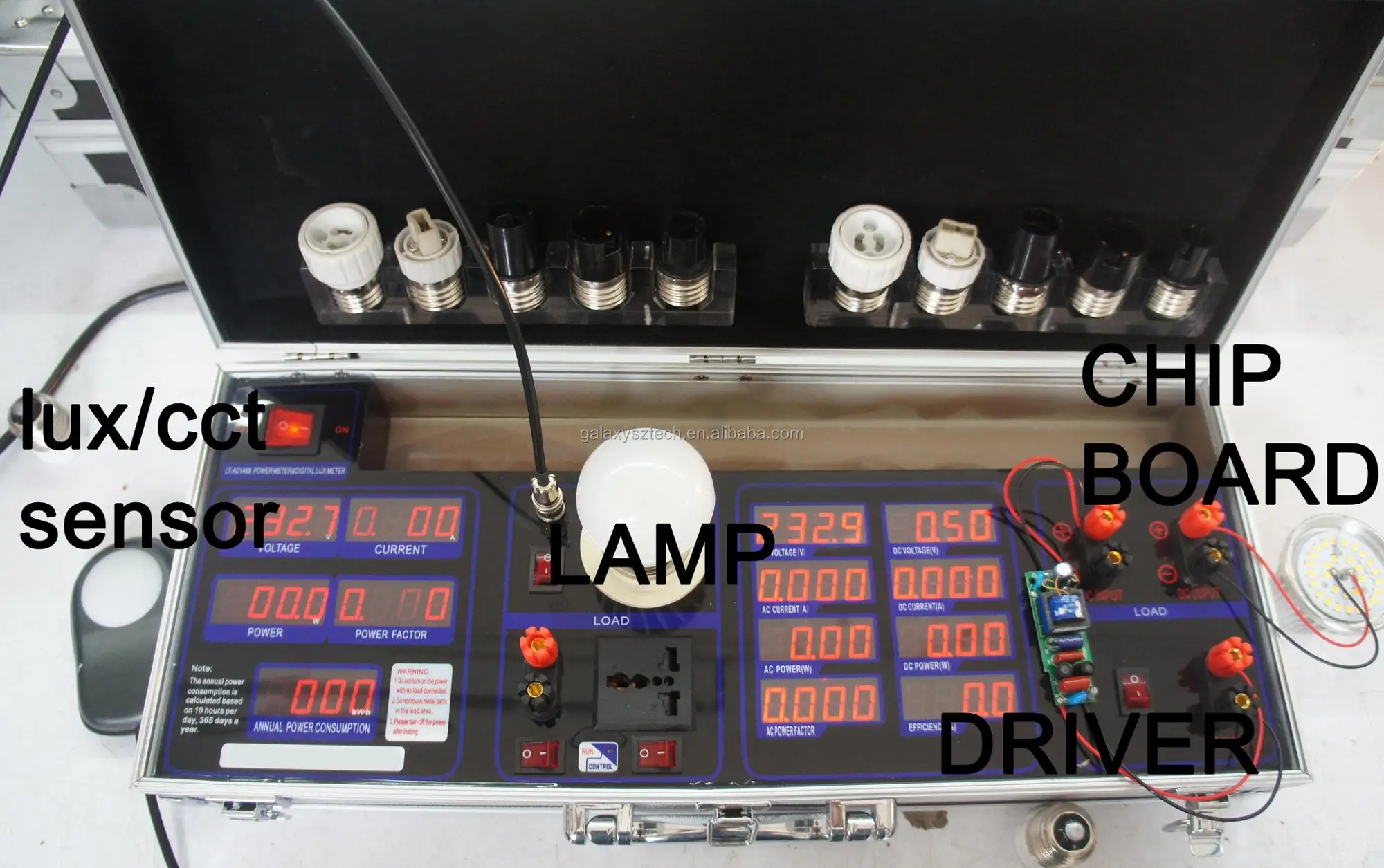

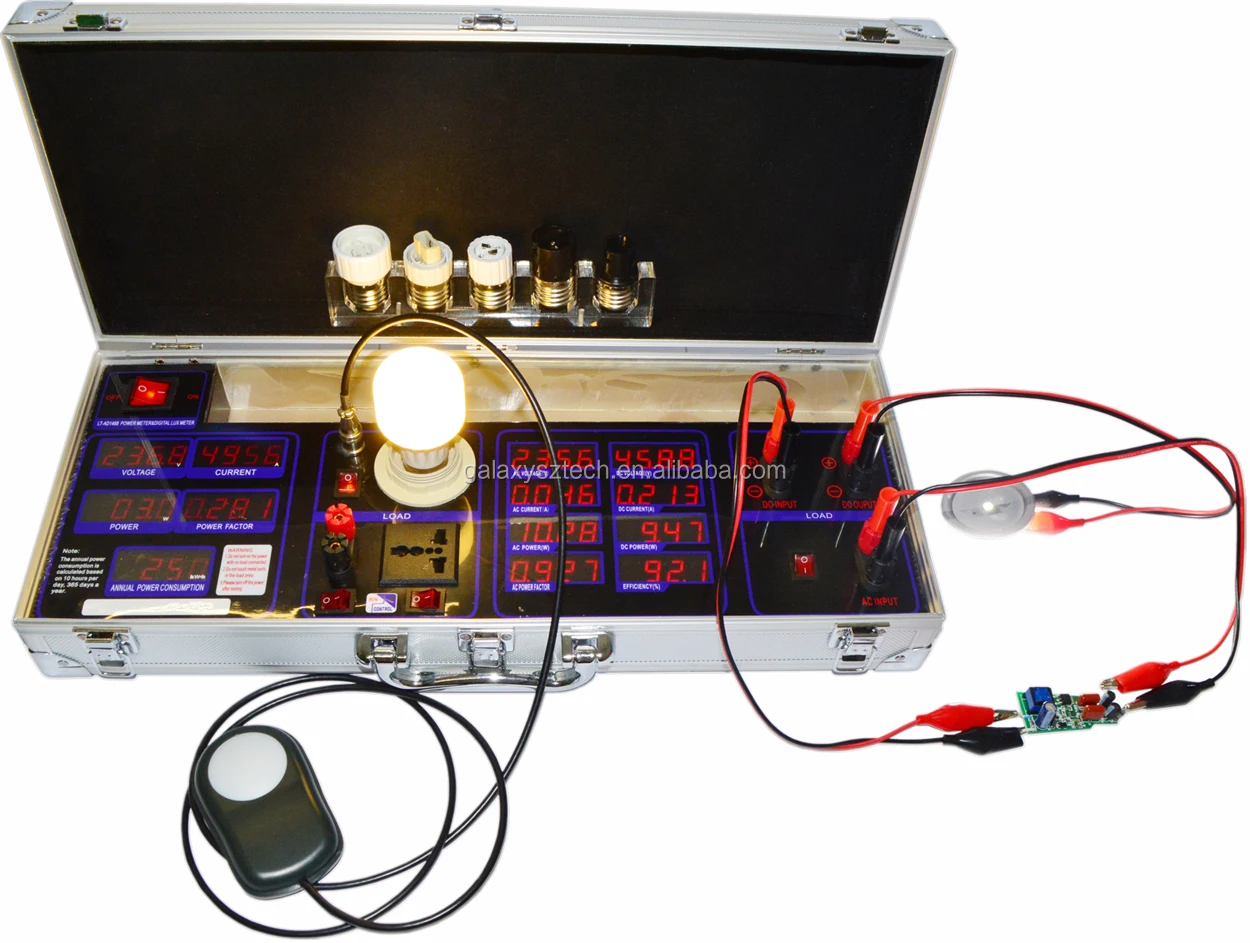

Driver and Bulb test.jpg











Exhibitions


 demo case 4IMG_3520

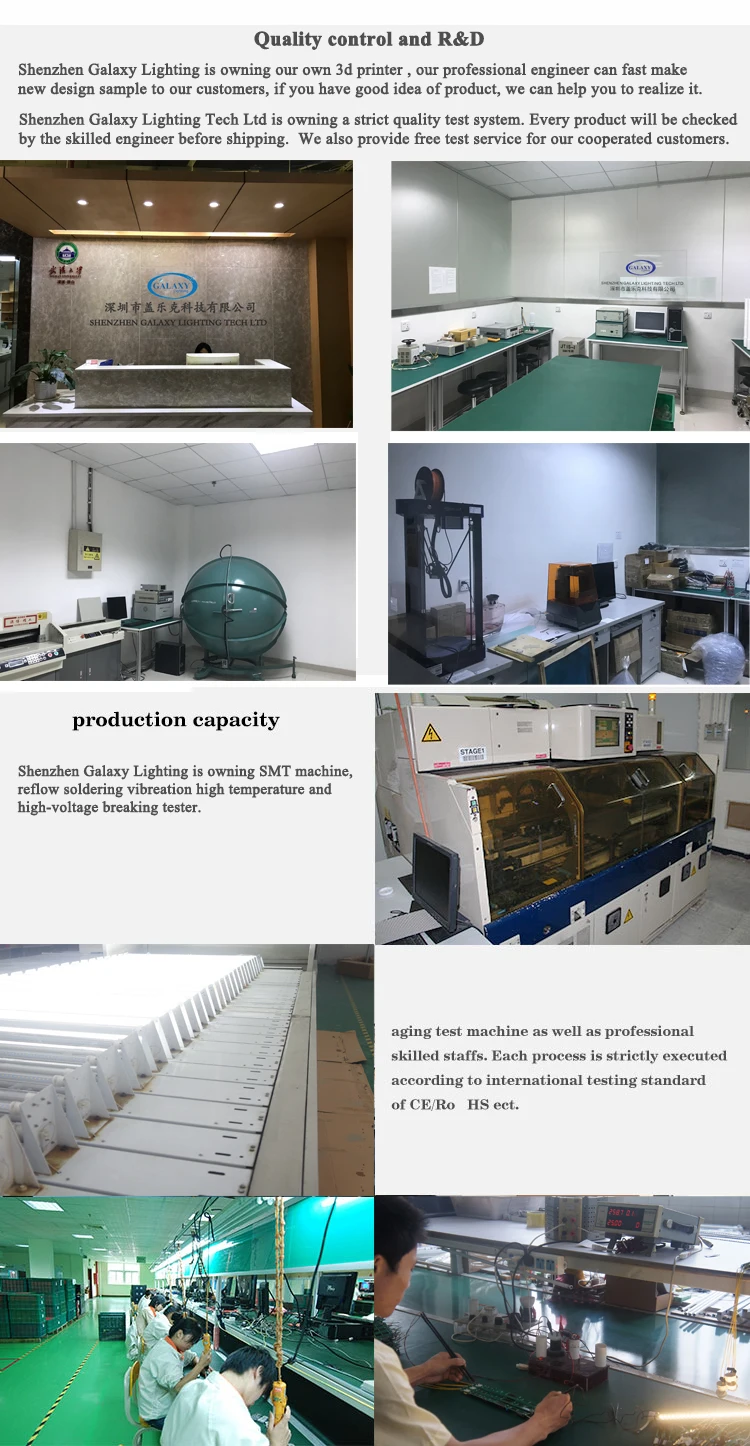

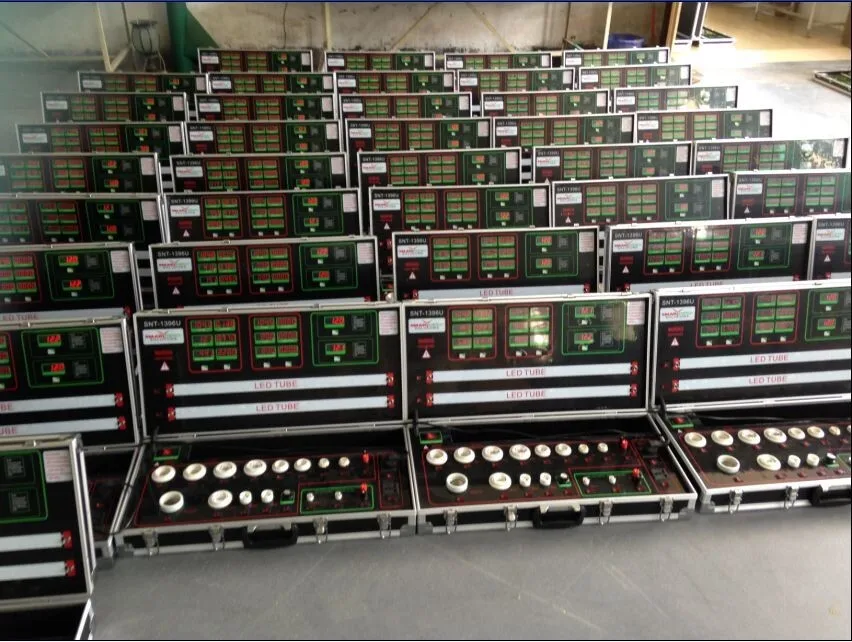

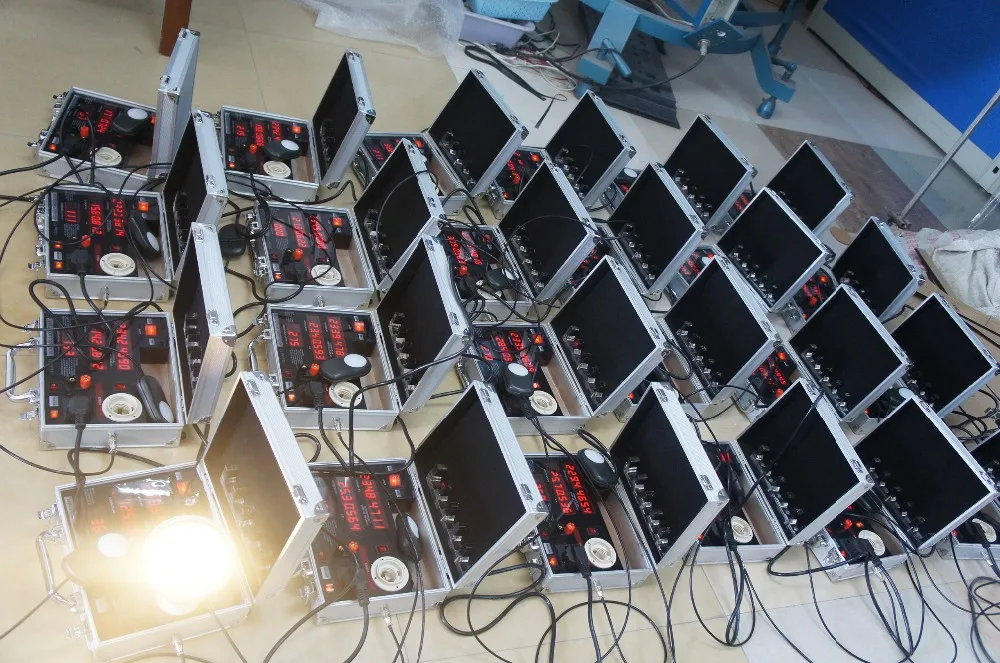

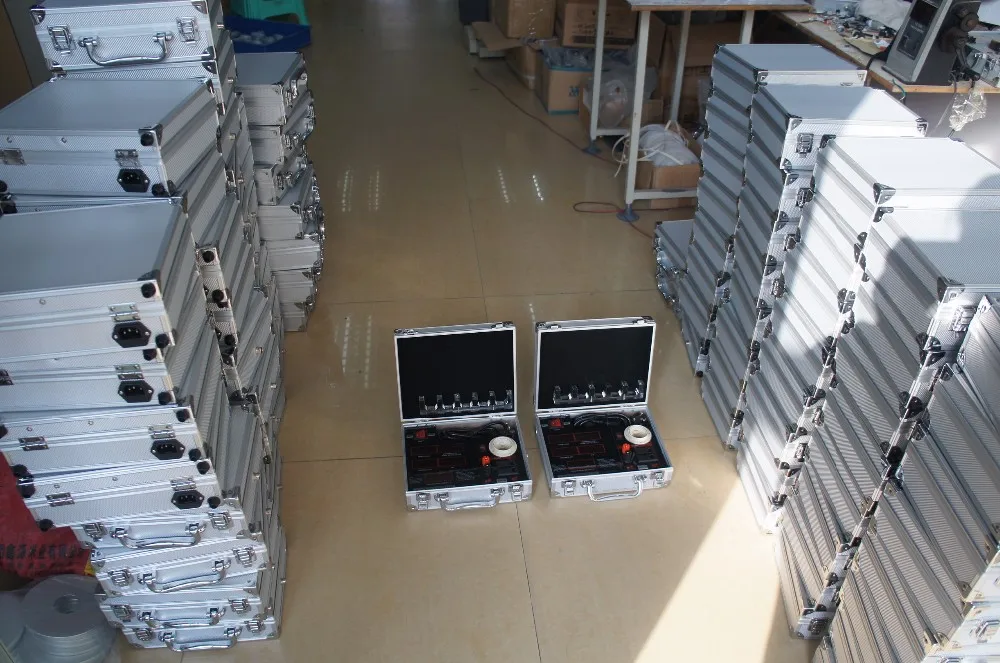

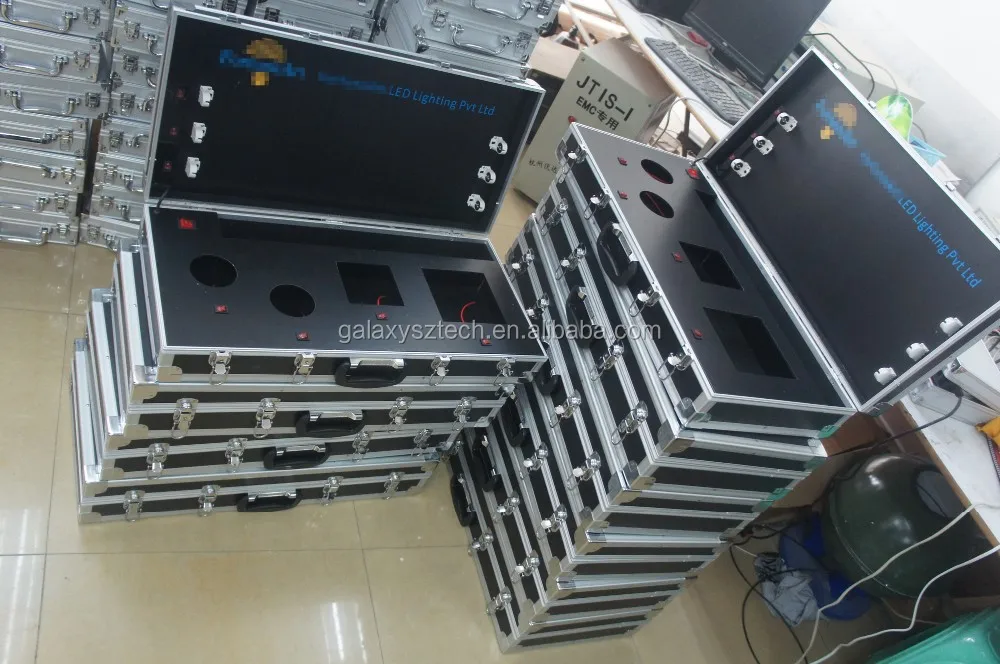

Factory


 DSC05351DSC05449DSC04945QQ20140620210026


LED BULB











Packaging & Shipping


Packaging





Test machine

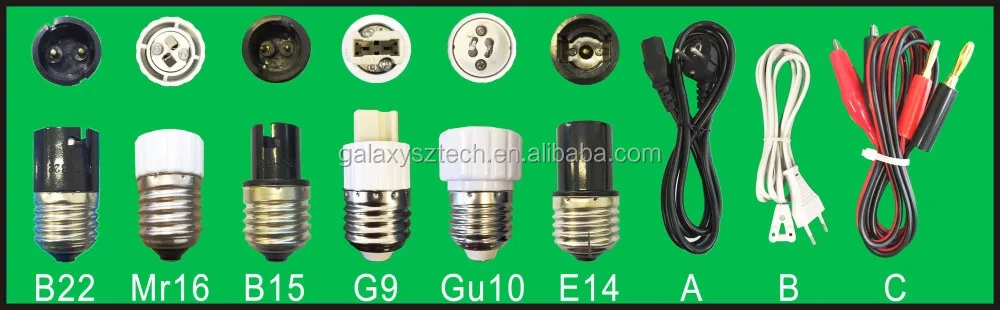

Base adaptor


Spare Fuse


Manual


Power line








Shipping





LED











FAQ


waterproof dmx rgb outdoor led flood light






Can I have a sample order for LED light demo case?


Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.





What about the lead time?


Sample needs 1-7 days, mass production time needs 2-3 weeks.






Do you have any MOQ for LED demo case?


Low MOQ, 1 pcs for sample checking is available. For trial order, we can accept 100 or 200 pcs to support a new customer.





How do you ship the goods and how long does it take to arrive?


For less than container load, we usually ship by DHL, UPS, FedEx (Our own account is cheaper). It usually takes 3-5 days to arrive. Airline and sea shipping also optional.






How to proceed an order for LED demo case?


Firstly, let us know your requirements or application, we also can design for you if you have an idea.


Secondly, we quote according to your requirements or our suggestions.


Thirdly, the customer confirms the samples and places deposit for the formal order.


Fourthly, we arrange the production.






Is it OK to print my logo on your LED Light ?


Yes. Please inform us formally before our production and confirm the design firstly based on our sample.






Do you offer a guarantee for the products?


Yes, we offer 2 years warranty to all of our products.






How to deal with the faulty?


Firstly, Our products are produced in the strict quality control system and the defective rate will be less


than 0.2%.


Secondly, during the guarantee period, we will send new lights with a new order for a small quantity. For


defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to the real situation.






Can you help to ship other factory goods?


Yes. We can help you to ship other factory goods together with our LED lights, we also can test those LED lights for you if you need, by our spectroradiometer system.
