  • CUMARK ES580 sensor less vector open loop heavy duty three phases 380V VFD with LCD removable keypad

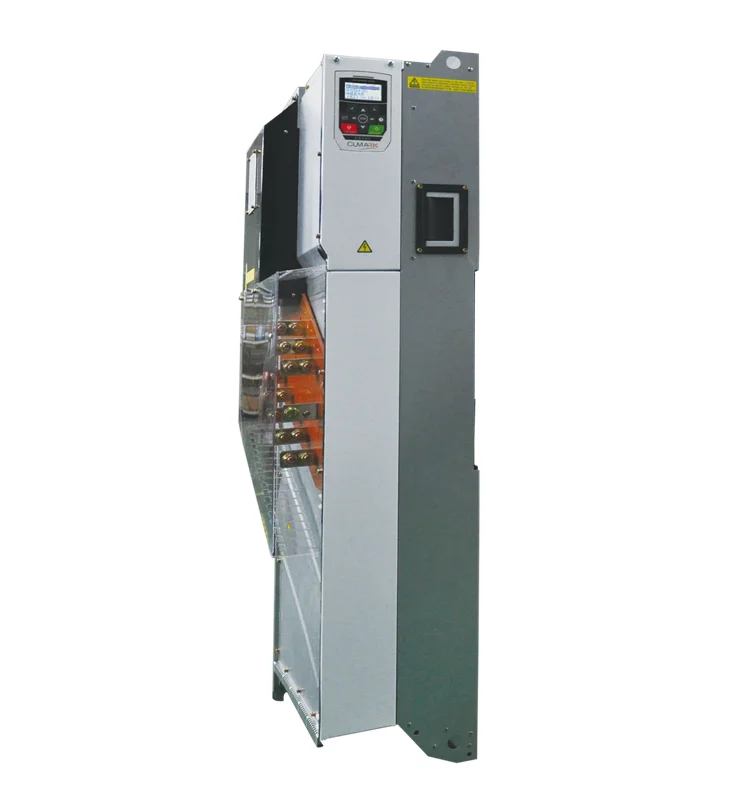

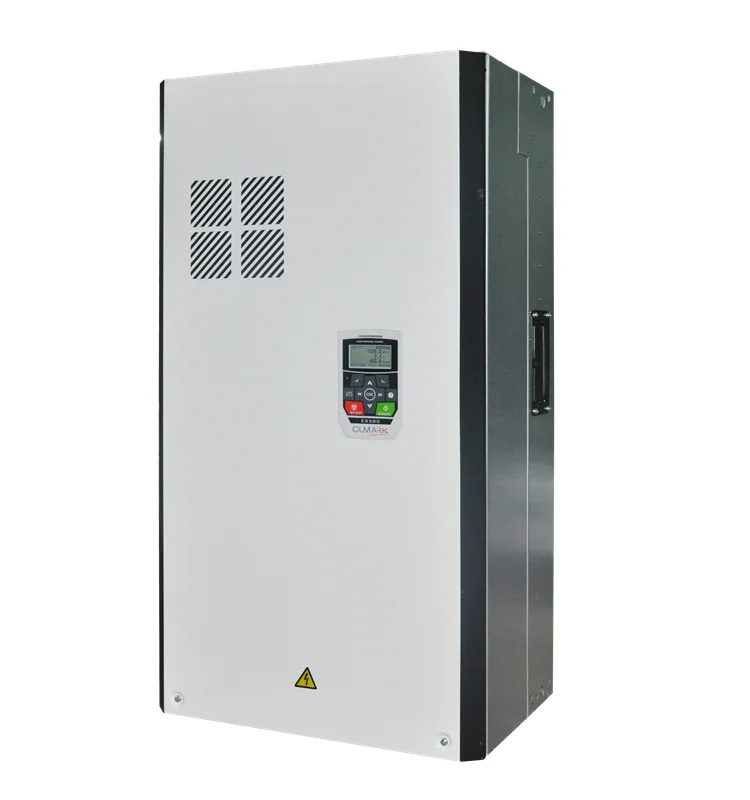

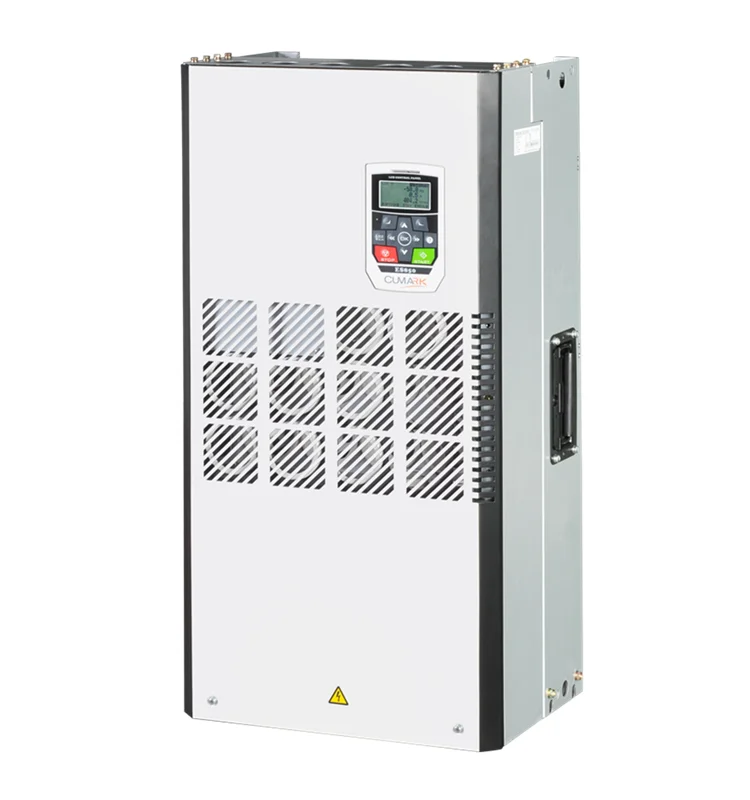

CUMARK ES580 sensor less vector open loop heavy duty three phases 380V VFD with LCD removable keypad
CUMARK ES580 sensor less vector open loop heavy duty three phases 380V VFD with LCD removable keypad
CUMARK ES580 sensor less vector open loop heavy duty three phases 380V VFD with LCD removable keypad
CUMARK ES580 sensor less vector open loop heavy duty three phases 380V VFD with LCD removable keypad
CUMARK ES580 sensor less vector open loop heavy duty three phases 380V VFD with LCD removable keypad
CUMARK ES580 sensor less vector open loop heavy duty three phases 380V VFD with LCD removable keypad
CUMARK ES580 sensor less vector open loop heavy duty three phases 380V VFD with LCD removable keypad

CUMARK ES580 sensor less vector open loop heavy duty three phases 380V VFD with LCD removable keypad

Share on (60734101238):


Price:RUB 13,647.24 - RUB 758,180.00

Quantity:


Product Overview

Description

Product Description



ES580/ES580L High-performance SVC control AC Drive/ VFD/ Frequency inverter/ Frequency converter/ Variable speed drive

High reliability ( Powful protection , Standard IP41(4-22KW), Built-in EMC filter, Independent cooling air duct, Wide voltage range (±20%) )

High performance ( Built-in CANopen / Modbus / PID / simple PLC / breaking unit(0.37-30KW), Profibus-DP ; suitable for Asynchronous & Synchronous motor ; 0-500Hz(Vector control ),0-1000Hz (V/F control ),Timing control ,AVR , Intelligent temperature control , Multi-motor synchronization switching, Speed accuracy ± 0.5% (SVC),Speed range 1:200(SVC) ,Start torque 200%@0.25Hz(SVC), Frequency range 0-500Hz(SVC), 0-1000Hz (V/F))
More friendly ( Intelligent assistant LCD operation panel )
Power range ( 1~phase 220V 0.75 - 2.2Kw ; 3~phase 380/440/500V 0.75 - 630Kw ; 3-phase 660/690V 15 - 1400KW )





--_03

Power range
3AC 380V (-15%~+30%) 0.75~560KW

Frequency
 Input: 50/60Hz ± 5%
Output: 0~500HZ (SVC), 0-1000HZ (V/F)
Control mode
V/F, SVC( Sensor less Vector Control)
Starting torque
0.25Hz/200%
Keypad
Removable LCD keypad  built in
Reactor
DC Reactor built in (F3-F9 Frame)



Others
AUTO PID function
Modbus, Can open ports built in
Protection Class: IP40 (F1-F3 Frame)
PLC Logic Control
Motor Overheat Protection

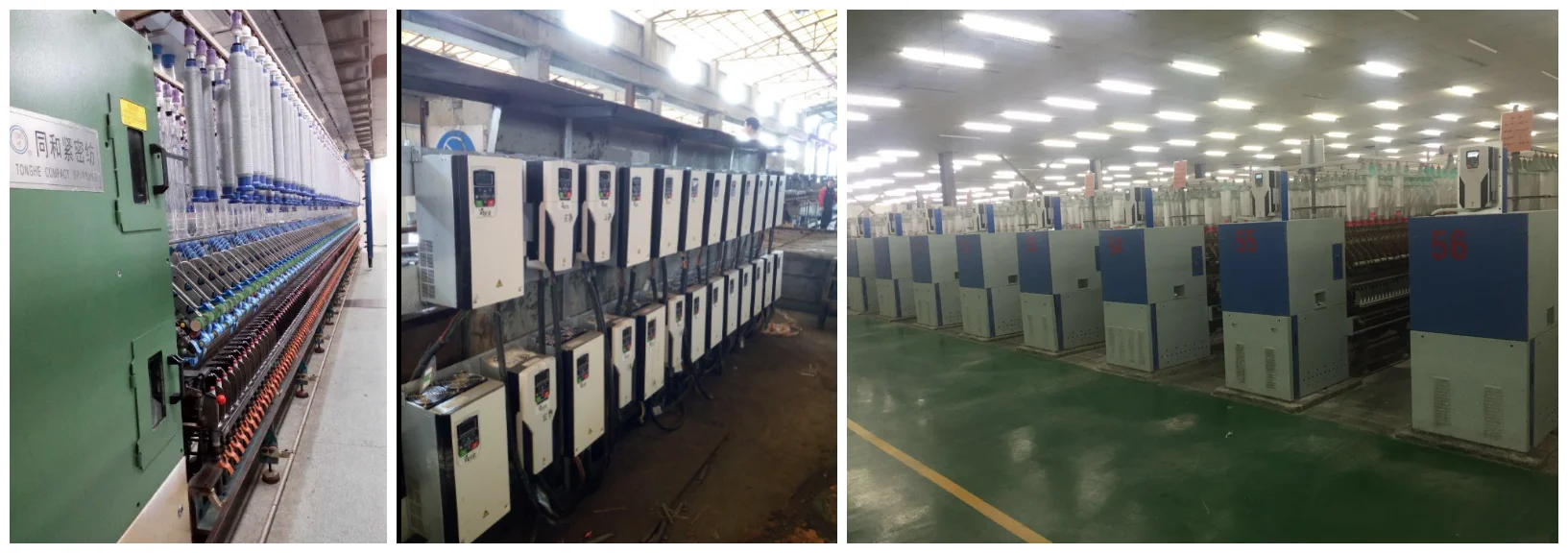

Application
HVAC, Machine Tool, Printing, Plastic
