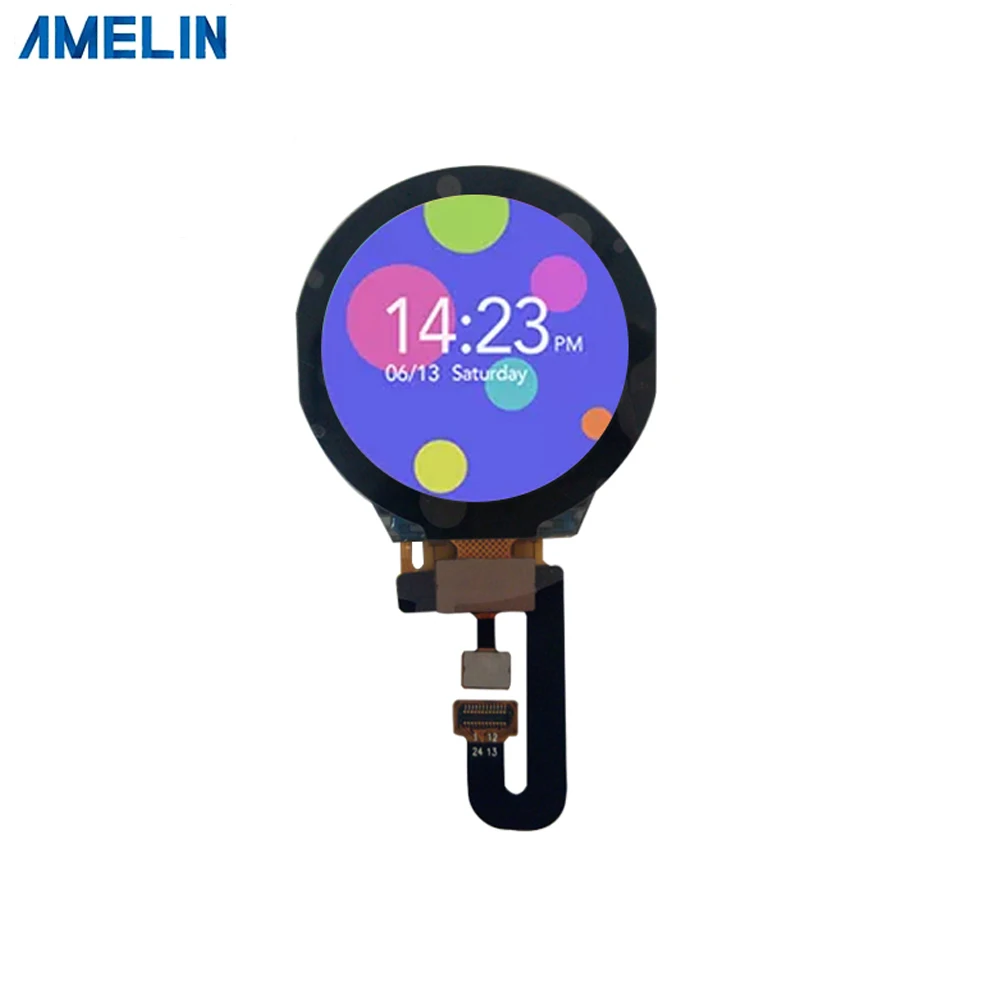

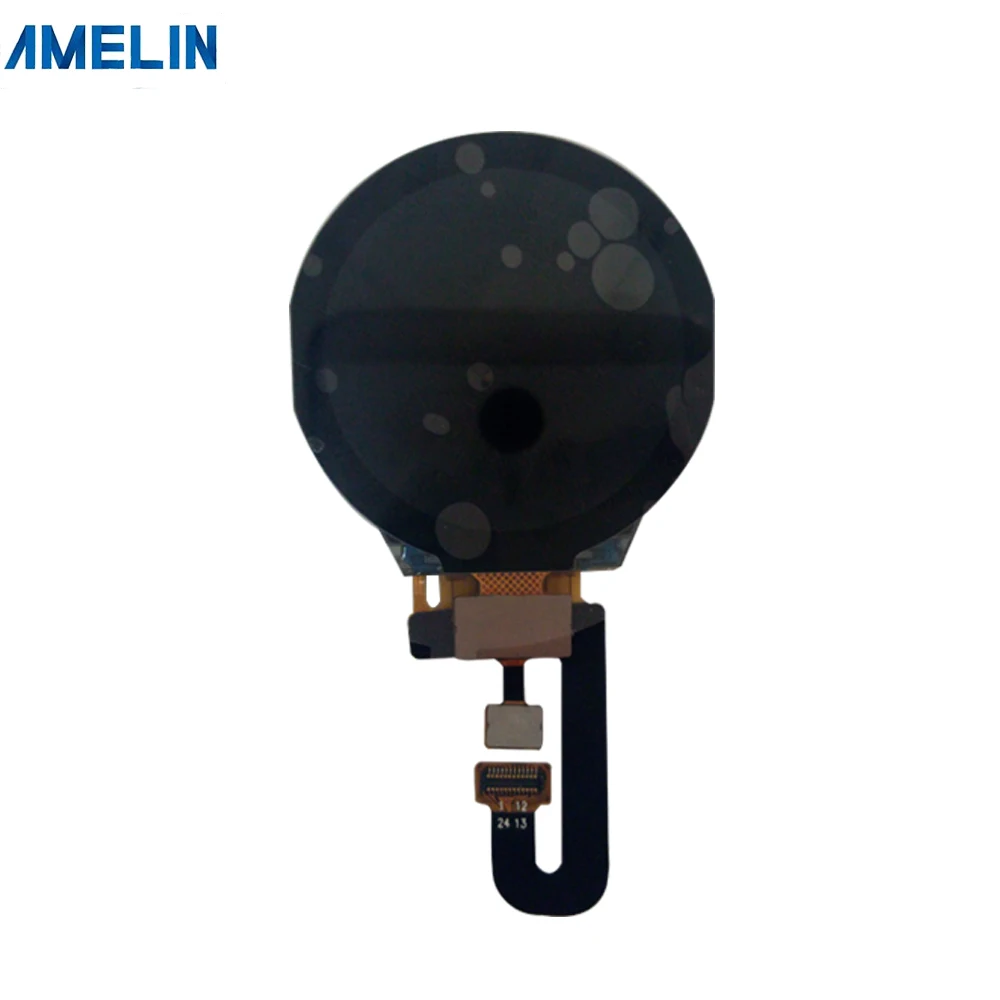

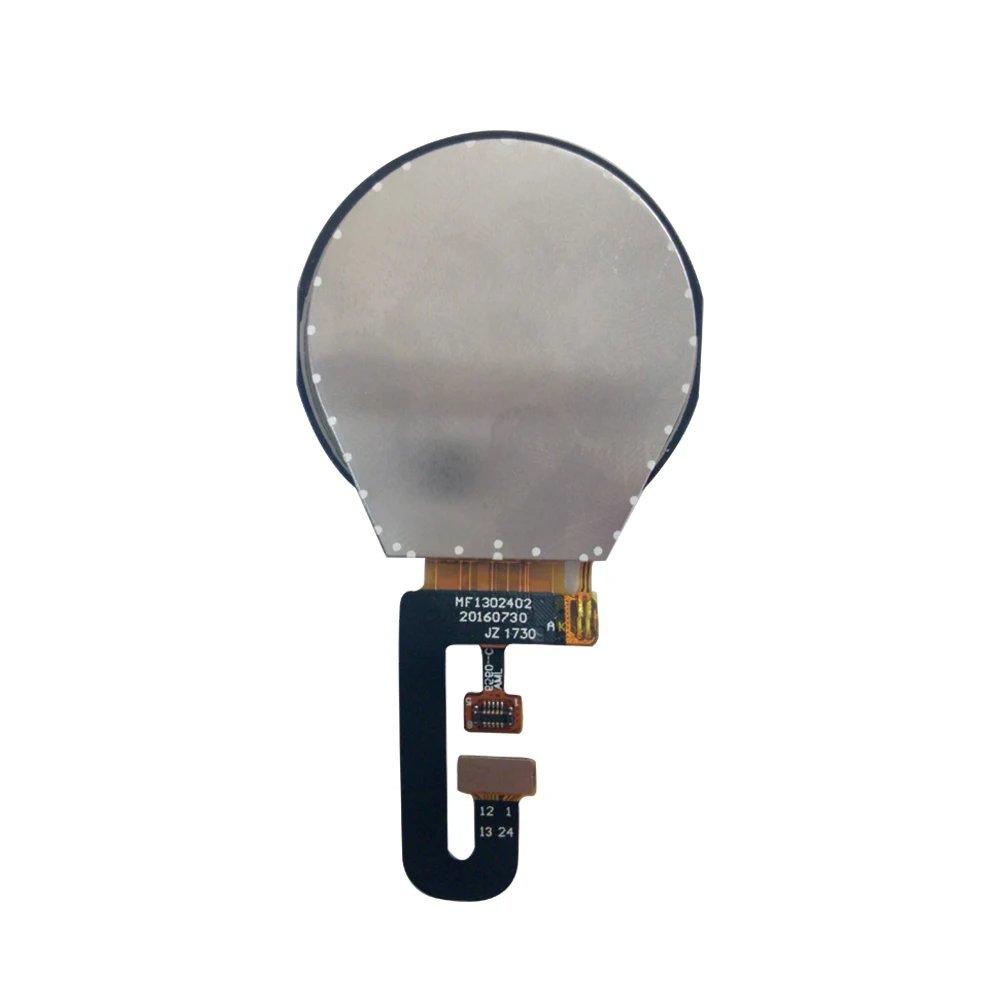

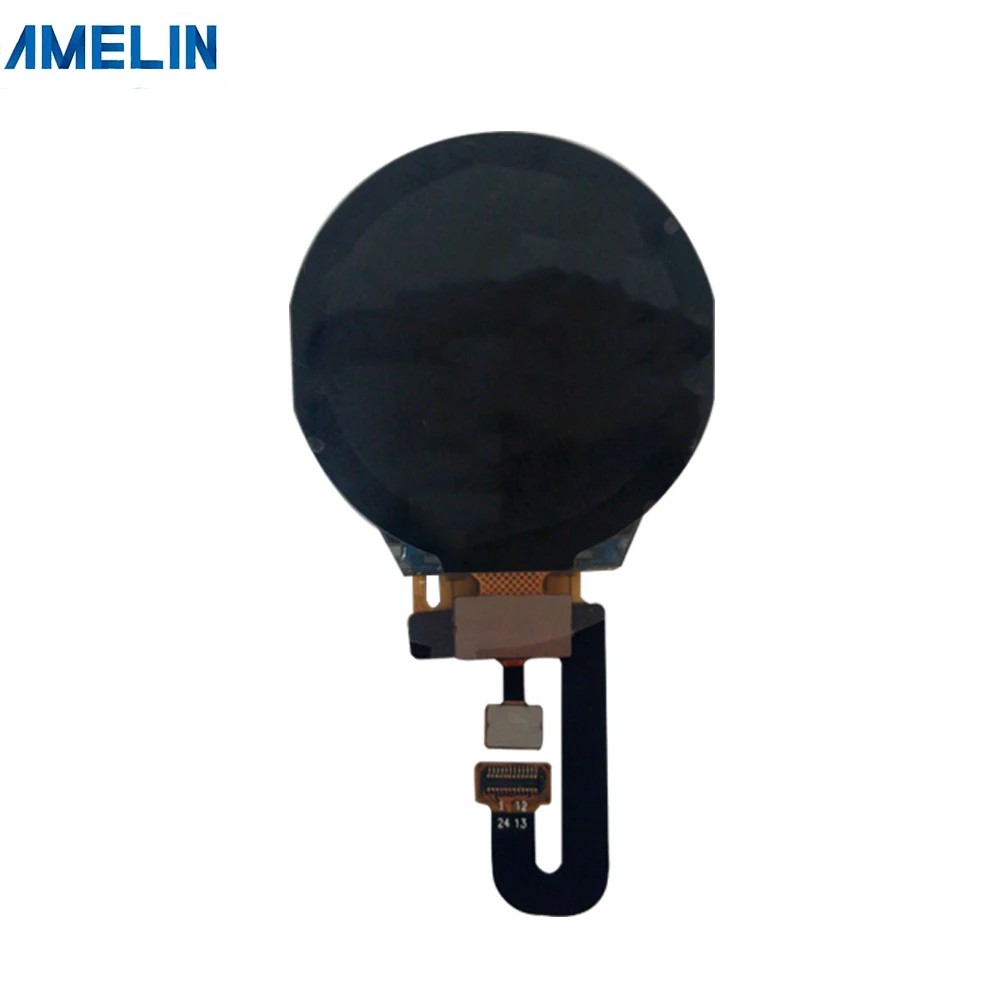

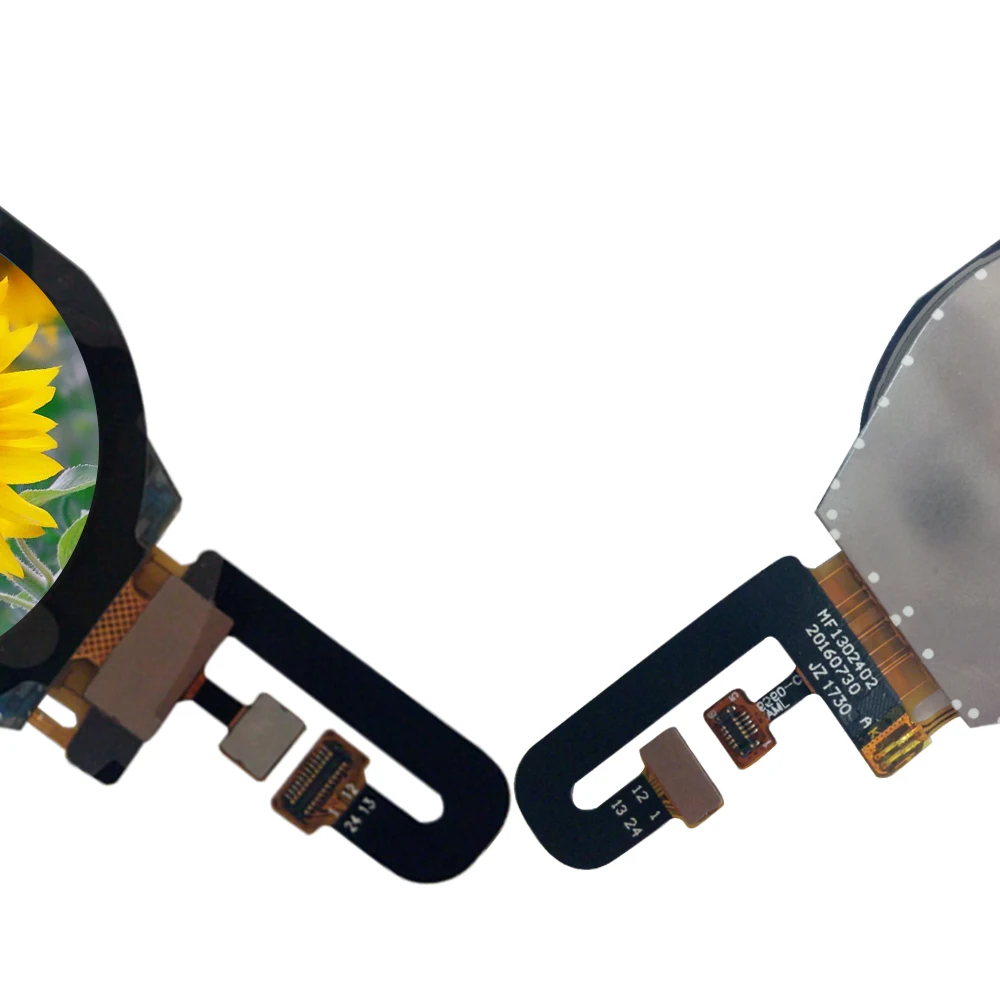

smart screen1.3 inch 240*240 round IPS tft lcd display with CTP panel and SPI interface screen for smart watch
II

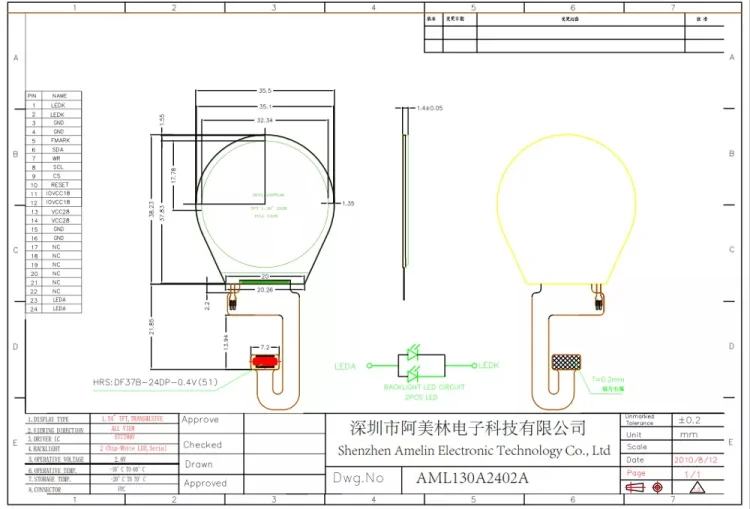

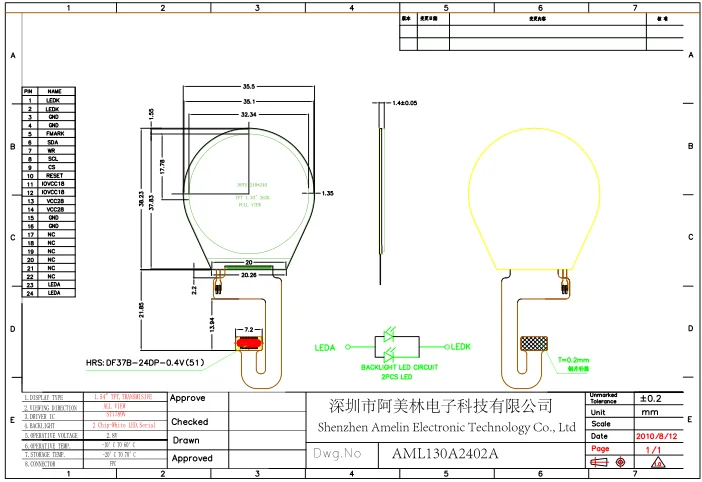

AML130A2402A is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor).
It iscomposed of a color TFT-LCD panel, driver IC, FPC and a backlight unit.
The module display area contains 240x 240 pixels and can display up to 262K colors. This product accords with RoHS
environmentalcriterion.
| Item | Contents | Unit |
| LCD Type | TFT TRANSMISSIVE | / |
| Viewing direction | FULL VIEW | / |
| Module outline (W x HxD) | 35.5*38.23*1.4 | mm |
| Active area (WxH) | 32.34*32.34 | mm |
| Number of Dots | 240(RGB) x240 | / |
| Driver IC | ST7789V | / |
| Colors | 262K | / |
| Backlight Type | LED | / |
| Interface Type | System Serial interface | / |
| Input voltage | 2.8 | V |
