----------------------------------------------------------------------------------------------------------------------------------- ♦ Maximum recommended continuous current 400 mA (to get 50% of the nominal capacity at +25ºC with 2.0V cut off. Higher currents possible. Consult ACT.)
---------------------------------------------------------------------------------------------------------------------------------- ♦ Pulse capability: varies according to pulse characteristics (frequency and duration), temperature, cell history (storage conditions prior to usage) and the application's acceptable minimum voltage.
---------------------------------------------------------------------------------------------------------------------------------- ♦ Maximum pulse current capability 500 mA
♦Storage (recommended) 30ºC max (possible without leakage) -55º / +120ºC
---------------------------------------------------------------------------------------------------------------------------------- ♦Operating temperature range -55º / +85ºC (Operation at temperature different from ambient may lead to reduced capacity and lower voltage plateau readings.)
WARNING: Fire, explosion and severe burn hazard. Do not recharge, crush, disassemble, heat above 212ºF (100ºC), incinerate, or expose contents to water.

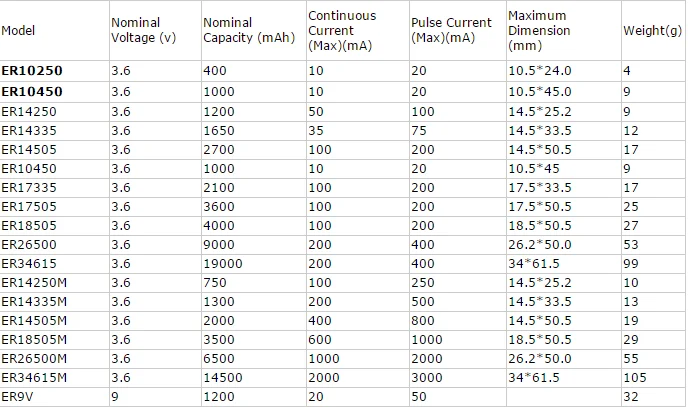

Other Models: ER10250/ER102801/ER10450/ER14250/ER14335/ER14505/ER17335/ER17505/ER18505/ER26500/ER34615/ER341245
2.Key features:
High operating voltage, stable during most of the application lifespan Wide temperature range from -55 to +85C Performance independent from cell orientation Superior shelf lifespan and reliability: Over 10 years at room temperature and self-discharge rate is less than 1% of its nominal capacity per year Energy type is bobbin structure and best suited for low current discharge current, it may require depassivation before medium currents can be delivered Typical values relative to cells stored for one year or less at +30C maximum
3.application:
1. Memory backup: CMOS memory, RTC(real time clock) and computer backup.
2. AMR utility meters: Electricity meter, gas meter and water meter etc.
3. Wireless alarm sensors: Smoke alarm systems, temperature monitors etc.
4. Remote monitor systems: GPS, sea buoys, lifejacket lights, lifecraft lights, cargo-locating systems etc.
5. Automotive and electronics: Automotive security systems, tire-pressure monitoring systems etc.
6. Electronics toll tags: Toll gates
7. Military electronics: Radio communication, night vision equipment, tracking and positioning systems etc.

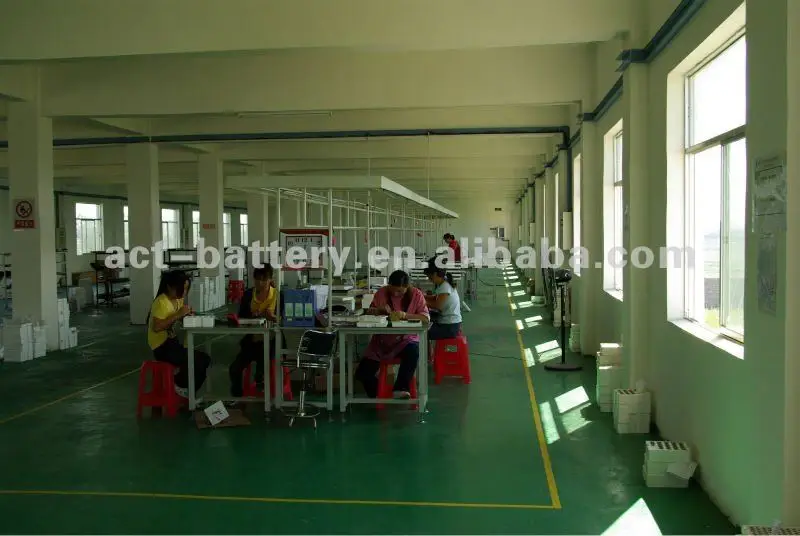

Factory pictures

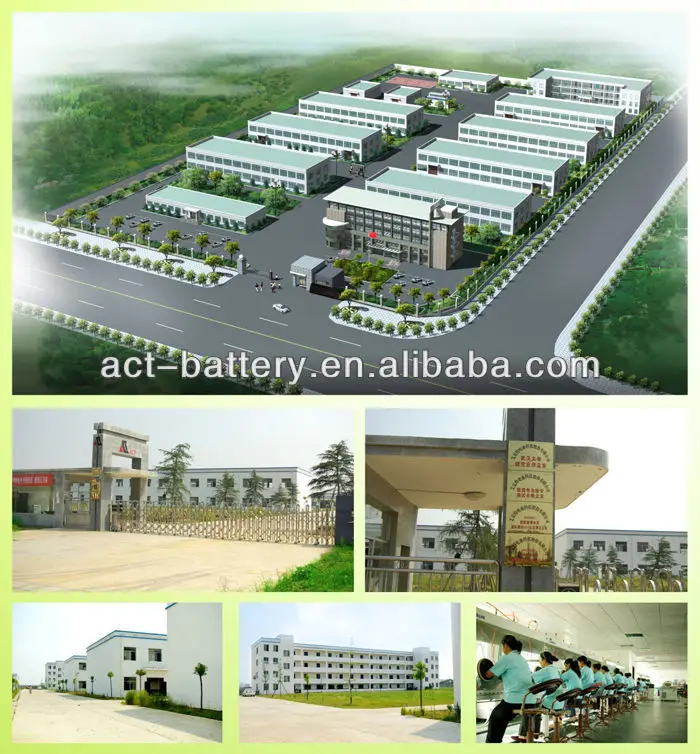

Picture of Manufactuer

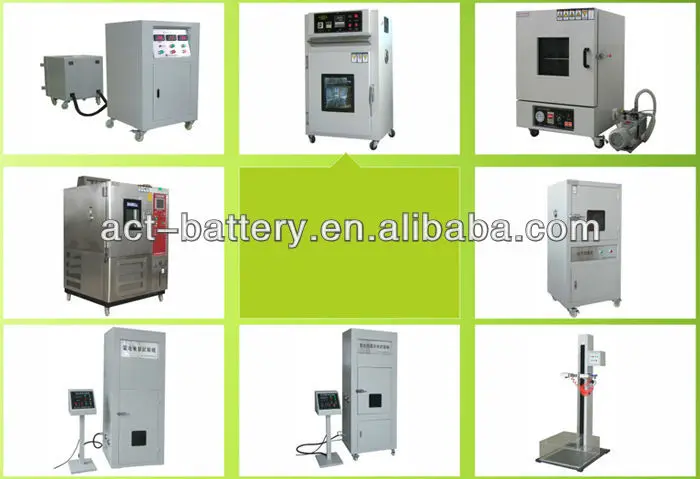

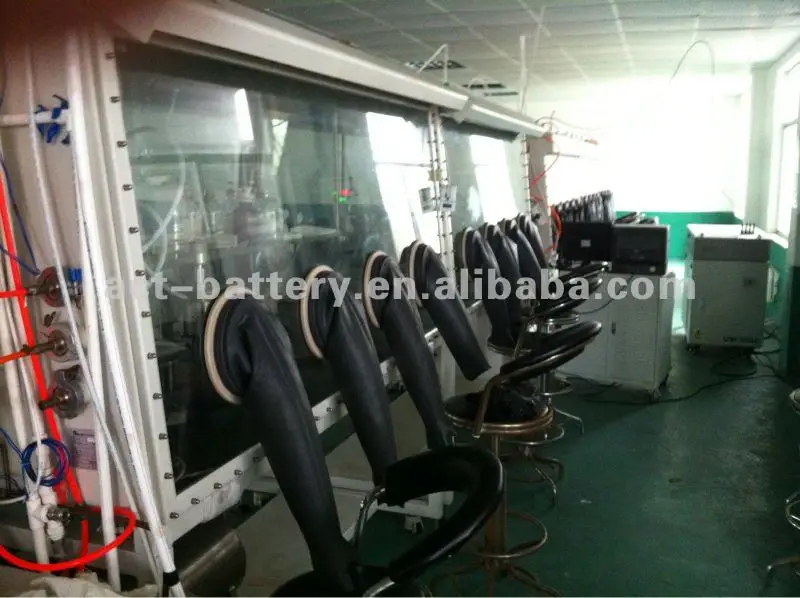

Picture of Production Machine

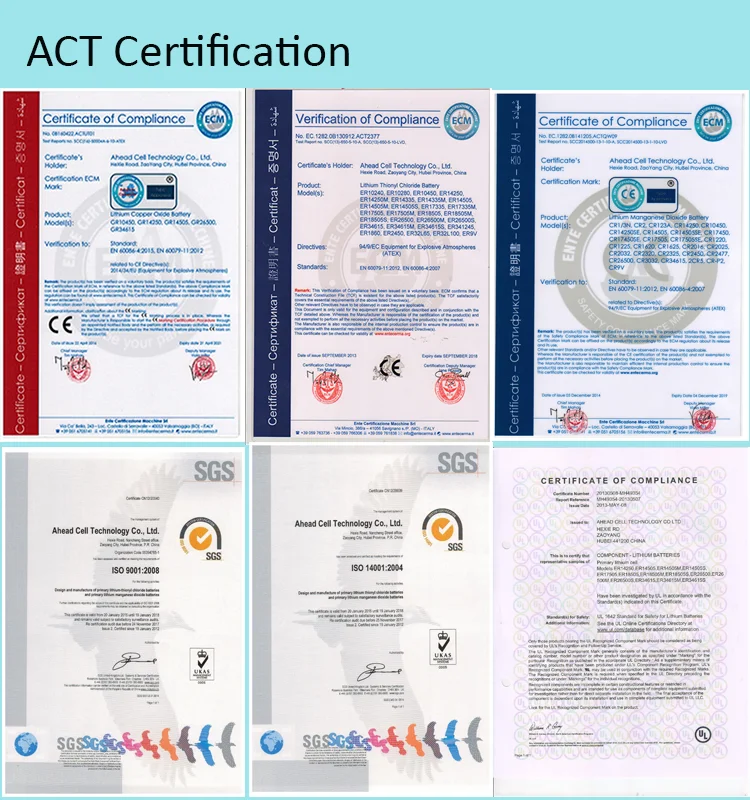

Certifications
Why choose us ?
- A professional sales team which provide consultant service and the most competitive battery price.
- OEM and ODM designs and labels are welcome.
- Small Order is available.
- Wide-range battery products to satisfy different customer’s requirement.
- Quick response, every inquiry will be replied within 24 hours.
- Good after-sale service, long product warranty and continual technique support
- We treat clients as friend with quickly action & respond
Also,We have powerful strength in scale and technical:
1. A own property industrail zone of 33,325 square meters.
2. Around 200 workers of production, make sure large order process.
3. Powerful equipment 100% protect storng warranty and high quality.
4. IEC standard, AA, AAA,SC,C,D,F SIZE, capacity ranges from 120mAh to 15Ah
5. Battery manufacturer of nicd battery, nimh battery, lithium ion battery, li-polymer battery, Li-SOCl2 and Li-MnO2 battery etc.
6. Established quality control systems under ISO9001& ISO14001.
