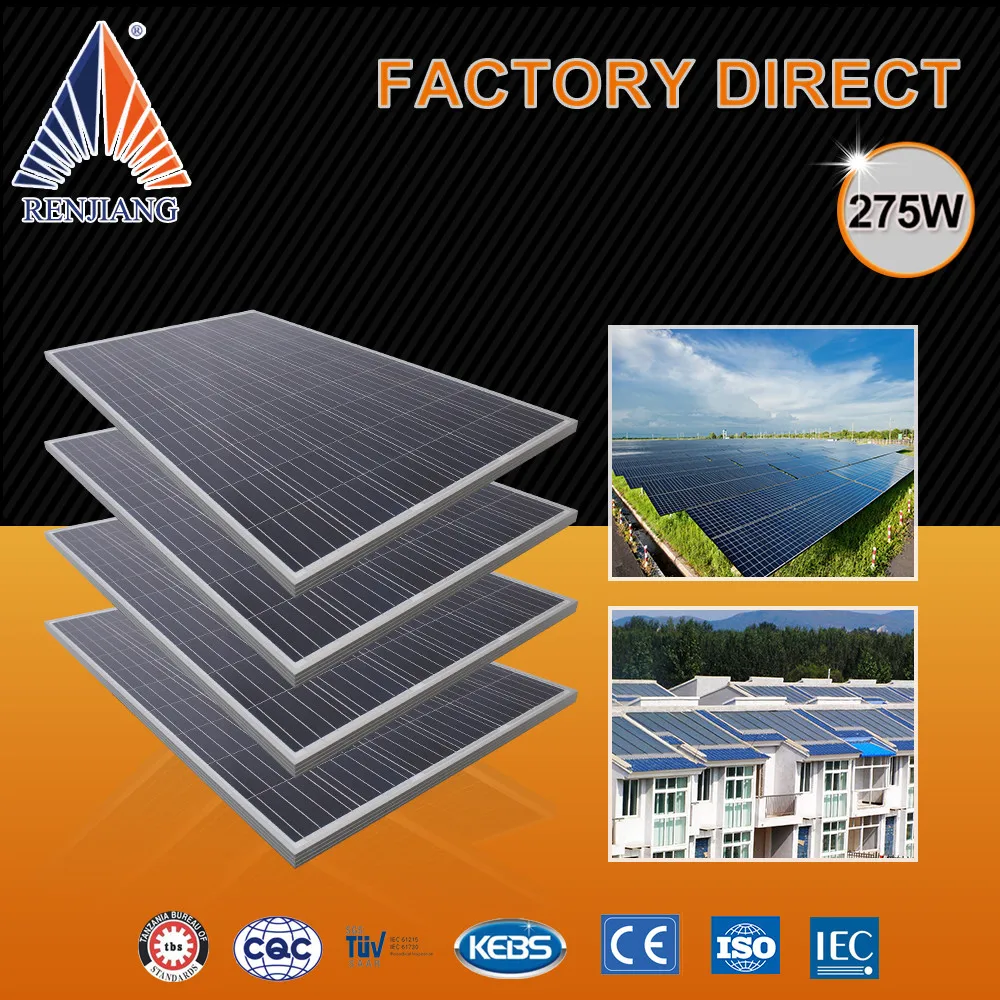

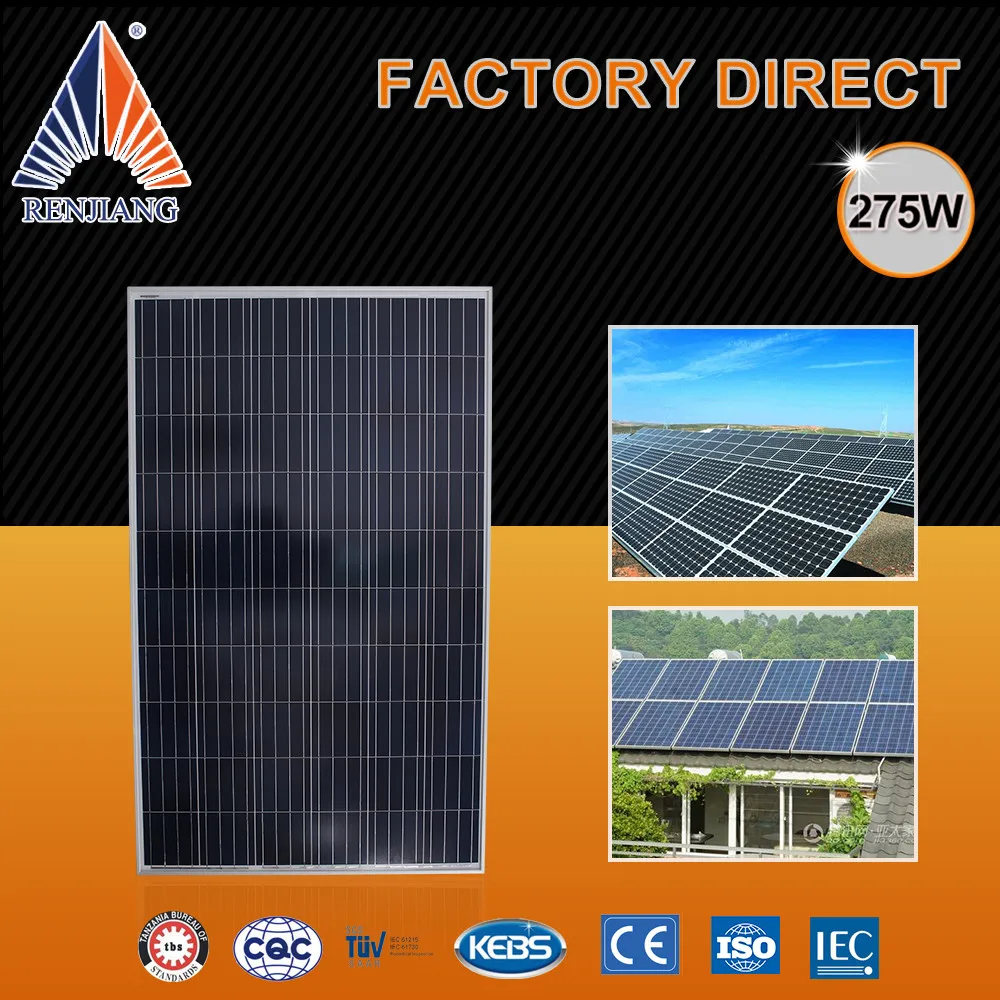

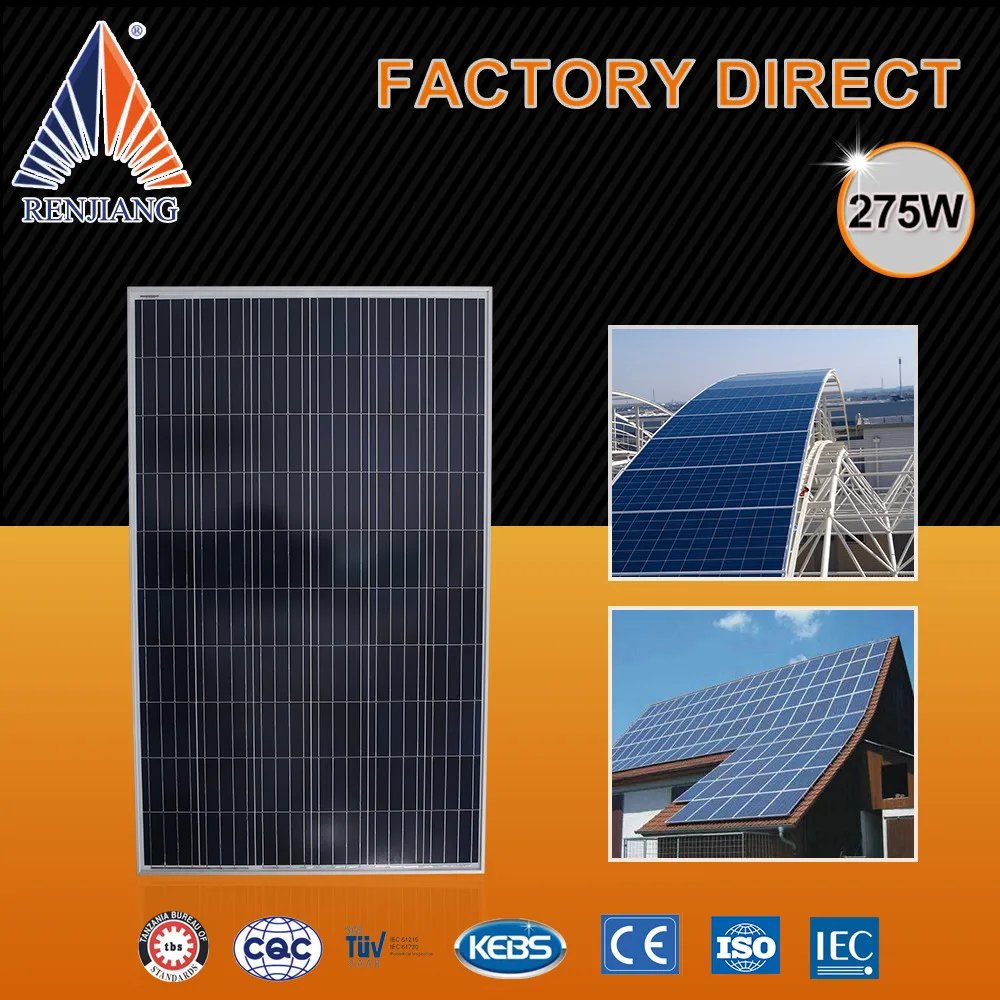

high efficiency 300w roof tile price photovoltaic solar panel
- Category: >>>
- Supplier: Jiangxi Renjiang Technology Co. Ltd.
Share on (60734188144):
Product Overview
Description
high efficiency 300w roof tile price photovoltaic solar panel
Product Description
>>>>>>>>>>>Contact us to get more project pictures of our solar panels applied in many districts.
| Technical Parameter | ||||
Rated Output (Wp) | Opencircuit voItage (Voc) | Maximum Power voItage (Vm) | Short circuit current (Isc) | Maximum Power current (Im) |
| 200 | 33.6 | 26.26 | 8.11 | 7.63 |
| Temperature Coefficient of Voc | -0.38%/℃ | CeII(mm) | 156*156 | |
| Temperature Coefficient of lsc | +0.04%/℃ | Weight(kg) | ||

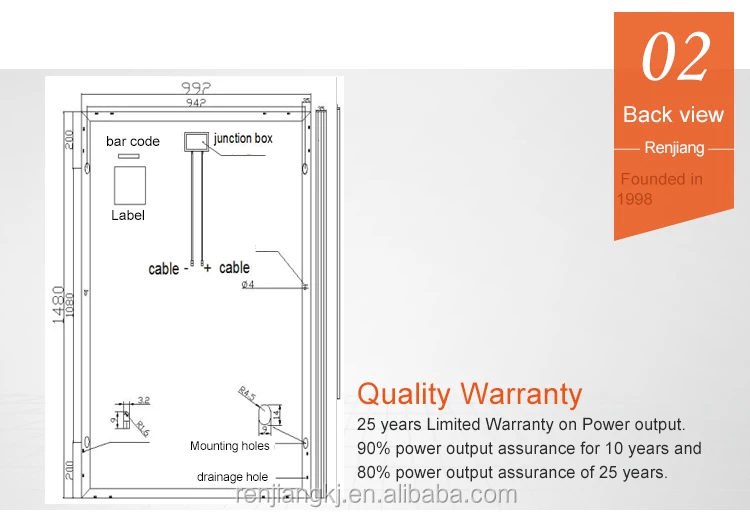

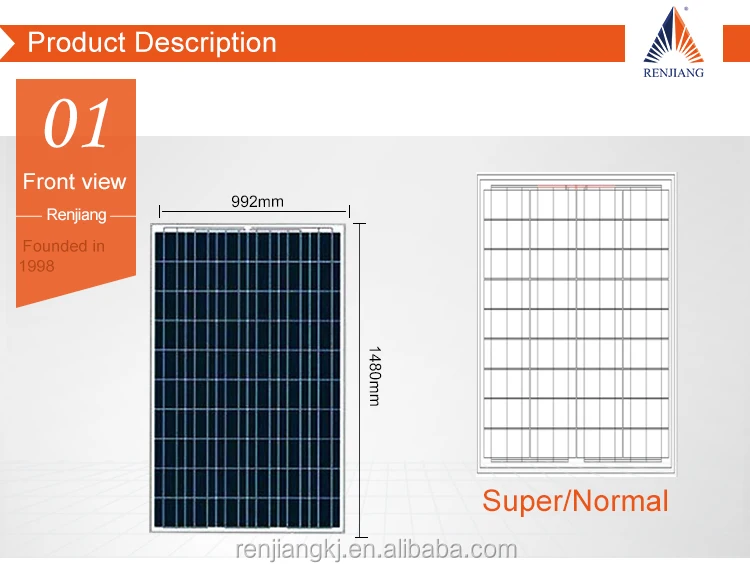

| Temperature Coefficient of Power | -0.47%/℃ | Dimensions(LxWxH)(mm) | 1480*992*35 | |
| NOCT | 45±3℃ | Cable Cross Section Size (mm) | 2*4 | |
| Working Temperature Range | - 40℃~+85℃ | No.of Cells and Connections | 54( 6*9) | |
| Maximum Permitted Load | 5400Pa | No.of Diodes | 3*15A | |
| Maximum Series Fuse Rating(A) | 15 | Monolithic power | 3.63w-4.2w | |
| Maximum System Voltage(V) | 1000 | The efficiency of single chip | 14.92%-17.26% | |
| Standard Test Conditions | 1000W/m2;25℃;AM1.5 | The packing way | 26pcs/Carton | |
>>>>>>>>>View more solar panels of different watts.
Welcome to contact us
| Amy Ou | Sara Deng | Astrid Yang | Carrie Lee | |
Mobile | +86 18674469363 | +86 18163654695 | +86 18163654405 | +86 18163654475 |
+86 18674469363 | +86 18163654695 | +86 18163654405 | +86 15024570384 | |
| E-mail: | sales3 (at)renjiangkj.com | sara01 (at) renjiangkj.com | sales5 (at) renjiangkj.com | sale4 (at) renjiangkj.com |
| Wechat: | +86 15116138311 | Sara01Deng | y1208416619 | +86 15024570384 |
