14025 Dc Fan High Pressure Cooler 12V Ceiling Fans
- Category: Fans >>>
- Supplier: Linyi Tongxin Electric Co. Ltd.
Share on (60734202807):
Product Overview
Description
AC

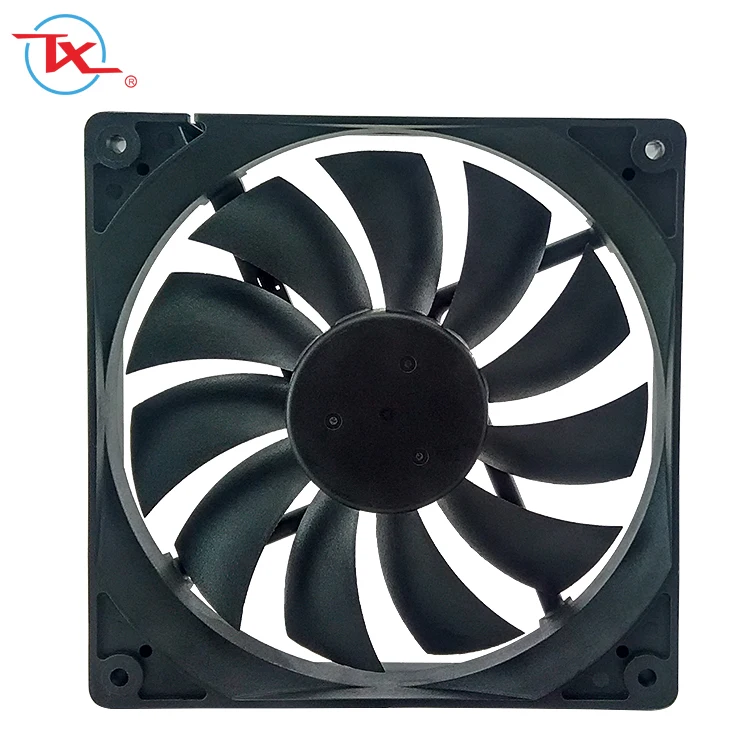

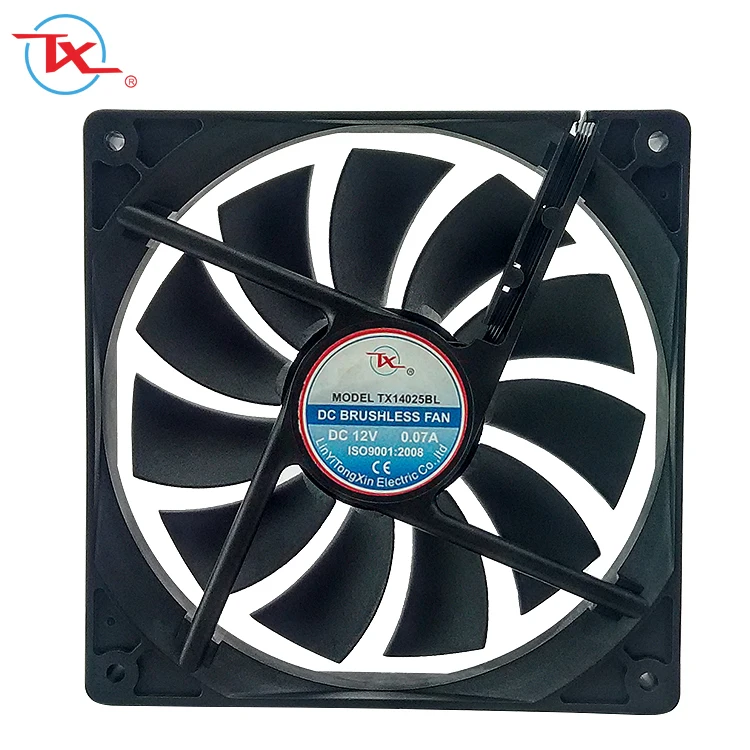

14025 DC Fan High Pressure Cooler 12V Ceiling Fans
Product Pictures
| 1 | Model Number | TX-14025HB(S)12 DC Fan 12V |

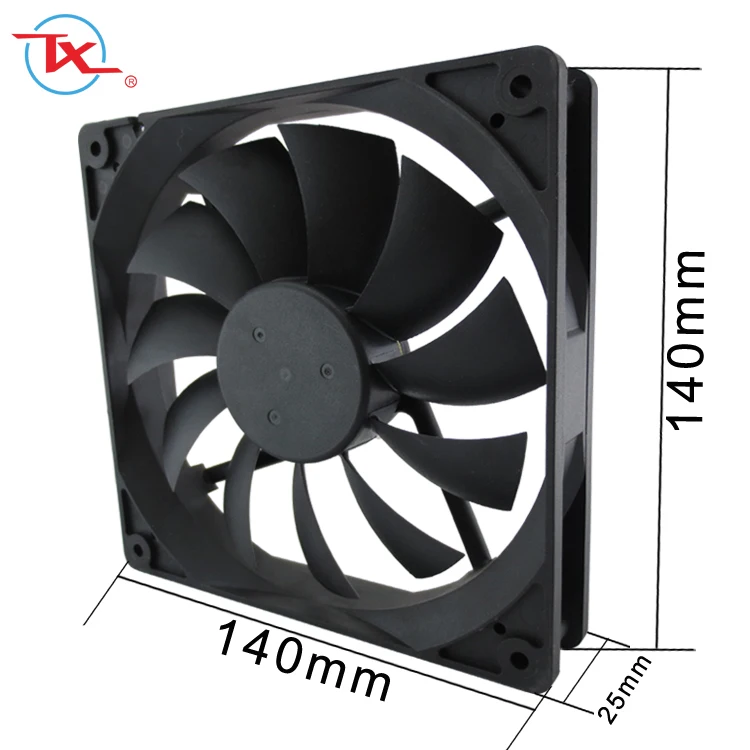

| 2 | Frame Size(mm) | 140*140*25mm DC Axial Flow Fan |
| 3 | Bearing Type | Ball Bearing DC Ceiling Fans |
| 4 | Rated Voltage | 12 volt |
| 5 | Rated Current | 0.40 A |
| 6 | Power | 4.80 W |
| 7 | Nominal Speed | 2100 RPM |
| 8 | Max. Air Flow | 115.81 CFM |
| 9 | Max. Air Static Pressure | 2.70 mm-H2O |
| 10 | Noise Level | 38 dBA |
| 11 | Frame Material | Black UL94V-0 Fiber Glass Filled P.B.T |
| 12 | Impeller Material | Black UL94V-0 Fiber Glass Filled P.B.T |
| 13 | Lead Wire | 300mm,AWG#24 UL1007 (+)Red (-)Black, Optional |

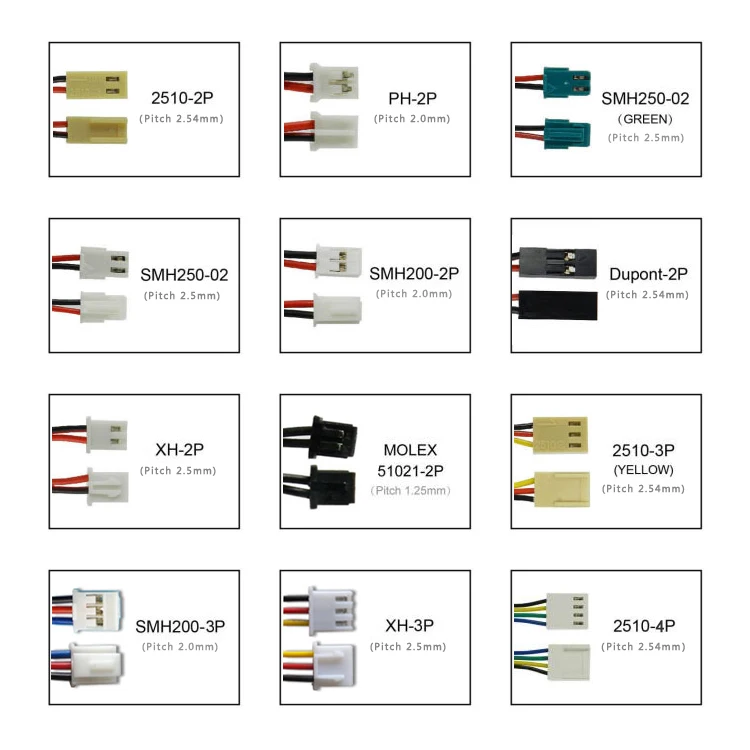

| 14 | Connector | Without or With, Optional |
| 15 | Motor Protection | Impedance Protected, Thermal Protected, Reverse Polarity Protected(Auto Restart) |
| 16 | Life Expectancy | Sleeve Bearing:30,000 Hours at 25 Degree C/L10 (RH65%±20%) Ball Bearing:50,000 Hour at 25 Degree C/L10 (RH65%±20%) |
| 17 | Storage Temperature | -40℃~85℃ (20%~85% RH) |
| 18 | Operating Temperature | -10℃~70℃ (20%~85% RH) |
| 19 | Available Functions | FG, RD, PWM, IP55~68, Thermal Control, Auto Restart |
| 20 | Sample Service | Pay to get the samples |
| 21 | Quality Assurance | Sleeve Bearing Type:12 Months Ball Bearing Type:24 Months |
| 22 | Item Condition | Brand New |
| 23 | OEM | Acceptable |
| 24 | Weight | 195 G |
Model
| Rated Voltage V | Operating Voltage V | Power W | Current Amp | Speed RPM | Air Flow | Pressure mm-H20 | Noise dBA | Weight G |
| TX14025HB(S)12 | 12.0 | 6.0~13.8 | 4.80 | 0.40 | 2100 | 115.81 | 2.70 | 38 | 195 |
| TX14025MB(S)12 | 12.0 | 6.0~13.8 | 3.84 | 0.32 | 1500 | 85.42 | 1.89 | 33 | 195 |
| TX14025LB(S)12 | 12.0 | 6.0~13.8 | 2.64 | 0.22 | 1200 | 68.50 | 1.23 | 28 | 195 |
| TX14025DB(S)12 | 12.0 | 6.0~13.8 | 1.56 | 0.13 | 1000 | 60.33 | 0.99 | 25 | 195 |
| TX14025HB(S)24 | 24.0 | 12.0~27.6 | 7.92 | 0.33 | 2100 | 115.81 | 2.70 | 38 | 195 |
| TX14025MB(S)24 | 24.0 | 12.0~27.6 | 6.24 | 0.26 | 1500 | 85.42 | 1.89 | 33 | 195 |
| TX14025LB(S)24 | 24.0 | 12.0~27.6 | 3.60 | 0.15 | 1200 | 68.50 | 1.23 | 28 | 195 |
| TX14025DB(S)24 | 24.0 | 12.0~27.6 | 2.16 | 0.09 | 1000 | 60.33 | 0.99 | 25 | 195 |
