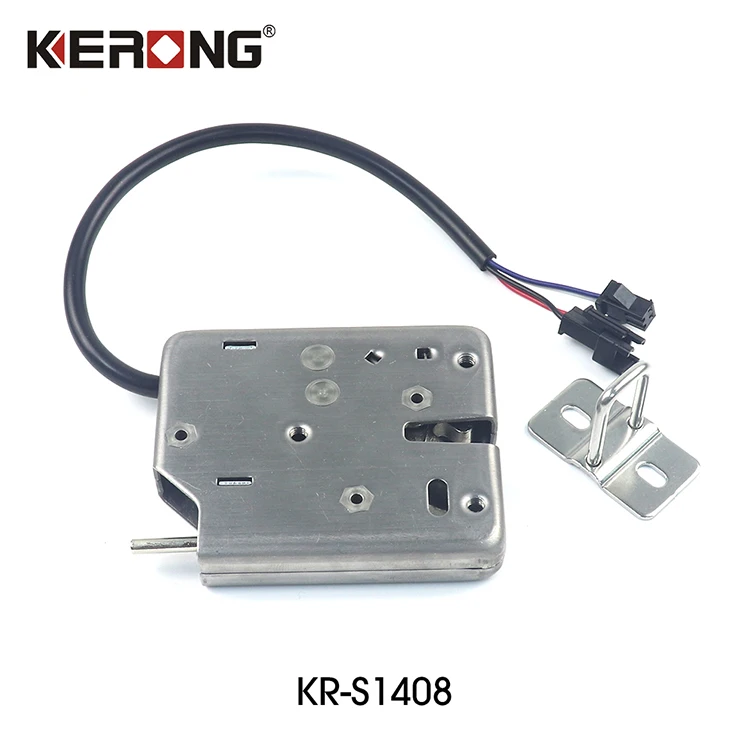

KERONG Hidden Electric Magnetic Spring Cabinet Door Latch

Share on (60734216263):


Price:$2.50 - $4.75

Quantity:


Product Overview

Description




























Product Description





































































































 PRODUCT  parameter



 Model



 KR-S1408



 Brand



 KERONG



 Product Name



 Electric Cabinet Lock



 Size

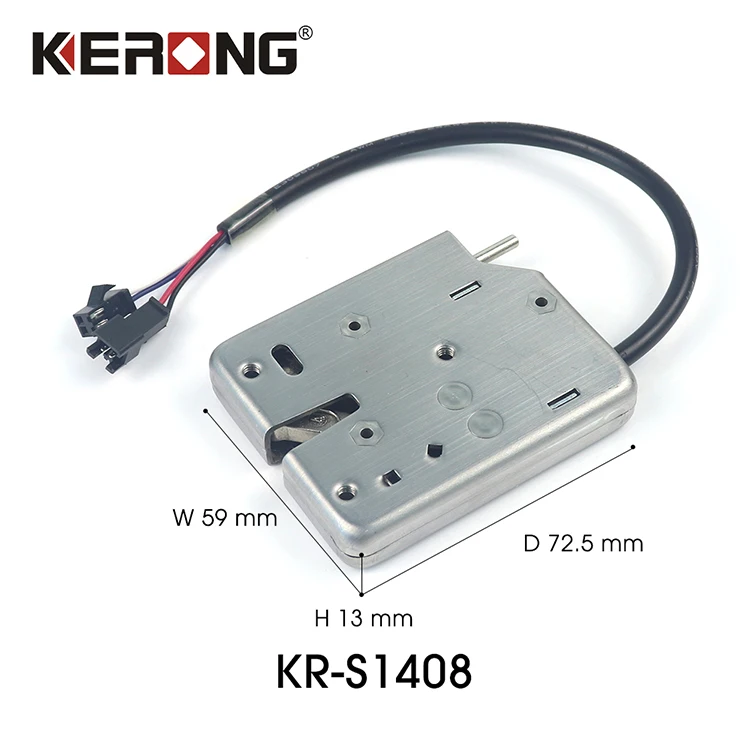

 72.5*59*13 mm



 Weight with lock hook



 176 g



 Material of lock body



 430 stainless steel



 Material of lock tongue



 Zinc alloy



 Surface treatment



 Wiredrawing grain surface



 Usage

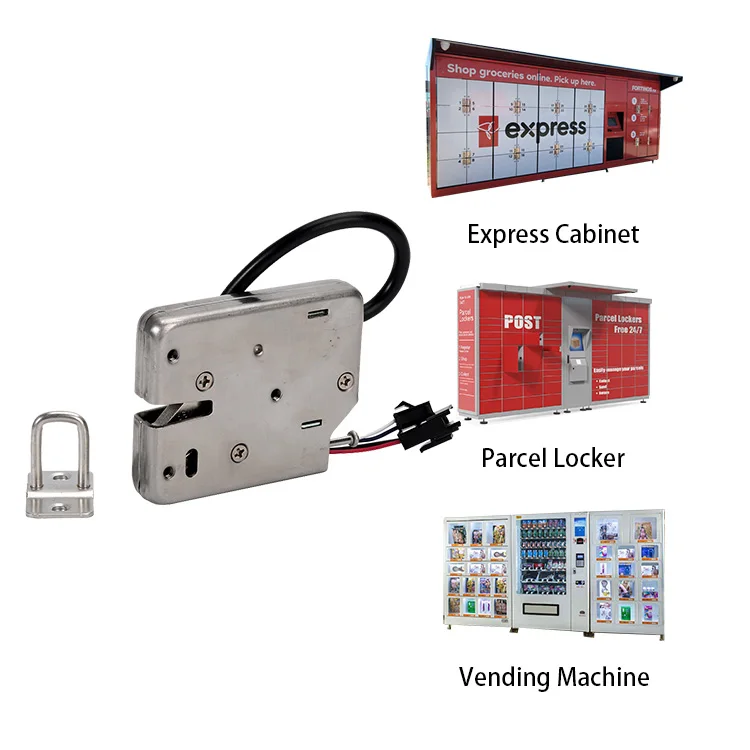

 Storage lockercabinetExpress lockerelectricity meter box; vending kiosk



 Door weight



 0.5KG~10KG



 Working voltage



 12V/24V



 Working current



 2.4A/1.2A



 Maximum power



 28W



 Manner of working



 Independently (Be locked when door is close, unlocked power-on);



 Response time



 Less than 20ms



 Working temperature



 -20℃ ~ +60



 Working humidity



 5% ~ 85%RH



 Working life



 500,000 times



 Samples



 ≤3 pcs



 OEM



 Accepted



 Test



 Salt spray testing 48 hours



 Signal detection (open/close)



 Omron



 Certification



 CEFCC; RoHS











Product Description:





1. Solenoid driven, support 12V & 24V


2. Lock shells are made from low carbon steel, anti-force performance: 250kgs


3. Omron micro detective switch from Japan, 500,000-time working life


4. Mechanical emergency lever, can be unlocked manually in case of power failure


5. AWG24 wires with PVC protecting tube


6. Support customizing wires and connectors








Product Show:

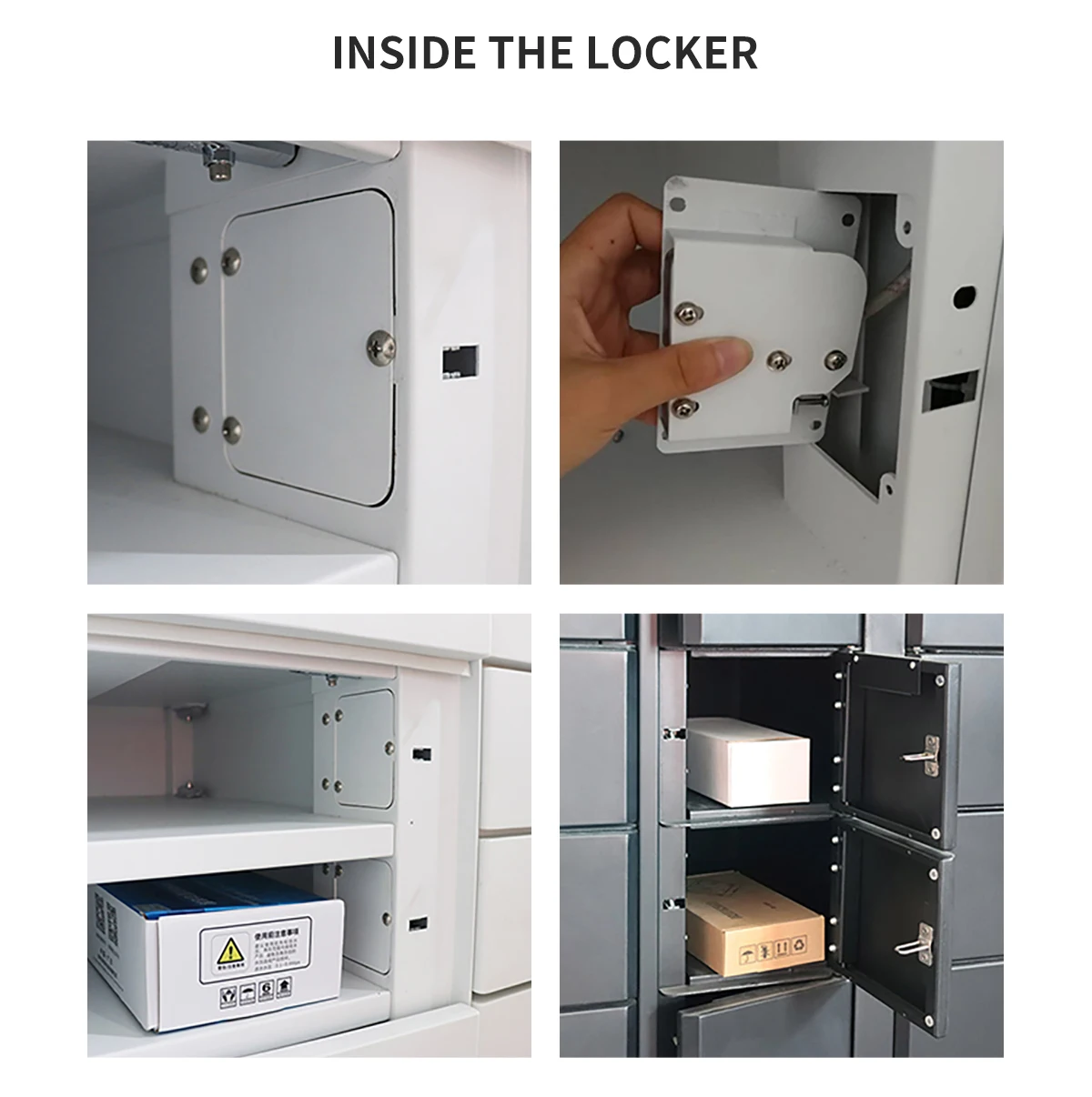

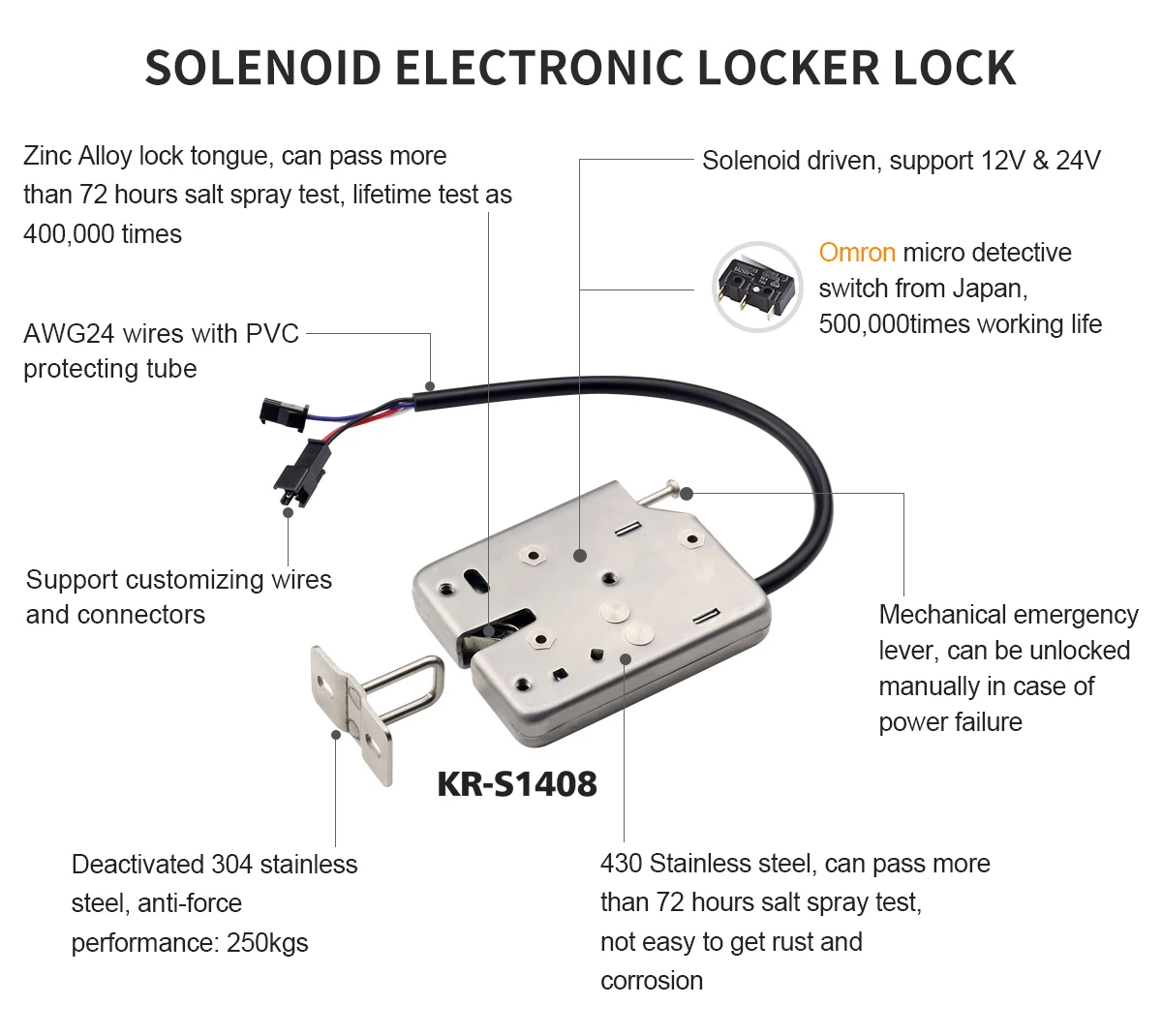

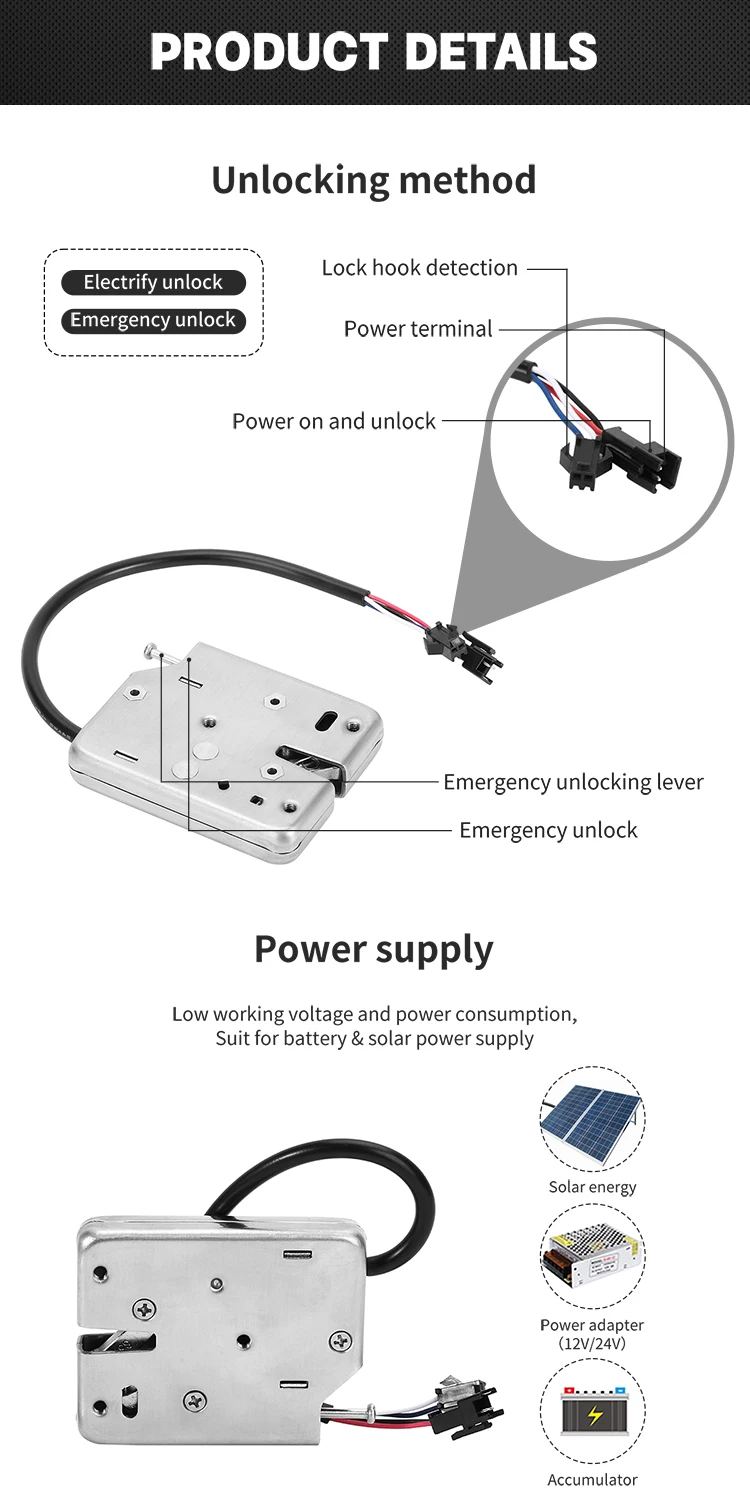

S1408-particulars_01KR-S1408-particulars_02KR-S1408-particulars_04

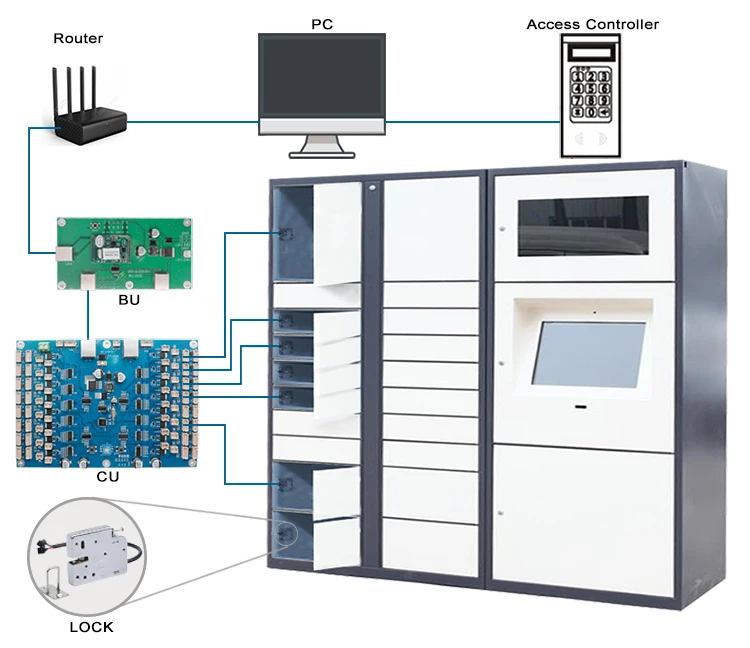

How it works


1408-1





Product Application





KR-S1408-particulars_07








Packaging & Shipping





2





FAQ


1. Q: Are you a factory or trading company?


      A: We are a company which has our own trading department and factory.


 2. Q: What is your sample policy?


      A: Free samples could be sent to test as request. We can arrange sample by DHL or UPS, but the courier   fee would be paid by customer.


3.Q:How many days do you need for prepare samples?


       A:  If without extra demand, it will be sent within 7days.


 4.Q: How many days for mass producing?


       A: It depend on the order quantity.If order quantity is less than 1000pcs, delivery would be within 3 working days.


5.Q: What payment terms do you do?


       A:  We can accept T/T, L/C, D/P,Paypal, West Union ,MoneyGram .


6.Q:What's package do you use for the products?


       A: We have professional package for the products. Customized package are also available based on certain MOQ.


7.Q:Can I print my own brand logo on your product?


       A: OEM orders are highly welcome. Please write us the details of your logo color, logo position; user manual before you send us inquiry. In this way we can offer you most accurate answer at the first time.
