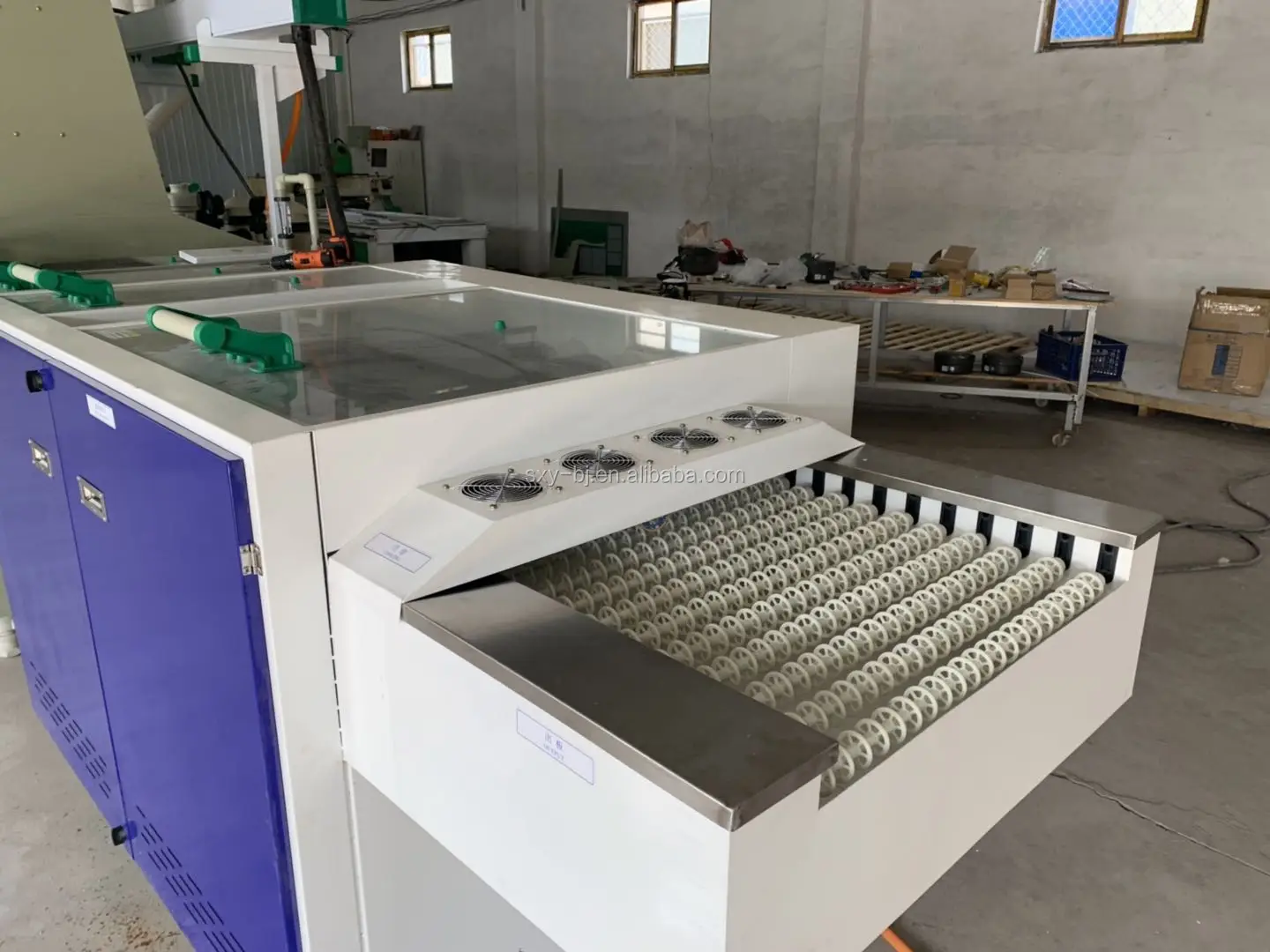

PCB Developing Machine/ Photoresist Film Developer Machine
- Category: >>>
- Supplier: Beijing SXY Electronic Technology Co. Ltd.
Share on (60734228461):
Product Overview
Description
Product Description
PCB Developer Machine / Photoresist Film Developer Machine | ||||||
Machine Model | XY700 | |||||
Machine Power | 380V/50HZ | |||||
Working width | 700mm | |||||
size: 700mm W x 2000mm L pump: 5.5KW motor x 2 sets double spraying with oscillation heater: titanium -- 3KW/pc x 2 pcs cooling : titanium pipe nozzle: Fan-nozzles | ||||||
Rinse Part | size: 700mm W x 1500mm L pump: 2.2KW motor x 2 sets double spraying | |||||
Drying part | blower: 950W x 2sets heater: 2KW x 3pcs | |||||
Machine Material | PP plate, resist high temperature | |||||
Machine Size | 7000mmx1450mmx1550mm | |||||
Protection Function | 1. Temperature Control System 2. Pressure Control System 3. Double Filter System 4. Conveyor Control System | |||||
The PCB photoresist film developer machine is used for PCB photoresist film developer work. | ||||||
