The linked style magnesium flexible chain sacrificial anode for water heater

Product Overview

Description

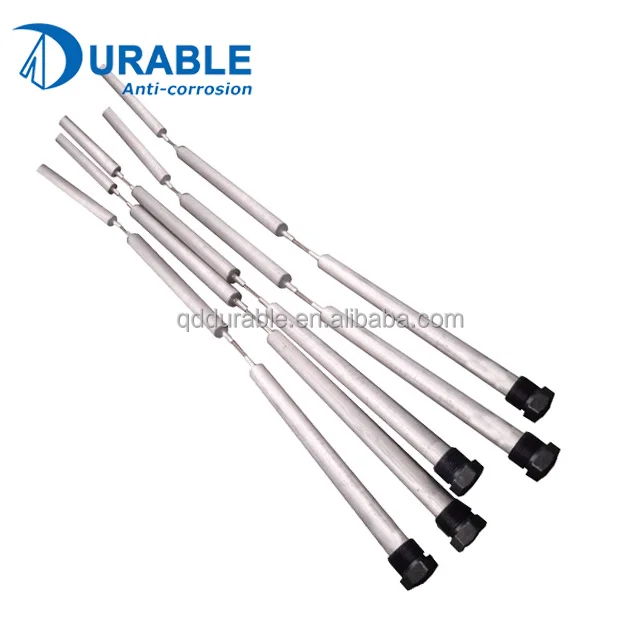

The linked-style magnesium flexible chain sacrificial anode for water heater



   The linked-style magnesium flexible chain sacrificial anode

for water heater



♦ Specification :  :

Flexible aluminum chain anode rods are designed for those limited spaces where a straight anode rod will be unable to be inserted into the water heater due to limited access directly above, such as low ceilings, closets, attics, under stairwells or in basements. Just bend the anode rod at its flexible section return it back to straight once inserted into your water heater, boiler, etc.

Anode rods are the most important line of defense in preventing corrosion and leaks in your water heater. These devices work because the metal in the rod is sacrificed so the tank does not corrode. As the anode works, the life of the water heater is increased. The anode should be checked and replaced every couple of years.



♦ Application :

    Extruded Flexible Magnesium Chain Anodes are usually used in a small diameter anodes requirement,such as for water heaters,boilers,water storage tanks,heat plumbing,gas stations CP systems.



 ♦ Chemical compositions Flexible Aluminum Anode Rods :

Type	Al	Zn	Silicon	Fe	Sn	Others	Mg
Aluminum anode	Balance	4.0-5.0	0.25	0.25	0.05-0.25	0.15	-

*  We can do according to customized size and requirements.



♦ Electrochemical properties of Flexible Aluminum Anode Rods:

Type	Open-circuit voltage (-V)	Close-circuit voltage (-V)Zn	Actual capacitance (A·h/kg)	Current efficiency (%)
Aluminum anode	1.10-1.18	1.05-1.12	≥2400	≥85

* We can do according to customized size and requirements.





♦ Chemical compositions Flexible Magnesium Anode Rods :

Type	Al	Zn	Mn	Fe	Cu	Ni	Si	Others	Mg
AZ31B	2.5-3.5	0.6-1.4	0.2-1.0	0.005	0.01	0.001	0.1	0.3	Balance
Mg-Mn	0.01	-	0.5-1.3	0.03	0.02	0.001	0.05	0.3	Balance



♦ Electrochemical properties of Flexible Magnesium Rod Anodes:

Type	Open-circuit voltage (-V)	Close-circuit voltage (-V)Zn	Actual capacitance (A·h/g)	Current efficiency (%)
AZ31B	1.50-1.55	1.45-1.50	≥1.105	≥50
Mg-Mn	1.70-1.75	1.57-1.62	≥1.100	≥50

* We can do according to customized size and requirements.





 ♦ Company Simple Introduction:



We are professional manufacturer and has twenty years experience in anti corrosion industry. Our main products includes

• Magnesium casting & Extruded Anode, Magnesium Ribbon anode


• Aluminum Anode


• Zinc anode, Zinc Ribbon Anode,


• High Silicon Cast-Iron Anode


• Epoxy Coated Steel Reinforcing Bar


• Ant-corrosion Tapes

Our products are widely used to many important projects and water heater factories, Hongkong-Macau-Zhuhai bridge, Hangzhou Bay bridge, and Sinopec, Haier, AOSmith etc,.



AZ63B Casting Magnesium Rod Anodes for water heaters, Extruded Magnesium Rod Anodes
