Винтовой цилиндр 50 мм для машины по производству расплавленной ткани
- Category: Plastic & Rubber Machinery Parts >>>
- Supplier: Zhoushan Dinghai Jinxing Plastic Machinery Factory
Share on (60734323890):
Product Overview
Description
Product Description
General type, Pin type, barrier type, separation type, and gas-exhausting type etc for different plastic products.
Product Name | Screw and barrel for extruder |
Screw diameter | Φ15-Φ300mm |
L/D ratio | 15-45 |
1)38CrMoAlA(JIS SACM645) 2)Cr12MOV(JIS SKD-11) 3)4Cr5MoSiV1(JIS SKD-61) 4)42CrMo(AISI 4140) | |
Bimetallic Alloy Materials | 1)Fe-based alloy 2)Ni-based alloy/Deloro alloy 3)Co-based alloy 4)NiCo-based alloy 5)Tungsten carbide/Wolfram carbide |
Surface Treatment | Heat Treatment High Frequency Treatment Nitriding treatment(120 Hours) Depth of Nitrided Layer: 0.5-0.8 mm Hardness of Nitrided Layer: 900-1020Hv (HRC56°-65°) Hard Chrome Plating treatment: Thickness of Hard Chrome Plating Layer: 0.05-0.10mm Hardness of Hard Chrome Plating Layer: ≥950HV Nickel alloy plating.treatment: Bimetallic Barrel/Cylinder: Centrifugal Casting (Inlay Alloy) Bimetallic Screw: Plasma Alloy Coating Spraying Depth of Bimetallic Layer: >2mm Hardness of Bimetallic Layer: HRC55°-72°Surface Treatment |
Roughness of the surface:Ra0.4um Linearity of the screw: ≤0.015mm Hardness after Hardening & Tempering: HB240-280 Fragility of Nitration:≤one class |

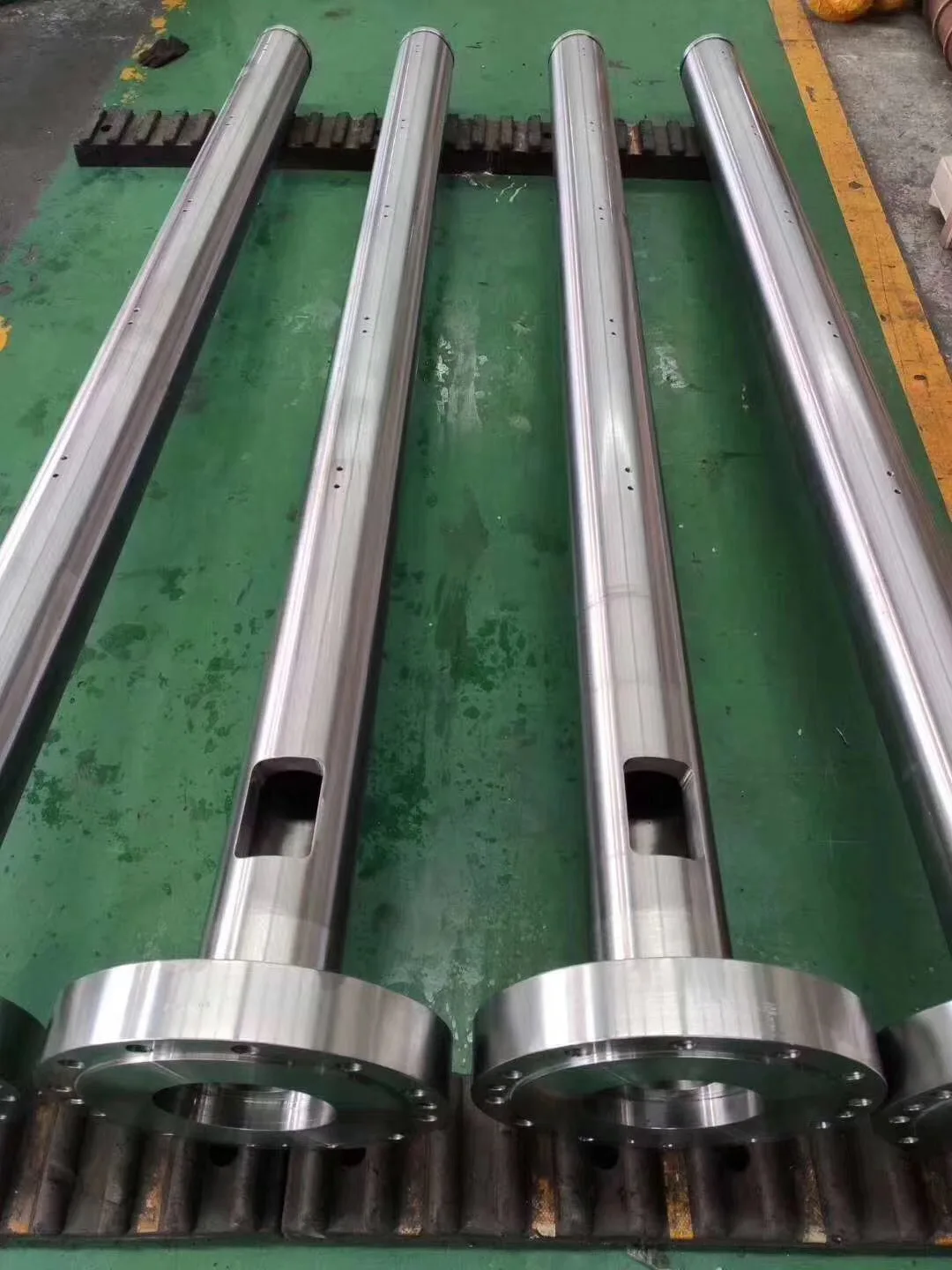

Products Show

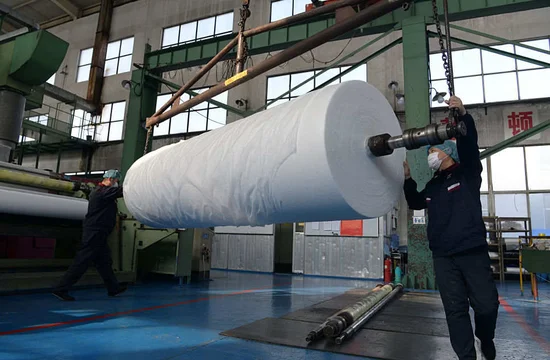

Allication
Our Company
Factory
Workshop
Warehouse
Office
Order Process
1. Customer confirm the order
2. drawing design
3. production
4. Quality control
5. package & shipping
6. after sales service
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 25-30 days.
Q: Do you provide drawing design service?
A: Yes, we can support the drawing.
Q: What is your terms of payment ?
A: Bank T/T, Western Union, Money Gram, Paypal.
