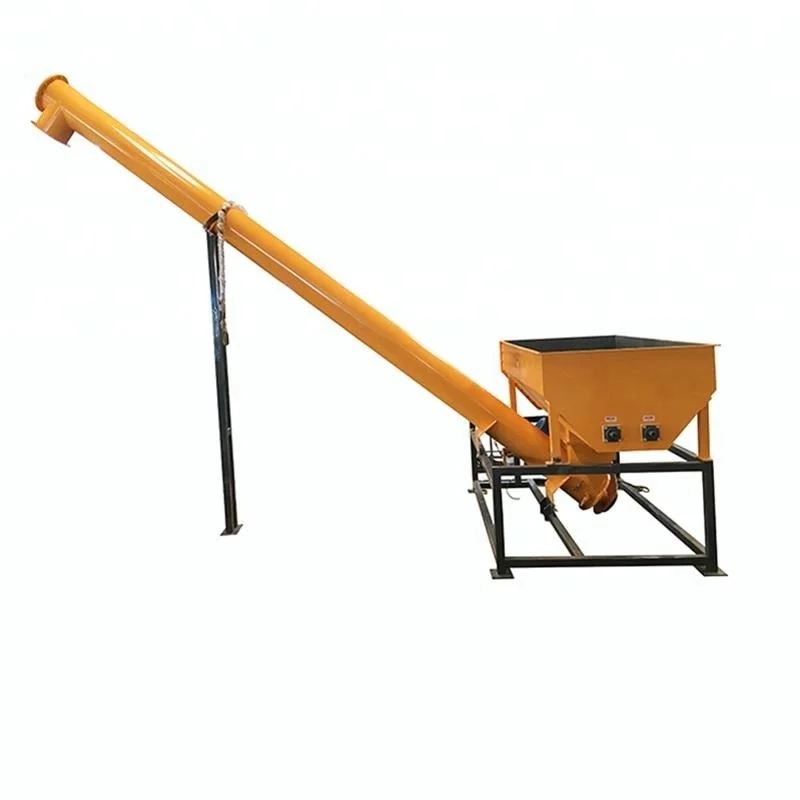

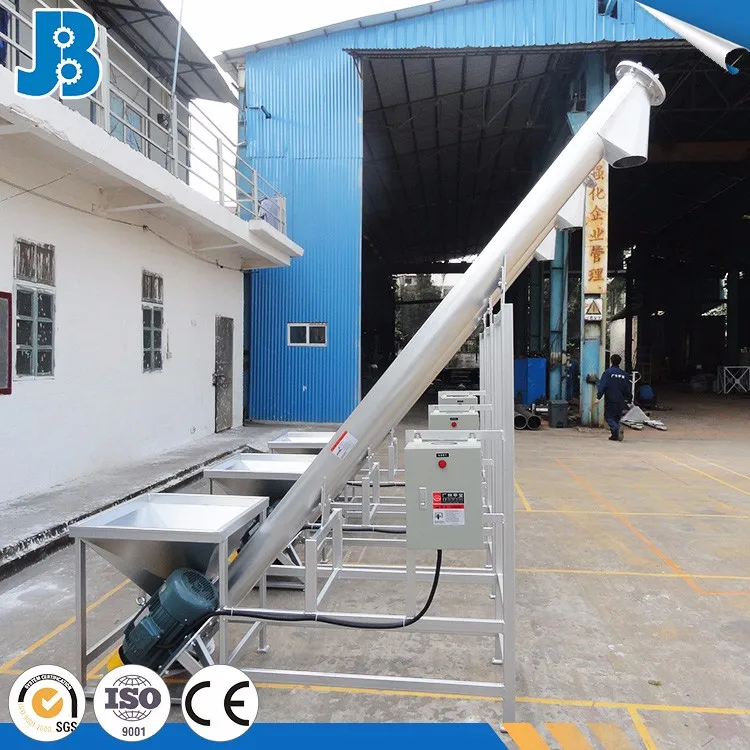

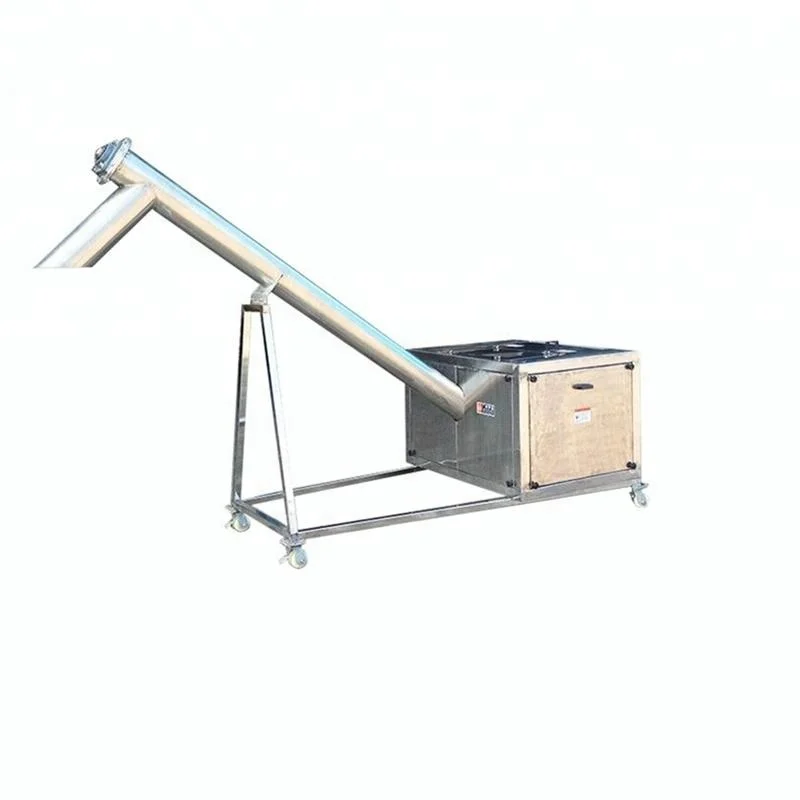

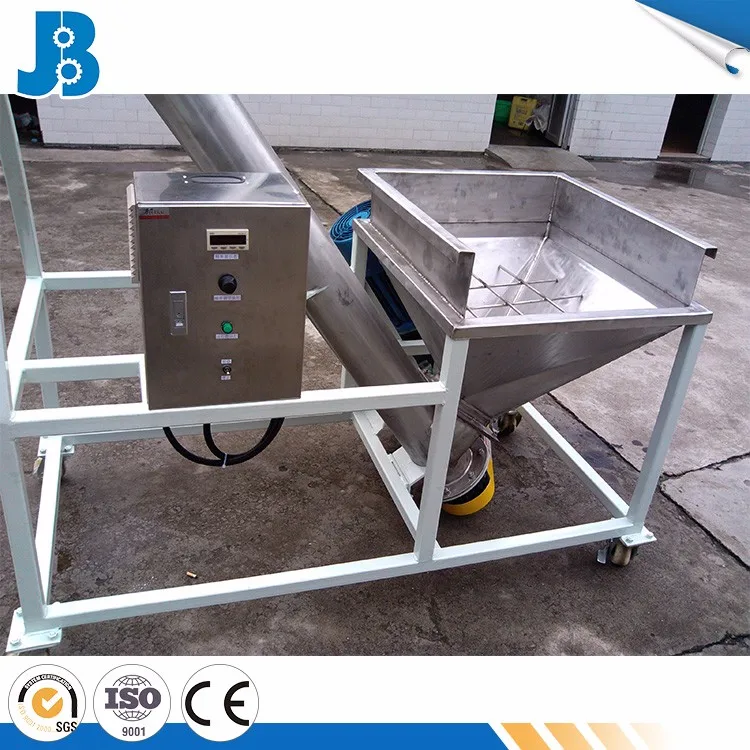

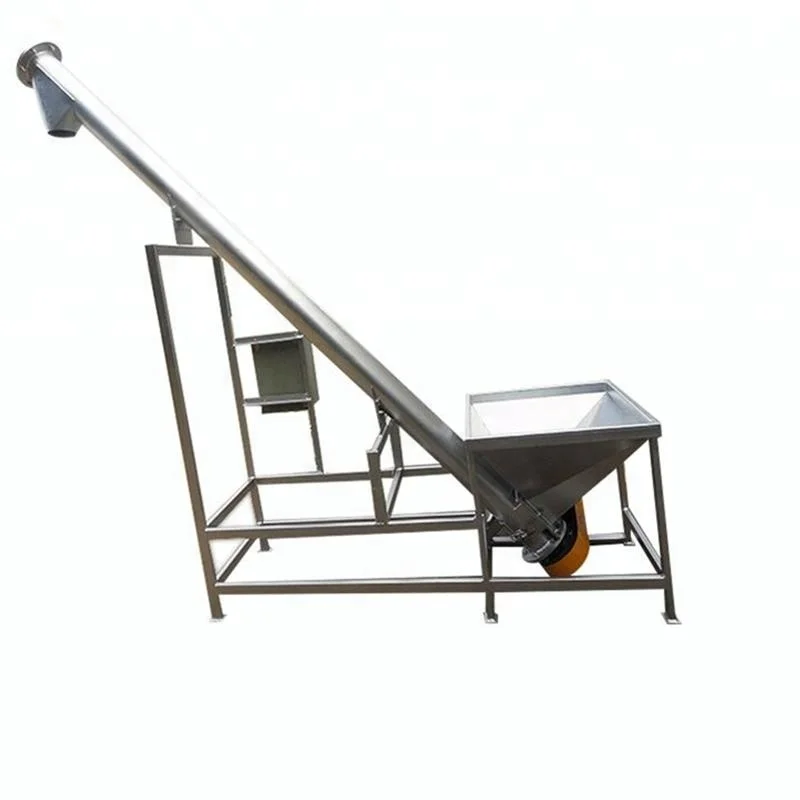

Automatic flexible screw feeder, feed processing machines
- Category: >>>
- Supplier: Guangdong Jiabao Conveying Machinery Co. Ltd.
Share on (60734373709):
Product Overview
Description
Product Description
Automatic flexible screw feeder, feed processing machines
| Main technical parameters | |||||||||||
| Specifications and models | LS100 | LS160 | LS200 | LS250 | LS315 | LS400 | LS500 | LS630 | LS800 | LS1000 | LS1250 |
| Screw diameter(mm) | 100 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 |
| Pitch(mm) | 100 | 160 | 200 | 250 | 315 | 355 | 400 | 450 | 500 | 560 | 630 |
| Speed of revolution (rpm) | 140 | 112 | 100 | 90 | 80 | 71 | 63 | 50 | 40 | 32 | 25 |
| Conveying capacity (m3/h) | 2.2 | 7 | 13 | 22 | 39 | 62 | 92 | 145 | 200 | 300 | 380 |
Application:
The screw conveyor is widely used for conveying powder, granule or small block materials, usually it could be used with the suit sieving machine.
Features:

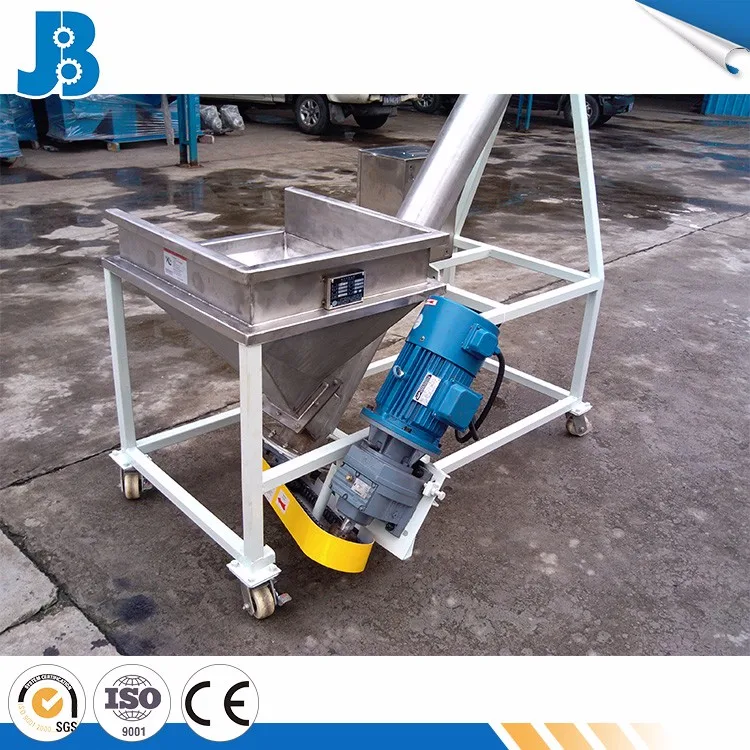

1.The motor reducer could be installed on the top or the bottom.
2.Conveyor has big transport capacity, long distance available.
3.Stable and controllable start, continuous and highly efficient operation.
4.The conveying could be the level or the inclined.
5.The blade could be entity spiral or belt spiral.
Learn more products
Working Process
Our Certificates

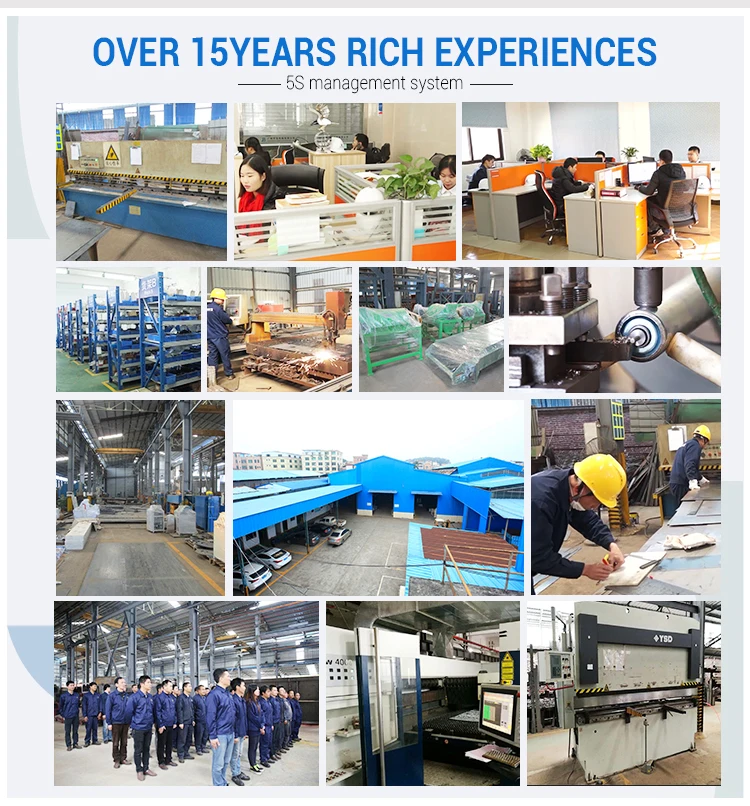

5S workshop
ABOUT JIABAO
FAQ
1Q: Manufacturer or Trading company?
A: Manufacturer. We have rich experiences in conveyor manufacture industry for over 15 years, we have 5s workshop environment to make sure all the procedure can be in order and we check in every procedure to confirm the quality and standard.
2Q: Customized?
A: Sure. We build machines by every steps with process standard, every process quality should be strictly controlled, and all the materials are decided by customer’s request such as SS304, carbon steel, pvc, pu, rubber...We always stand on our customer’s side and try our best to help them to make the most benefits.
3Q: How can you describe your service?
A: We always ready to provide professional service for each customers, no matter which supplier you will choose, the same warmly reception won't be absent.
