Automatic HV Cast Resin Transformer Foil Winding Machine

Product Overview

Description

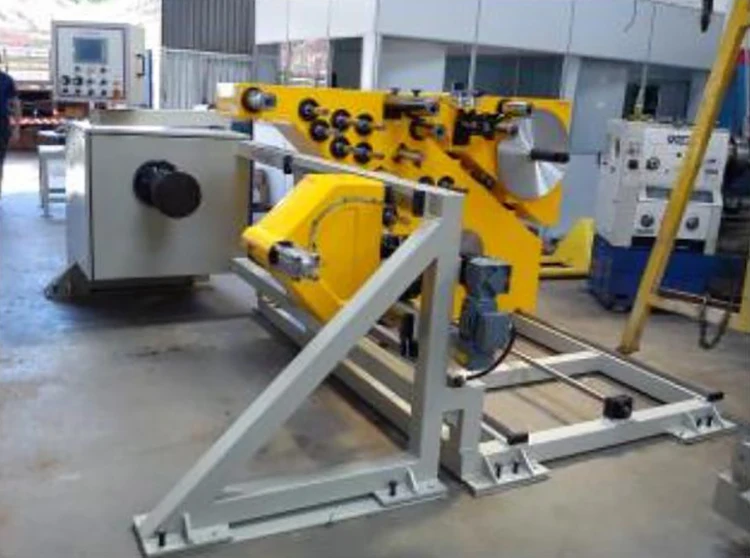

Automatic HV Cast Resin Transformer Foil Winding Machine



Introduction

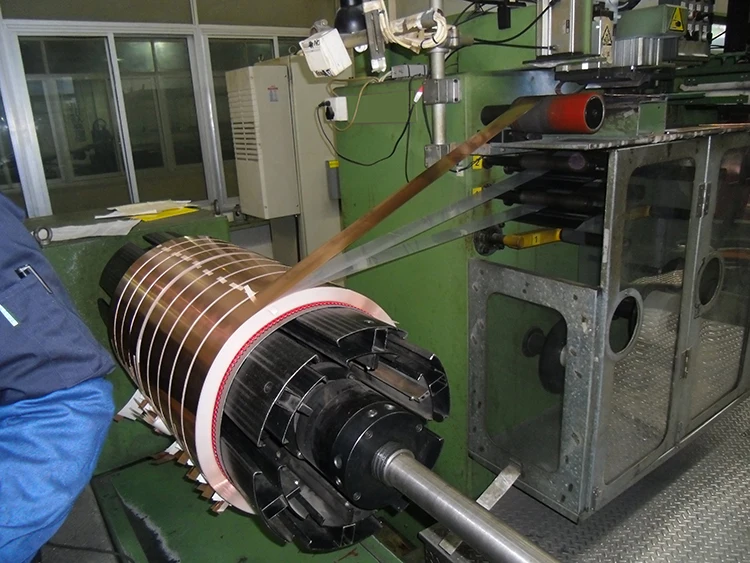

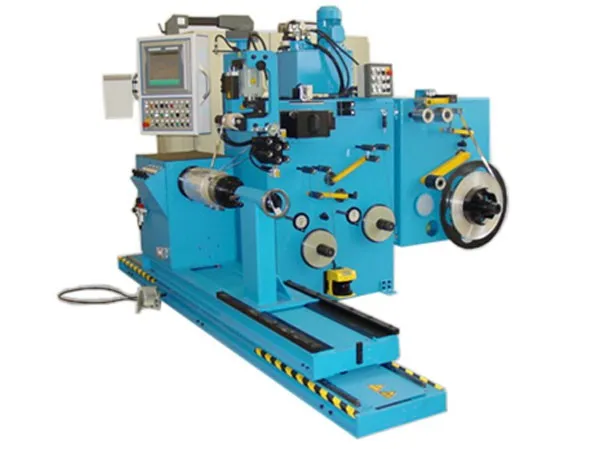

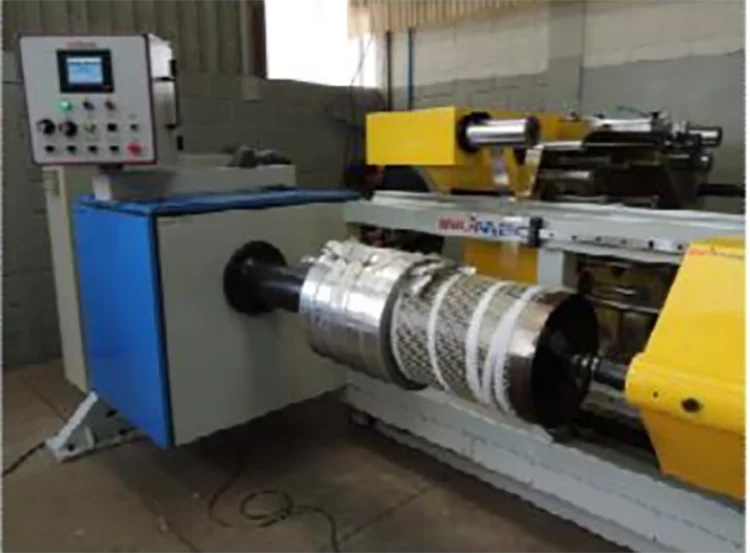

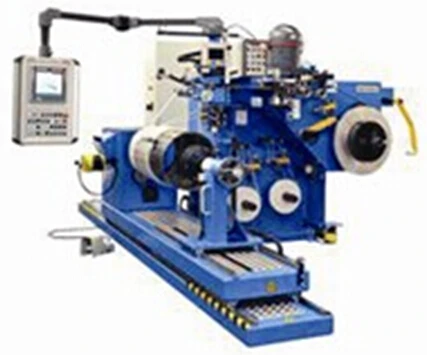

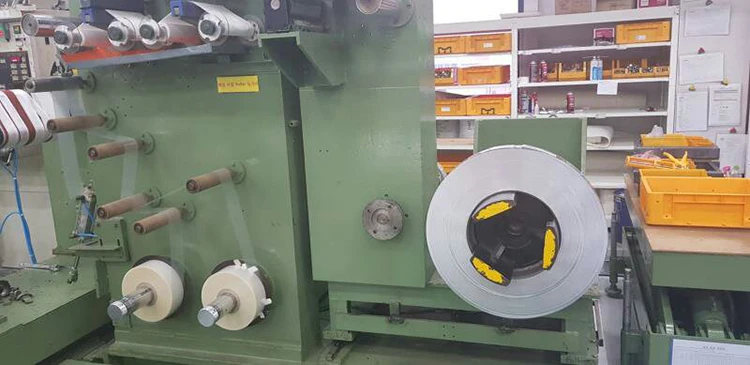

Automatic HV Cast Resin Transformer Foil Winding Machine GY-BRJ is dedicated to winding high voltage transformer foil coils ( Dry type casting high voltage coils ). During winding process, the kind of atuotmatic foil winding machine provides constant tension, with two grades, big and small. Automatic HV Foil Winding Machine for Transformer GY-BRJ can rectify deviation automatically, stop at the presetting stop point and weld lead-out and lead-in systems. According to presetting parameters, Automatic HV Foil Winding Machine for Transformer GY-BRJ can achieve precise axial moving with the infrared positioning function.



Main Components



1. Main frame

2. Foil decoiler

3. Cleaning unit

4. Deburring unit

5. Insulation decoiler

6. Auto-welding unit

7. Winding unit

8. Winding unit movable part

9. Electric control system



Technical Parameters



Typical standard specifications of GY-BRJ are shown below, however these can be easily modified as requested.

Foil Width:	20-200mm
Conductor Foil Material:	Copper or Aluminum
Foil Material ID.:	280 - 330mm
Max. Foil Material OD.:	1000mm
Max. Coil Weight:	1000KG
Insulation Length:	25 - 250mm
Insulation Thickness:	0.015-0.250mm
Insulation Tape Tension:	10 - 250N
Insulation Decoiler Shaft:	Expandable (pneumatic open/close action)
Insulation Decoiler Shaft :	expansion range 74-78mm
Insulation OD.:	400mm
Finished Coil Length:	20-1400mm
Foil Tape Tension:	0-10N/mm2
Finished Coil OD.:	100-1000mm
Max. Coil Weight:	1000KG
Max. Torque:	1800N.M
Winding Speed:	90RPM
Motor Power:	18.5KW
Counting Turn Range:	0 - 9999.9
