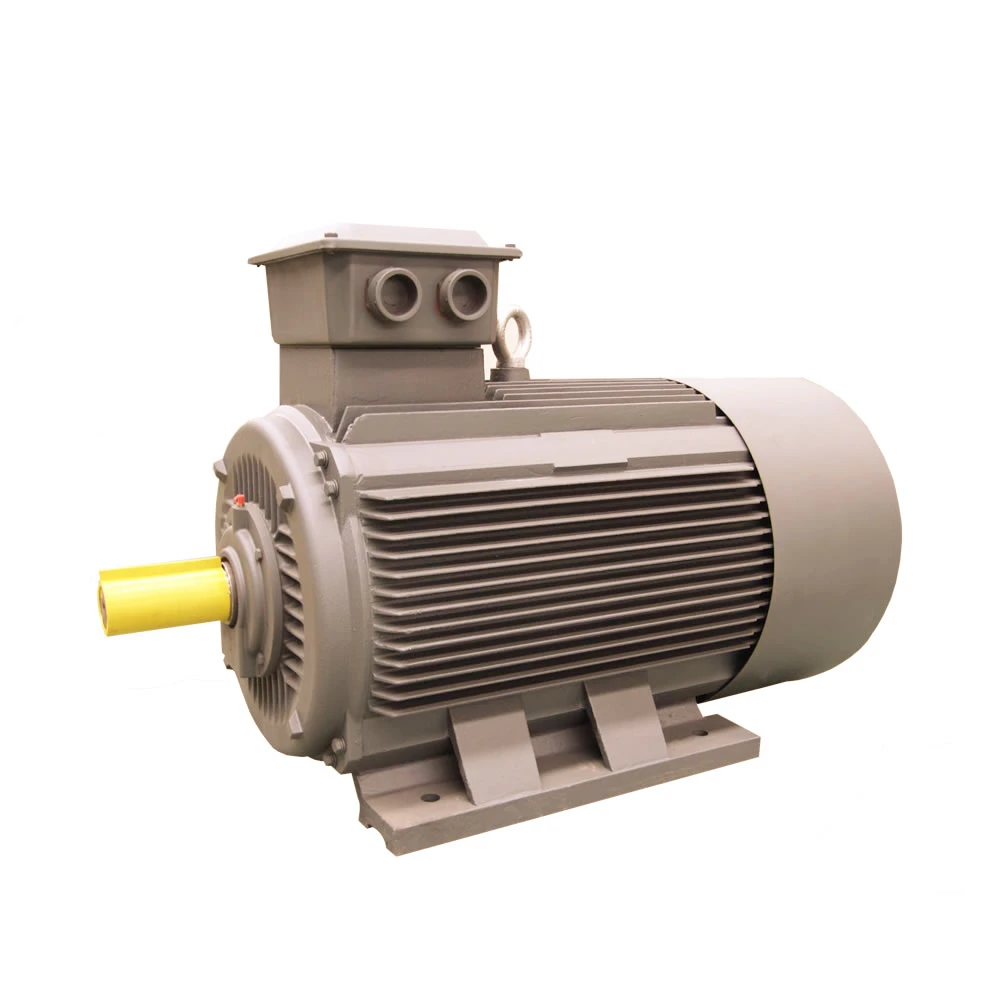

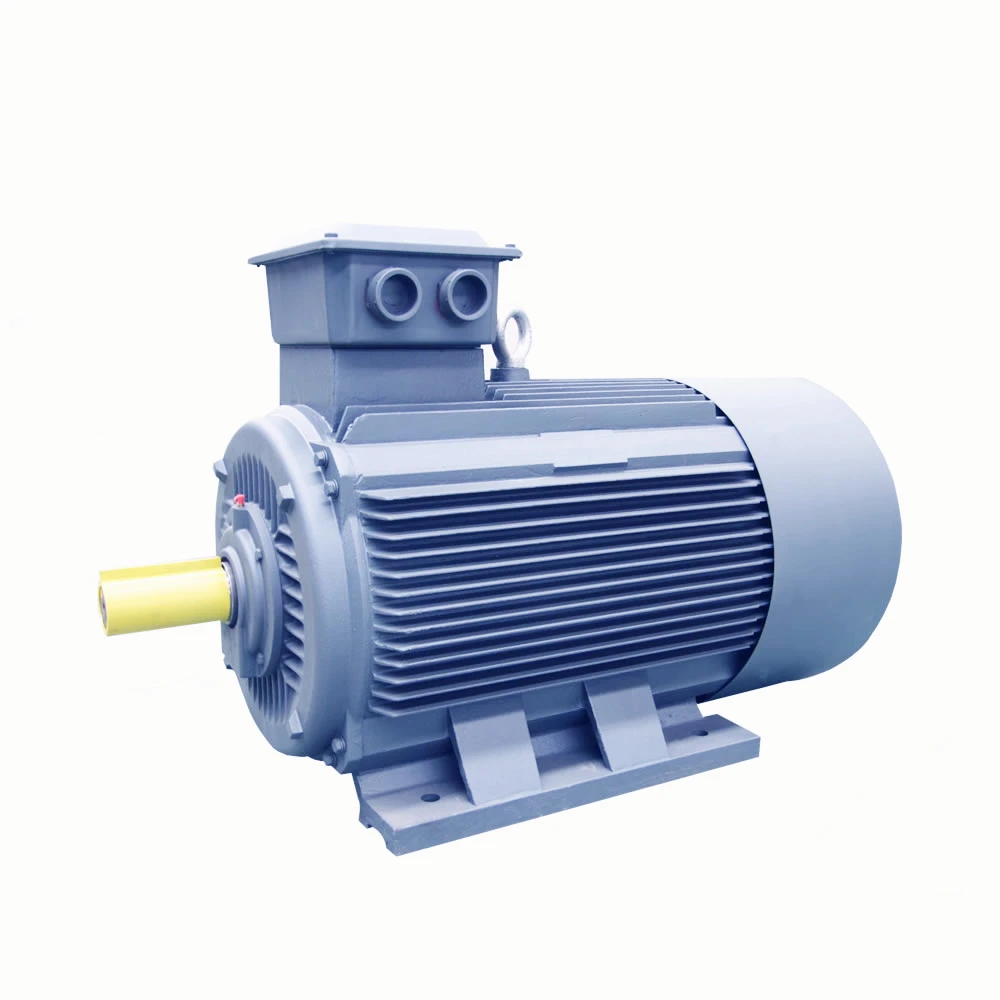

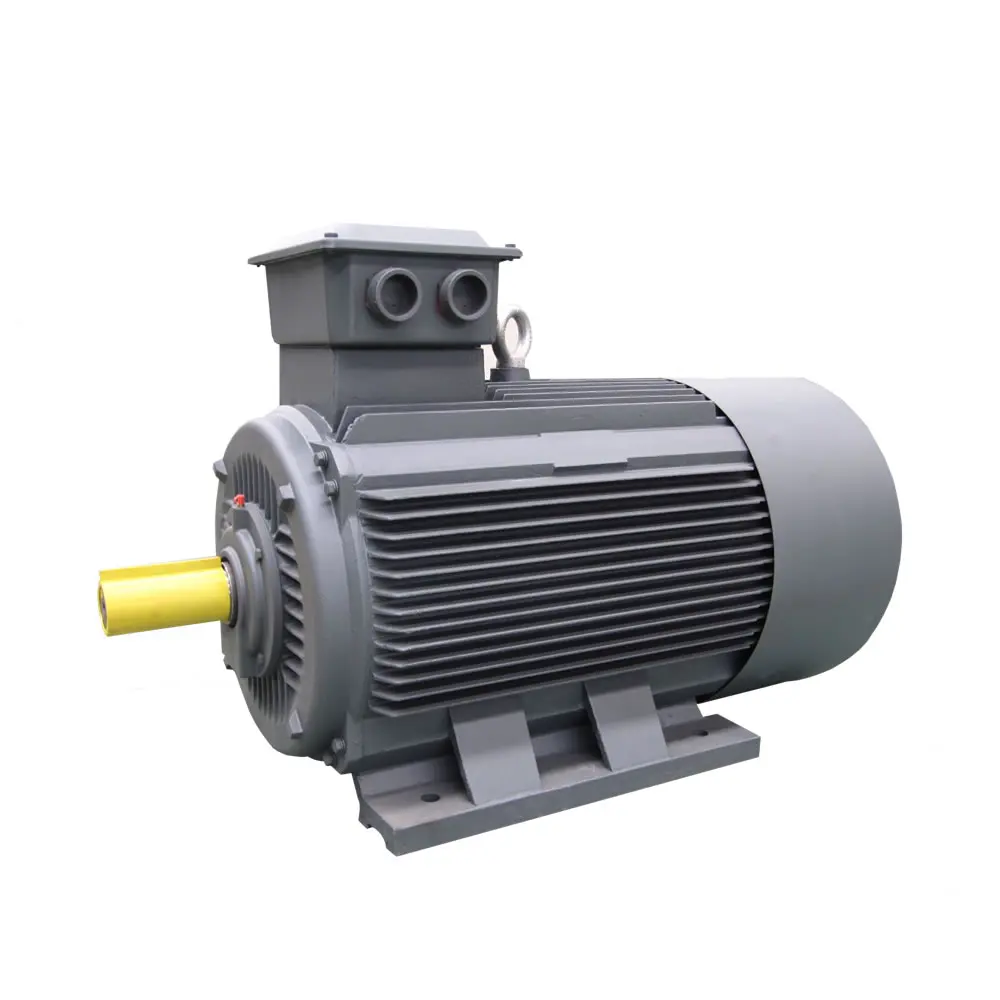

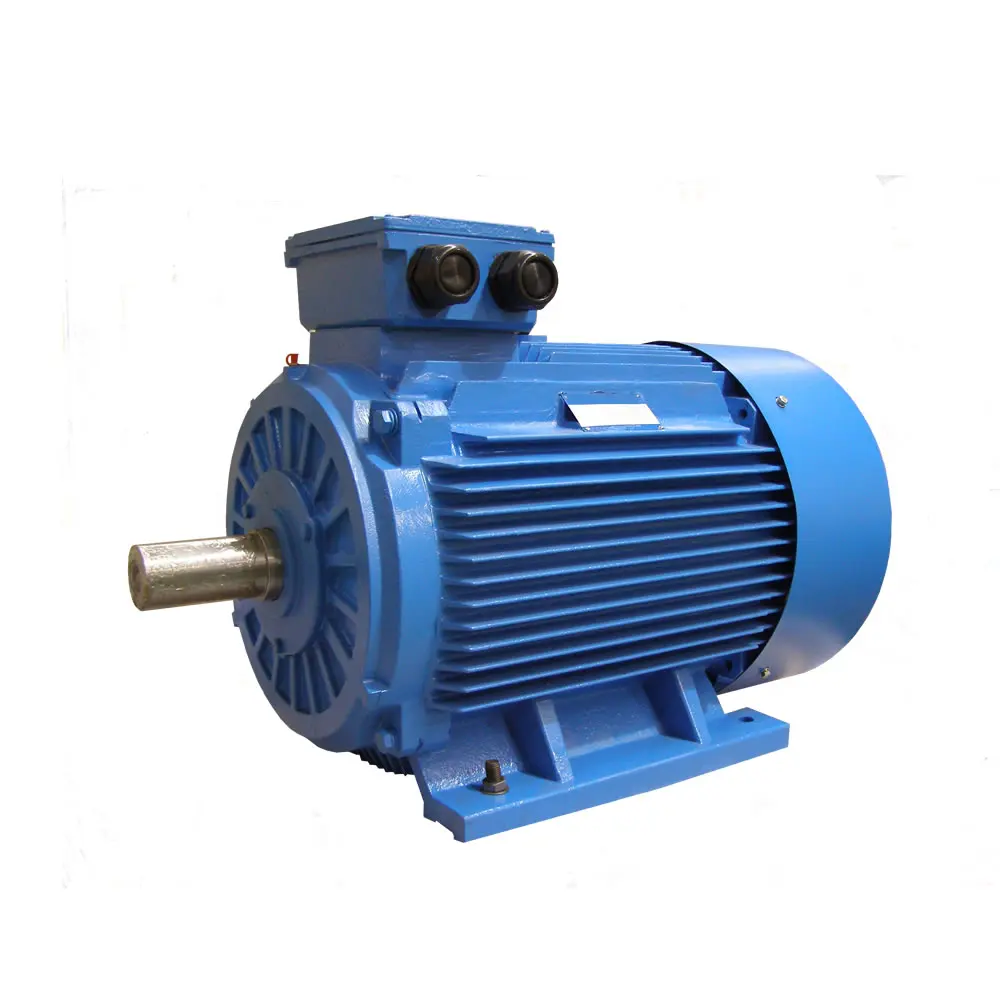

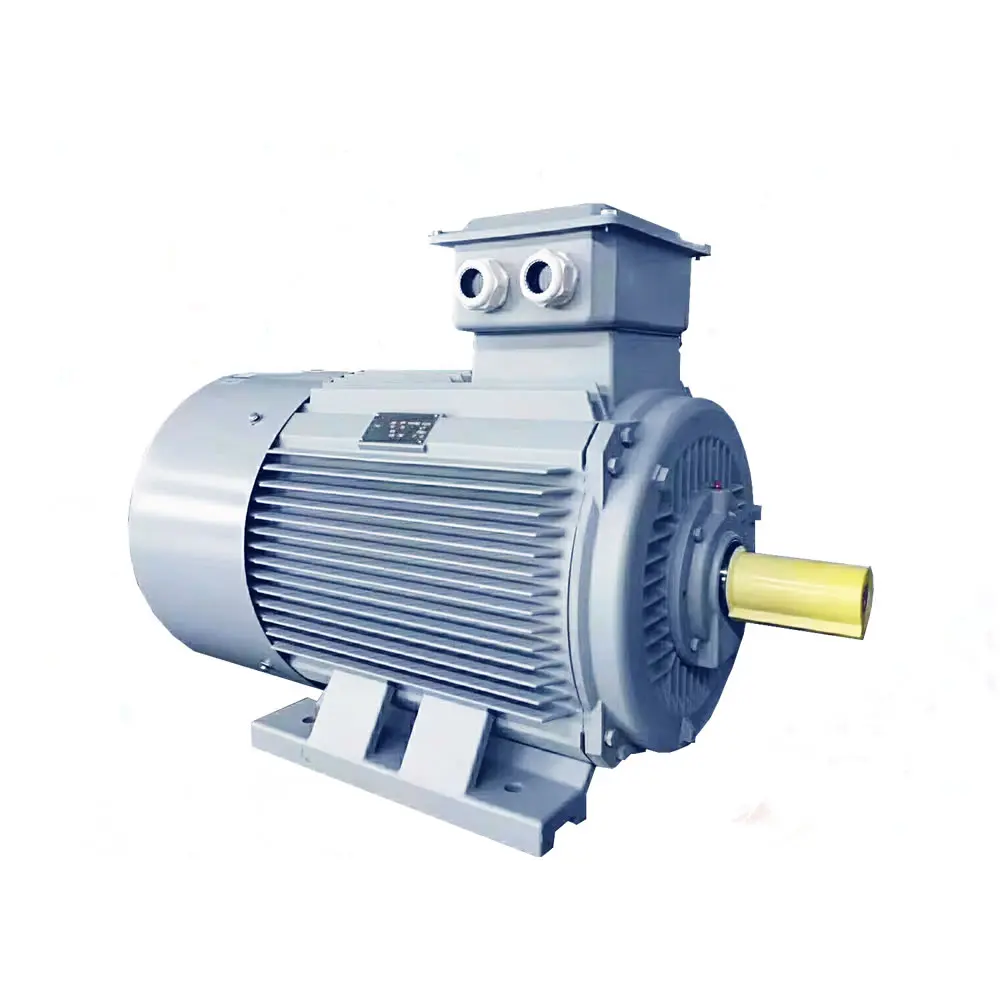

EG 315L2 2 200KW 270HP 380V 400V 2980RPM brushless ac 3 three phase induction electric motor 200 kw 270 hp 380 400 v volt 50 hz three phase asynchronous motor

EG series three-plese industrial standard asynchronous motors are specifically designed in accordance with IEC publications and national standard specifications as CEI,DIN and VDE.Technical Description.

The technical design of the motors si in accordance with IEC 60034-1 and IEC 60034-72.

It features it's high efficiency, energy saving, low noise, low vibration, light weight and reliability of running.

It is widely used on the mechanical equipment in common place where there are no inflammable, explosive and corrosive gases and in place with no special requirements, suchas the machine tools for cutting metals, exhaust fan, compressors, etc.

Working Condition

1. Ambient Working Temperature: Ambient temperature varying with seasons should be between 40℃ and -15℃.

2. Altitude: Not over 1000m above sea level.

3. The average relative humidity in the most moisture month is 90%. And meanwhile, the average lowest temperature should not be over 25℃.

4. Operation Mode(duty): S1.

Bearing

Low noise bearing are used.

Mounting

Frame Size(H80-H160): IM B3, B5, B35, V1, B14, B34, V3,V5, V6, V15, etc.

Frame Size(H180-H280): IM B3, B5, B35, V1.

Frame Size(H315-H355): IM B3, B35, V1
