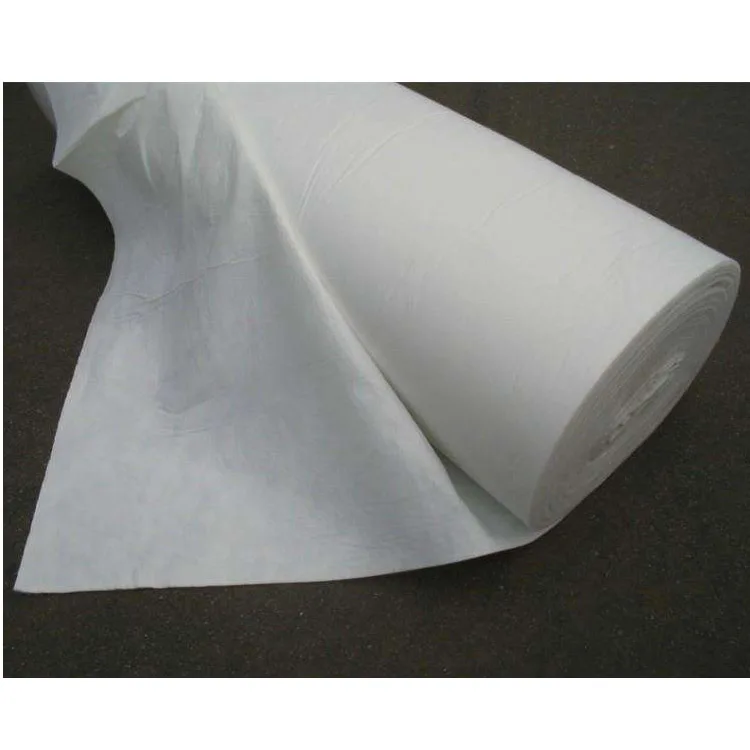

100gsm to 1000gsm nonwoven polypropylene polyester geotextile fabric
COMPANY ADVANTAGE
As a professional manufacturer and sale of the earthwork product, ZT Co. insists to "people-oriented, win by quality" culture. This service has attracted many big companies in China including the likes of CSCEC, CRCC, and CNQC which have made repeat purchases from us.

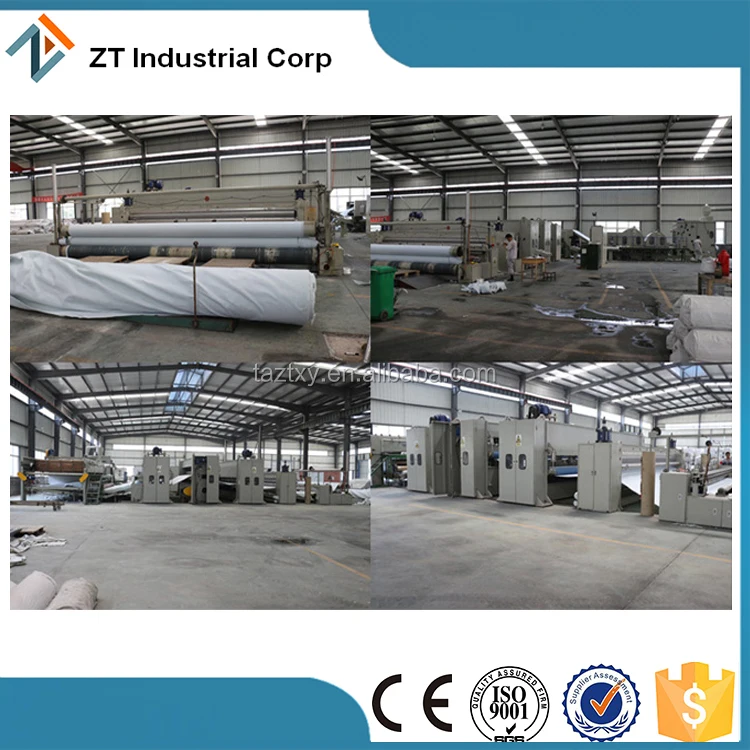

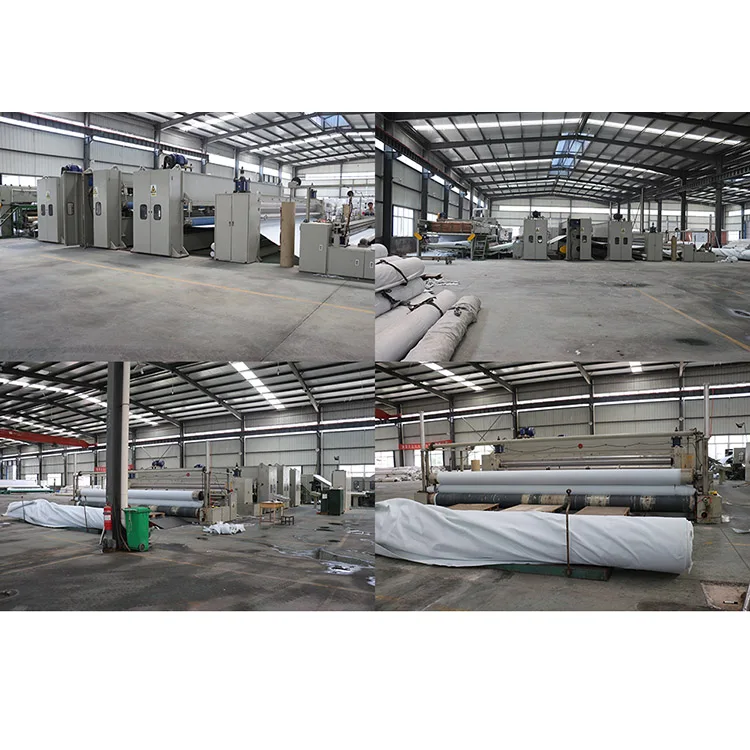

ZT sincerely invites you to take an inspection tour around our factory.
Zinger we offer, Trust we harvest!
Product Description
1.Product Introduction
weight
100g—1000g
width
1-8 m
Length
50-100m or as customers' request
Color
white, black, green, gray and others
MOQ
1000 square meter
Port
Qingdao or other China Port
Delivery
2-20 days

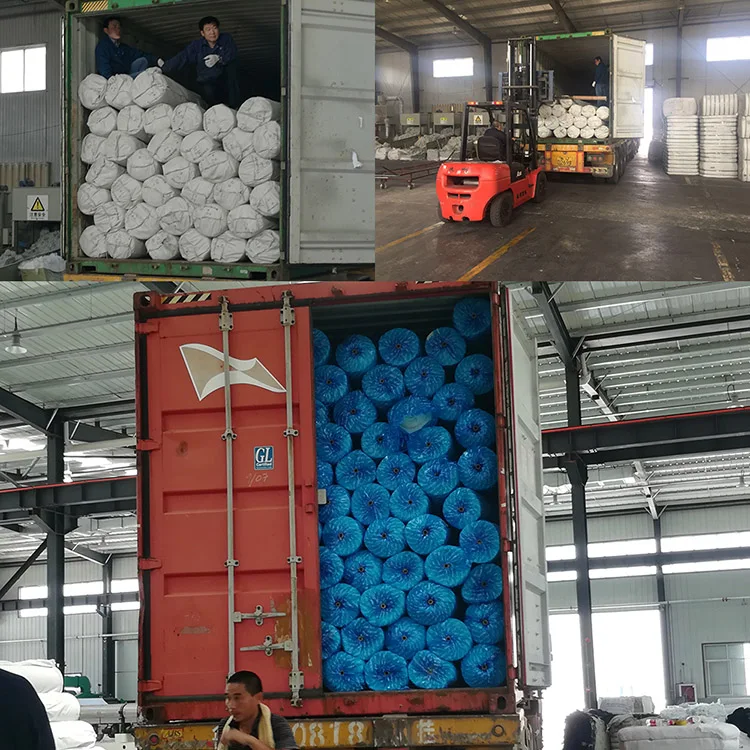

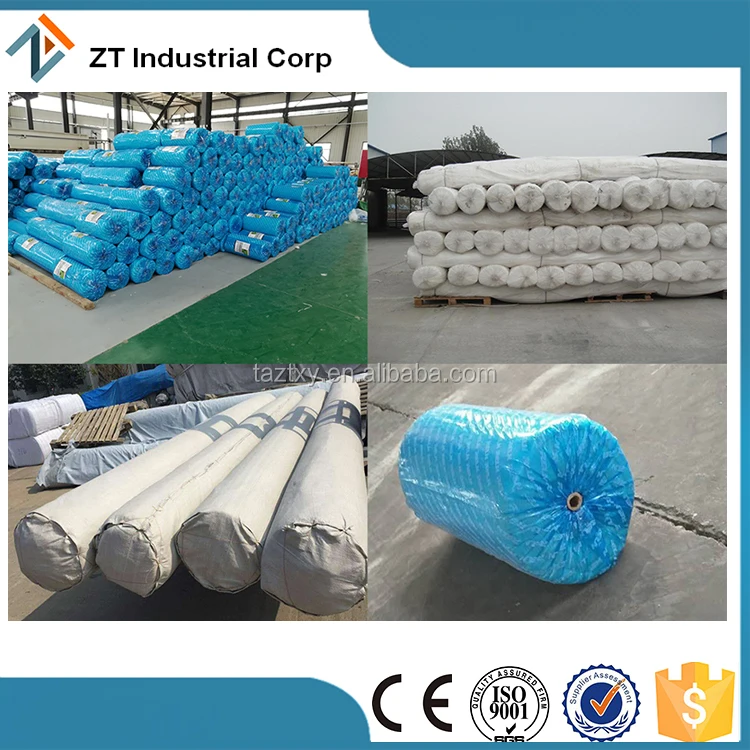

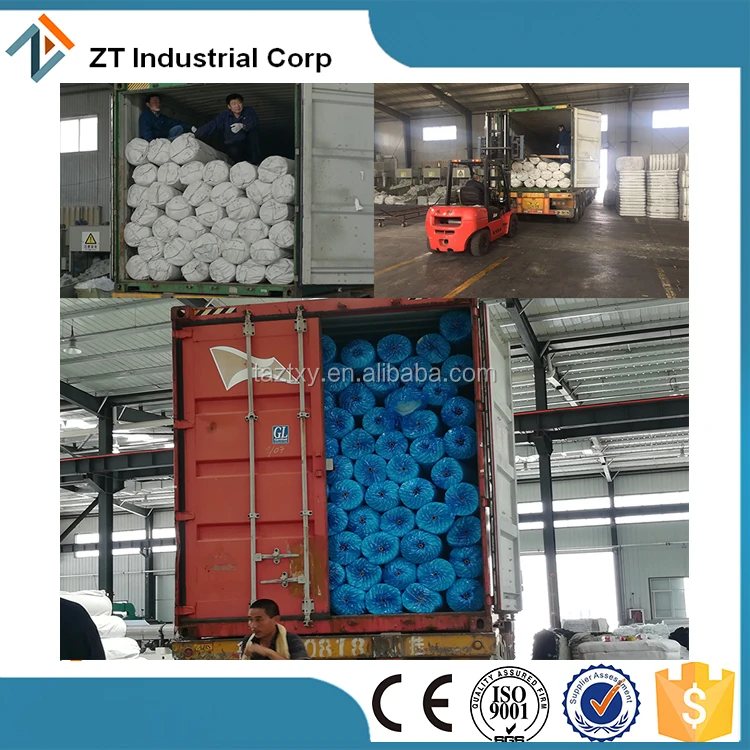

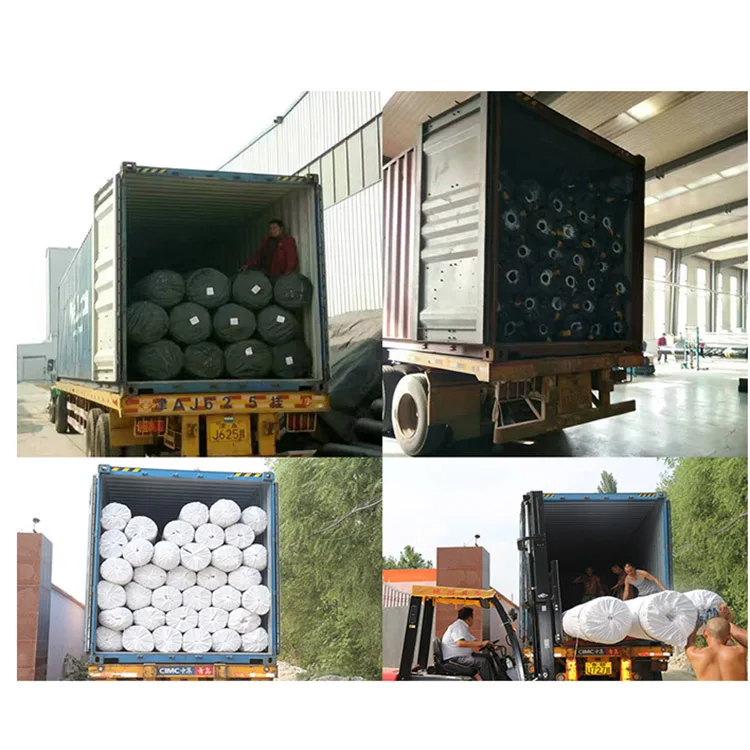

Packing
woven bag or as customers' request
2.Product Feature
1)Geotextile can make the water flow easily, and form a drainage channel in the soil, and then make the liquid and gas out of the soil.
2)Make use of its pulling resistance and deformation resistance that can strength the soil to reinforce the stability of the construction structure and improve the soil’s quality.
3) Make the focus proliferate, deliver and decompose efficiently and prevent the soil from destruction from outside factor.
4) Prevent the top and bottom layer’s gravel, soil and concrete from mixer.
5) The mesh cannot be plugged easily – for the strain and moving quality of the network that formed by the antitype fiber.
6) High soaking quality—at the pressure of soil, it also can keep good soaking quality.
7) Corrosion resistant – using the polypropylene and polyester as raw material, it can resist the sour and aid, erosion, boring and oxidation.
8) The construction is easy; the weight is light, convenient for using, and it making construction easy.

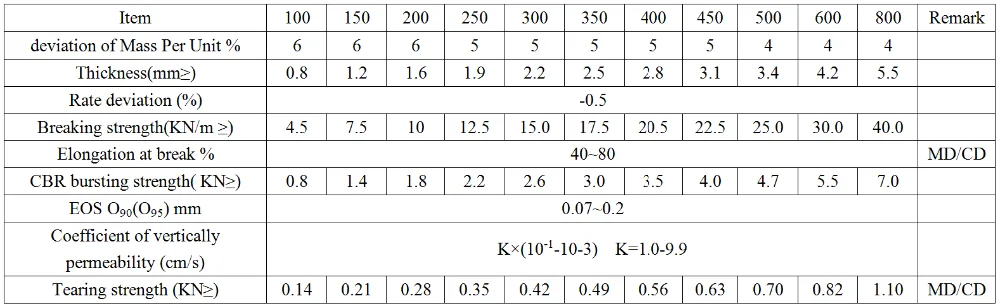

3. Product Technical Parameter
Non woven needle punched Polyester (PET) Geotextile
Item
100
150
200
250
300
350
400
450
500
600
800
1000
Note
Unit weight variation,%
-8
-8
-8
-8
-7
-7
-7
-7
-6
-6
-6
-6
Thickness, mm
0.9
1.3
1.7
2.1
2.4
2.7
3
3.3
3.6
4.1
5
5.7
Width variation, %
-0.5
Breaking strength, KN/m
2.5
4.5
6.5
8
9.5
11
12.5
14
16
20
25
31
TD/MD
Breaking elongation, %
25-100
CBR burst strength, KN
0.3
0.6
0.9
1.2
1.5
1.8
2.1
2.4
2.7
3.2
4
4.6
Seive size, mm
0.07-0.2
Tear strength, KN
0.08
0.12
0.16
0.2
0.24
0.28
0.33
0.38
0.42
0.46
0.6
0.7
TD/MD
Non woven needle punched Long Fiber Polyester Geotextile

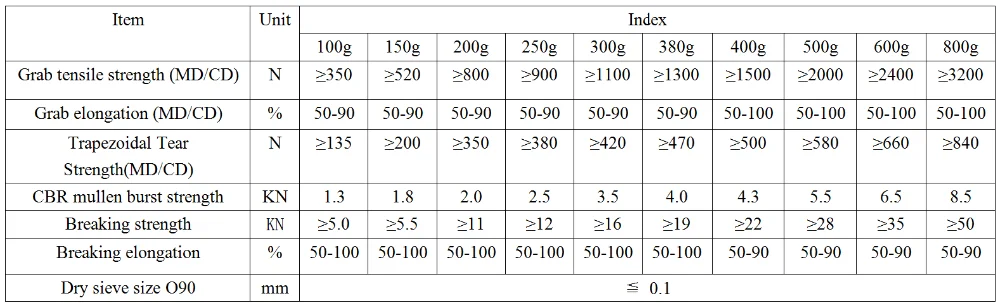

Non Woven needle punched Polypropylene (PP) Geotextile
