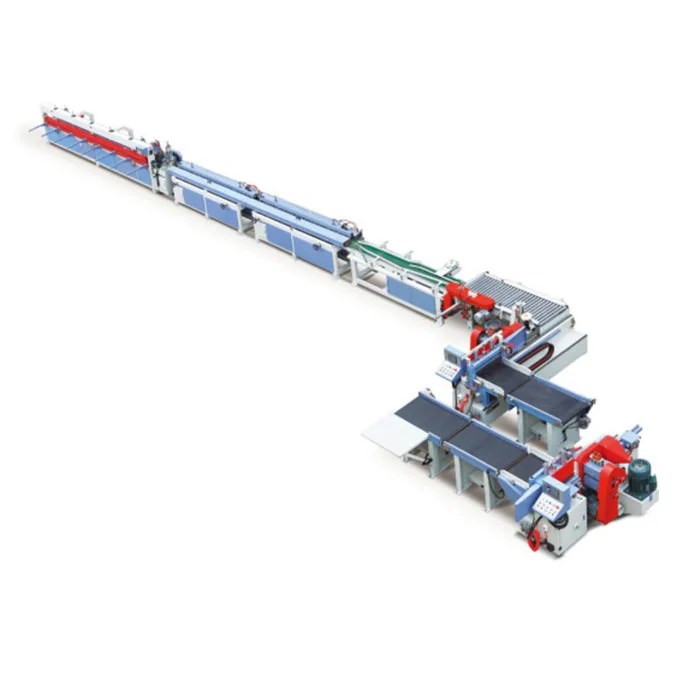

5.8t Wood Finger Joint Production Line Machine For Sale
Model
MXZ3515-2
MXZ3515T-2
Model
MHB1525LA
Max.Working Width
600mm
600mm
Max.Assembled Length
unlimited
Max.Working Thickness
150mm
150mm
Max.Working Length One Time
2500mm
Max.Working Length
850mm
850mm
Max.Working Width
135mm
Cutter Speed
6000r/Min
6000r/Min
Max.Working Thickness
80mm
Draw Saw Speed
5600r/Min
5600r/Min
Min.Working Width
30mm
Trimming Saw Speed
5000r/Min
5000r/Min
Min.Working Thickness
15mm
Tenoner Cutter Dia.
160mm
160mm
Blade Speed
3700r/Min
Tenoner Cut-Off Saw Dia.
70mm
70mm
Saw Blade Dia.
355mm
Cutter Motor Power
11kw
11kw
Saw Motor Power
3kw
Saw Motor Power
5.5kw
5.5kw
Oil Pump Motor Power
5.5kw
Feeder Motor Power
0.37kw
0.37kw
Working Air Pressure
0.5-0.8mpa
Servo Motor Power
1kw
1kw
Max.Thrust For Oil Pressure
7800kg
Working Air Pressure
0.5-0.8mpa
0.5-0.8mpa
Max.Output
25m/Min
Net Weight
2000kg
2200kg
Overall Dimensions
4700*1000 *1420mm
Overall Dimension
2380*1700* 1400mm
2580*1700* 1400mm
Model
MF756A
MF756B
MF756C
MF775
Working Table Length
1150mm
1150mm
1150mm
5000mm or (3000mm)
Working Table Width
600mm
600mm
600mm
450mm
Motor Power
0.37kw
0.37kw
0.37kw
Work Pressure
0.5-03mpa
0.5-0.8mpa
0.5-0.8mpa
0.5-0.8mpa
Overall Dimensions
1180*725 *920mm
1180*725 *920mm
1180*725 *920mm
5000(or 3000)2470*950mm

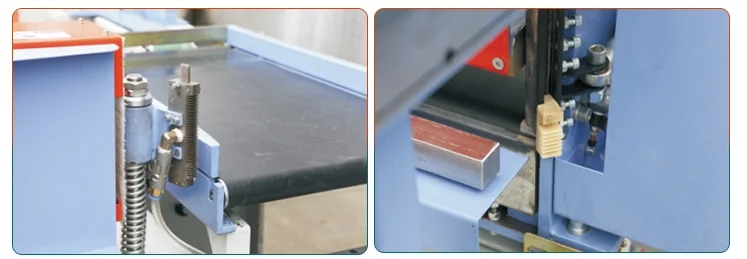

Details Images

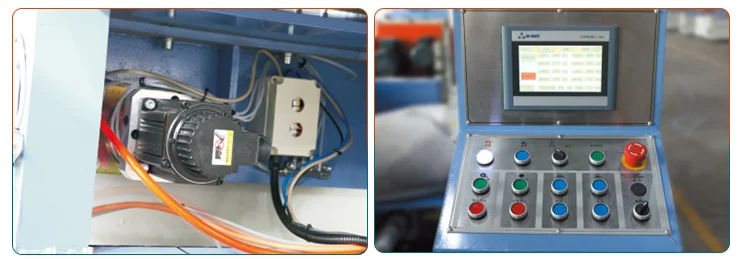

1.Servo system:Taiwan DELTA servo system,it has the transmission performance of high speed,high precision,maximum motor overload currents up to 300% and torque of the large.

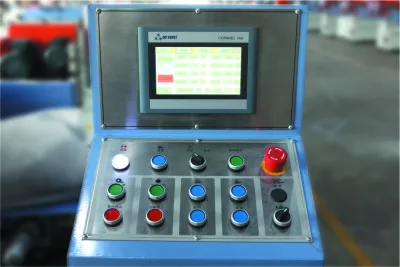

2.Man machine interface:7 inch touch screen display,change parameters,PLC monitoring,error alarm,a week of production statistics friendly interface.
3.Glue spreader system with painting design,guleing unifornity and save the glue

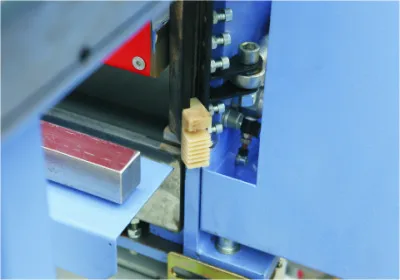

4.Tenoner sharper with the tail protect system.in the can avoid damage the tail of tenoner.

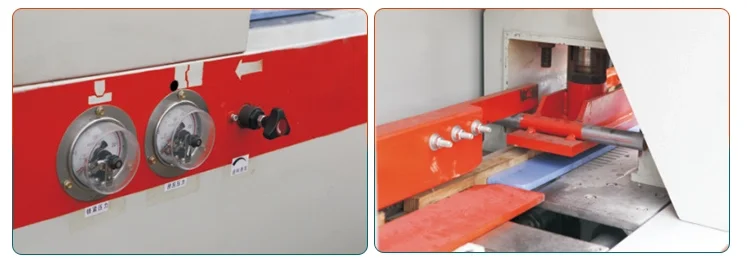

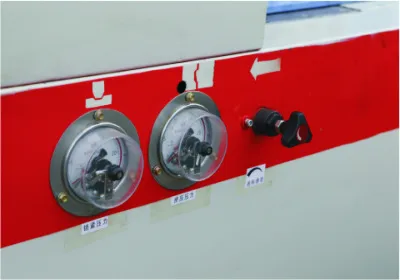

5.Feeder speed adjustment with frequency conversion,easy show the hydraulic pressure power.
6.Structure novelty and advanced,loking system jarless
