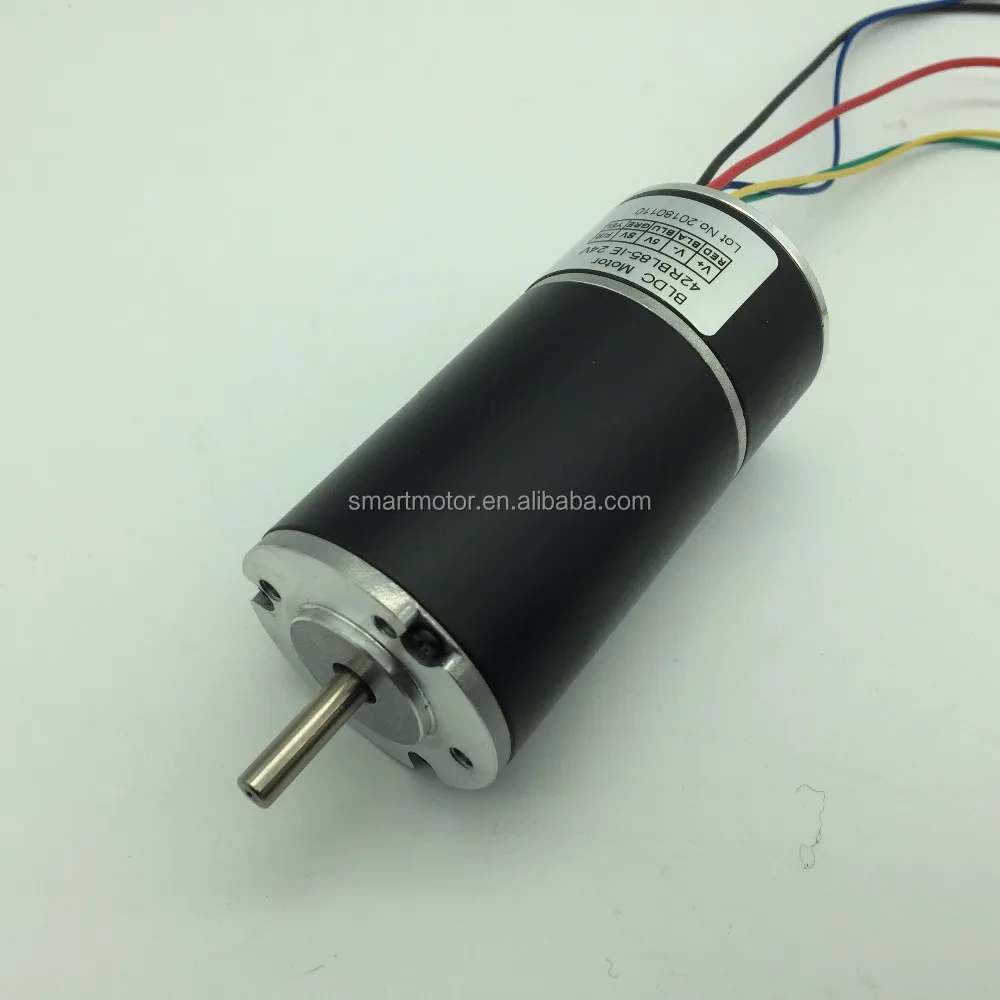

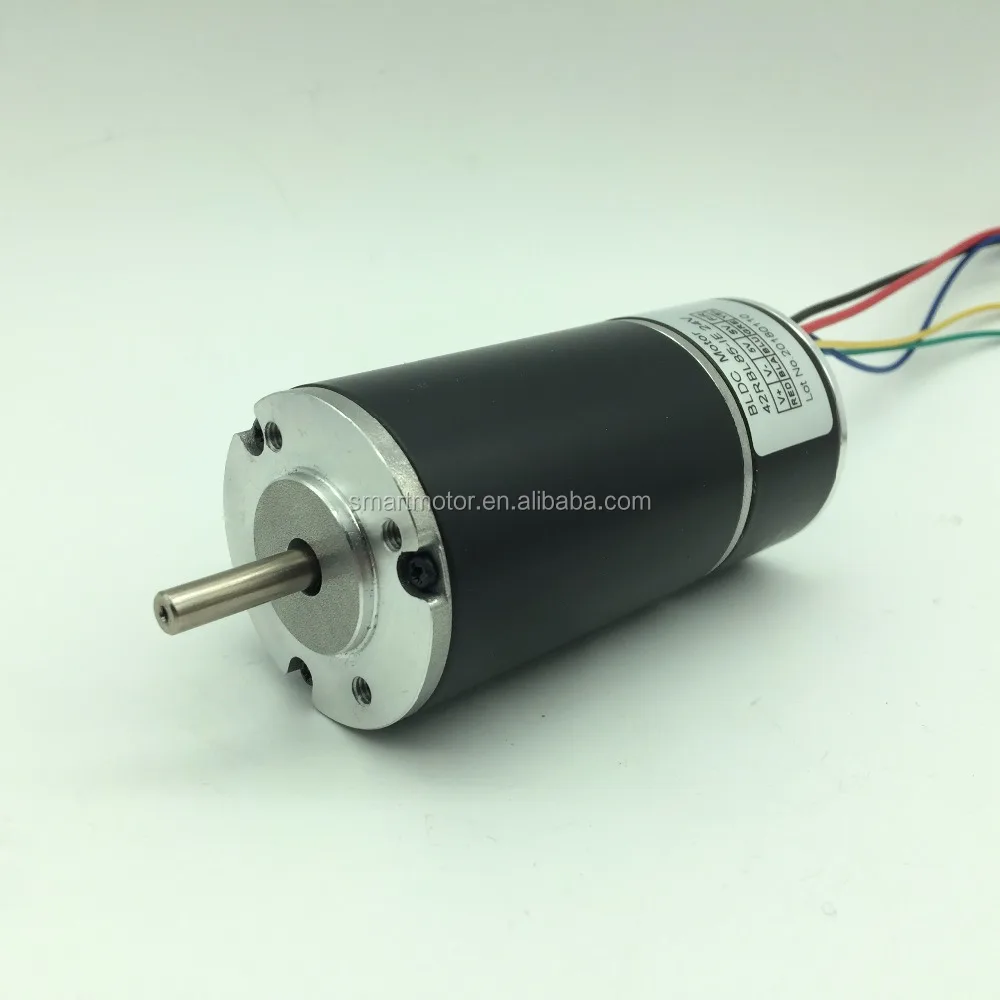

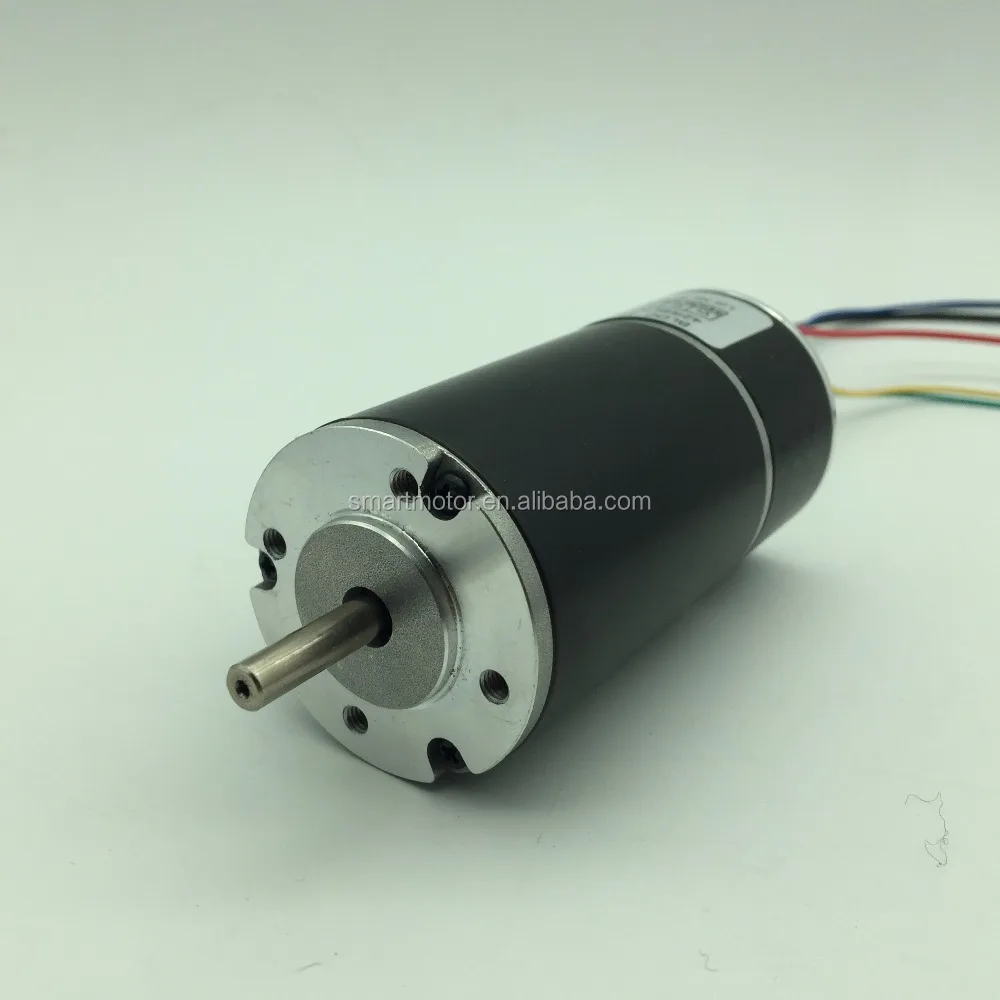

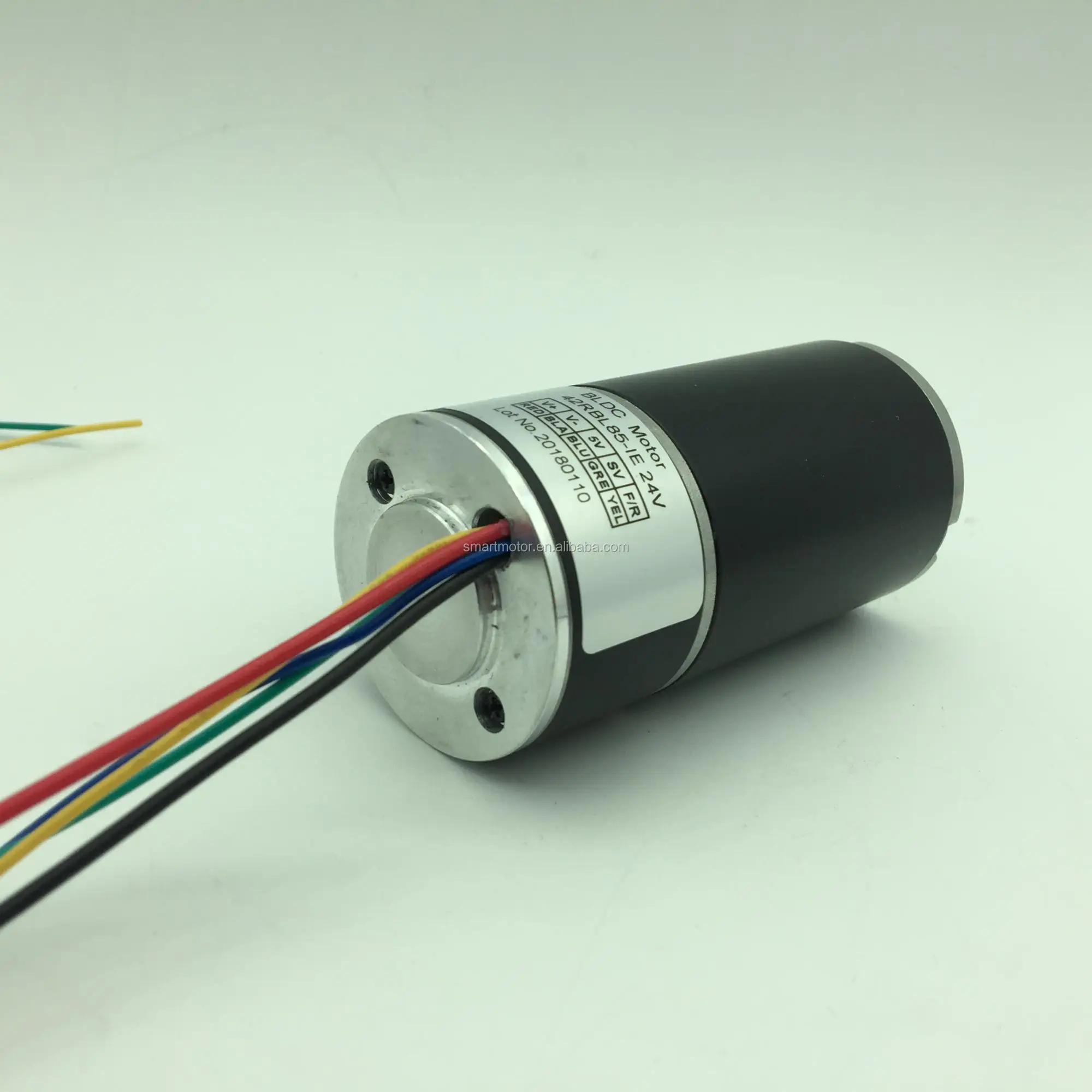

Diameter 42mm 24v brushless dc motor with 24 volt driver controller integrated, to replace dunker GR42 brushed motor
- Category: >>>
- Supplier: Changzhou Smart Automation Motor Manufacturing Co. Ltd.
Share on (60734514528):
Product Overview
Description

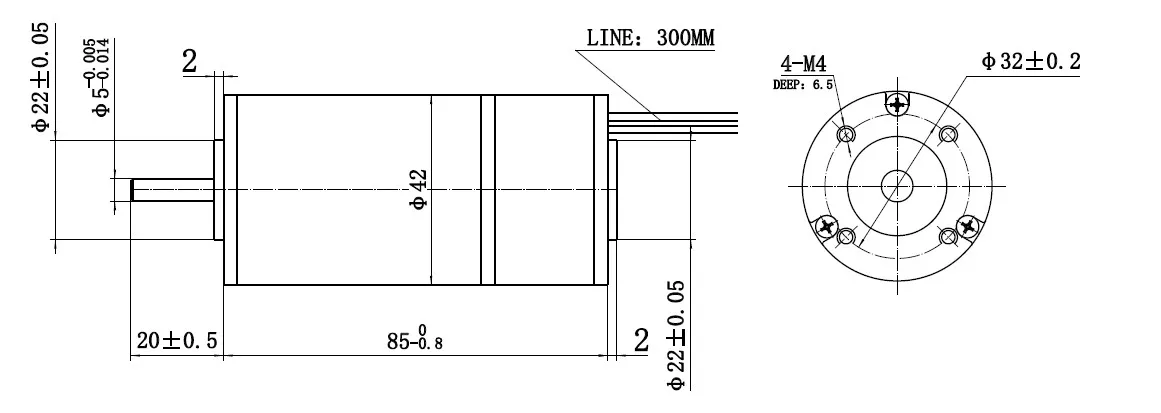

42RBL Series round type 42mm Brushless Dc Motor

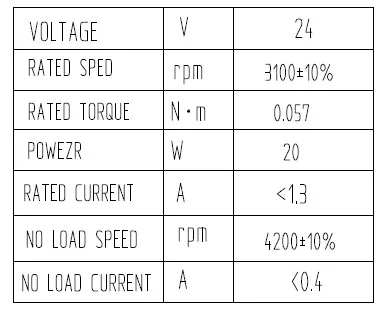

General specification
Item | Specification |
Winding type | Delta |
Hall effect angle | 120° (electrical angle) |
Shaft run out | 0.025mm |
Radial play | 0.02mm@450g |
End play | 0.08mm@450g |
Max. radial force | 15N@10mm from the flange |
Max. axial force | 10N |
Insulation class | Class B |
Dielectric Strength | 500VDC for one minute |
Insulation resistance | 100MΩMin.500VDC |
