The Jacketed Glass Reactor with Oil Bath for Heating

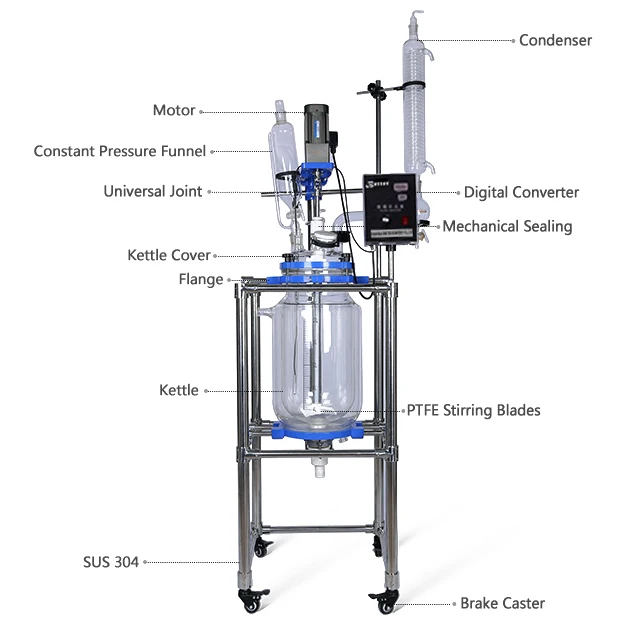

The lab jacketed chemical stirred glass reactor is designed double-level glass. The reaction material is put into the inner, which can be stirred. In the interbed with different cold and hot medium (refrigerating fluid, hot water and hot oil), do some heat 15/16 circulation and cooling reaction. Under the constant temperature and ordinary pressure, as well as negative pressure, stirring reaction can be done in seal glass reactor, also back-flow, distillation. Etc.

All the wetted components are made of high quality boro GG-17 glass and PTFE, for excellent corrosion resistance.
_{*High precision vacuum seal and vapor tube design leads to ultimate vacuum performance (1 mbar end vacuum, < 1 mbar/min vacuum leakage).
*Heavy-duty SS304 support frame and epoxy-coated water/bath enclosure guarantees vibration-free operation.
*2-stage triple-coil condenser design (0.9 m^2 total cooling surface) with outstanding cooling efficiency.
*The VFD speed controller keeps the motor's torque at its maximum even during low speed range.
*The distillation and reflux can be carried out simultaneously.}

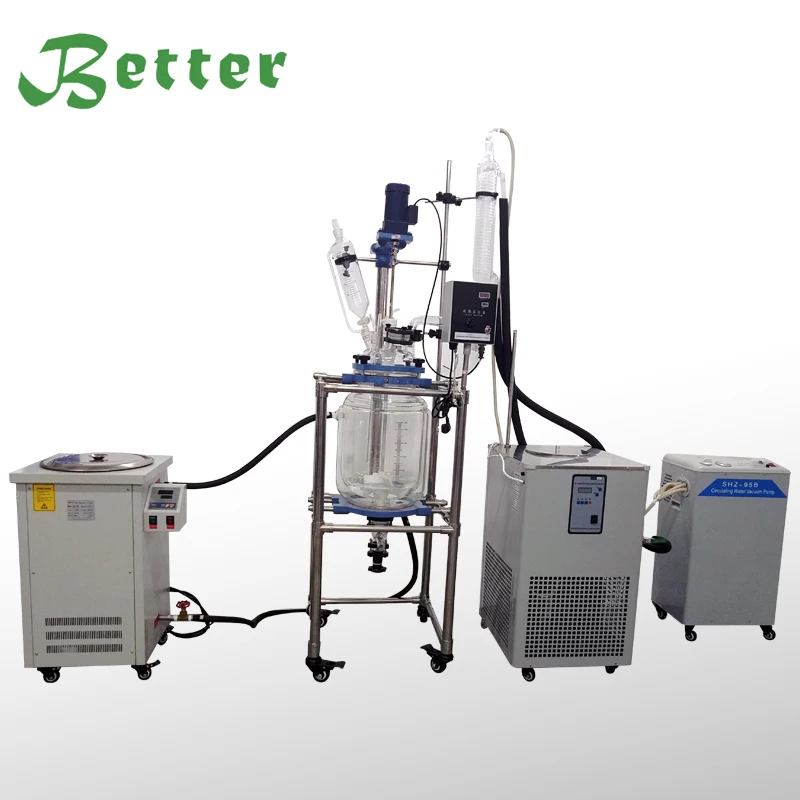

Attention: double glass design, the inner layer placed reaction solvent can do the mixing reaction, the inter layer can be added with the different hot and cold sources (frozen liquid, hot water or hot oil) to do loop heating or cooling reaction. This jacketed glass reactor can be used to do high temperatureexperiment(max temperature is 280°C),as well aslow temperature experiment(min temperature is -80°C) and vacuum tests. It is an ideal equipment for chemistry small and medium-sized experiment,bio-pharmaceuticals and new materials synthesis. It also is used for extraction of gold.

The most important is that “the design of TOPTION reactor is unique,which can guarantee experiments of more convenient and safer.

Pre-sale Service

According to product’s using condition, technicians will offer rationalization proposals to assist clients to select proper types;

Provide detailed product performance specification;

Provide professional quoted price;

Provide 24-hour technical consulting reply.

Provide other corollary equipment according to client requirements.

Packaging

Carton+wooden cases.

Customized packaging can be available.

Shipping

We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on.

You can also choose the appropriate one based on your timeline and budget.

You can choose to use your own shipping agent.

1. What’s the difference between single-layer and double-layer glass reactor?

Single-layer glass reactor can directly heating or cooling, it is similar to water or oil bath, inferior in temperature control aspect; while double-layer glass reactor has interlayer between two layers, we can inject water or oil through temperature control equipment and form circulating system, in this way, no matter cooling or heating, its temperature control property is better.

2.How to decide which glass reactor I should buy? Single-layer or double-layer?

According to first question, please depend on specific heating or cooling requirements.

3.What is the glass texture?

Full set of glass part is produced by G3.3 borosilicate glass, owns excellent chemical and physical properties.

4.What’s the loading capacity of double-layer glass reactor?

Loading capacity of glass reactor generally is 1kg, use hot water and oil to do negative pressure heating.

5.What kind of oil does the reactor use to heat?

For temperature around 130℃, use silicone oil, glycerinum or 32# machine oil.

6.Is it easy to wash the reaction bottle?

Big access opening, convenient to wash.
