Coil Pipe Sterilizer mini milk pasteurizer machine uht sterilizing machine

Product Overview

Description

Coil Pipe Sterilizer mini milk pasteurizer machine uht sterilizing machine

Pasteurizing for various fluid, such as fresh milk, fruit juice, drinks, popsicles, ice cream paste, soy sauce, soy milk, wine and etc. flash pasteurizer  is suitable for instantaneous sterilization milk, juice, beverage etc .The equipment and the material feed three cocks are used, the flow can be adjusted according to use and reliable.

 uht sterilizing machine of technical data :

Model	UHT-1	UHT-2	UHT-4	UHT-6
Capacity (T/H)	0.5~1t/h	1.5~2t/h	3~4t/h	5~6t/h
Sterilization temperature	115~137°C	115~137°C	115~137°C	115~137°C
Use of steam pressure	<0.78MPa	<0.78MPa	<0.78MPa	<0.78MPa
High-temperature sterilization time	4~6s	4~6s	4~6s	4~6s
Discharge temperature	<65°C	<65°C	<65°C	<65°C
Feed temperature	<16°C	<16°C	<16°C	<16°C
Steam consumption	<0.12kg/L	<0.15kg/L	<0.15kg/	<0.20kg/L
Power	1.5kW	2.2kW	3kW	4kW
Dimensions(mm)	1200×920×1650	1300×1100×1700	1600×1200×1800	1940×1400×2000

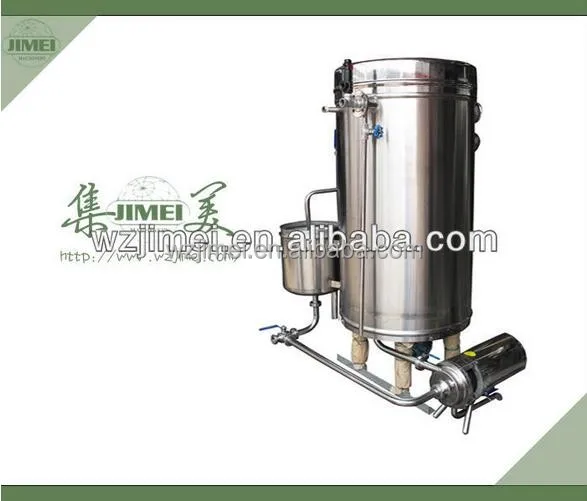

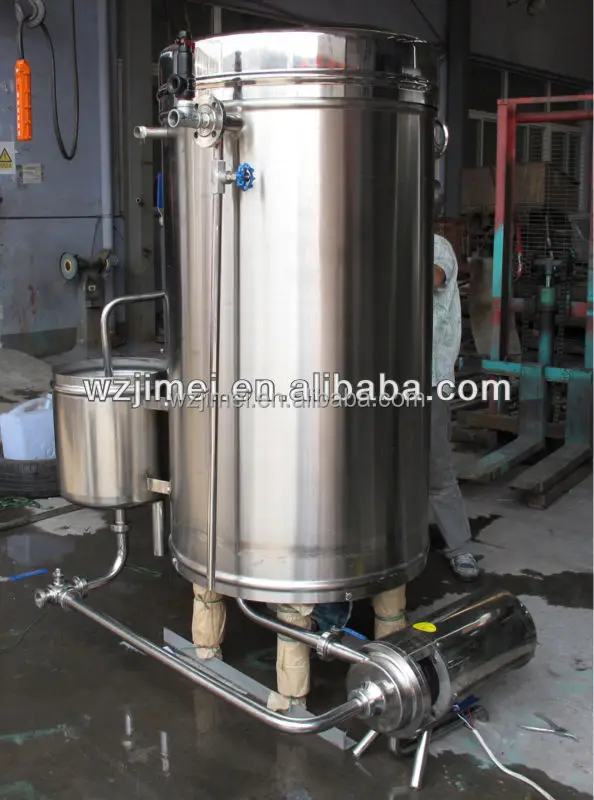

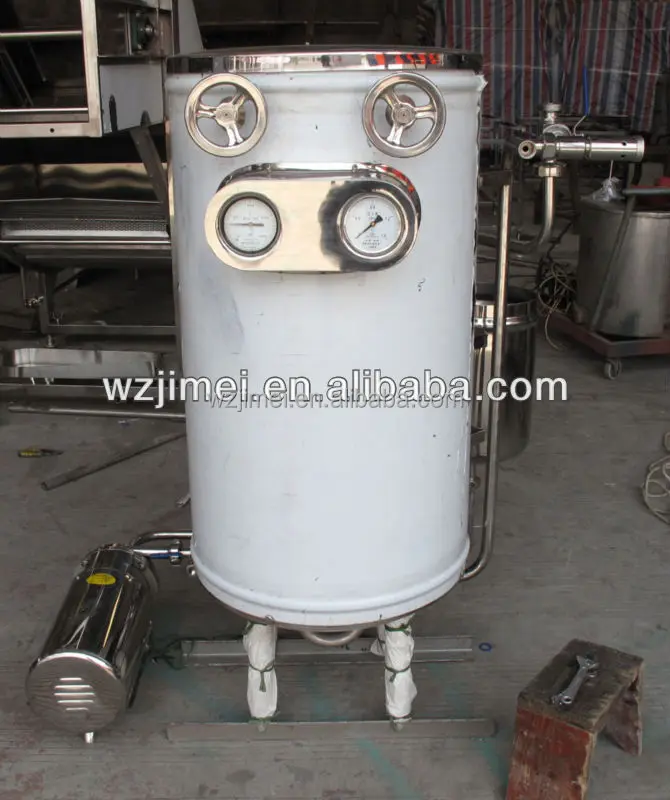

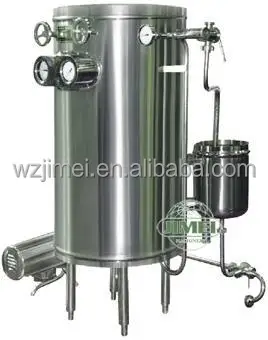

Photos of uht sterilizing machine
