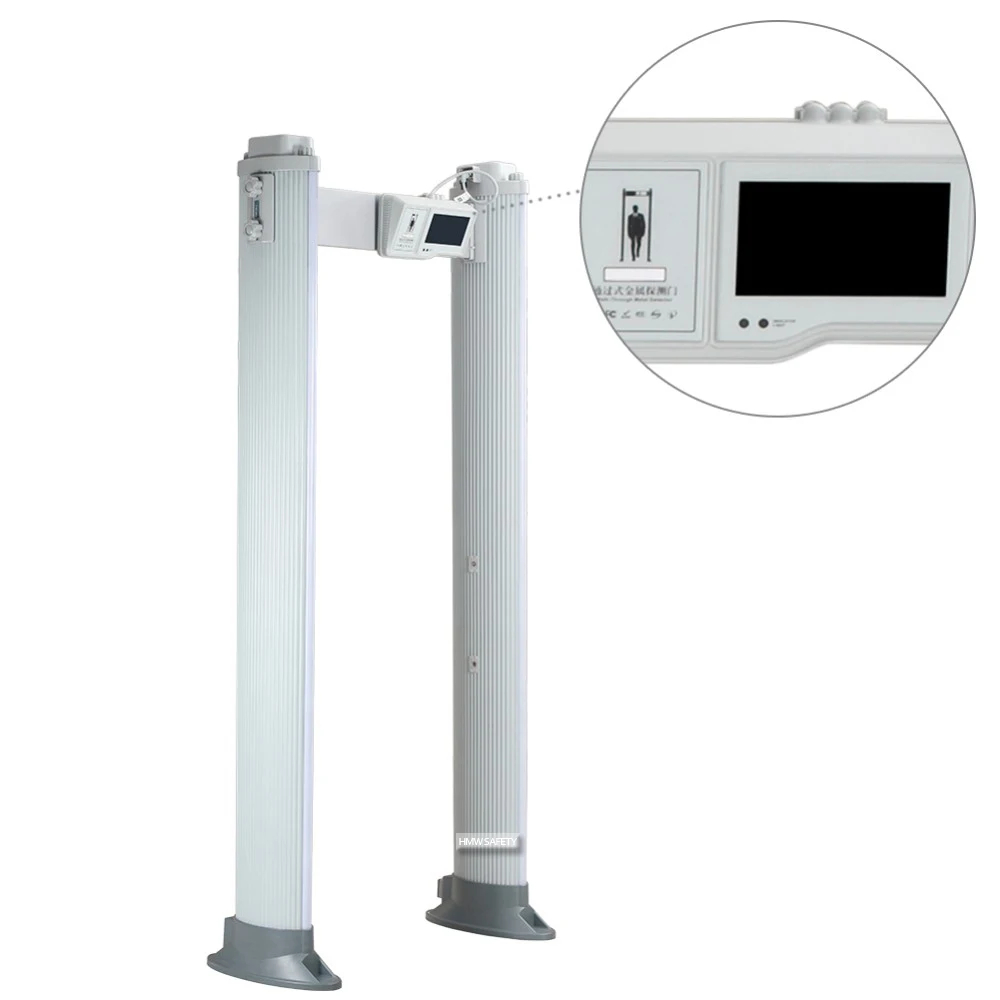

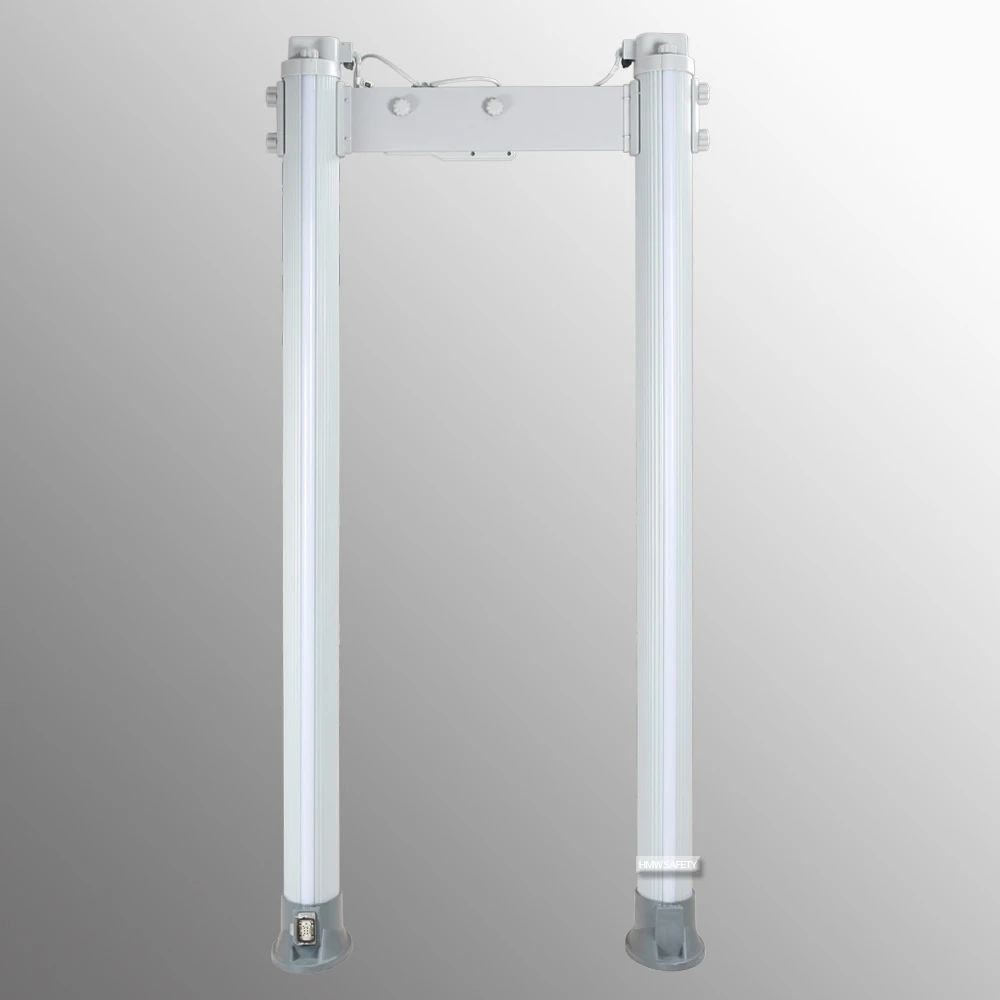

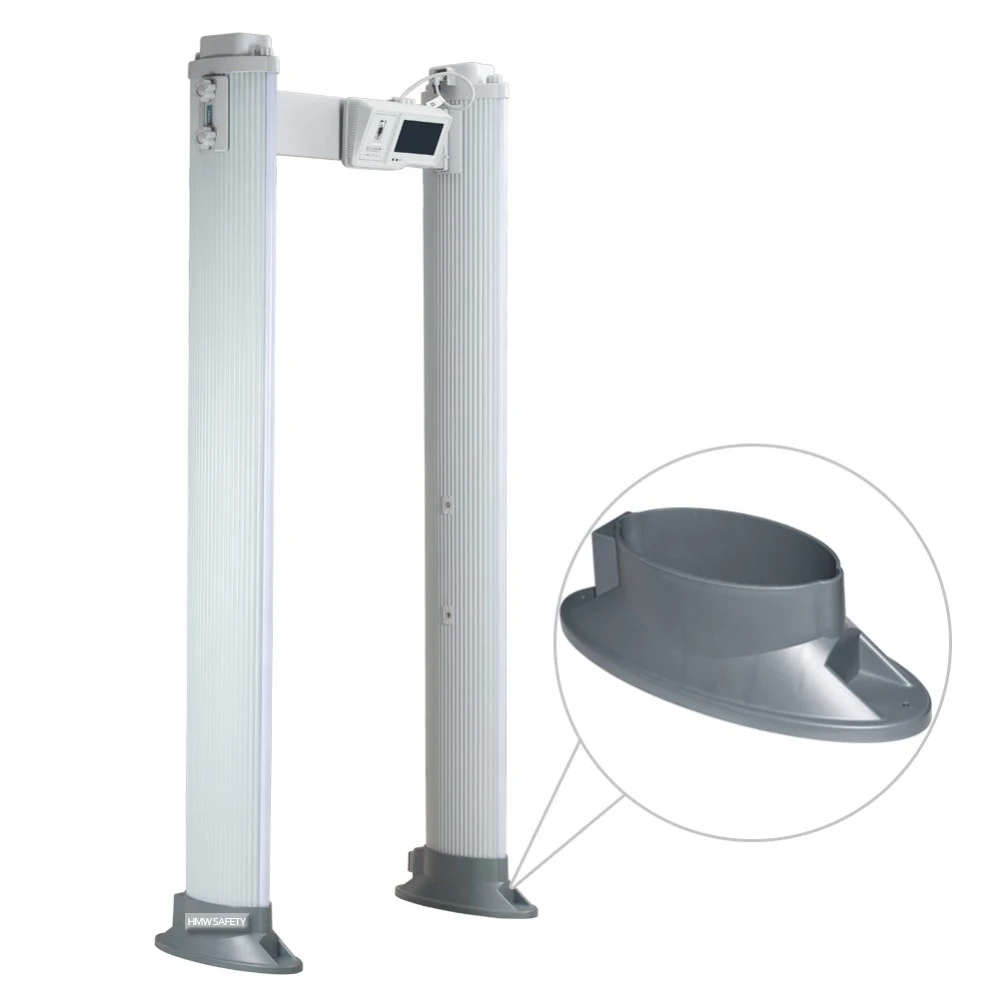

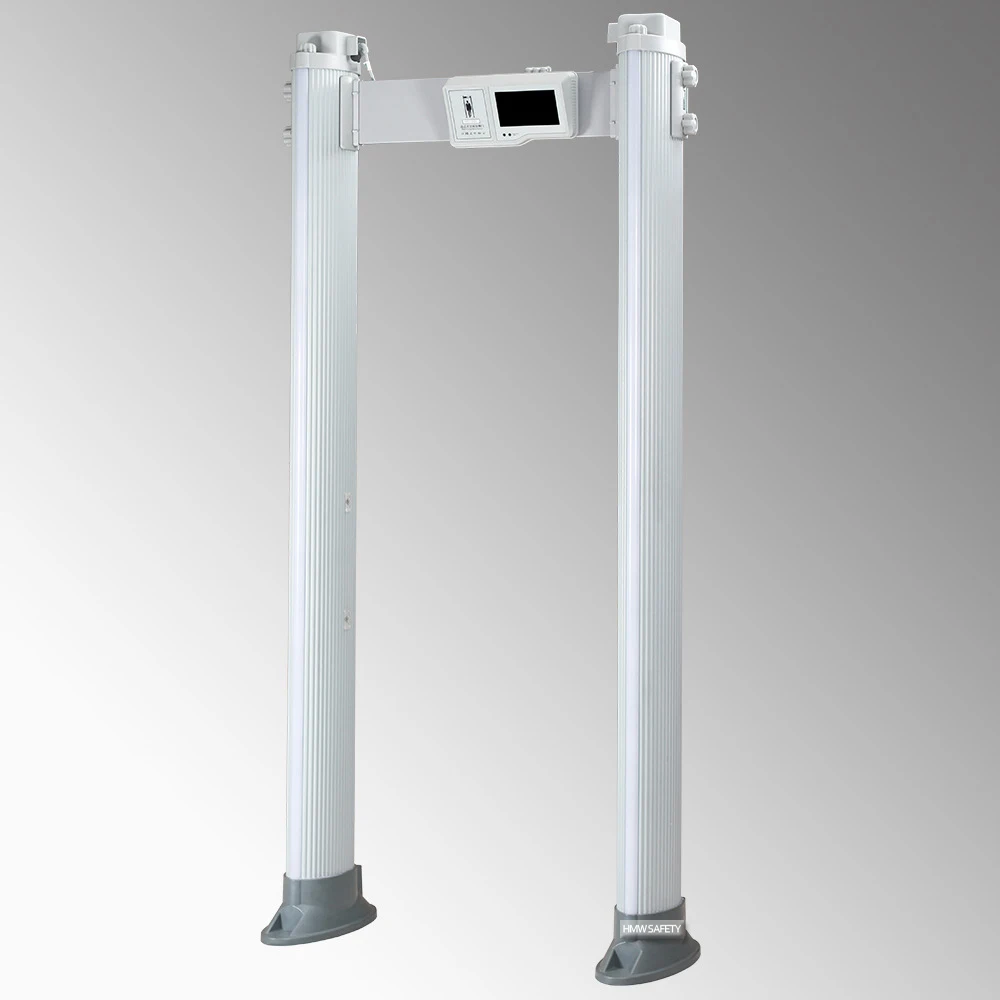

Outdoor Waterproof Intelligent Walk Through Security Metal Detector Gate

Product Overview

Description

1.Adjustable sensitivity of each detection zone
2.Multi-alarm sounds to choose
3.Operating frequency can be adjusted manually or automatically
4.Detection technology: Even detection technology,no blind spot
5.Internet technology:Remote upgrade system and remote control system
6.Working band: 50 working bands
7.Sensitivity of each detection zone:400 level
8.Security level: 100 level
9.Statistics: Record the pass and alarm numbers
10.Query function: The system has real-time information query function
11.Intelligent Standby: The system has intelligent standby operation alerts
12.Detection speed: more than 60 people pass and detect in 1 minute

Advanced function

1. Intelligent partion: Can change detection zones according customers’ demands
For example convert 6 zones to 12 zones or 18 zones,33 zones(optional)
2. Can connect PC terminal that change specification of WTMD
anytime,anywhere(optional)
3. We intergrated 72 application occasions in the program,so can change all zones
Sensitivity when you choose different occasion.
4. Have 4 kinds infrared mode: IR ON/IR OFF/Front group IR ON/Back group IR ON



Specification



Vertical dimension	2240×670x850mm
Vertical channel size	2000x700mm
Packing size	2400 X 545 X 620 mm
Net weight of main box/detectiondoor	58KG
Gross weight of main box/detection door	66KG
Detection zones	6 zones
Working voltage	AC90V~240V50/60Hz
Power consumption	20W
Each zone sensitivity	1-400 Level
Security level	100 Level
Working frequency range	1-50bands
Relative Humidity	0 – 95 %
Working environment temperature	-20ºC~65ºC
