25 liter plastic jerry can blow molding machine
- Category: >>>
- Supplier: Taizhou Huangyan Juneng Machine & Mould Co. Ltd.
Share on (60734651990):
Product Overview
Description
25 liter plastic jerry can production blow molding machine
Do the best for customers!
Company Information
listening to the customer is what we are following consistently.
Clients oriented service,None-stop perfection.
JUNENG machine located in HUANGYAN ZHEJIANG.
Our company introduce overseas advanced technology, formed a research and development team with many experts, engineers and technicians, to ensure the high quality products.Our company specialized in designning and producting many series and sizes extrusion blow molding machines, full automatic stretch blow molding machines and semi automatic blow molding machines.We can produce many kinds of plastic extrusion productions range from 5ml to 260 liters.We can supply the die-mold, like the single cavity die-mold, double cavities die-head,three cavities die-head, four cavities die-head and six die-head, we can also supply single layer,double layer and so on.We have thousands of machinery debugging experience.
Our company not only won the ISO certification, and all of our products have passed CE international certification.
Workshop:
Mould workshop:
Sample room:
Product Description

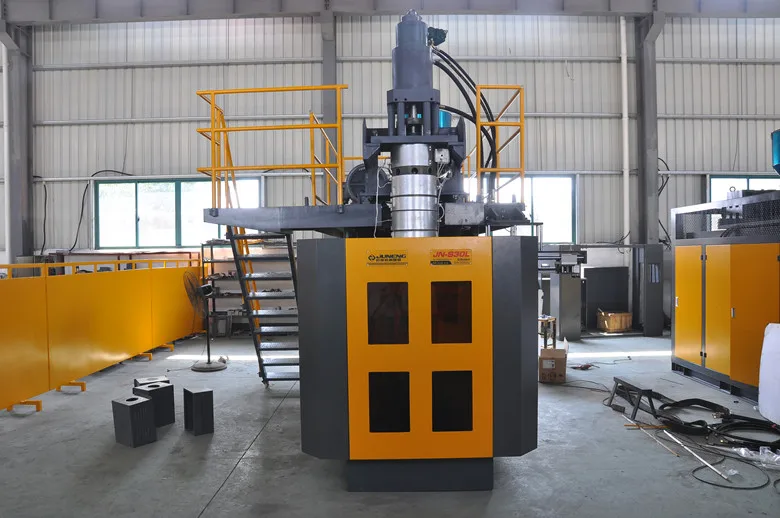

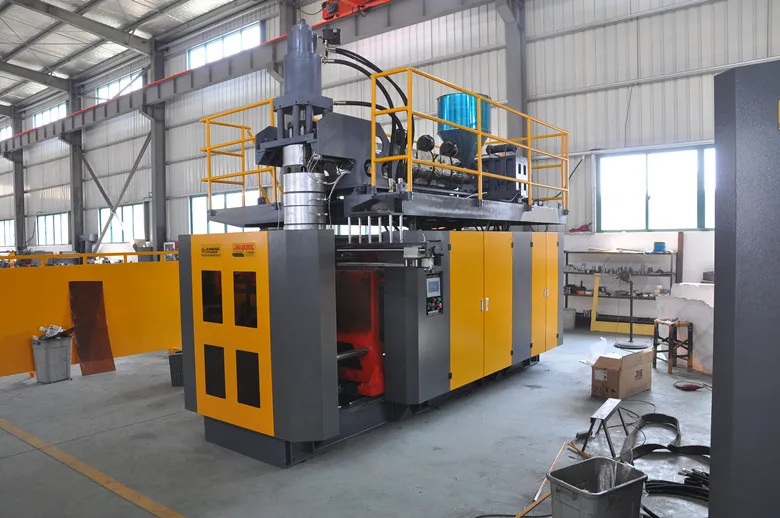

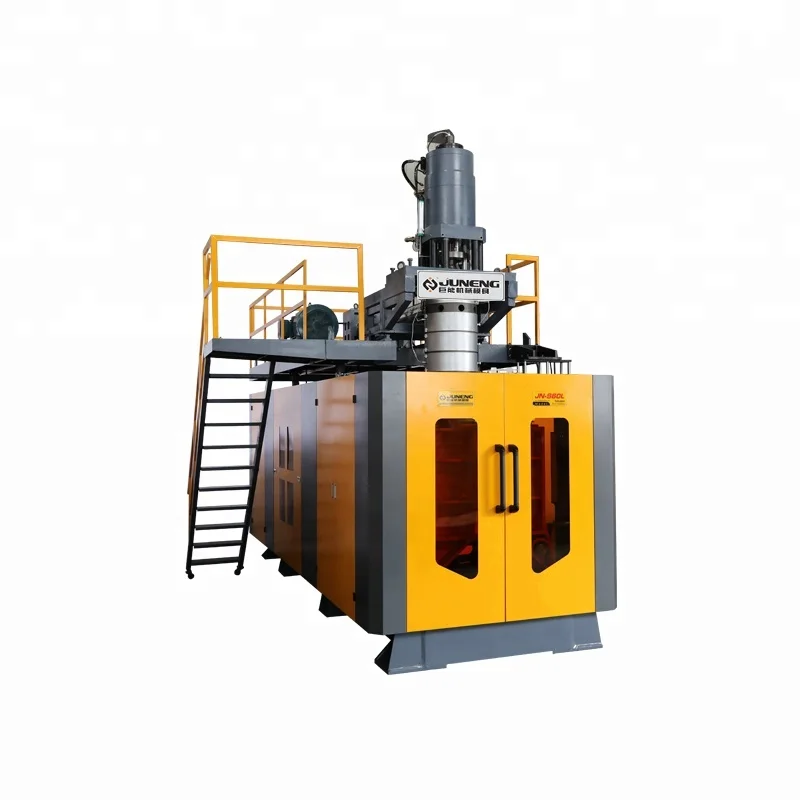

Machine picture:
Machine general specification:
| Extrusion Blow Moulding machine | |
| Model | JN-S30L |
| Parison Programmer | As your need |
| Capacity | According to the sample |
| Material | PE/PP |
| Products Range | Below 30 liters |
| Max product volume (L) | 30 |
Dry cycle (pc/hr) | 600 |
| Screw diamter (mm) | 80 |
| Screw L/D ratio (L/D) | 24-26 |
| Screw motor power (KW) | 30-37 |
| Screw heating capacity (kw) | 6.2-8.2 |
| No.of heating zone (zone) | 4 |
| Output of HDPE (kg/hr) | 100-120 |
| Oil pump driver power (kw) | 22 |
| Clamping force (KN) | 215 |
| Mold stroke (mm) | 350-800 |
| Size of mold w*h (mm) | 550*650 |
| Max die diamter w*h (mm) | 300 |
| Die heat capacity (kw) | 5.28 |
| capacity(L) | 4.4 |
| Blowing pressure (mpa) | 0.8 |
| Air volume (m3/min) | 0.8 |
| Cooling water pressure (mpa) | 0.3 |
| Water consumption (L/min) | 60 |
| Weight of machine (ton) | 12 |
| Size of machine (m) | 4.5*2.1*3.8 |

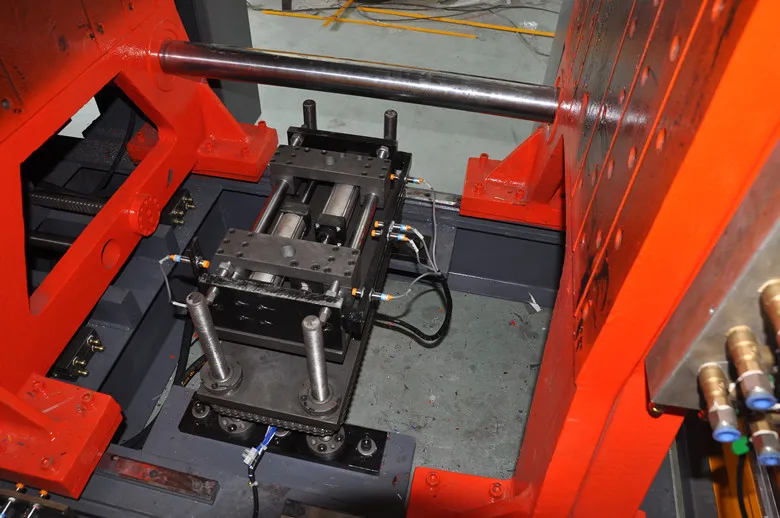

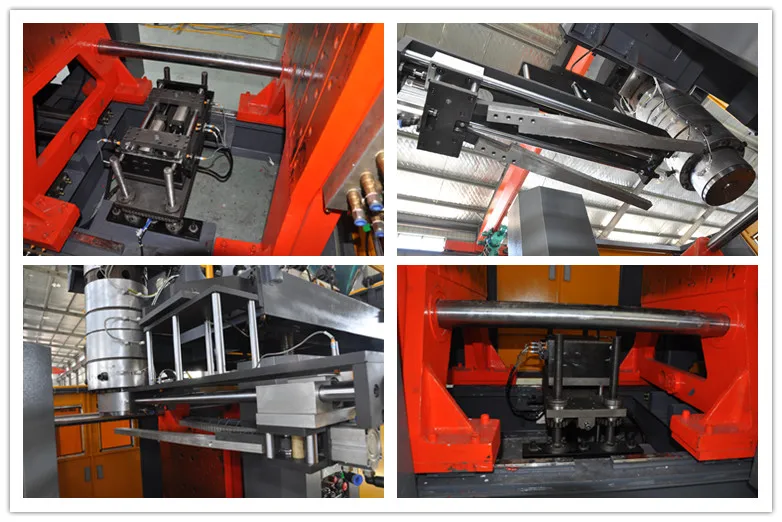

Machine details:
1--PLC,touch screen,screw and die head

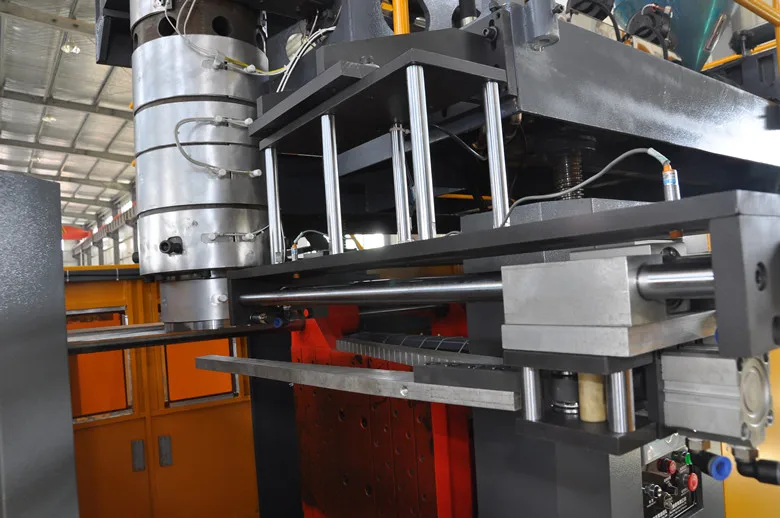

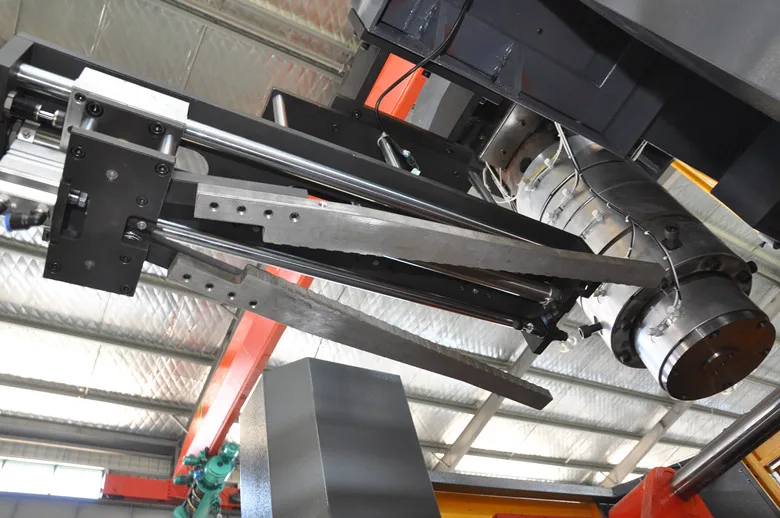

2--Blowing part(blow pin & blowing valve),deflashing
3--MOTOR & MAIN VALVE
Packaging & Shipping
1.PACKING: STANDARD EXPORT PACKING
2.DELIVERY:60 DAYS AFTER CONFIRM THE PRODUCTS DRAWINGS.
Our Services
we will do the best for customer!!!
JUNENG has cultivated a strong team to provide prompt and effective after sale service,helping the customers tuo solve problems appeared during the machine commissioning and production. We also record service history for each customer to privide quicker and more accurate service subuequently. Our target is to statisfy the customer by 100%.
Technology Guarantee
All the equipments, moulds(except the blowing moulds) and auxiliaries supplied by our company, we will provide all of the techniques and technology, and supply free install and adjusting operation, ensure the technology reliability and rationality.
You have two choices,One is your technical people come to our company, we teach your person how to operate the machine, how to maintain it and so on, but all of the cost should be paid by yourself.
Two is we supply engineer to you, you provide the cost of the visa, passenger tickets(round-trip ticket), room and board. Beside you need pay our person 100USD per day, and also we will pay our person. The place is supplied by yourself.
