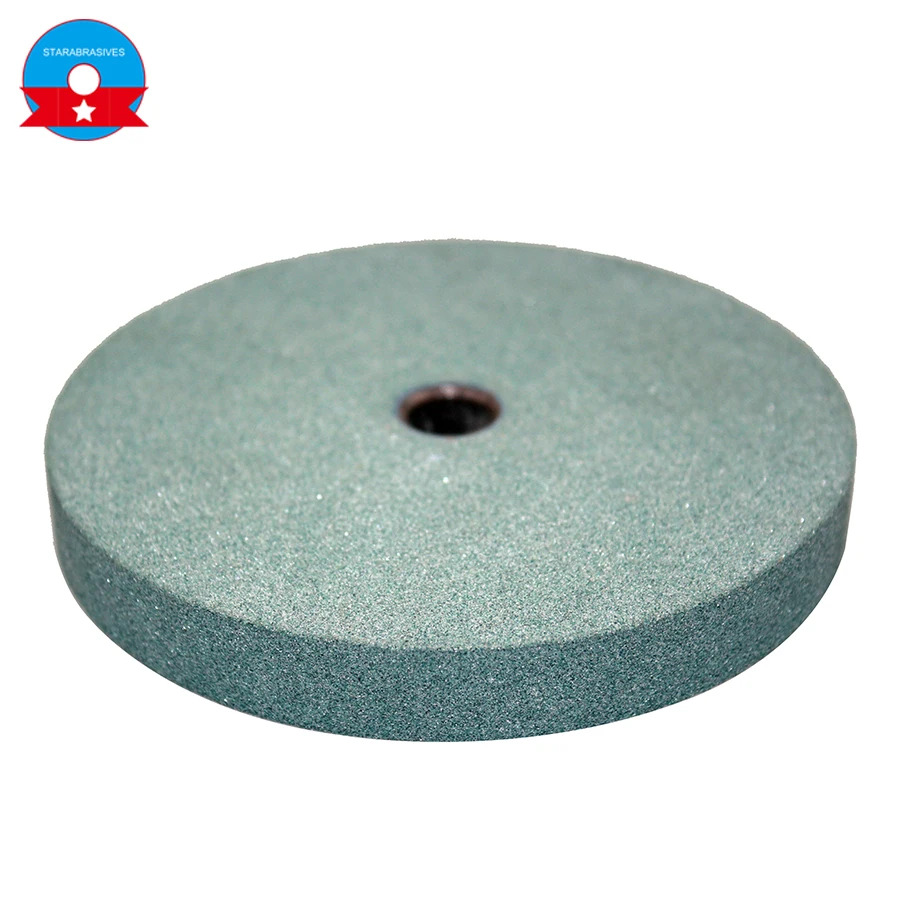

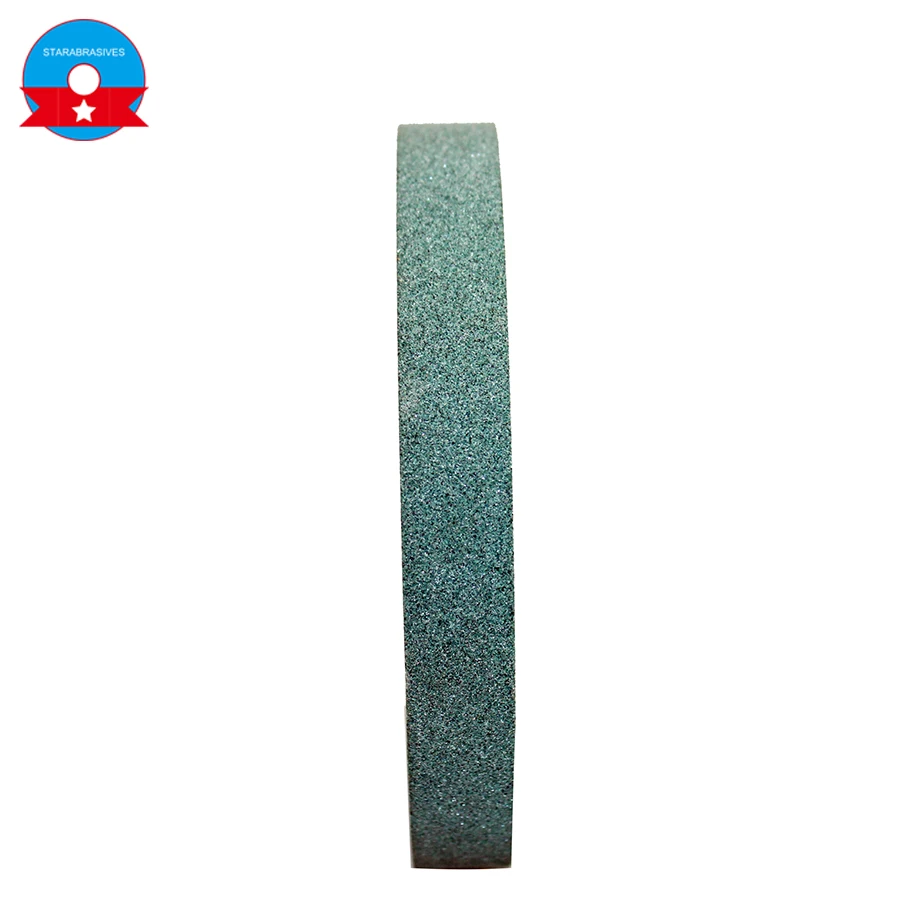

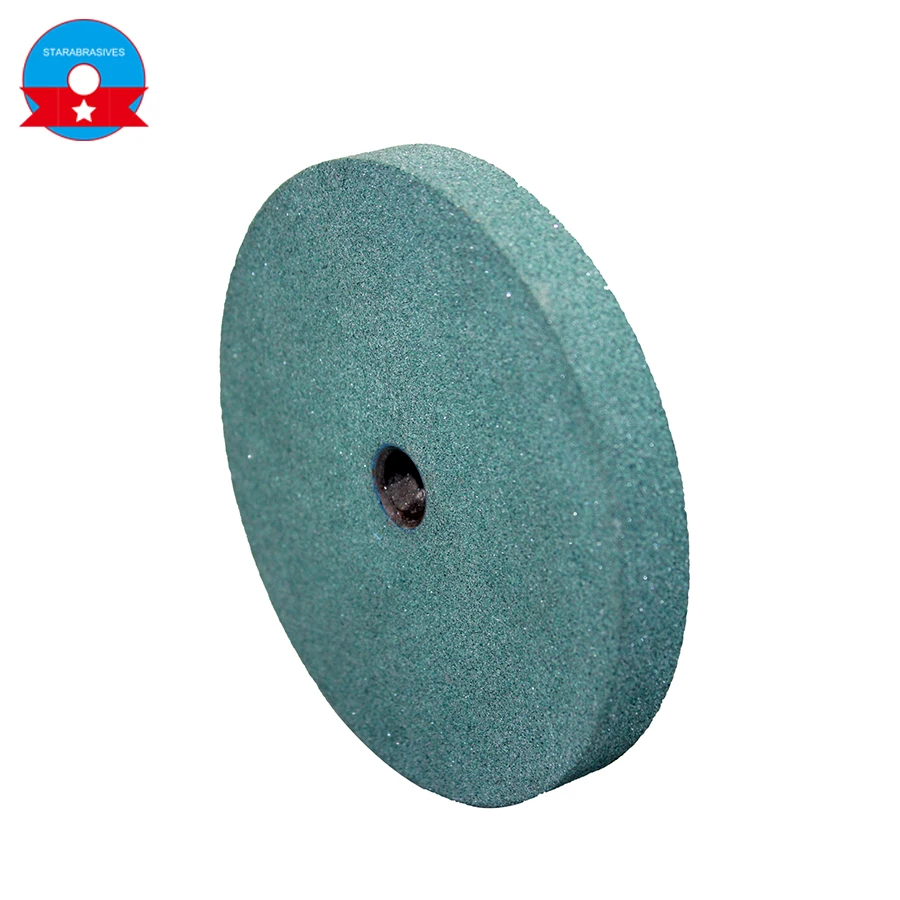

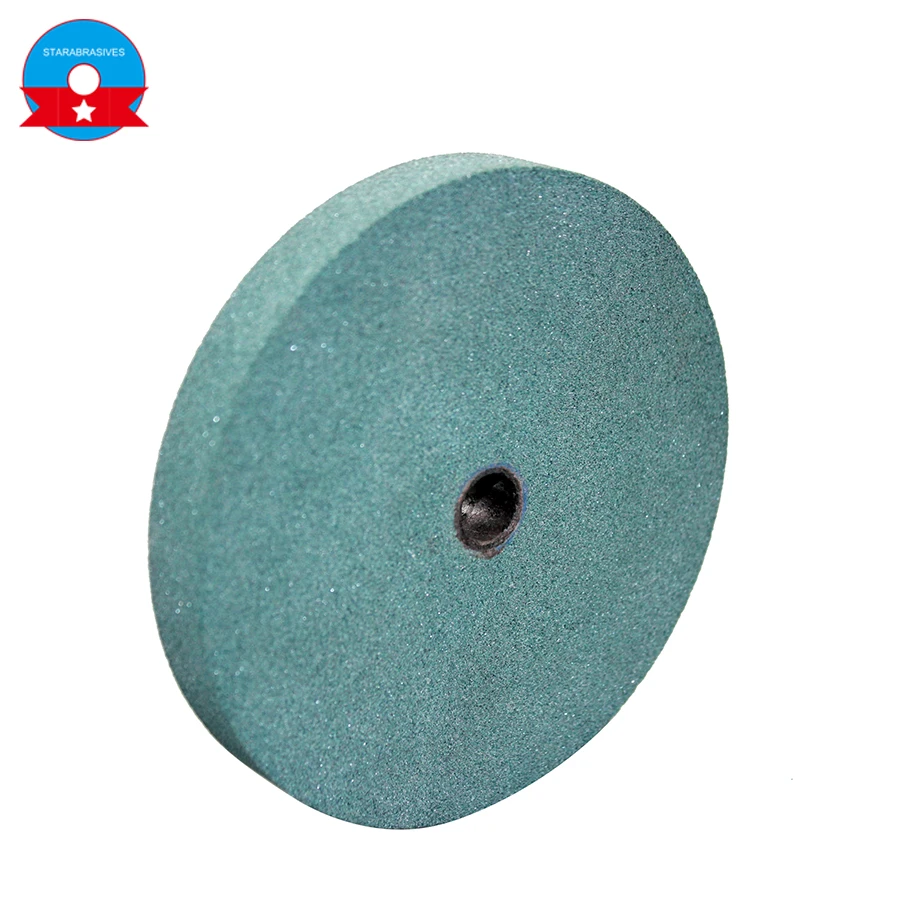

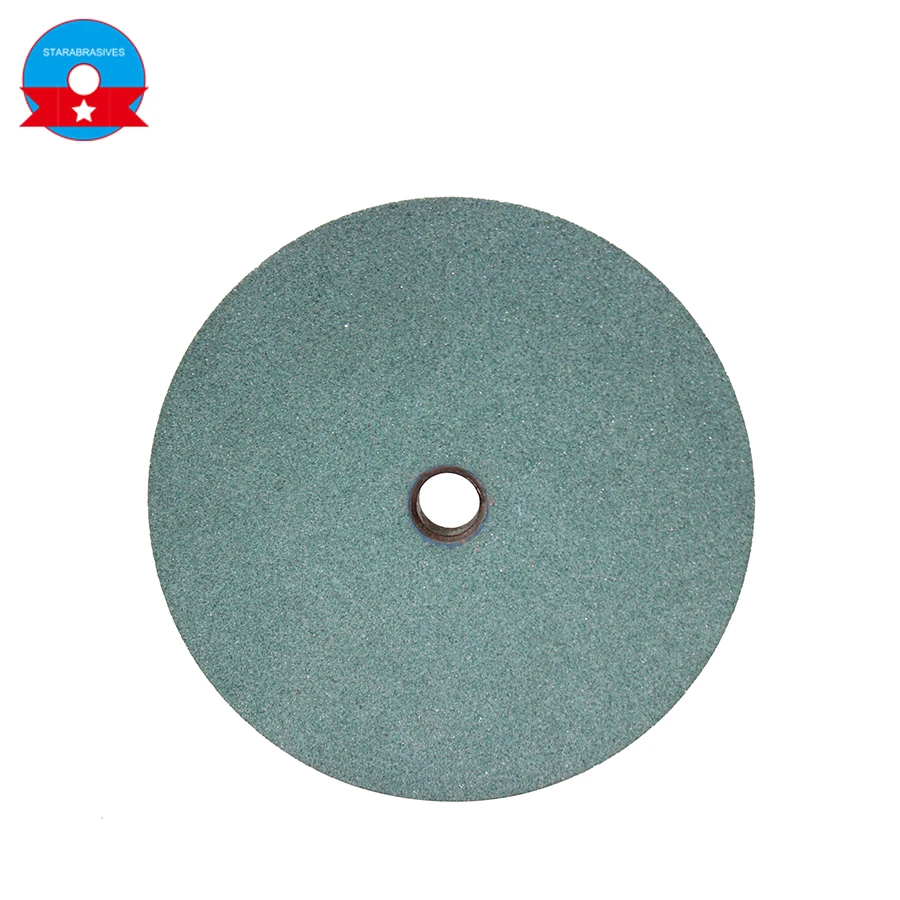

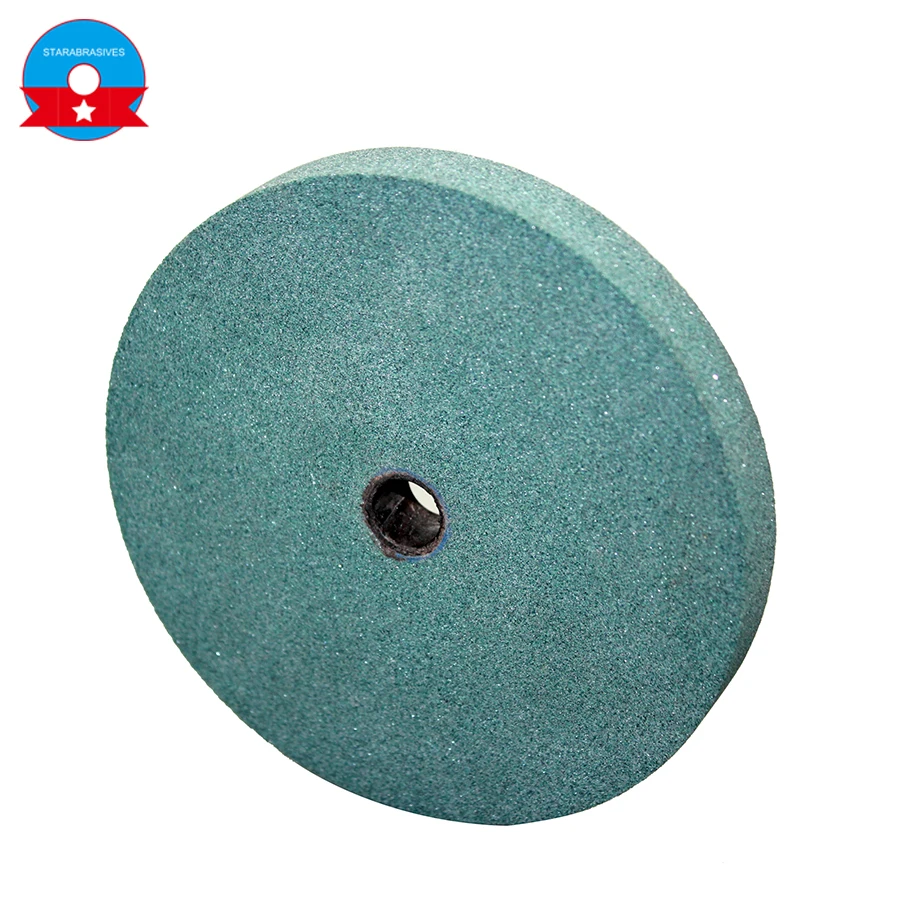

Manufacturer Vitrified Ceramic Bond Grinding Wheel
- Category: >>>
- Supplier: Jiangxi Star Grinding Wheel Co. Ltd.
Share on (60734674256):
Product Overview
Description
Manufacturer Vitrified Ceramic Bond Grinding Wheel
Product Parameter
Shape: Disc
Material: A, WA, C, GC, brown fused alumina, white fused alumina, green silicon carbide, black carbon
Hardness: D/E/G, G/H/L, K/L, M/N ,P/Q/R, S/T ,Y
Grit: 36#-240#
Group number: 5 or 6
Combining with the agent: Ceramic binding agent or resin binding agent
Max. speed: 35m/s
Application: Cylindrical grinding, flat grinding
Color: Pink, black, white, taupe, gray-white, orange-red, green
| D(mm) | T(mm) | H(mm) |
| 3-900 | 3-200 | 3-500 |
| D | T | H |
| 100 | 20 | 20 |
| 125 | 16 | 12.7 |
| 125 | 20 | 20 |
| 150 | 20 | 32 |
| 150 | 25 | 31.75 |
| 150 | 25 | 32 |
| 175 | 13 | 31.75 |
| 175 | 13 | 32 |
| 200 | 20 | 31.75 |
| 200 | 20 | 32 |
| 200 | 25 | 31.75 |
| 200 | 25 | 32 |
| 250 | 25 | 31.75 |
| 250 | 25 | 32 |
| 300 | 32 | 32 |
| 300 | 40 | 75 |
| 350 | 40 | 75 |
| 350 | 40 | 127 |
| 400 | 40 | 127 |
| 400 | 40 | 203 |
| 400 | 50 | 127 |
| 400 | 50 | 203 |
| 450 | 63 | 127 |
| 450 | 63 | 203 |
| 450 | 150 | 203 |
| 500 | 50 | 127 |
| 500 | 50 | 203 |
| 500 | 50 | 305 |
| 600 | 63 | 305 |
| 600 | 75 | 305 |
| 750 | 75 | 305 |
| 900 | 75 | 305 |
| 900 | 100 | 305 |
Any specifications are available according to customer’s requirements.
Welcome to customize by supplying samples!
