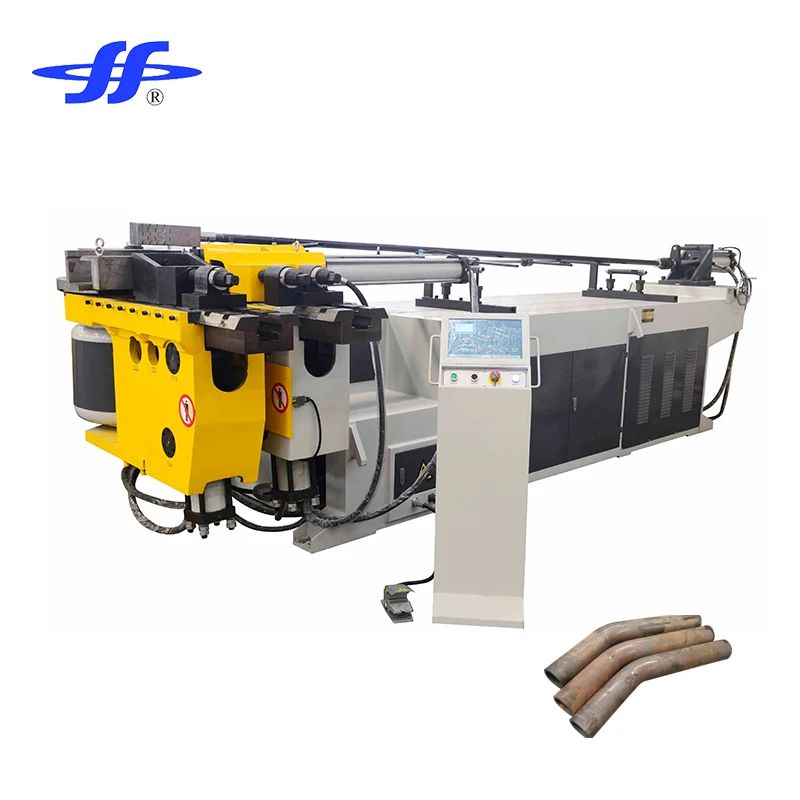

NC Semi automatic stainless steel tube bender machine used for making metal pipe
- Category: >>>
- Supplier: Jiangsu Hefeng Mechanical Making Co. Ltd.
Share on (60734703639):
Product Overview
Description
NC Semi-automatic stainless steel tube bender machine used for making metal pipe

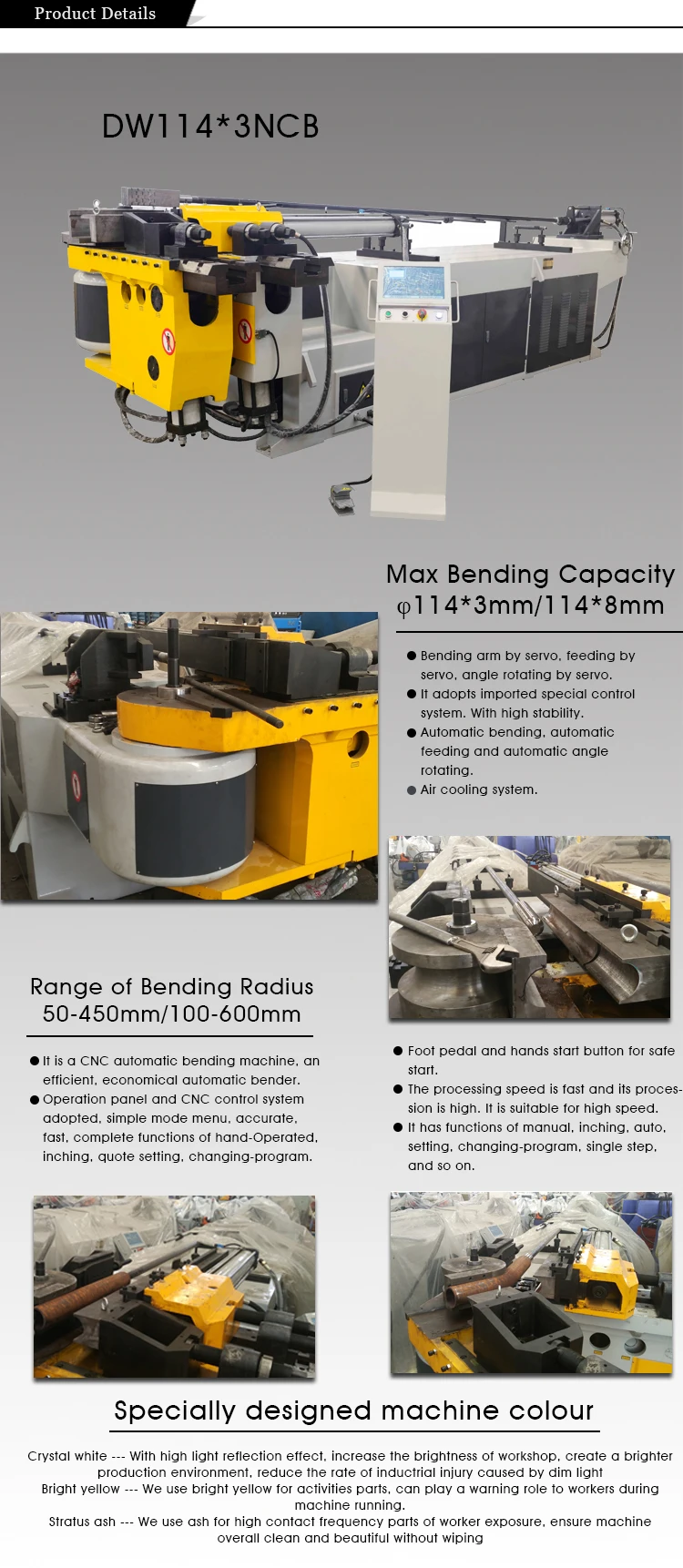

Product Detail

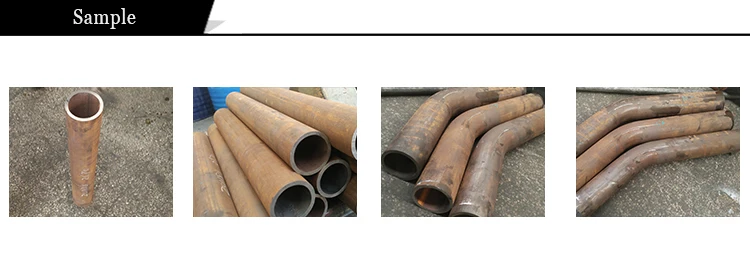

Suggestion&Sample
No. | Item | Data |
1 | Max Round Tube Mild Steel | 114x8 mm |
2 | Non Ferrous | 114x10 mm |
3 | Square Tube Mild Steel | 100x100x3 mm |
4 | Solid Bar | 50 mm |
5 | Min/Max Bend Radius | 100 - 600 mm |
6 | Clamp Stroke | 165 mm |
7 | Pressure Slide Stroke | 165 mm |
8 | Max Bend Angle | 190 Deg |
9 | Max Length Over Mandrel | 4000 mm |
10 | Bending Speed | 9.6 Deg/Sec |
11 | Bending Precision | +/-0.3 Deg |
12 | Hydraulic Motor | 19 Kw |
13 | Total Power | 19 Kw |
14 | Hydraulic Pressure | 120 Bar |
15 | Hydraulic Tank Capacity | 700 L |
16 | Machine Size | 6100x1660x1500 mm |
19 | Machine Weight | 8000 Kg |
Related Product
Company Profile
Certificate&Logistic
Contact Us
FAQ
Q: Are you a manufacturer or trading company? |
| A: We are a manufacturer. We focus on metal pipe/tube processing machinery for over 30 years. |
Q: How to choose the pipe/tube bending machines? |
A: You have to inform us following details:Max. outside diameter,Wall thickness,Bending radius (CLR), The pipe material,The drawings if possible |
Q: What is the biggest bending capacity you could offer? |
A: As of now the biggest bending capacity is 168mm outside diameter for cold bending. |
Q: Where is your factory located? How can I visit there? |
A: Our factory is located in Zhangjiagang city (beside to Shanghai). You can fly to Shanghai Hongqiao or Wuxi airport directly. All our clients, from home or abroad, are warmly welcome to visit us! |
Q: How does your factory do regarding quality control? |
A: Quality is our culture. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained SGS, CE certificate.
|
