BNC connectors are for low power ,quick connect / disconnect applications using a bayonet type coupling mechanism and can be interchangeable with the same type connectors of aborad. They are widely used connect of the RF coaxial -cables in electronic equipment and instuments. Characteristic impedance 50Ω , 75Ω

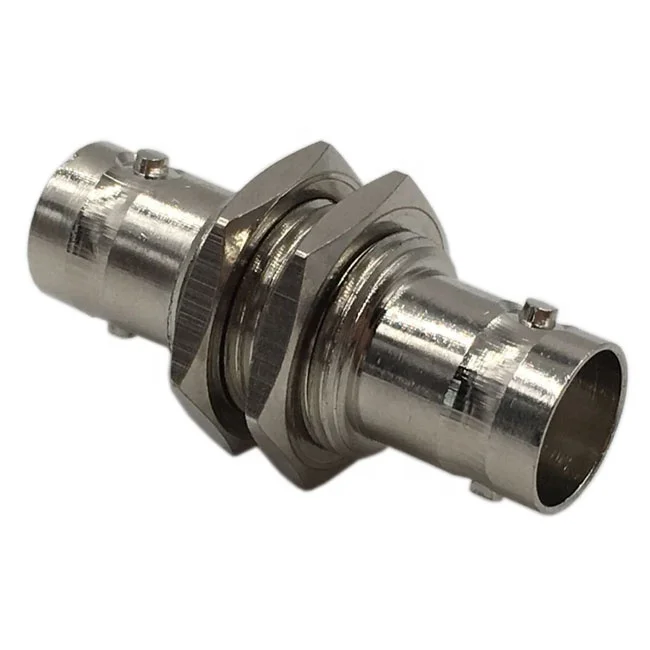

BNC Panel Mount double Female connector

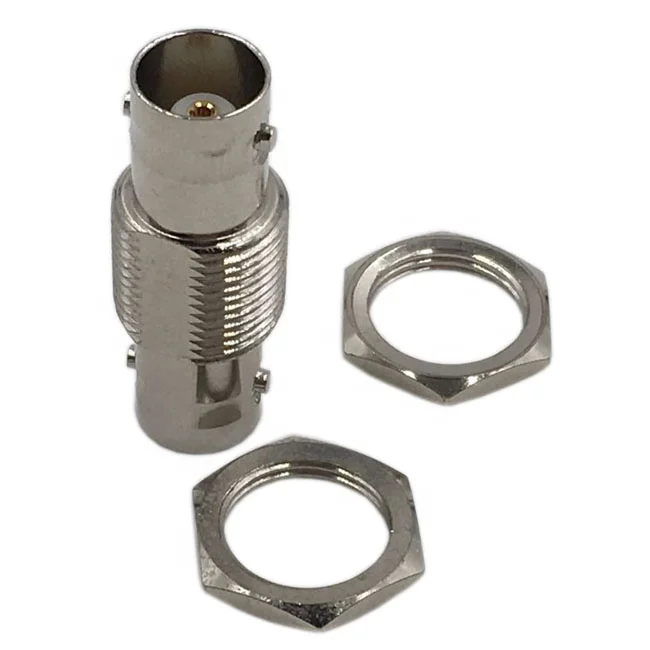

BNC Female Jack to BNC Female Jack with nut bulkhead straight adapter Connector
Double female BNC bulkhead connector
Temperature range------ -55~+155°C Impedance------50 Ω Or 75 Ω Frequency range (required for the application is 2,4 GHz)-------0~2 GHz
Voltage rating-----------1500V
Contact resistance of center and outer conductor--------center ≤ 1.5 mΩ outer ≤ 1 mΩ VSWR---------- Straight ≤ 1.22 , Right angle ≤ 1.30 Durability (in cycles)--------500 cycles Dielectric withstanding voltage------ ≥ 5000 MΩ
Company Information

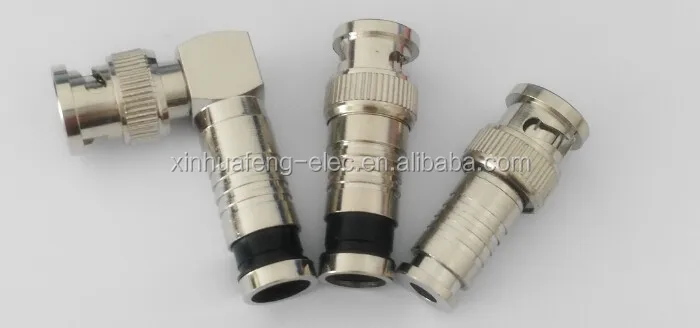

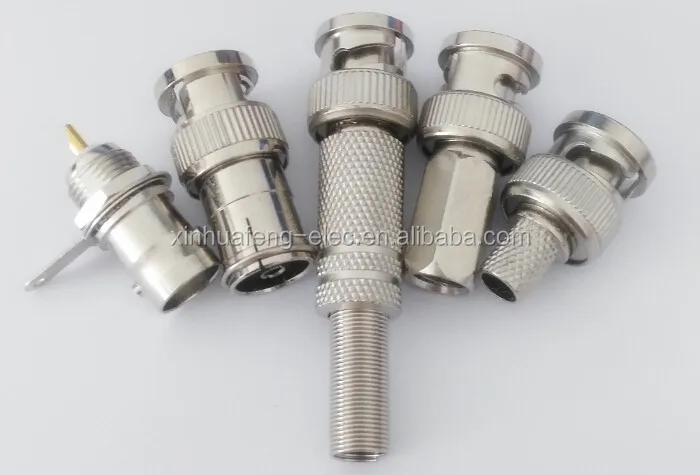

We're professional electronic products supplier have strong OEM&ODM ability, RF coaxial connector products is our mainly products, have high quality level, strong develop capacity to produce custom design product. RG58,RG59,RG6,RG7,RG11....F connector and BNC connector, verious kinds of RF coaxial connector product. Zinc material and Copper material are all can produce into same high quality level.
