High Quality DC 48V96V AC 120V 230V Home Power Inverter ups 5000w

High Quality DC 48V96V AC 120V 230V Home Power Inverter ups 5000w

Category: >>>
Supplier: Foshan Bokai Power System Equipment Co. Ltd.

Price:RUB 34,876.28

Quantity:

Product Overview

Description

Product Details

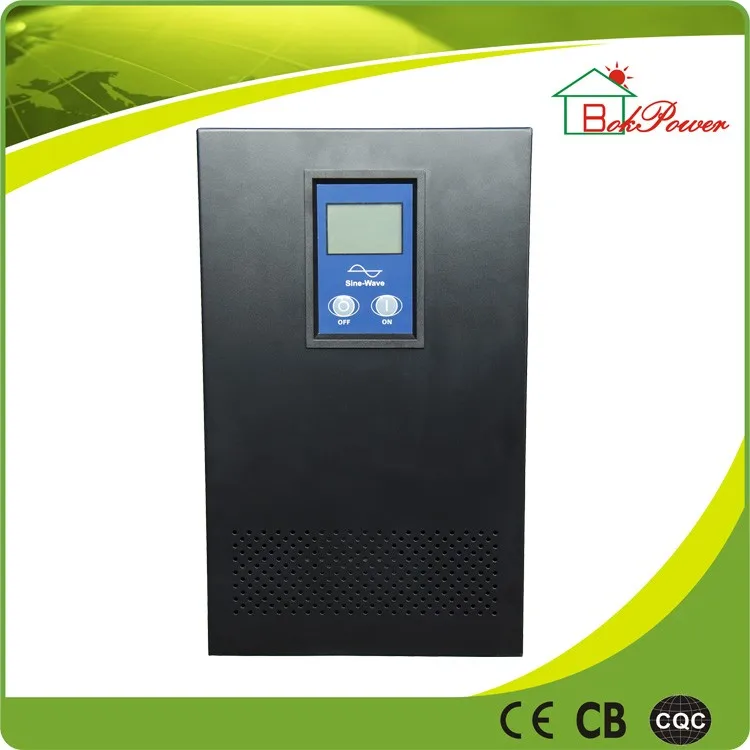

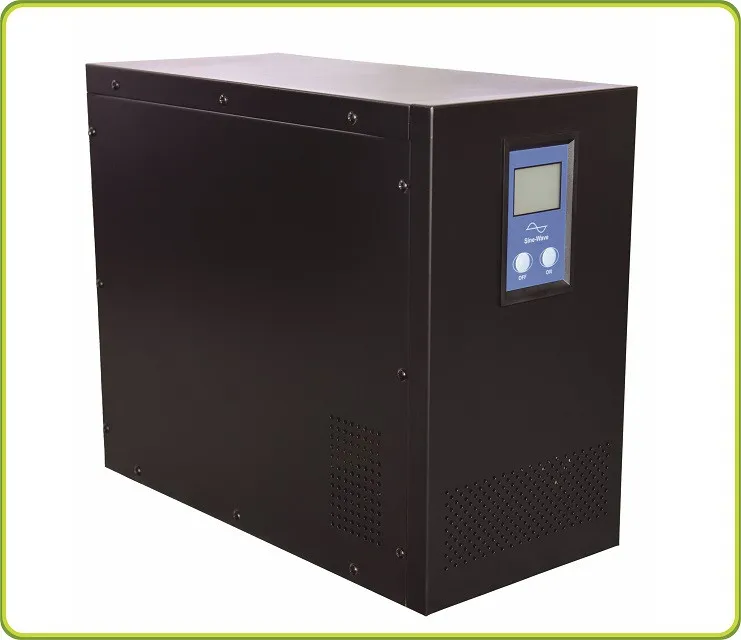

bokai home power inverter ups 5000w

1.Accurate pure sine wave output,strong capacity of differenct load .

2. Smart RS232 communication port .Advanced performance due to the CPU control.

3. Wide range of power input and accurate output AVR.

4. Perfect protection .

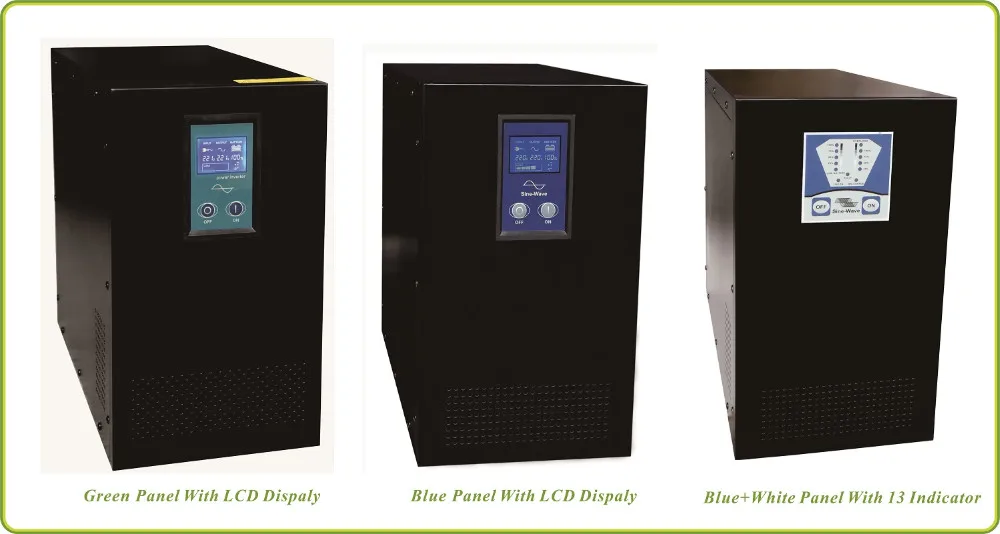

5. LED/LCD display available.

6. UPS start automatically when the main power recover .

7. Intelligent battery management .

Product Introduction

bokai home power inverter ups 5000w characters:

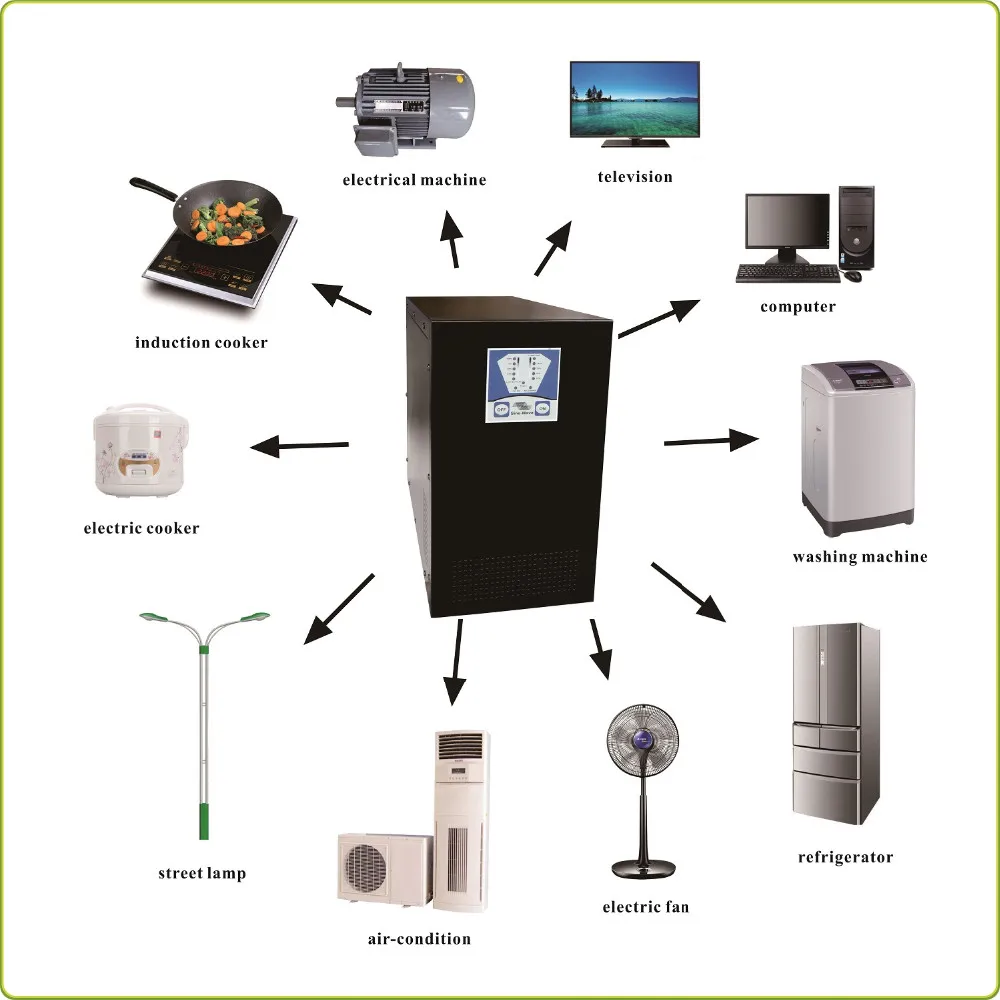

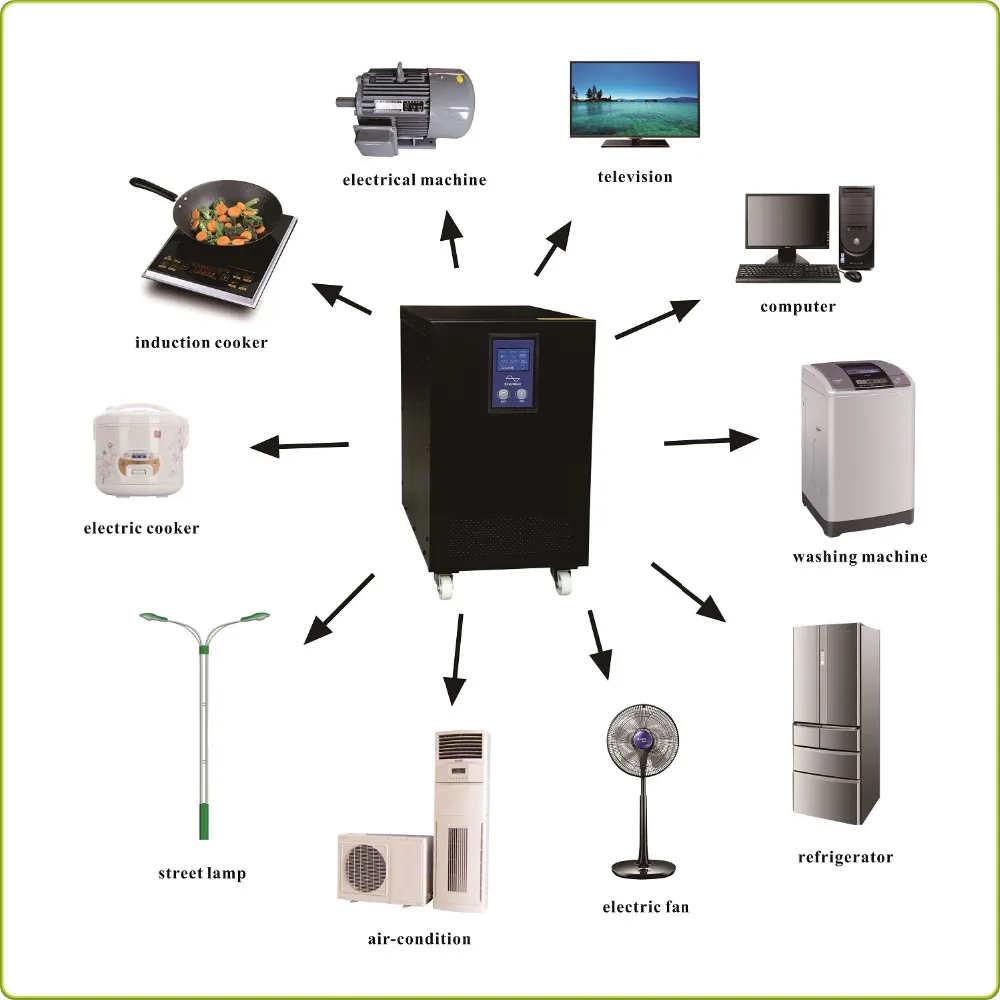

* Pure sine wave output, can be used with different appliance TV ,refrigerator, fan ,air conditioner ,induction cooker,

micro-wave over etc .
* Superaor performance from CPU control technology.

* Wide range of input voltage, accurate output ,AVR function .

* Inner-equipped protection for over-load,short -circuit, over-voltage, low-voltage ,over-heating etc.

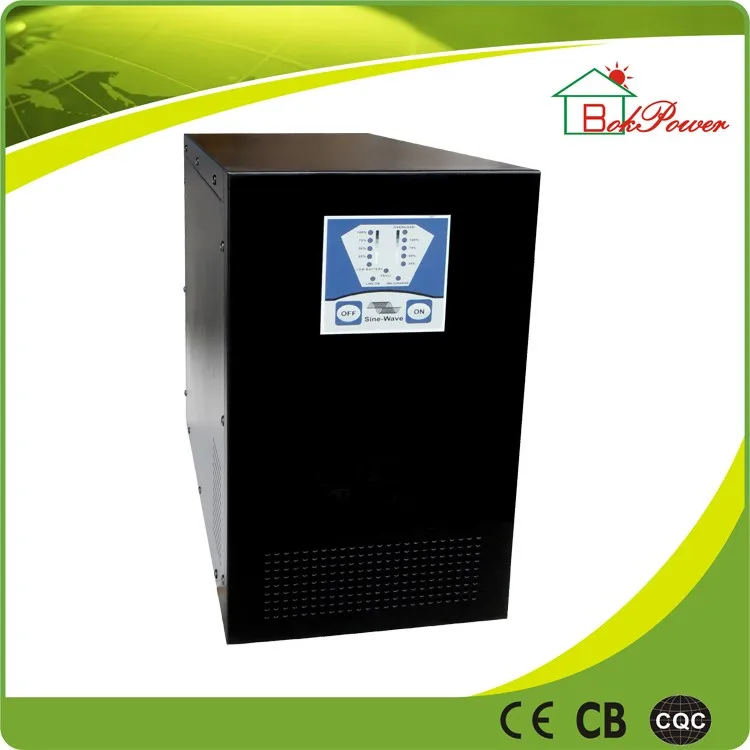

* Easy to check with inverter condition with consice LED indication that can be upgraded to LCD.

* Generator compatibly and extemal battery connection achievable .

* Intelligent battery management with protection against over-charged and over-discharged etc.

Product Parameters

Models	NB1500W	NB2000W	NB3000W	NB4000W	NB5000W	NB6000W
Rated power	1500W	2000W	3000W	4000W	5000W	6000W

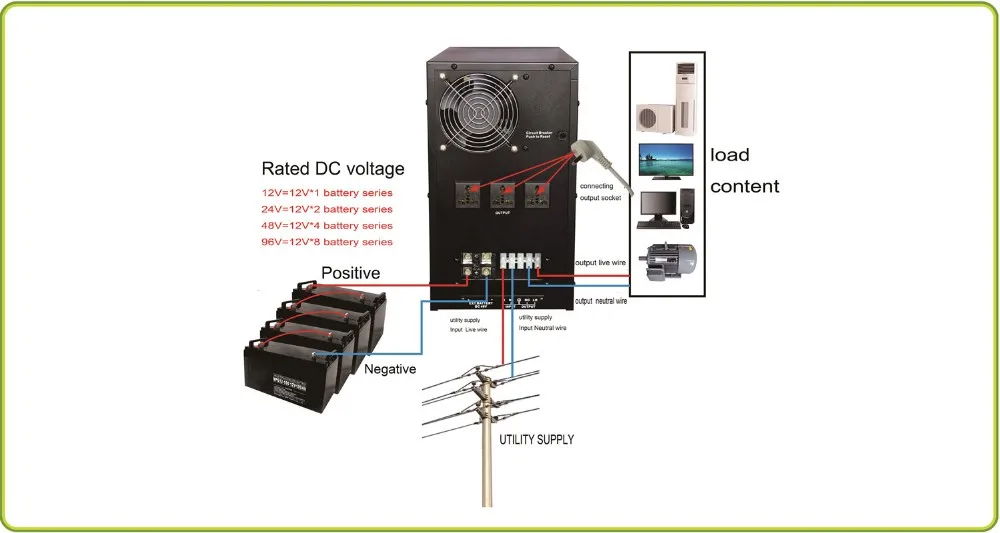

Battery voltage	12V/24V/48V		24V/48V	48V/96V
Product size LWH	460X220X 385MM			460X260X470MM
Net Weight	19KGS	21KGS	25KGS	30KGS	33KGS	38KGS
Package size LWH/ 2PCS	530X300X490MM			555X345X530MM
Gross Weight	20KGS	23KGS	27KGS	32KGS	35KGS	45KGS
Input voltage range(VAC)	100/110/120/127/220/230/240(+2.5%,-4.5%)
Input frequency( HZ)	45HZ-65HZ
Output voltage range(VAC)	Inverter mode 100/110/120/127/220/230/240 ± 5%
Output frequency (HZ)	50/60 ± 0.5HZ Output frequency auto detective
Output waveform	Pure sine wave
Efficiency	91%
THD	<5%
Noise	<52
Battery charge voltage (V)	12V(13.8V ± 0.5V) 24V (27.5V ± 0.5V) 48V(55V± 0.5V) 96V(110V ±1V)
Battery charge current (A)	5-15V (Non-charger available )
Transfer time (ms)	< 5ms
Cold start Power	Rated power 100% ( resistive load )
Low battery voltage trip(V)	12V (10.0V ± 0.5V ) 24V (20V ± 0.5V) 48V(40V ± 0.5V) 96V (80V ± 1V)
Protection functions	Over-load, battery over-charge/discharge, Over-temperature, Output voltage abnormal protection
Power on/off mode	A. Turning on/off by manual , IPS will be started/closed when pressing on/off button . B. IPS is connected with battery, it will start automatically ,when AC comes in(no need to press ON button ).
Beeper alarm	A. When AC works normally,no alarm with IPS . B. When battery in low voltage, beeper alarms one time by second . C. When at over-load, beeper alarms one by second. D. When IPS failed at battery mode, beeper alarms continuously .
Cooling method	Auto detective cooling fan
Display	LED/LCD			Standard/ optional
Working mode	AC/Battery priority			Standard/optional/additional switch

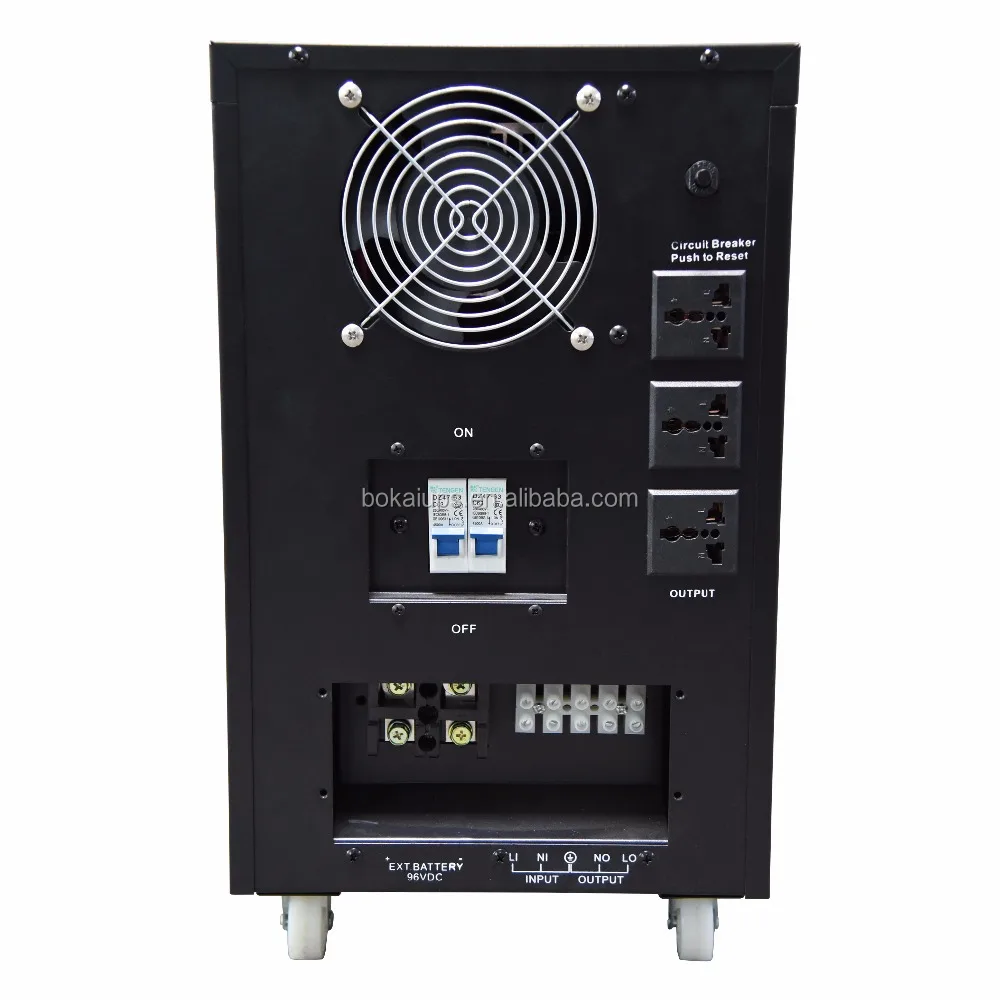

Product Details Show

Why Choose Us

About us

1, ten years factory production experience ; strong production R & D capability ;50-100 skilled workers ; nice & clean production line .

Operation & management

2, Meet customer different custom requirement ; a professional technology,management &marketing talents .

Service

3, Profect pre-sale, on-sale & after-sale service , one year's warranty , OEM & ODM service , free accessories replacement in warranty period and etc.
