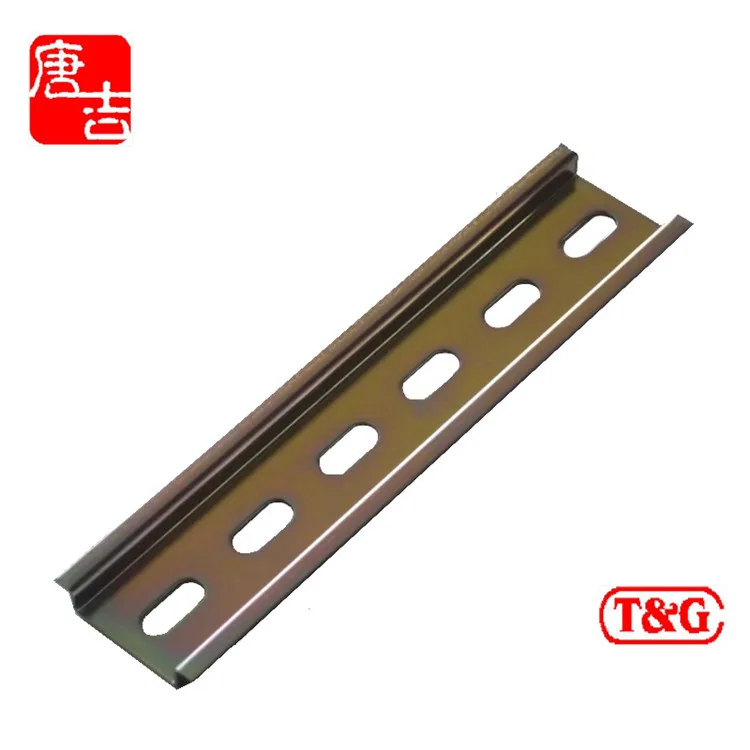

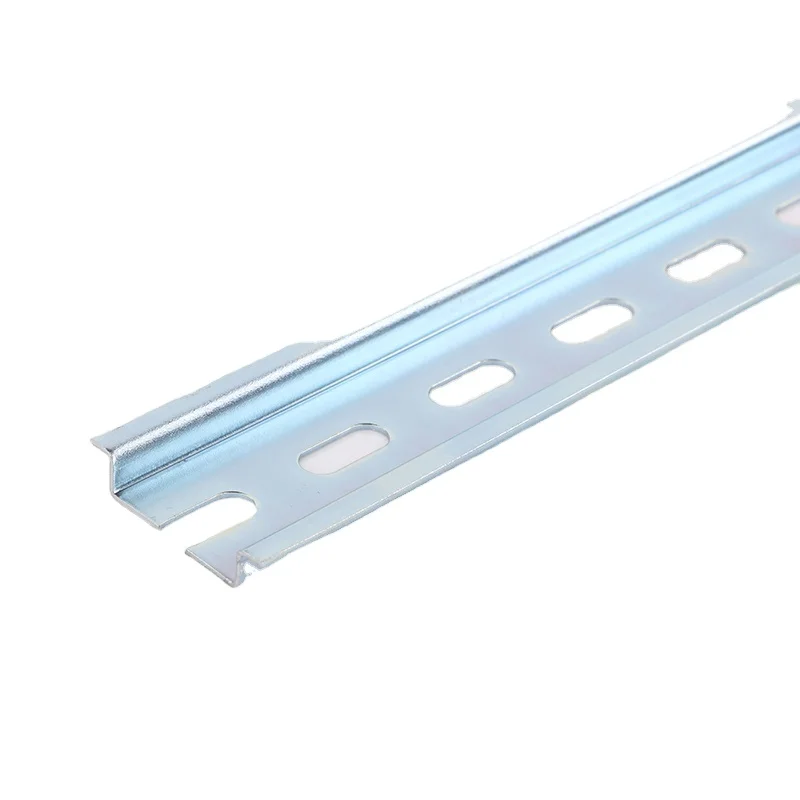

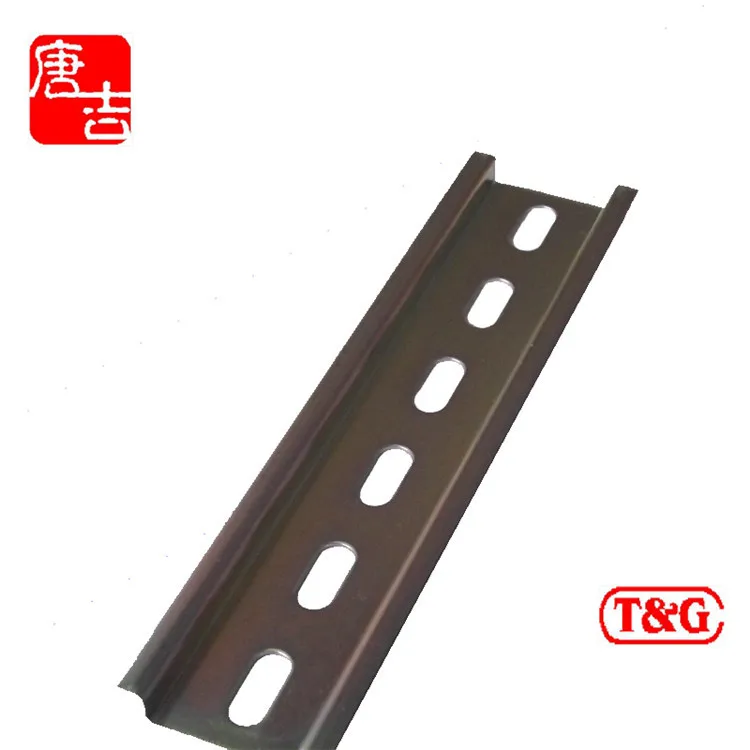

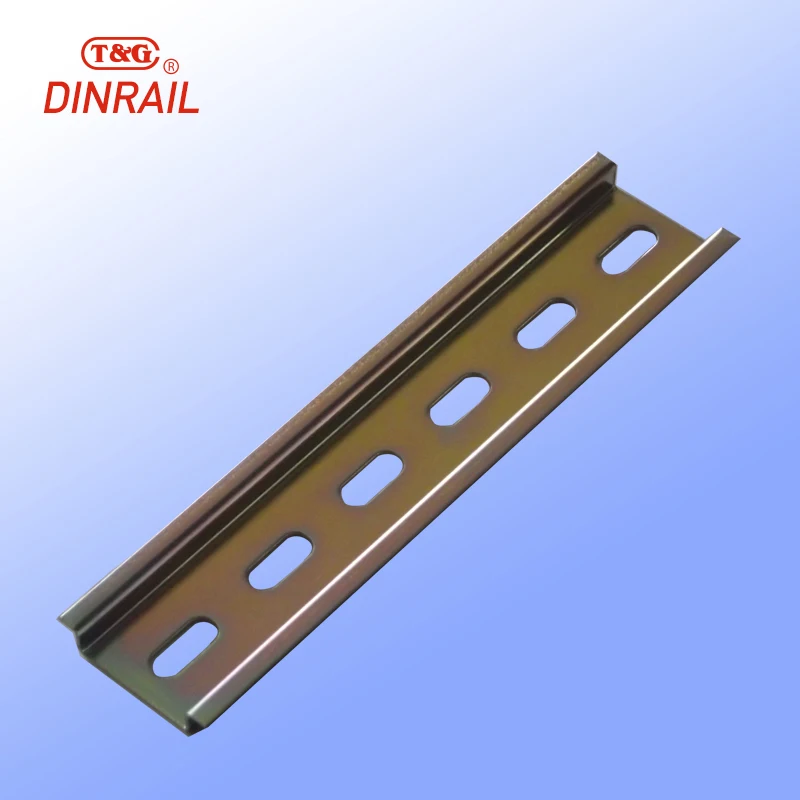

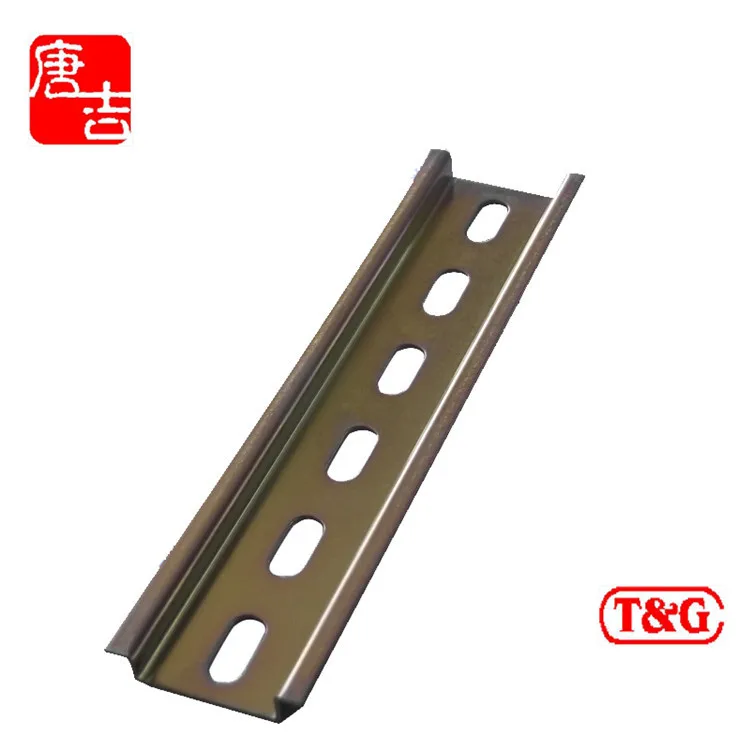

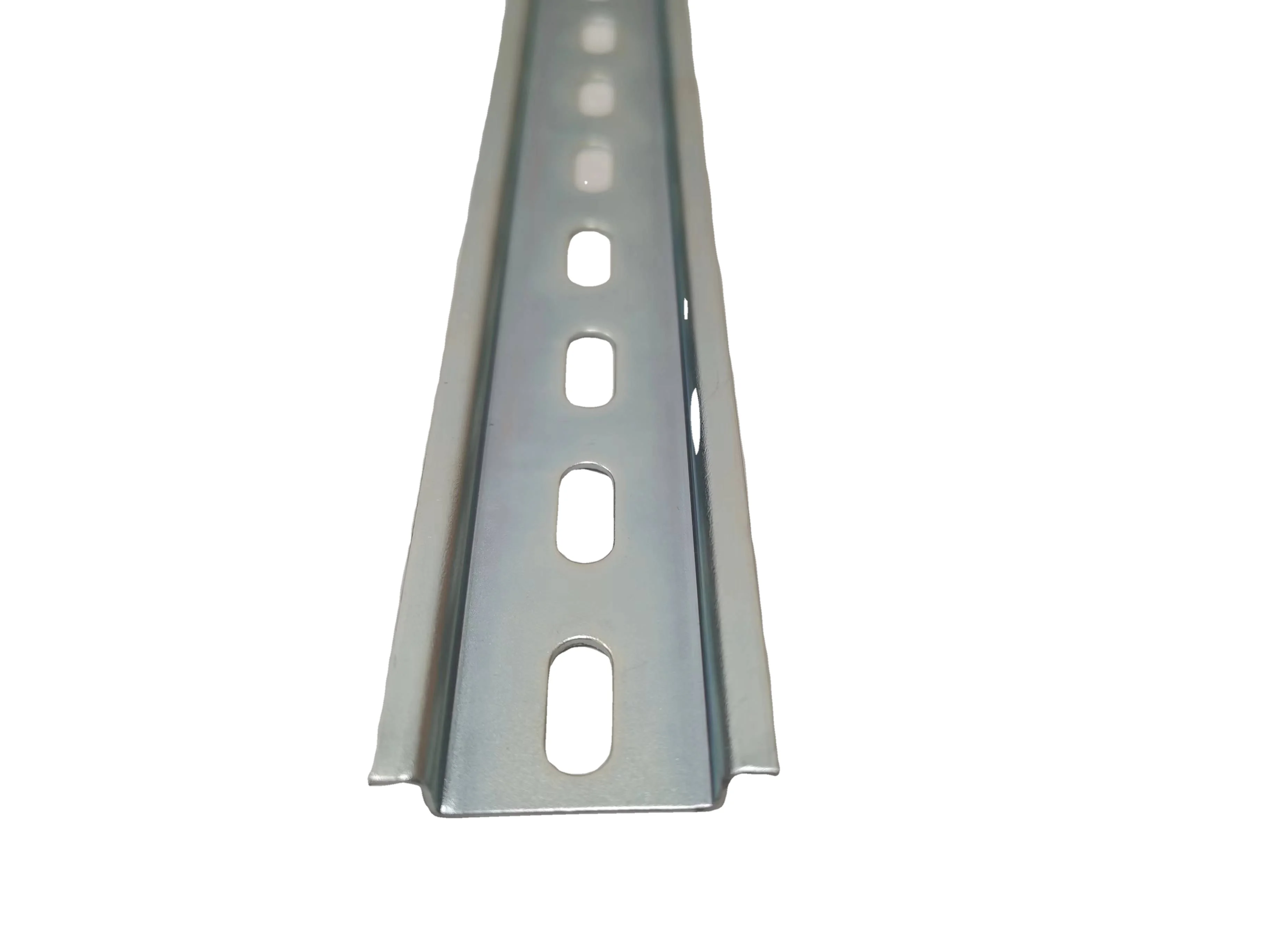

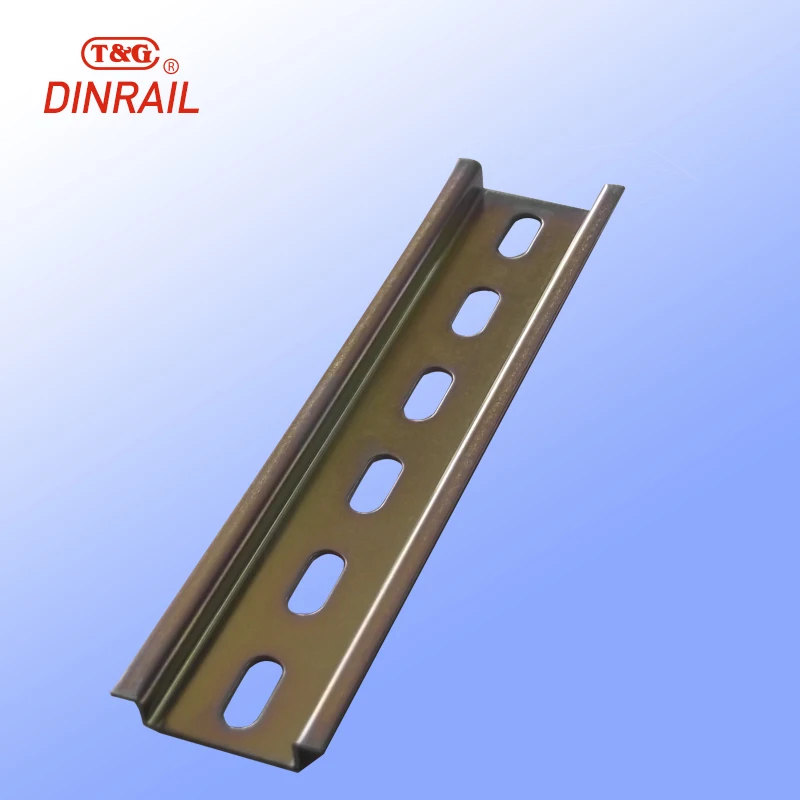

Manufacturers direct Steel 35mm Standard Din Rail
- Category: >>>
- Supplier: Hangzhou T&G Technology Co. Ltd.
Share on (60734733049):
Product Overview
Description
Clod rolled Top hat din rail small steel mounting rail G type rails
DIN-rail mounting :A DIN-rail mounting is a metal rail of a standard type widely used for mounting circuit breakers and industrial control equipment inside equipment racks. These products are typically made from cold rolled carbon steel sheet with a zinc-plated and chromated bright surface finish. The term derives from the original specifications published by Deutsches Institut für Normung (DIN) in Germany
1.Specification
Brand: T&G
Item: 1 meter din rail
Model No.: T&G D357.5E10+
DIN Type: 35 mm standard din rail
Cross Section Dimension: 35mm x 7.5mm x 1.0mm (Width x Height x Thickness)
Slot Dimension: 6.2mm x 15mm on 25mm center (other slot dimension available upon request)
Weight: 0.315 kg per meter
Material: Cold rolled steel with a zinc chromate plating
RoHS Compliance:yes
Standards: EN50022, EN50035, EN60715, IEC715, IEC715, JISC2812, JB6525
2.Detailed information of 1 meter din rail
Din Type | EN60715 |
Material | Cold Rolled Steel |
a zinc-plated and chromated bright surface finish | |
Salt Spray Test | Over 72 hours |
Application | used for mounting circuit breakers and industrial control equipment inside equipment racks |
Model | T&G D357.5E10+ |
MOQ | A.Small Orders is accepted |
B.By Sea: The MOQ.is 1000M will be fine | |
Payment Term | A.L/C,T/T (Bank Transfer,Wire Transfer) |
B.Western Union | |
C.Paypal (For samples fee & Courier cost) | |
D.ESCROW | |
Delivery Time | A.By Courier: 4-7 Working days by special offer |
B.By Air: 7 Working days at appointed airport | |
C.By Sea: 20-25 Working days at appointed port | |
Delivery Term | FOB NINGBO/SHANGHAI,CIF C&F and others |
Supply Ability | 2000000M per year |
Packaging Details | A.Common Packing:100pcs /carton+ export carton |
B.Customized Packing:Over 30000M, Customized package accepted | |
Origin Country | Hangzhou,China |
Certification | No RoHS Compliant |
3.Data Sheet of 1 meter din rail
T&G D357.5E10+ | |
Width | 35mm |
Height | 7.5mm |
Thickness | 1.0mm |
Hole Dimension | 6.2mmx15mm on 25mm center(hole can be customized) |

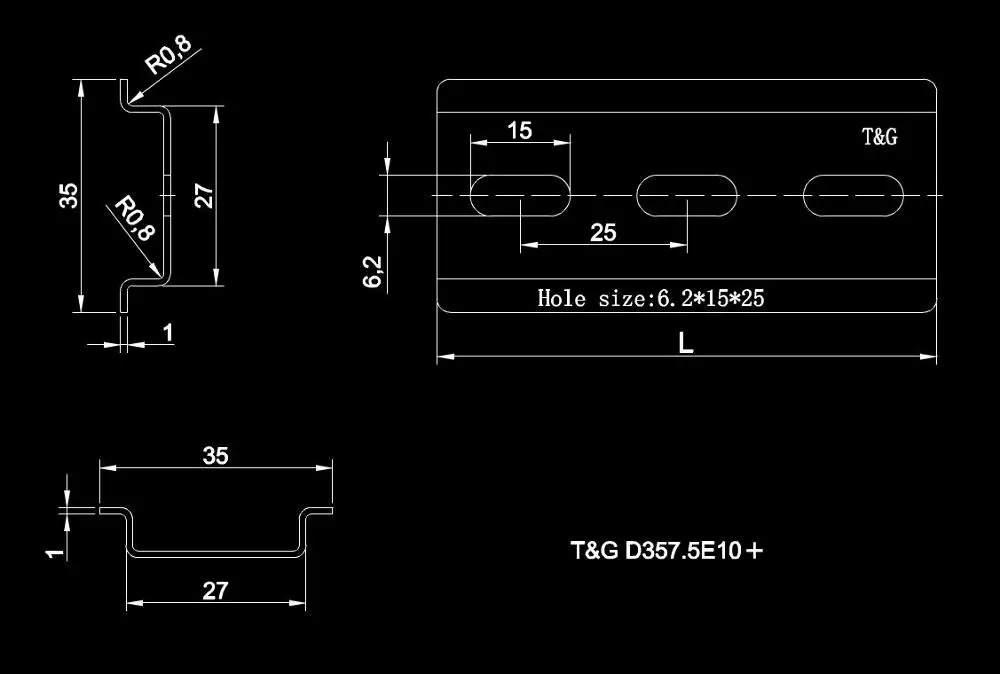

Drawing: | |
 | |
4.Raw Material quality certificate
Other Product
Hangzhou T&G Technology Co., Ltd is located in the beautiful and rich city-Hangzhou, which is the capital and important city and economic and cultural center of Zhejiang Province, enjoying a convenient traffic transportation with express road, railway and airplane.
As one of the China's leading suppliers of DIN Rail, our manufacturer provides over 9 years of experience manufacturing high quality products. Our current product offering includes: DIN Rail, DIN Rail Cutter, DIN Rail Clip and some other Industry Electrical Accessories.
With the joint efforts of all staff, our company has already emerged as the qualified supplier of OTIS and SIEMENS. With the advanced management pattern, professional facility and superior manufacturing technology, our DIN Rails are sold well to domestic markets and as well as International markets.
T&G Technology has been insisting on the management philosophy of creating brand by quality and winning clients by service, we not only supply high quality products, but also offer perfect highly efficient after sales service and technical support for clients.
We sincerely welcome all customers both at home and abroad to visit our company for further cooperation. We believe we can provide the level of expertise and service you deserve.
Main Market
Cooperative Partner
T&G carbon steel rail din is easily fit the DIN Rail cutter manufactured by normal manufacturers.
T&G carbon steel rail din use steel products produced by domestic ultra-large steel works.
All carbon steel rail din are gone through strict inspection before shipment.
