Thailand hot sales high temperature ul94v 0 fire resistant pressure terminal wire connector
- Category: >>>
- Supplier: Foshan Shunde Kaixiang Electrical Co. Ltd.
Share on (60734771828):
Product Overview
Description

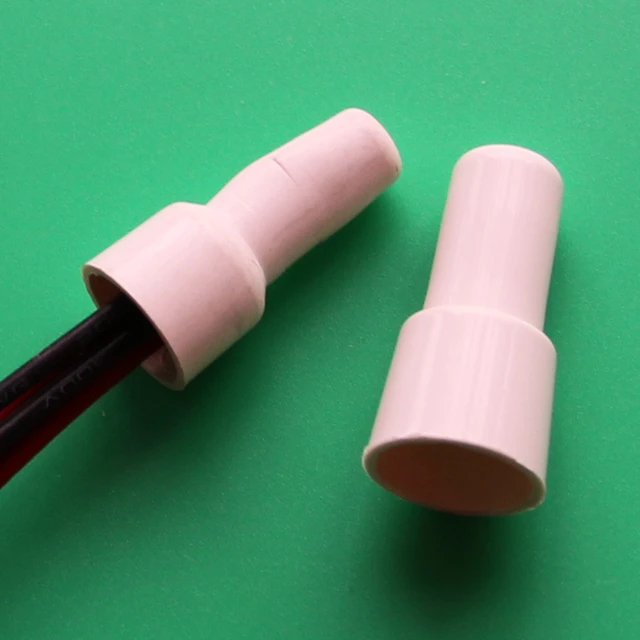

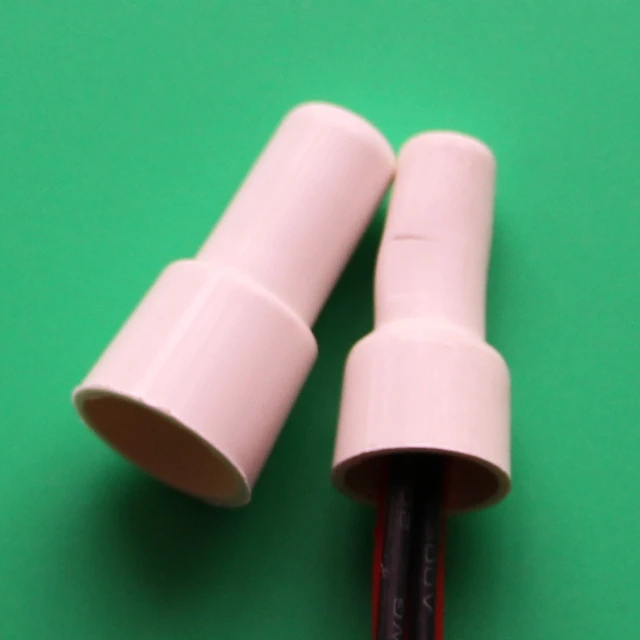

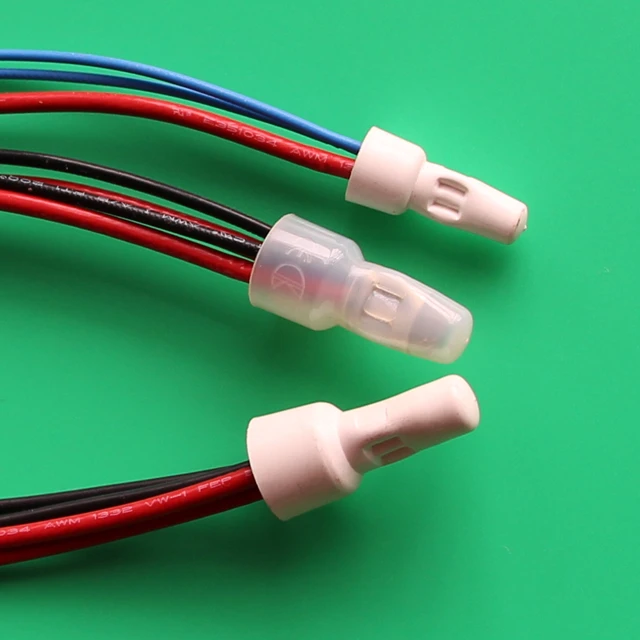

high temperature ul94v-0 fire resistant pressure terminal wire connector
Product Description
- terminal wire connector made of nylon pa66,tin-plated copper tube
- Fire retardant UL94V-2
- Suitable wire Range:A.W.G22-16 for KX-CE1;A.W.G16-24 for KX-CE2;A.W.G12-14 for KX-CE5;A.W.G8.0 for KX-CE8
- Approved certificates:CQC,UL,CE,SGS,ROH
- Widely applied electrical appliance manufacturer,lightings and household wires
- Standard Package:1000pcs/poly bag;20000pcs/carton
Specification For terminal wire connector
| Part NO | Inner material | Temp rating | Voltage MAX | AΦ(mm) | BΦ(mm) | CΦ(mm) | suitable wires(mm²) | A.W.G | Pcs/bag | Pcs/ctn |
| KX-C1 | AL or CU | 125°c(257°F) | 300V | 2.6 | 7.8 | 18 | 1.25 | 22-16 | 1000 | 30000 |
| KX-C2 | AL or CU | 125°c(257°F) | 300V | 3.1 | 9.5 | 20 | 2.0 | 16-24 | 1000 | 20000 |
| KX-C5 | AL or CU | 125°c(257°F) | 300V | 4.4 | 12.5 | 25.5 | 5.5 | 12-14 | 1000 | 10000 |
| KX-C8 | AL or CU | 125°c(257°F) | 300V | 5.3 | 14.3 | 27.5 | 8.0 | 8.0 | 500 | 6000 |
International Standard thickness of aluminum inner tube
Outer shell is made of nylon pa66 imported from USA,Fire retardant UL94V-0

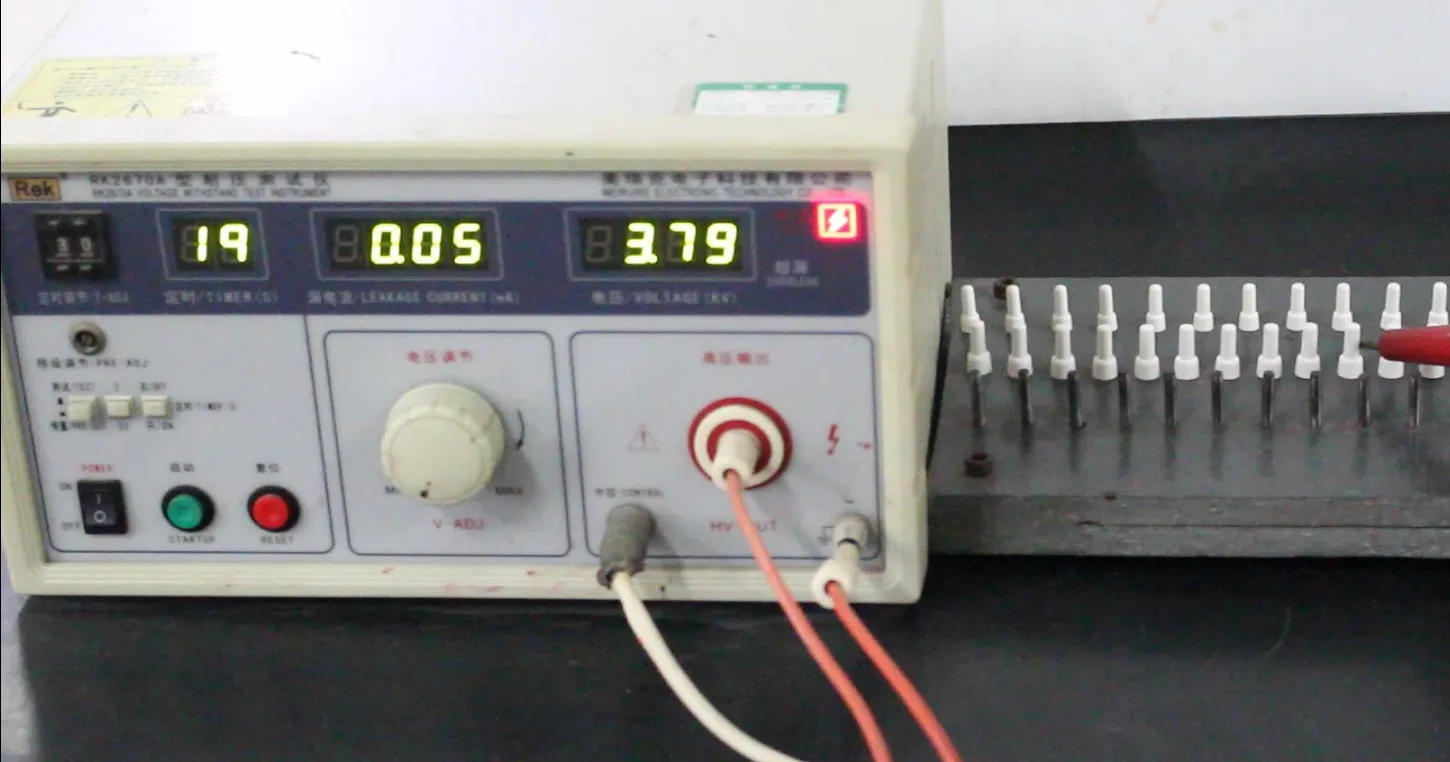

Voltage Test of insulation piecing connector

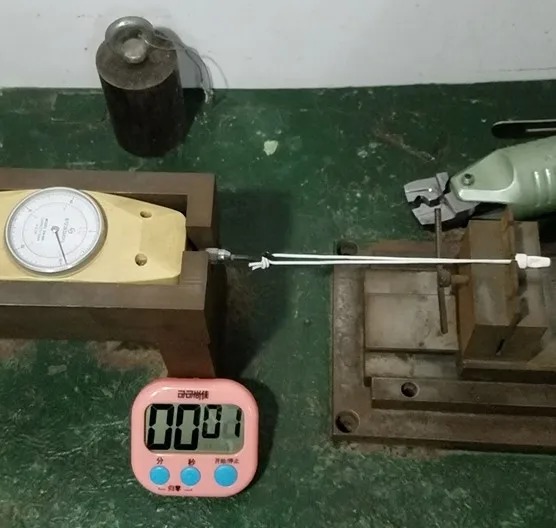

Pull Strength test of terminal wire connector
Warmly Reminding!!!
In order to comptition in the markets,most of manufacturers made the nylon shell and inner aluminum sleeve more shorter and thinner than International standard,or use PE or PP material in stead of nylon pa66,even use second hand material,to gain much unreasonable price,but no any quality guarantee to customers.Crimp terminal will quite easy broken when crimp it and cause fire.
So suggest you compare and measure the size by professional tools,also test fire retardant for wire joint connector.

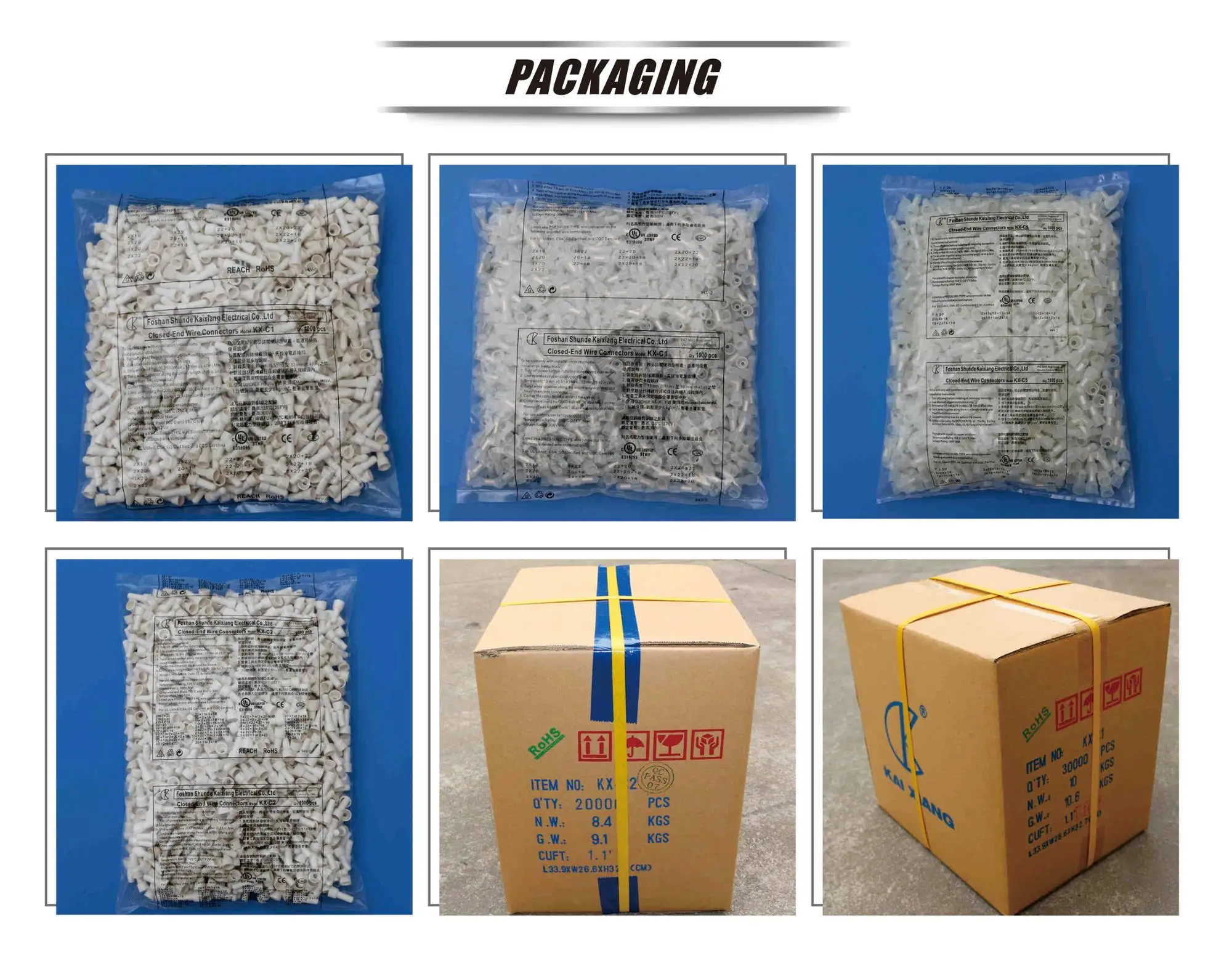

Packaging & Shipping
high temperature ul94v-0 fire resistant pressure terminal wire connector
Our standard package for insulation piecing connector is 1000pcs/poly bag,30000pcs/carton for KX-C1,20000pcs/carton for KX-C2,10000pcs/carton for KX-C5.Also can be customized packages,such as 100pcs per small bags with your company name and logos onto packages.
For quantity below 500000pcs,best shipping way is by courier to your door.We can arrange delivery for you.And more bigger quantity can be shipped by sea to save shipping cost.

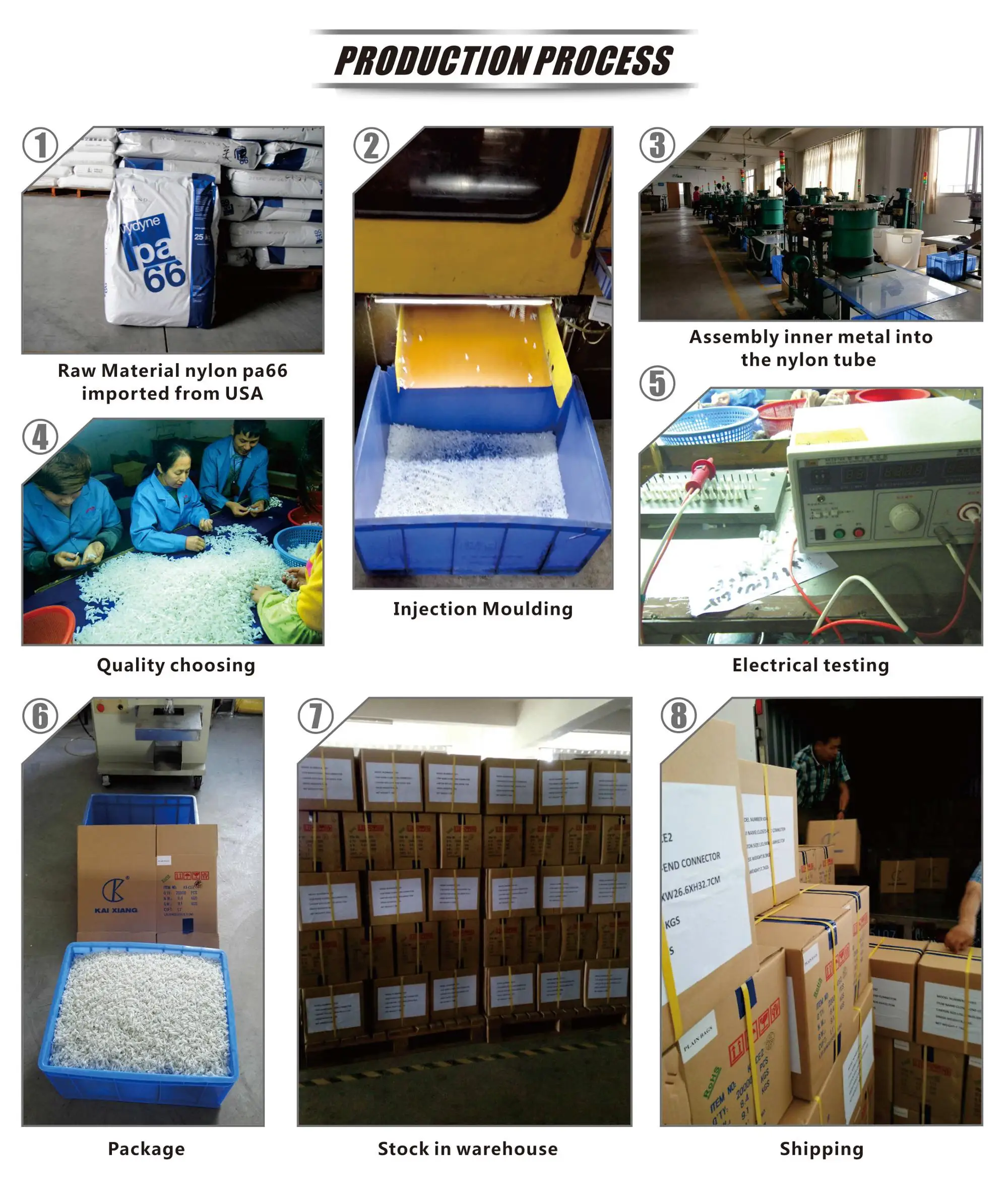

Production Flow
Company Information
We are the biggest and professional manufacturer for KX-C1,KX-C2,KX-C5,KX-C8 insulation piecing connector,2-way and 3-way quick connect terminal block,R type cable clamps,strain relief bushing in Mainland China.Best quality Quality is our first aim target.
All our products have been approved from UL,CE,SGS,as well as meet the requirement of ROHS.
Certifications
Trade Shows

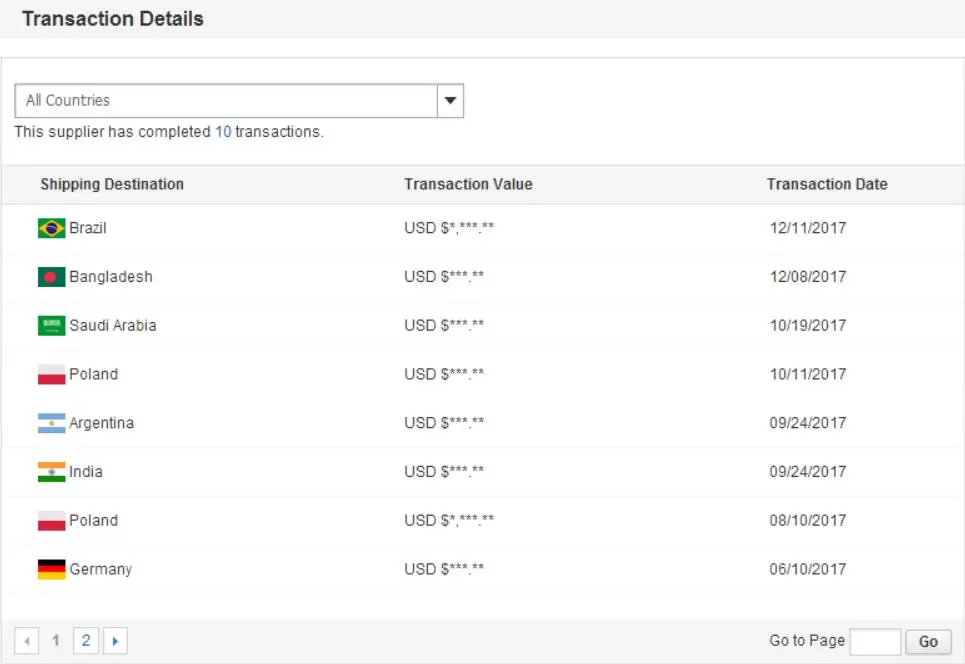

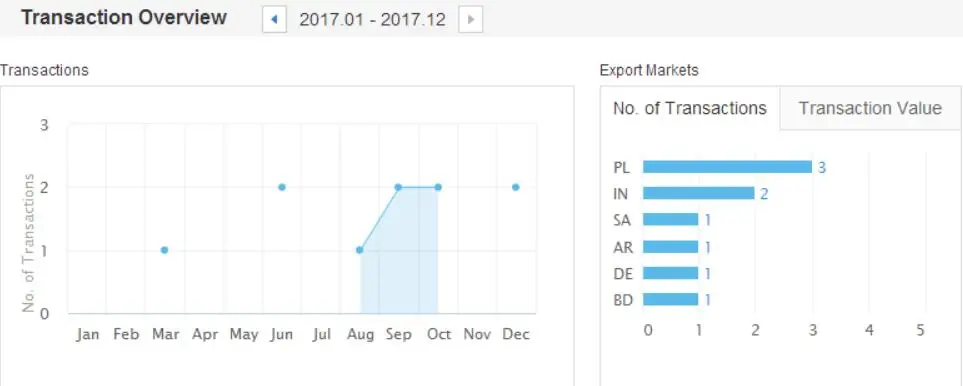

Transctions
Contact
Foshan shunde Kaixiang Electrical Co.,ltd
Tele:0086 075725333011
Fax:0086 075725525522
Cellphone:0086 17828100290
Wechat&whatsapp:0086 17828100290
Skype:flm198788
Address:No.1,Baizhang Industry Area,Leliu Town,Shunde District,Foshan City,Guangdong,China
