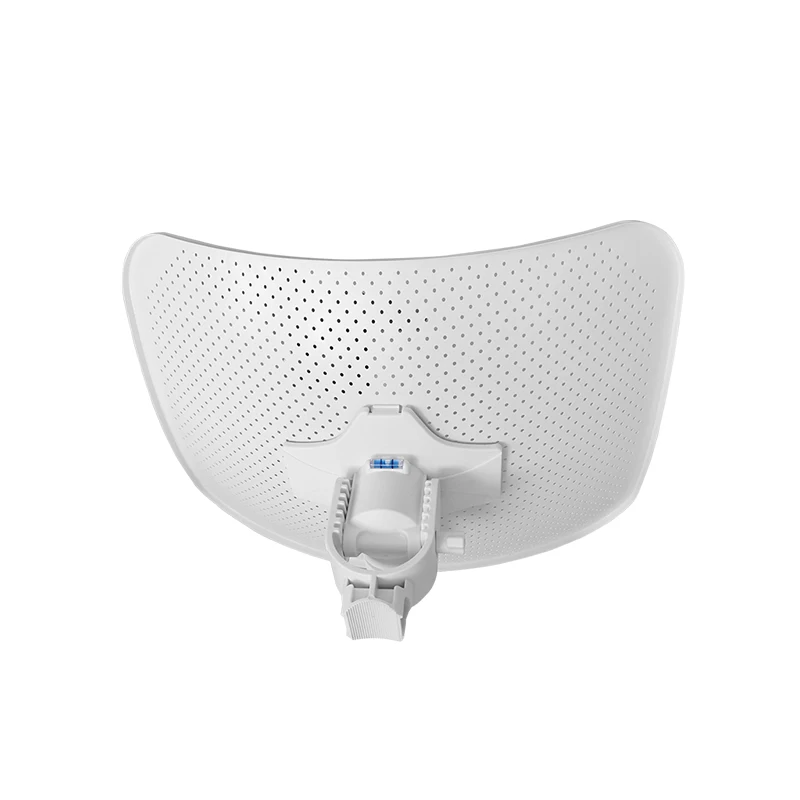

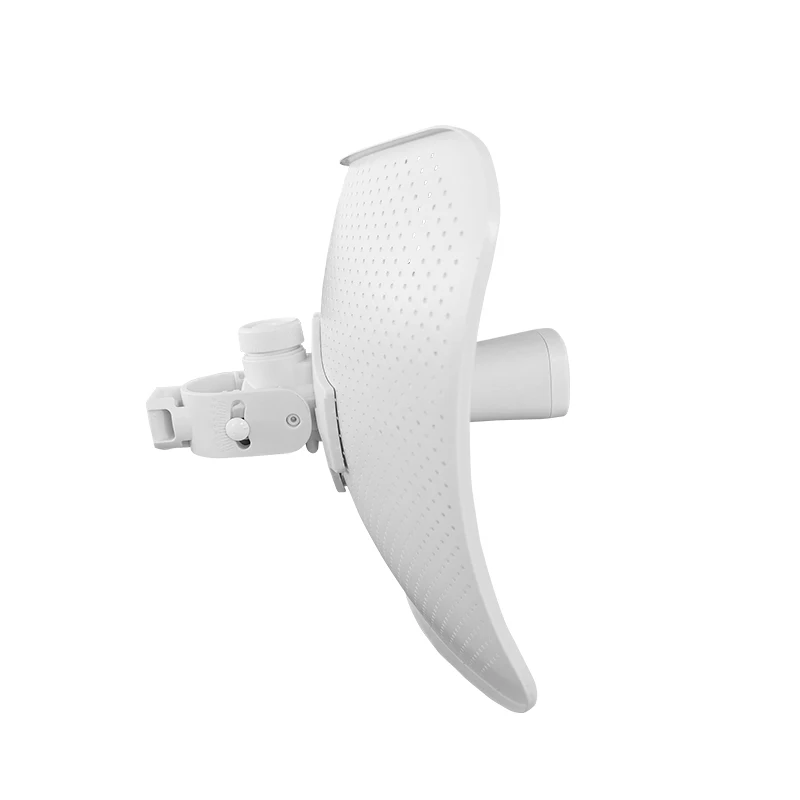

10km 5 ghz wireless network bridge backhaul video transmission long range

Share on (60734780590):


Price:RUB 4,983.90

Quantity:


Product Overview

Description

Product Description

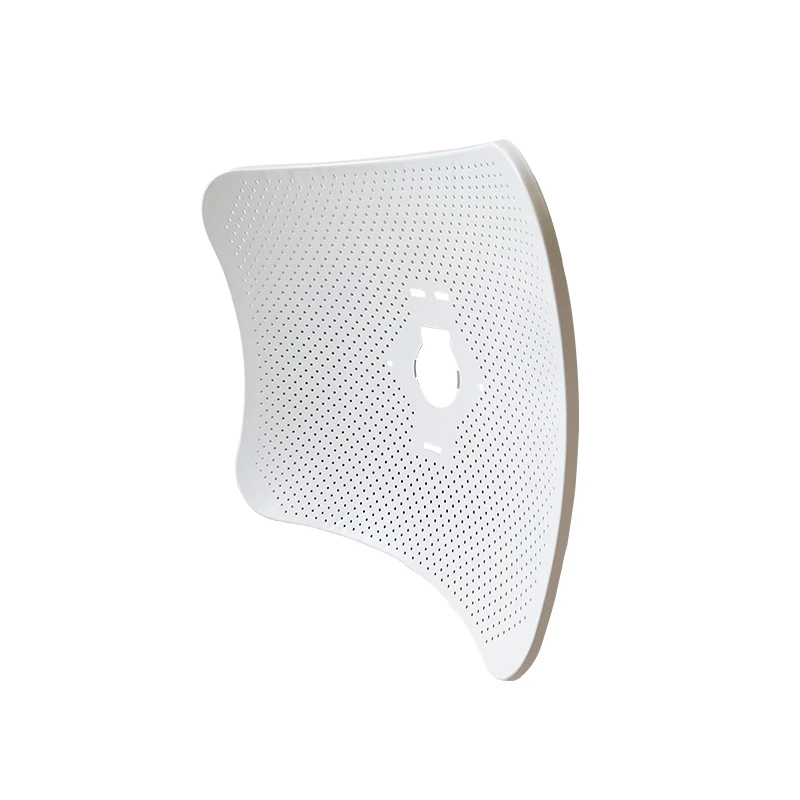

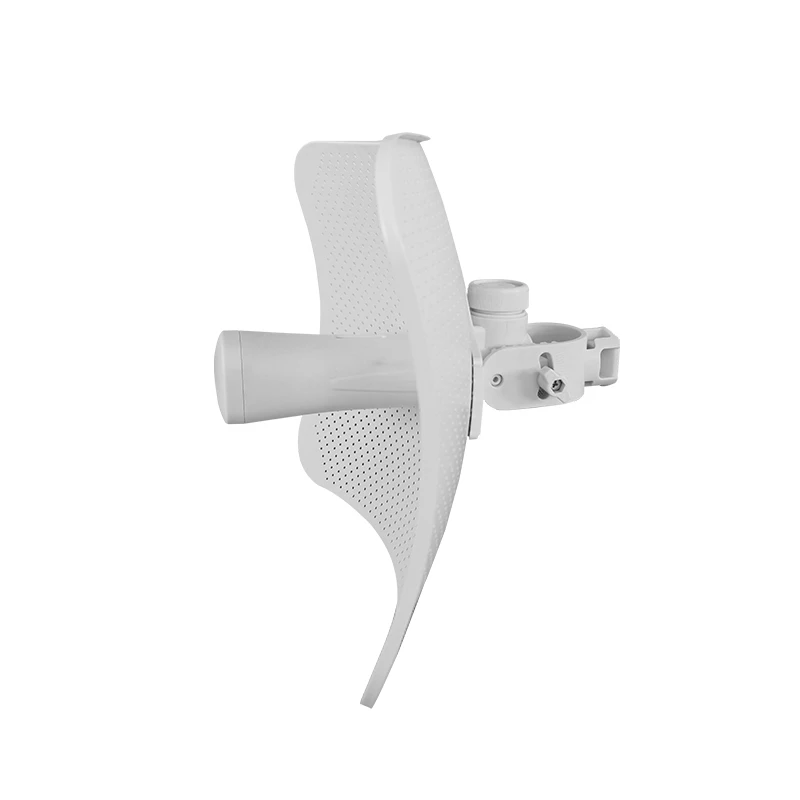

10km 5 ghz wireless network bridge  backhaul video transmission long range



Frequency:  5GHz

Throughout: 866Mbps

Range: 120km



This device is usually used for long distance network backhaul transfer.

We can offer profssional wireless solution for customers. And all devices will program well before sending to you.



10km 5 ghz wireless network bridge  backhaul video transmission long range

WLAN Standard

IEEE802.11a/n/ac, Ipoll

Transmission Model

   2x2 MiMO

Frequency

5.150-5.850GHZ(FCC 5.745-5.825 GHZ)

Tx Power

Up to 29dBm(Country Dependent)

Receiving Sensitivity

-97~-75DBM

Channel Width

5, 10, 20, 40MHz

Modulation

802.11A/N: OFDM(64-QAH, 16-QAH,QPSK, BPSK)

802.11AC: OFDM(256-QAH, 64-QAH, 16-QAH, QPSK, BPSK)

Data Rate

802.11AC@40MHz: 400,360,300,270,240,180,120,90,60,30Mbps

802.11AC@80MHz:866,780,650,585,520,390,260,195,130,65Mbps

Duplex Transmissions

TDD

Error Correction

FEC, Superposition ARQ

Antenna

Type

Integrated dual polarization directional antenna

Antenna Gain

23dBi

Networking Interface

2x10/100Mbps Base-Tx (Cat.5, RJ-45) Ethernet Port

1pc RESET Button

Physical / Electrical

Enclosure

Outdoor UV Stabilized Plastic

Antenna Gain

Outdoor UV Stabilized Plastic

Dimension

379*387*100mm

Weight

4kg

Ingress Protection

2KV Lightning Protection

IP67 level

Power

Power Supply

POE Power 12~24V0.5A

 4.5W

Environment

Operating Temperature

-40~65℃

Operating Humidity

0~90% condensing

Certification:  FCC/IC/CE Standard

 _01

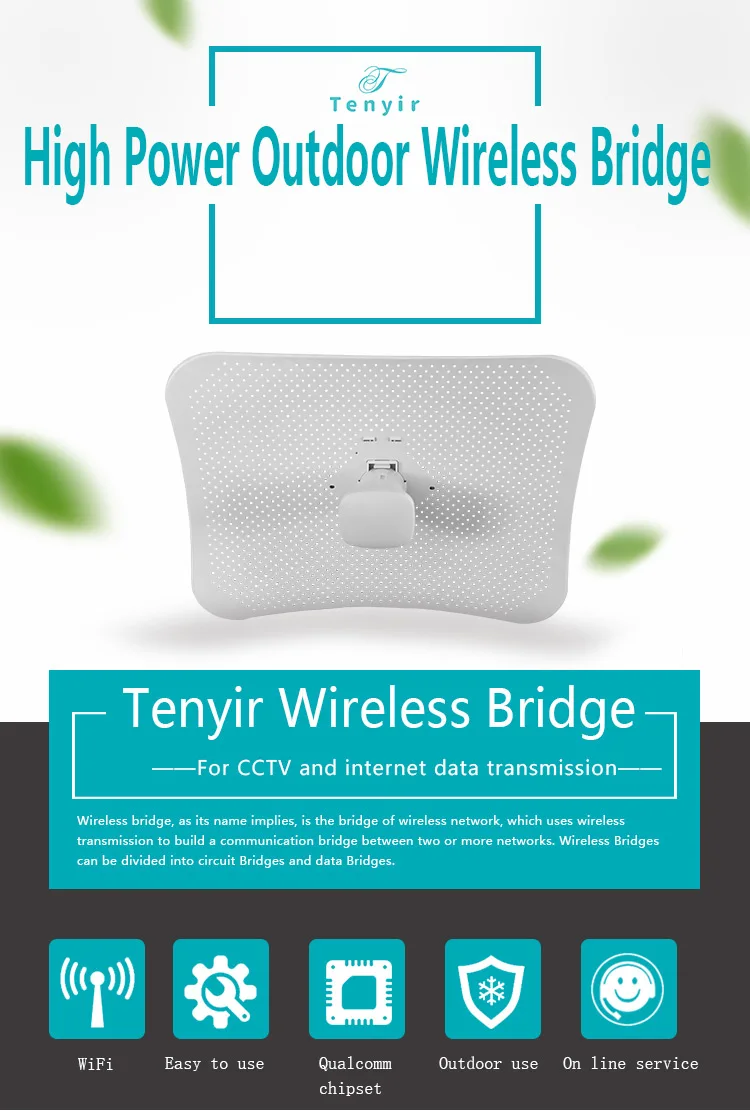

High performance and Quick transmission

stability transmission , built-in antenna

 _02

Made of ABS material

Reasonable outlook design, the network cable can easily connect to the port.

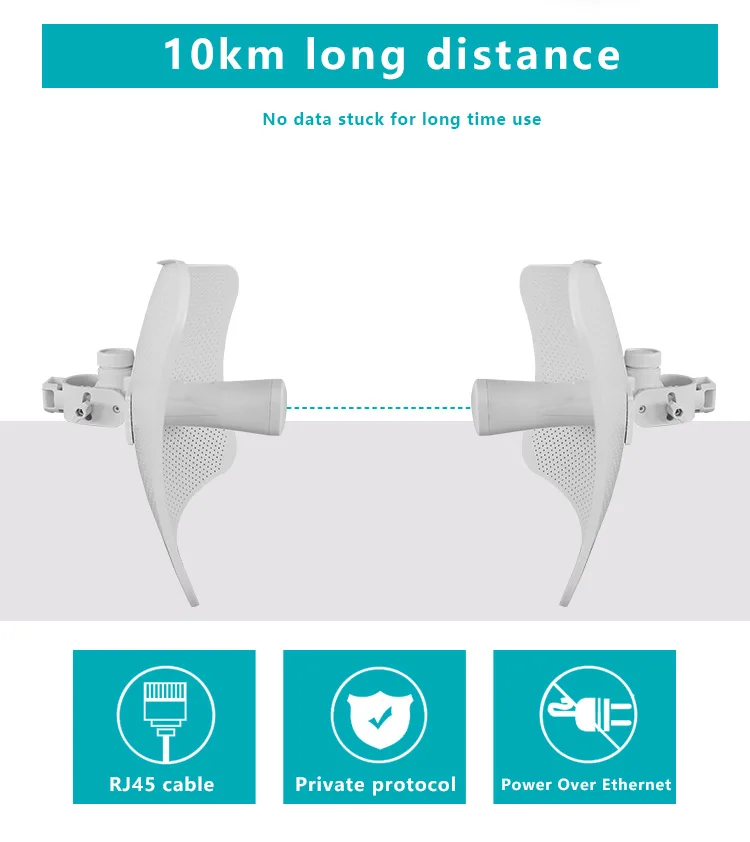

 _06

Chipset

Intelligent chipset, stable transmission

This equipment uses Qualcomm industrial chip, with a great load carrying capacity, fast processing speed, stable transmission speed.

 _08_07

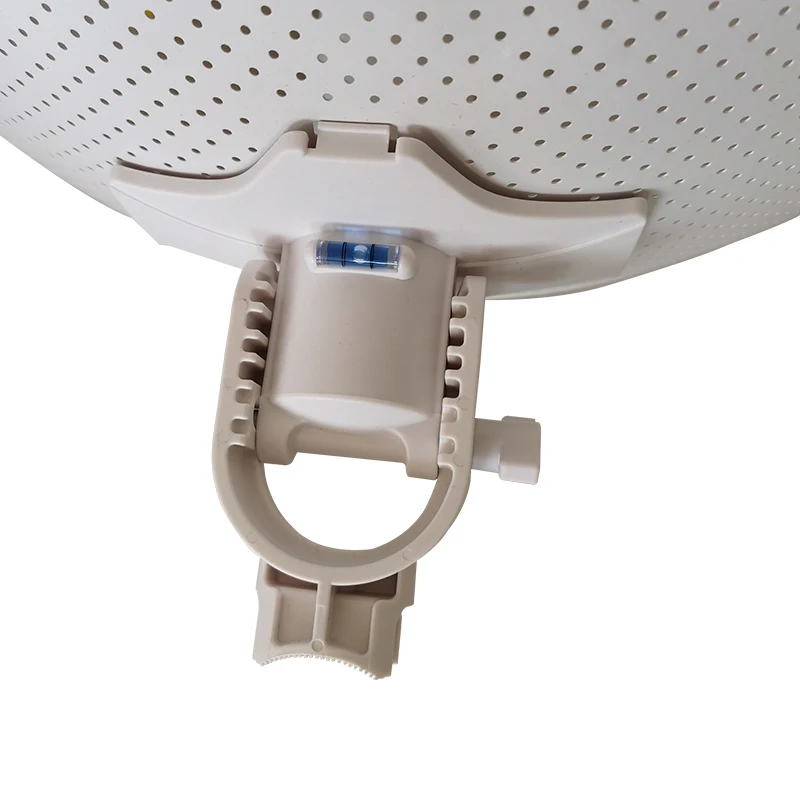

Easy installation:

1. band mounting

2. Bracket mounting

3. Nail wall installation







Julie Duan

(Sales manager)

 MOB/WHATSAPP/WECHAT: +8613053343538

SKYPE:  live: dbde8b47563e9012

QQ:2933997631

Solution


Company Information

Factory Overview

Shandong Tenyir Tech Inc was established in 2010, mainly offer enterprise networking equoipment and long distance wireless solutions for CCTV and WISP projects. We own rich experience in the wireless CCTV and WIFi cover projects.

With mas bandwidth 1Gbps, max PTP distance 50km, we have the whole product line.

Zibo Zunzhi trading co. ltd. is a subsidiary company of Tenyir Tech, which is a one-stop online shop specilized in CCTV related devices.

Through more than 8years experiences, we are very familiar for each brand quality and price system. We have ability to offer your suitable products, according to your request.

.jpg

Our Team

We are a very energy team, most members of our team are the generation after 90s and 80s. Team training makes us keep high quality devices and services for our customers. If our sales team have some technical problems, we will try to solve it by ourselves or cooperation with technical team, to quickly response our customers.





Why Choose Us





20180118164531

Equipment advantage:

Service advantage:

· Effectively solve wiring troubles.

· powerful chip stability

· Hide SSID, prevent Wi-Fi squatter

· Rainproof and dustproof, High and low temperature resistant shell.

· No setup, plug and play

· 5.8G Anti-interference frequency band

· Within 30mins quick response

· One-on-one engineer technical support services

· Professional engineers provide free guidance.

· Plenty of success case

contact

FAQ

How can i get product price list?

Contact us by email, trademanager, skype or send inquiry to us.

Can i get samples to test before placing an order?

Yes, welcome to get samples to test and check their quality.

Can we use our logo and design?

Yes, customization is acceptible for bulk order.

What is the product warrenty policy?

Twelve-month warranty. If any problems appear when you use, please feel free to contact us.

I don’t know how to install it. Can you help me?

Of course. You can contact us for solution. Once we receive your enquiry, we will reply back to you within 12 - 24 hours.

How do we pay you?

We accept T / T , PayPal, Western Union and other payment methods.
