China starch plough shear mixing machine / horizontal dry food powder plow mixer with spraying
- Category: >>>
- Supplier: Shanghai Tandy Machine Manufacturing Co. Ltd.
Share on (60734786661):
Product Overview
Description
China starch plough shear mixing machine / horizontal dry food powder plow mixer with spraying
Product Description
Features of starch plough mixing machine :
Plough shear mixer is formed circular cylinder barred, drive mechanism, plough shears, discharging vent and other devices ; plough share inside mixer is rotating with main axial so that the materials along with the cylinder cantilever radial circumferential turbulence, at the same time the radial material through shear group, was scattered by the high speed sheer ,constant alternation, compound, the materials is mixed uniformity in short time.
1. It is high speed to the materials for cutting , crushing ,blending.
2. It is with attractive appearance under advance processing technology , there is smaller gap between plough shear and barrel .
3. Main shaft seal with PETP seal and air -purged seal .
4. It can be added heating or cooling jacket device if necessary .
Technical Parameter
Reference paramete of starch plough mixing machine :
Model no. | Effective volume(L) | Loading coefficient | Power(KW) | Rotate speed(R/min) | Size(mm) | Weight (kg) |
TDP-200 | 200 | 0.6-0.8 | 4.0 | 53 | 1850X860X1100 | 420 |
TDP-300 | 300 | 0.6-0.8 | 5.5 | 53 | 1900X900X1200 | 680 |
TDP-500 | 500 | 0.6-0.8 | 7.5 | 45 | 2050X1050X1250 | 890 |
TDP-1000 | 1000 | 0.6-0.8 | 11.0 | 45 | 2500X1200X1350 | 1360 |
TDP-1500 | 1500 | 0.6-0.8 | 15.0 | 39 | 2950X1350X1400 | 1780 |
TDP-2000 | 2000 | 0.6-0.8 | 18.5 | 39 | 3100X1500X1650 | 2260 |
TDP-3000 | 3000 | 0.6-0.8 | 30.0 | 31 | 3650X1680X1920 | 3150 |
Pls feel free to contact us if you need more technical parameters! | ||||||
More Picture Show

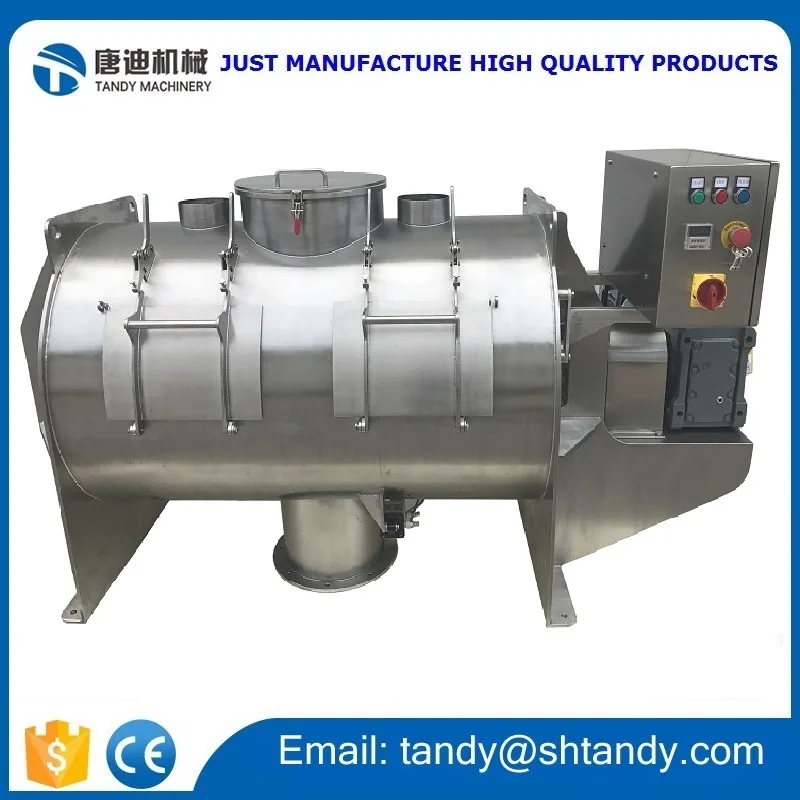

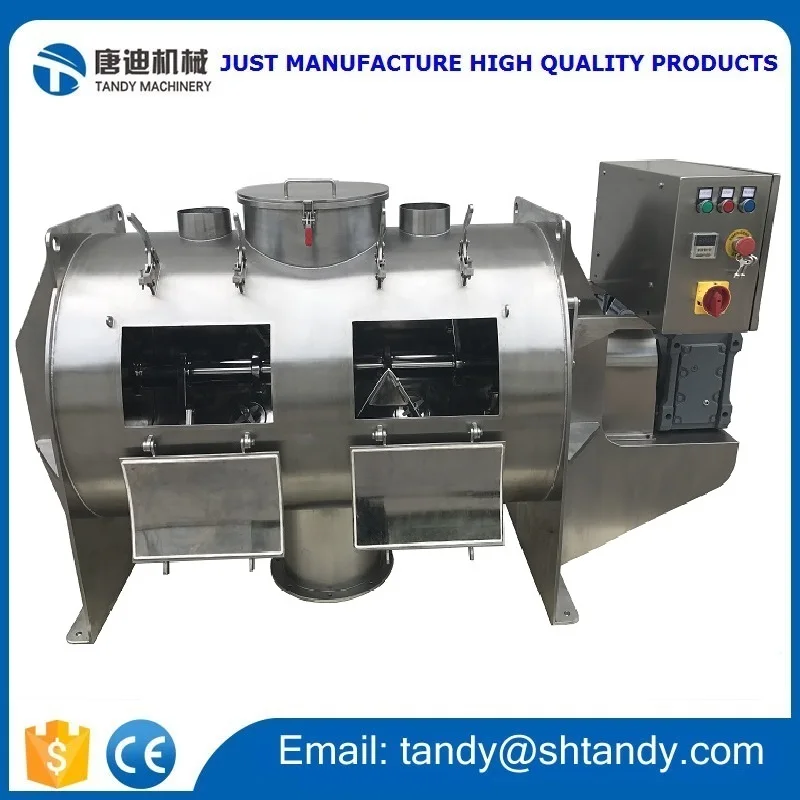

Picture of starch plough mixing machine :
Packaging & Shipping
Packaging& Shipping
Company Information
Our factory :
Our Exhibition :
FAQ
FAQ:
1. Manufacturer or trading company : Manufacturer
2. Location : Songjiang district , Shanghai
3. Selling markets: Euope , American , Australia , Asia , Africa
4. Customized: Available for customized designs
5. Delivery time: 15 - 30days
6. Warranty period: 1 year
