MSG 450 HSS metal circular saw blade tooth making coping machine

Product Overview

Description

MSG-450 HSS metal circular saw blade tooth-making coping machine



Product Description
This machine is easy to operate, the cutting angle, tooth shape and tooth depth on the saw are easy to adjust, with a high precision, sharp and durable.
2. Quick adjustments can be made according to the various thicknesses of the coping saw bits.
3. The head section can be adjusted or swinged upward or forward willingly, coping and beveling can be made without exchanging the abrasive disk.



Technical parameter

Specification/Model	MSG-450
Diameter of saw blade	Φ50mm-Φ450mm
Max distance of the tooth	25mm
Max depth of the tooth	8mm
Degree	-35
Feeding speed	45-180 teeth/minute
Max thickness of the blade	8mm
Diameter of the grinding wheel	Φ75mm-Φ150mm
Speed of the grinding wheel	4200RPM(60HZ)
Driving motor	1/2HP
Grinding motor	3/4HP
Size	800mm x 800mm x 1410mm
Weight	130kg

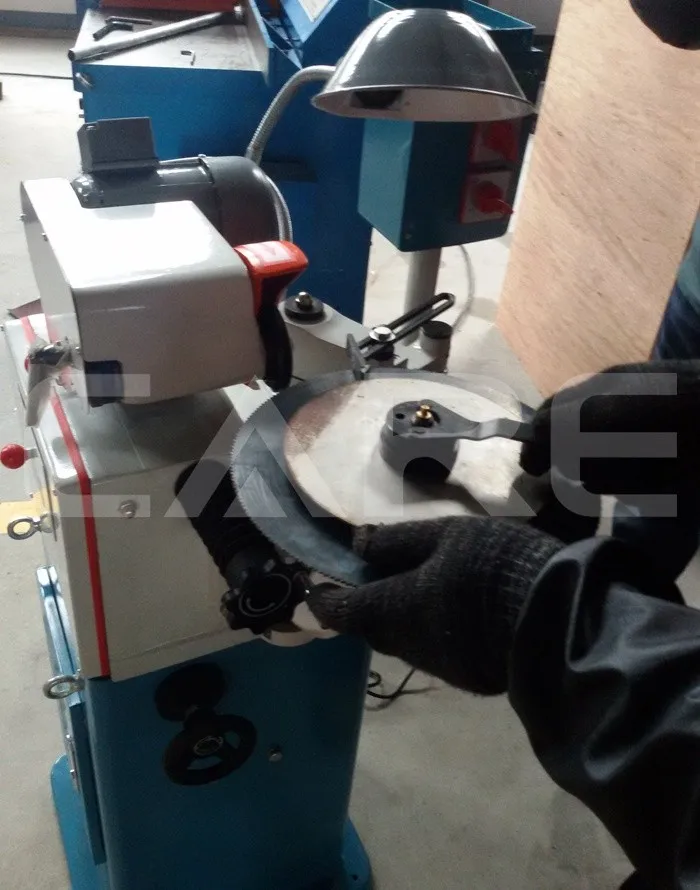

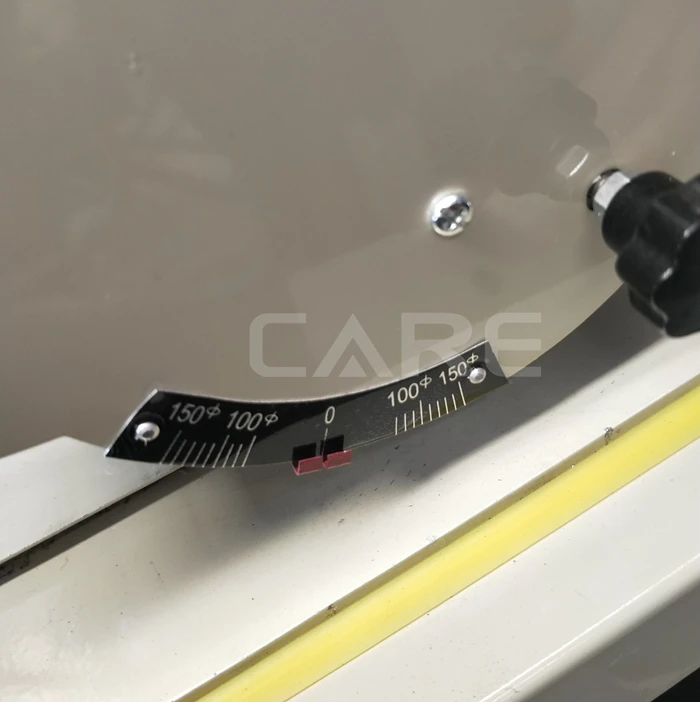

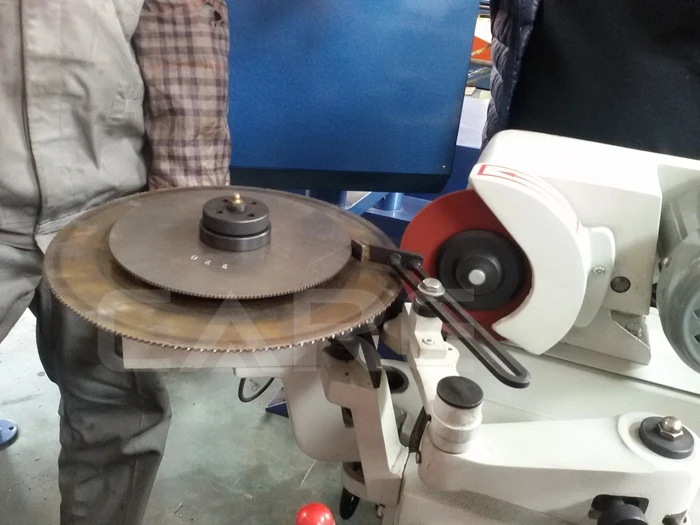

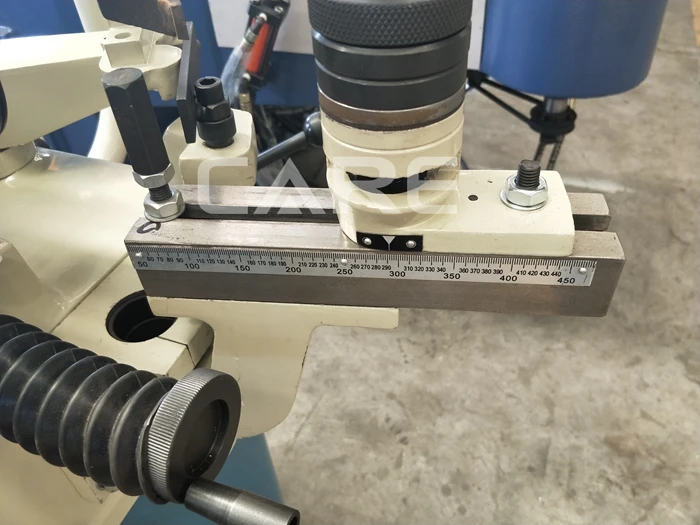

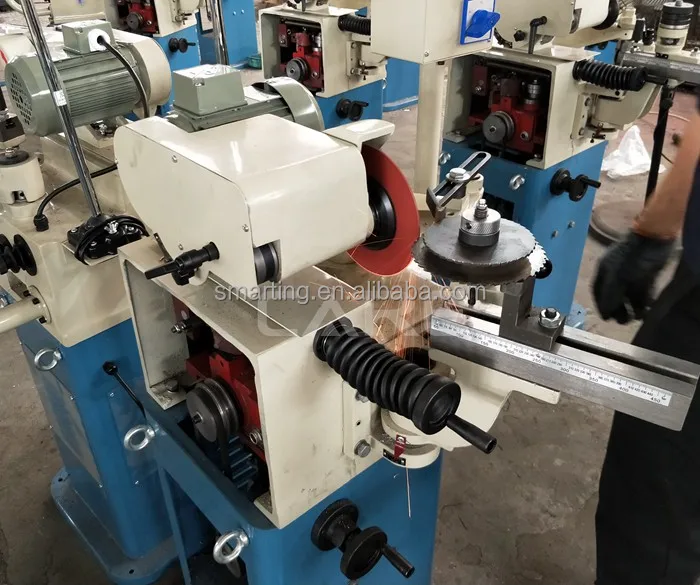

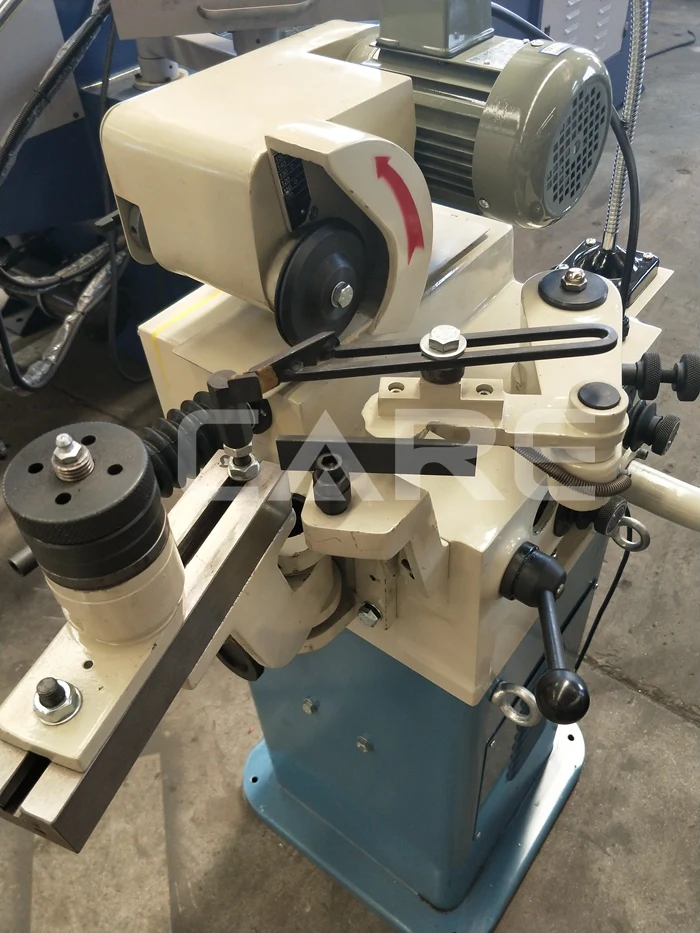

Machine photo
