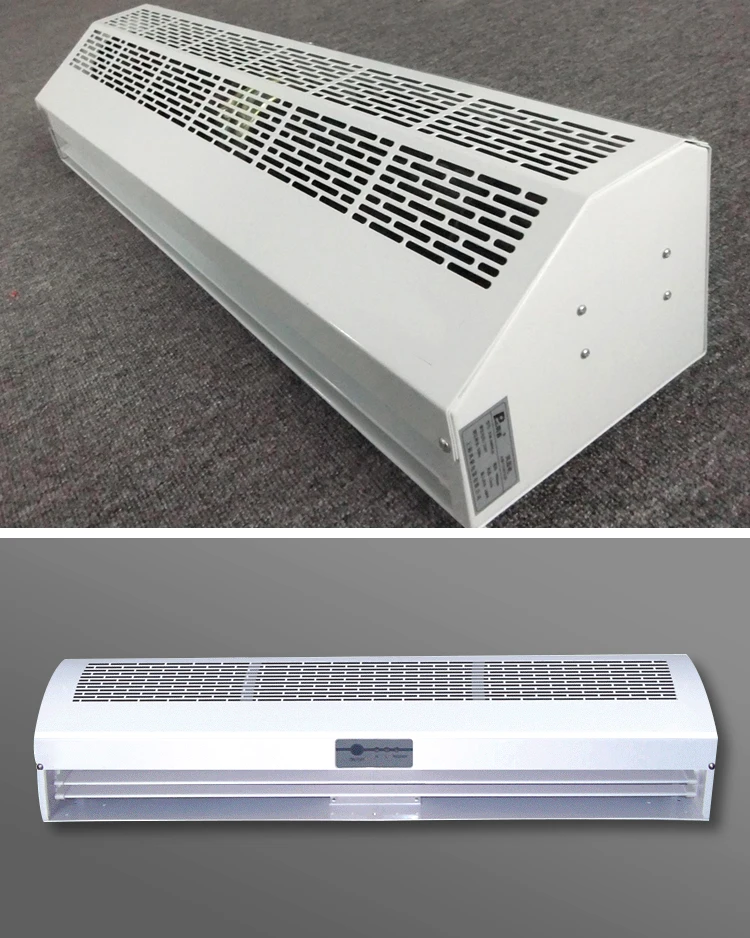

Cross Flow Industrial Fan Door Air Curtain

Product Overview

Description

Cross Flow Industrial Fan Door Air Curtain

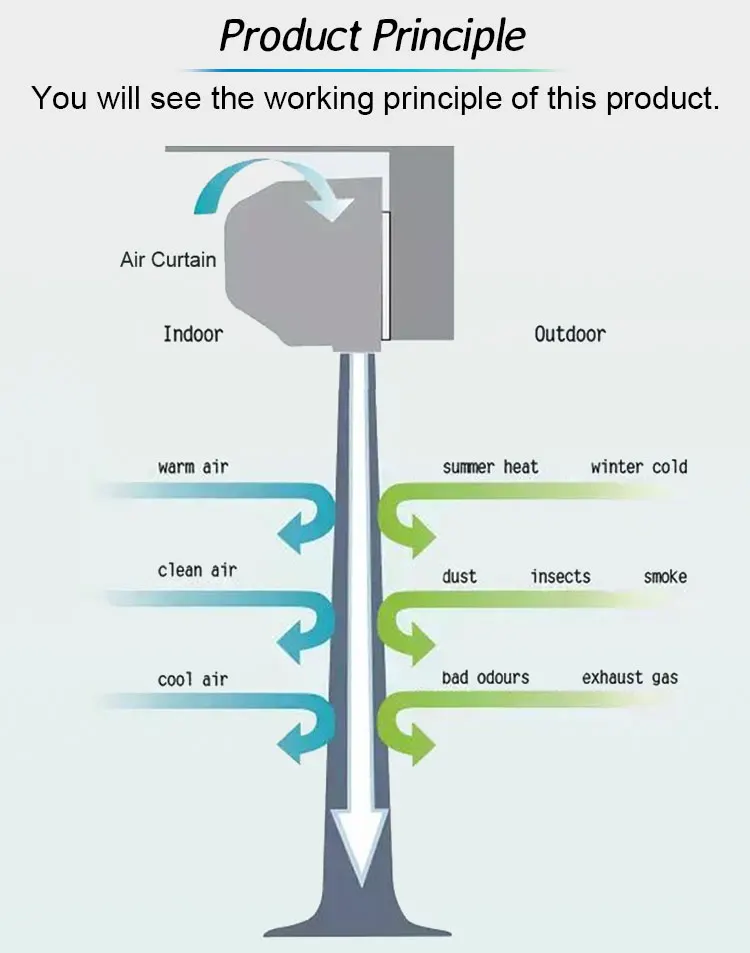

The main function of the air curtain machine is to isolate the air inside and outside the building, to ensure the internal temperature of the building and prevent external bacteria from entering the interior of the building.

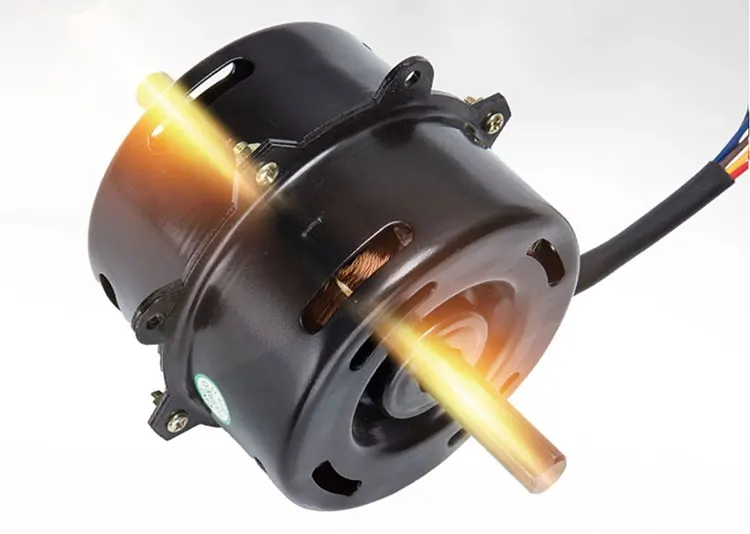

Optimize energy saving motor

Optimize energy saving motors,upgrade strong power, the motor is runing smoothly, Built in thermal protector, safe and reliable performance, safe and reliable continuous transport line 5000hours, is the leader in the motor.

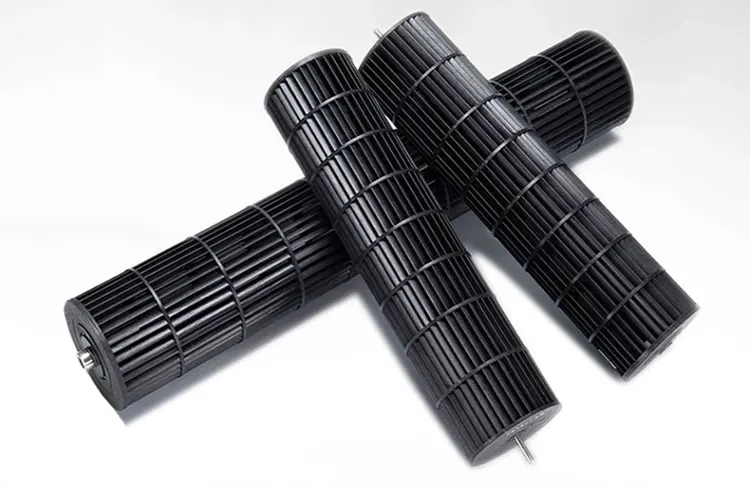

Ultra low noise air evenly

The overall design of high quality glass fiber plastic impeller, the smooth flow speed, unequal spacing mute design.

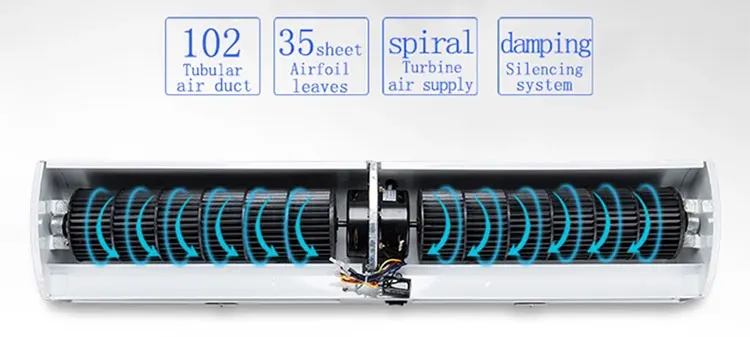

Twin turbine air supply more powerful

Inside the fan spiral vortex duct design, can effectivrly reduce the air flow loss, while reducing the internal resistance noise.



Model	Voltage V	Motor Power w	Wind speed m/s	Air volume m3/min	noise dB(A)	Heater power kw			Air outlet temperature rise ℃	wire(mm2)		Dimensions L * W * H mm
										Simplex	Three phase
RFM/P 125-600	220/380 50Hz	60	4.5	700/600	59	3	6		40-80	2.5-4	1.5-2.5	600 ×180×220
RFM/P 125-900		80	4.5	1100/980	59	5	8		40-80	2.5-4	1.5-2.5	900 ×180x 220
RFM/P 125-1200		120	4.5	1400/1260	59	6	9		40-80	4-6	2.5-4	1200x180×220
RFM/P 125-1500		180	4.5	1800/1600	59	9	12		40-80	6-10	4-6	1500 ×180x 220
RFM/P 125-1800		250	4.5	2200/2000	59	12	18		40-80	10-16	6-10	1800x80×220
RFM/P 150-600		80	6	1000/900	65	3	6		40-80	2.5-4	1.5-2.5	600 x 230x 260
RFM/P 150-900		120	6	1500/1200	65	5	8	10	38-70	2.5-4	1.5-2.5	900 ×230×260
RFM/P 150-1200		180	6	2200/2000	65	6	9	12	38-70	4-6	2.5-4	1200x 230×260
RFM/P 150-1500		250	4.5	3000/2600	65	9	12	16	38-70	6-10	4-6	1500 x 230x 260
RFM/P 150-1800		370	9	3500/3200	65	12	18	24	38-70	10-16	6-10	1800x 230x 260
RFM/P 180-900		250	9	2000/800	71	8	10		35-65	4-6	2.5-4	900 ×260x 290
RFM/P 180-1200		370	9	3000/2700	71	9	12		35-65	6-10	4-6	1200×260 ×290
RFM/P 180-1500		550	9.0	4000/3600	71	12	18		35-65	10-16	6-10	1500 x 260 x 290
RFM/P 180-1800		650	9	4500/4100	71	18	24		35-65	16-25	10-16	1800x 260 x 290

Delivery

TIME OF DELIVERY:Within 35 days after receiving deposit .



Payment

Support T/T , L/C,Aalibaba



Warranty

The whole machine for 3 years.



After-sale

During the warranty period, machines which cannot run due to quality problems,Choose the following options.

1) During the one-year warranty period, non-human factors cause product quality problems, and provide parts replacement and repair and maintenance services.

2) In addition to the one-year warranty period, parts replacement and repair and maintenance services are provided at the user's expense.



Promotion Method

1) Pay the full amount in one lump sum, 1% discount.
2) Recommend other customers to buy and return a part of the commission.
