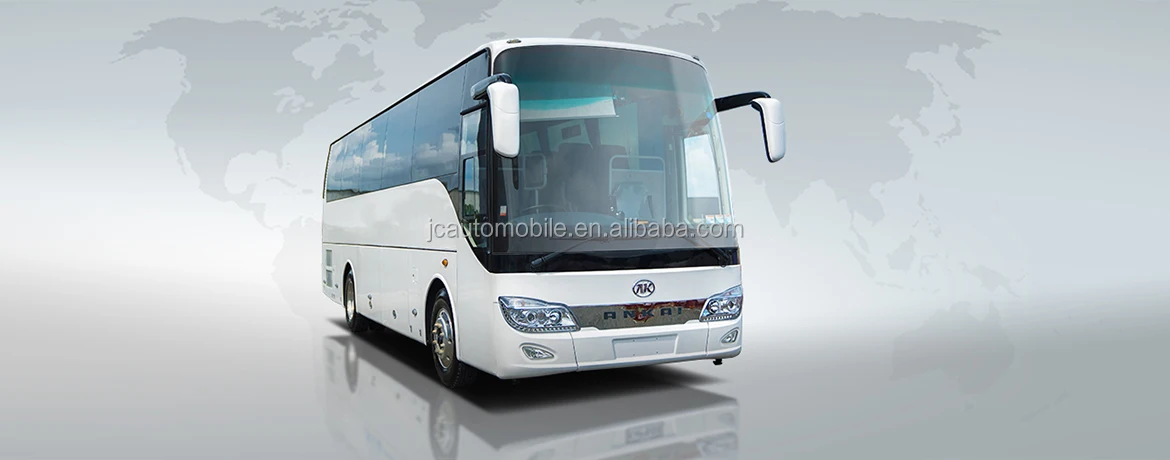

Popular 50-60 Seater Bus Ankai Bus Coach For Sale
Product Description
| Performance | |||
| 1.1 | name | ||
| 1.2 | dimension (L×W×H)(mm) | 10990*2500*3405 | |
| 1.3 | wheel base (mm) | 5500 | |
| 1.4 | overhang(front/rear)(mm) | 2210/3280 | |
| 1.5 | unload (kg) | 11500 | |
| 1.6 | full load | 16500 | |
| 1.8 | approach /departure angle | 10°/9° | |
| 1.9 | fuel tank | 320L | |
| 2.0 | seat capability | 61, 3+2 lay out | |
| Engine | |||
| 2.1 | model | YC6A260-20 | |
| 2.2 | position | rear | |
| 2.3 | type | 6 cylinders in line,water cooling, turbo charger diesel engine | |
| 2.4 | emission | EUROⅡ | |
| 2.5 | displacement | 7.255 | |
| 2.6 | rated power(kw/rpm) | 191/2300 | |
| 2.7 | max.torque(N.m/rpm) | 960/1400-1600 | |
| Chassis | |||
| 3.1 | max.speed(km/h) | 100 | |
| 3.2 | clutch | φ430 | |
| 3.3 | transmission | S6-100 (manual) | |
| 3.4 | retarder | yes | |
| 3.5 | front axle | Ankai axle/ disc detent | |
| rear axle | Ankai axle/ drum detent | ||
| 3.6 | suspension | leaf spring (fr9 rr12) | |
| 3.7 | steering | power steering | |
| 3.8 | service brake | air brake | |
| paking brake | energy storage spring | ||
| 3.9 | capacity of fuel tank (L) | 320L | |
| 3.10 | ABS | yes | |
| 3.11 | tyre | 11R22.5, stainless steel wheel cover | |
| Body&trim | |||
| 4.1 | passenger door | front passenger door | |
| 4.2 | side windows | all sealed windows, except last two windows sliding and 4 safe windows | |
| 4.3 | passenger seat | with seat belts, with foor rest | |
| 4.4 | rear-view | eletric type | |
| 4.5 | video | hard disc palyer + 1 unit 17 inch LCD | |
| 4.6 | air conditioner | roof-mounted | |
| 4.7 | front windshield | laminated glass | |
| 4.8 | rear windshield | tempered galss | |
| 4.9 | paint | pure color paint | |
| 5.0 | curtain | foldable curtains | |
| 4.9 | others | deforster, digital clock, 2 safe hatches with ventilator, interior mirror, sunvisor, one piece of 4kgs Fire extinguisher, self extinguisher in engine room, color reversing camera | |
